| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
TECH NOTE: Aftermarket front upper control arms required for installation |
| Description_ASC |
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. |
| Description_DEF |

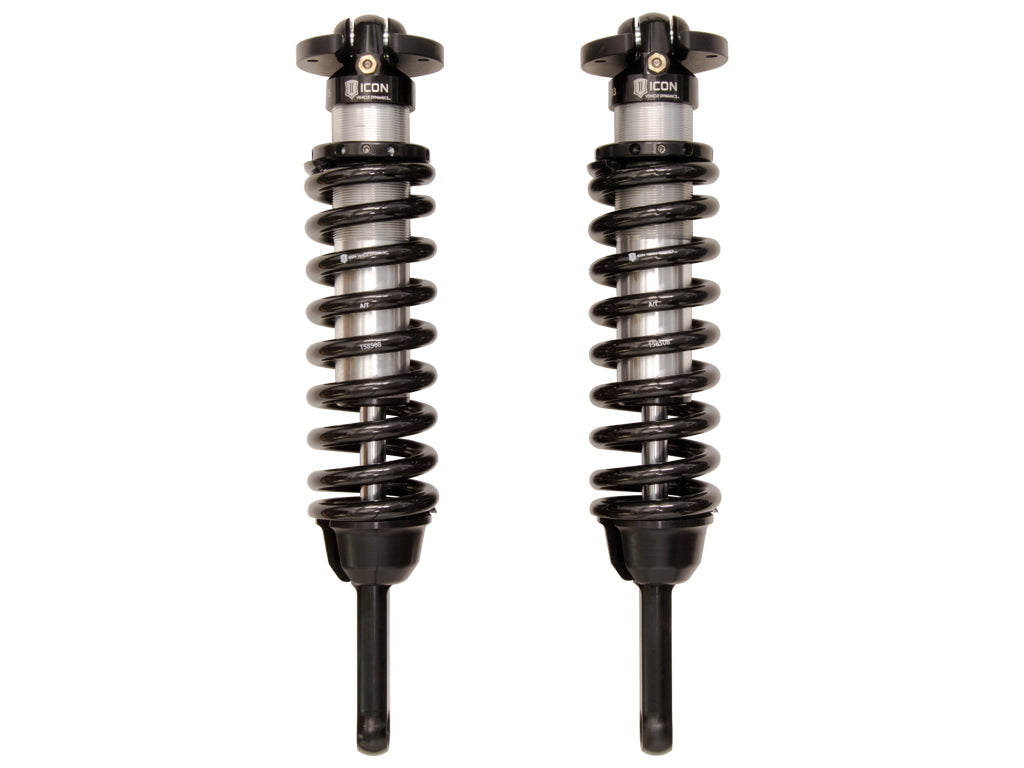

Coilover Spring and Shock Assembly |
| Description_EXT |
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable. |
| Description_DES |
10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700 |
| Description_MKT |
ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. |
| Description_INV |
58647-700 |
| Description_FAB |
Adjustable coilovers yield 0-3.5" of front lift height |
| Description_FAB |
Coil springs rated at 700 lb-in |
| Description_FAB |
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use |
| Description_FAB |
Extended Travel length requires installation of aftermarket front upper control arms |
| Description_FAB |
Superior low speed control reduces body roll and increases on-road stability |
| Description_FAB |
High quality ICON-engineered coil springs with higher spring rate included to better support added weight to front end |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB |
FK Rod End bearings provide extended longevity and minimal deflection |
| Description_FAB |
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life |
| Description_FAB |
Bolt-in design makes for an easy install into OEM shock location |
| Description_SHO |
FJ/T4R/GX COILOVERS |
| Description_TRA |
ICON 2010-Up Toyota 4Runner/FJ/Lexus GX 2.5 VS Ext Travel Coilover Kit, 700lb, 58647-700 |
| Description_TLE |
ICON 2010-Up Toyota 4Runner/FJ/Lexus GX 2.5 VS Ext Travel Coilover Kit, 700lb |
| Adjustable Damping |
NO |
| Coil Over Springs Included |
Yes |
| Shaft Diameter |
0.875 |
| Remote Reservoir |
NO |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Spring Color |
Black |
| Dust Shield |
No |
| Material |
Aluminum |
| Title |
10-UP FJ/4RNR/10-UP GX EXT TRAVEL 2.5 VS IR COILOVER KIT 700 |
| Spring Material |
Steel |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| OEM Wheels & Tires Fitment |
Yes |
| Spring Rate |
700 |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Grade Type |
Performance |
| Damping Type |
Oil |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
26.0000 |
| Weight |
50.0000 |
