| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) |
| Description_ASC |
TECH NOTE: Aftermarket front upper control arms required for installation |
| Description_ASC |
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. |
| Description_ASC |
TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock |
| Description_ASM |

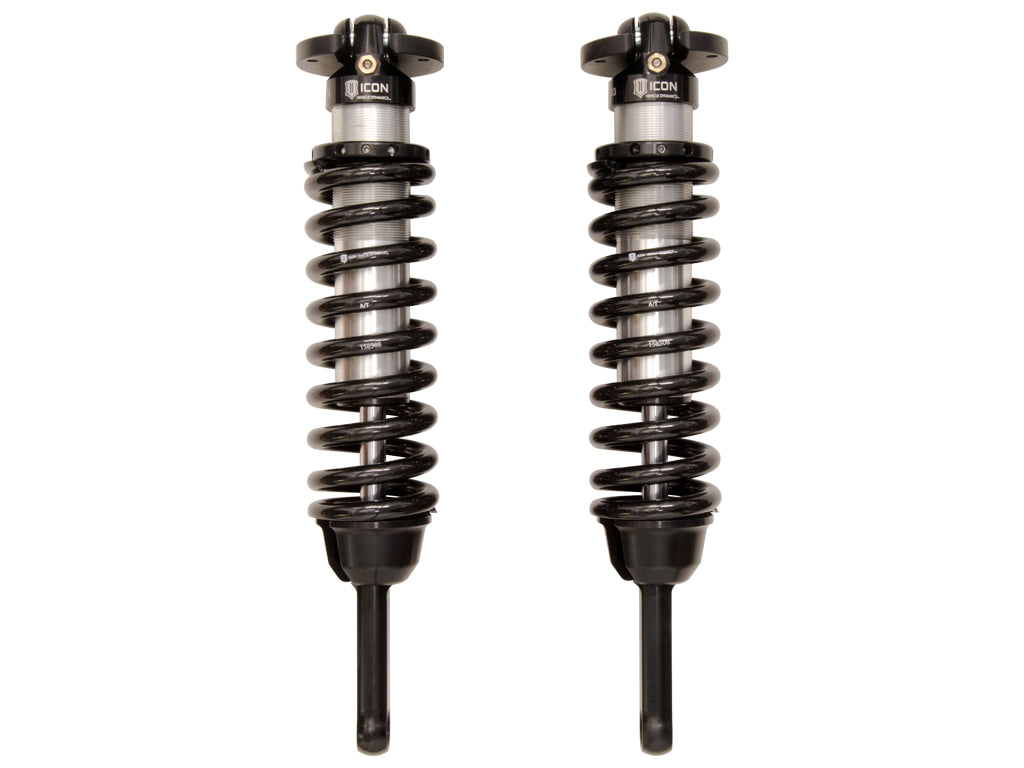

ICON 05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_EXT |
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable. |
| Description_DES |
05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
| Description_INV |
05-UP TACOMA EXT 2.5 VS IR CO KIT 700LB |
| Description_MKT |
These extended length ICON VS 2.5 Series coilovers offer increased wheel travel but also require the installation of aftermarket upper control arms. They are vehicle specific, 100% rebuildable, and 100% revalveable. |
| Description_FAB |
Adjustable coilovers yield 0-2.75" of front lift height |
| Description_FAB |
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use |
| Description_FAB |
Extended Travel length requires installation of aftermarket front upper control arms ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends |
| Description_FAB |
Superior low speed control reduces body roll and increases on-road stability |
| Description_FAB |
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage |
| Description_FAB |
Corrosion resistant CAD plated shock body with 7/8" shaft |
| Description_FAB |
FK Rod End bearings provide extended longevity and minimal deflection |
| Description_FAB |
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life |
| Description_FAB |
Bolt-in design makes for an easy install into OEM shock location |
| Description_SHO |
TACOMA COILOVERS |
| Description_TRA |
ICON 2005-Up Toyota Tacoma 2.5 VS Extended Travel Coilover Kit, 700lb Coils, 58635-700 |
| Description_TLE |
ICON 2005-Up Toyota Tacoma 2.5 VS Extended Travel Coilover Kit, 700lb Coils |
| Add-On Part |
191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25) |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Coil Over Springs Included |
Yes |
| Service Parts |
252001 - 2.5 FIXED SPANNER WRENCH |
| Shaft Diameter |
0.875 |
| Remote Reservoir |
NO |
| Adjustable Damping |
NO |
| Spring Color |
Black |
| Grade Type |
Performance |
| Recommended Aftermarket Tires |
33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Material |
Aluminum |
| Dust Shield |
No |
| OEM Wheels & Tires Fitment |
Yes |
| Spring Material |
Steel |
| Damping Type |
Oil |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Title |
05-UP TACOMA EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
26.0000 |
| Weight |
47.0000 |
