| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (37" tire packages may require fender trimming and modifications) |
| Description_ASC |
TECH NOTE: Only compatible with 2021-2023 Ford Broncos equipped with HOSS 2.0 Suspension Package |
| Description_ASC |
TECH NOTE: EXP Coilovers are sold individually. A quantity of 2 are required per vehicle. |
| Description_ASC |
TECH NOTE: Not compatible with Bronco Raptor |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
21-23 BRONCO HOSS 2.0 PKG 2.5 REAR EXP COILOVER |
| Description_FAB |
Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
2.5 Aluminum Series Shock with Internal Reservoir |
| Description_FAB |
Adjustable ride heights from 0-1.75" of rear lift over stock with the use of snap ring |
| Description_FAB |
Utilizes factory coil and coil hardware |
| Description_FAB |
Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft |
| Description_FAB |
One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish |
| Description_FAB |
CNC machined 6061 aluminum components with a black anodized finish |
| Description_FAB |
PTFE lined spherical bearing for extended longevity and minimal deflection |
| Description_FAB |
100% Bolt-on - no cutting or welding necessary for installation |
| Description_FAB |
Fully rebuildable and re-tunable |
| Description_EXT |
Based on ICON's 2.5 Series, these EXP shocks bridge the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance, and maximum travel, all in one economical package. |
| Description_INV |
48612 |
| Description_MKT |

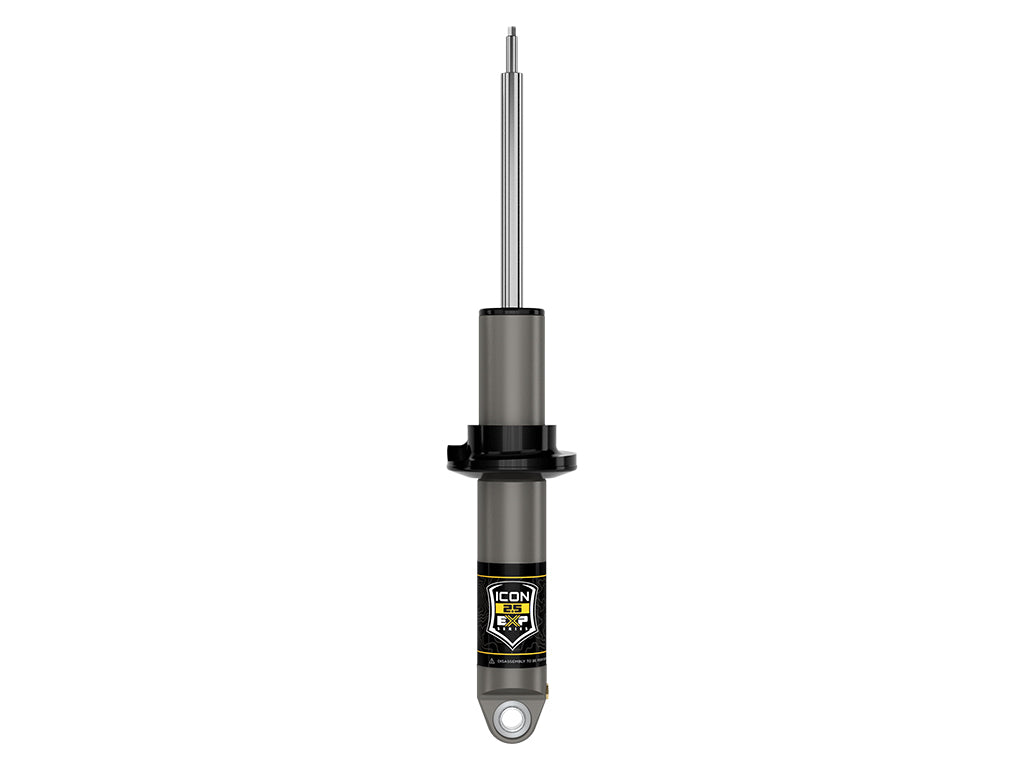

The 2021-2023 Ford Bronco EXP Series rear shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package. |
| Description_MKT |

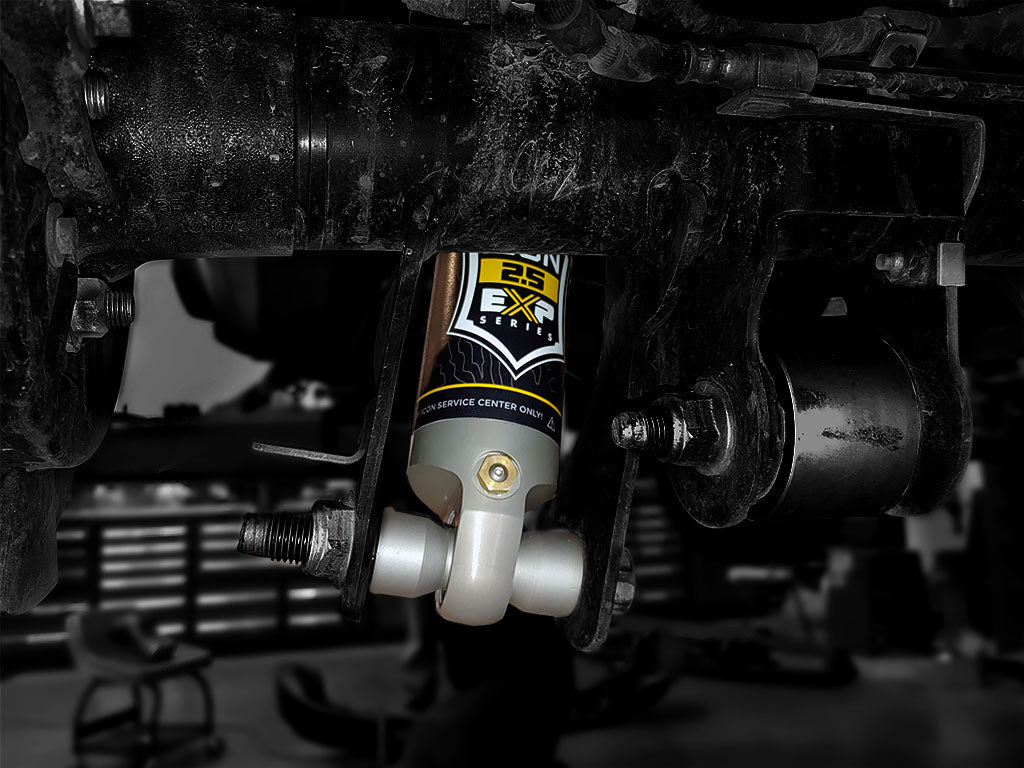

EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. EXP shocks use the factory shaft-up orientation, with the shaft ends machined to re-use the Bronco's OE upper shock and spring mounts. |
| Description_MKT |

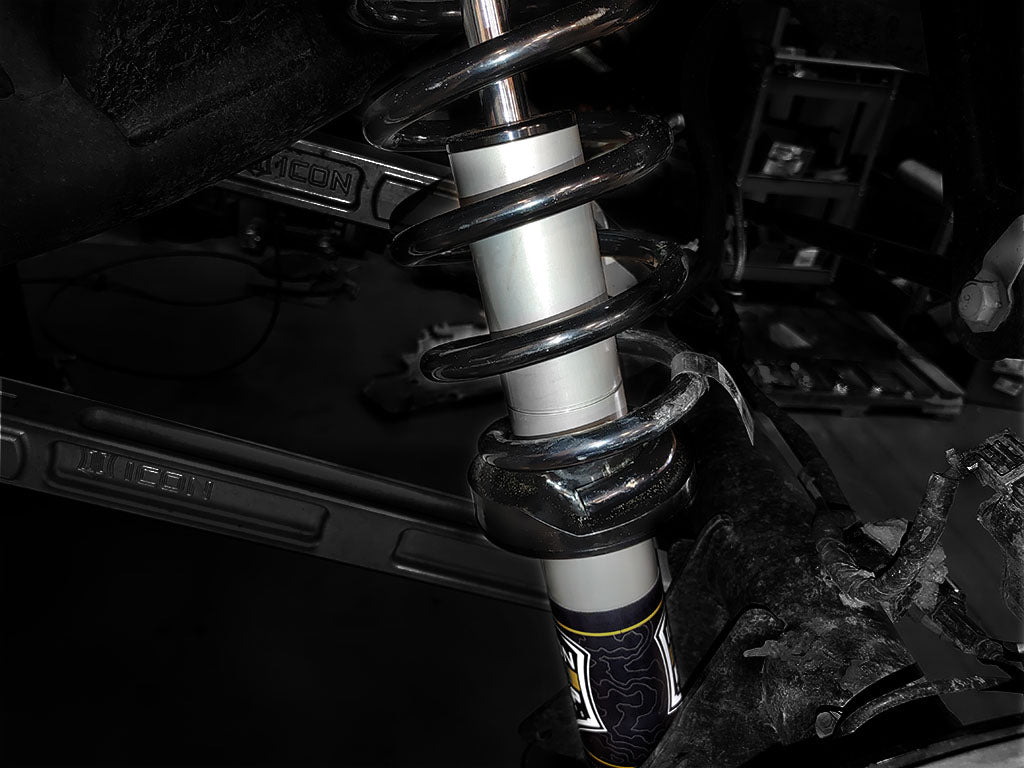

The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model's OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable rear-end ride height adjustment from 0" to 1.75" of lift over stock on Bronco's equipped with the OE HOSS 2.0 suspension package. |
| Description_MKT |
EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON. |
| Description_MKT |
HOSS 2.0 is Ford's upgraded suspension system for Broncos of the Base, Big Bend, Outer Banks and Black Diamond trim levels WITH the optional Sasquatch package, and it is also standard on Badlands, Wildtrak, First Edition and Everglades. HOSS 2.0 is most easily identified by the YELLOW shock bodies of the OE shocks. |
| Description_SHO |
EXP COILOVER |
| Description_TLE |
ICON 2021-2023 Ford Bronco, Hoss 2.0 Pkg, Rear, 0-1.75" Lift, 2.5 EXP Coilover |
| Description_TRA |
ICON 2021-Up Ford Bronco, Hoss 2.0 Pkg, Rear, 0-1.75" Lift, 2.5 EXP Coilover, 48612 |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Minimum Lift |
0 |
| Service Parts |
252010 - 2.5 IFP REBUILD KIT |
| Maximum Lift |
3 |
| OEM Wheels & Tires Fitment |
Yes |
| Adjustable Damping |
NO |
| Recommended Aftermarket Wheels |
(With Sasquatch Package): ICON Alloys |
| Spring Rate Type |
Linear |
| Spring Color |
Black |
| Coil Over Springs Included |
No |
| Grade Type |
Performance |
| Shaft Diameter |
0.875 |
| Spring Material |
Steel |
| Dust Shield |
No |
| Remote Reservoir |
NO |
| Title |
21-UP BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER |
| Damping Type |
Oil |
| Recommended Aftermarket Tires |
(With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications) |
| Material |
Aluminum |
| Length |
5.0000 |
| Width |
6.0000 |
| Height |
32.0000 |
| Weight |
13.0000 |
