| Description_ASC |
OEM Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) |
| Description_ASC |
Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) |
| Description_ASC |
Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) |
| Description_ASC |
APPLICATION NOTE #133: WHEN RUNNING 37" TIRES USE UP TRAVEL LIMITER'S PART #611074 FOR THE REAR |
| Description_ASC |
TECH NOTE: Triple rate rear coils are optimized for improved suspension performance and ride quality for a near-stock weight Bronco. Their softer initial spring rates will net lower than advertised ride heights as weight is added to the rear of the vehicle. For heavier equipped Broncos, consider part number 48613. |
| Description_ASC |
TECH NOTE: Lift height ranges advertised are for 4-door models. 2-door models will net approximately .5" of additional rear lift over stock. |
| Description_ASC |
TECH NOTE: Not compatible with Bronco Raptor |
| Description_ASM |

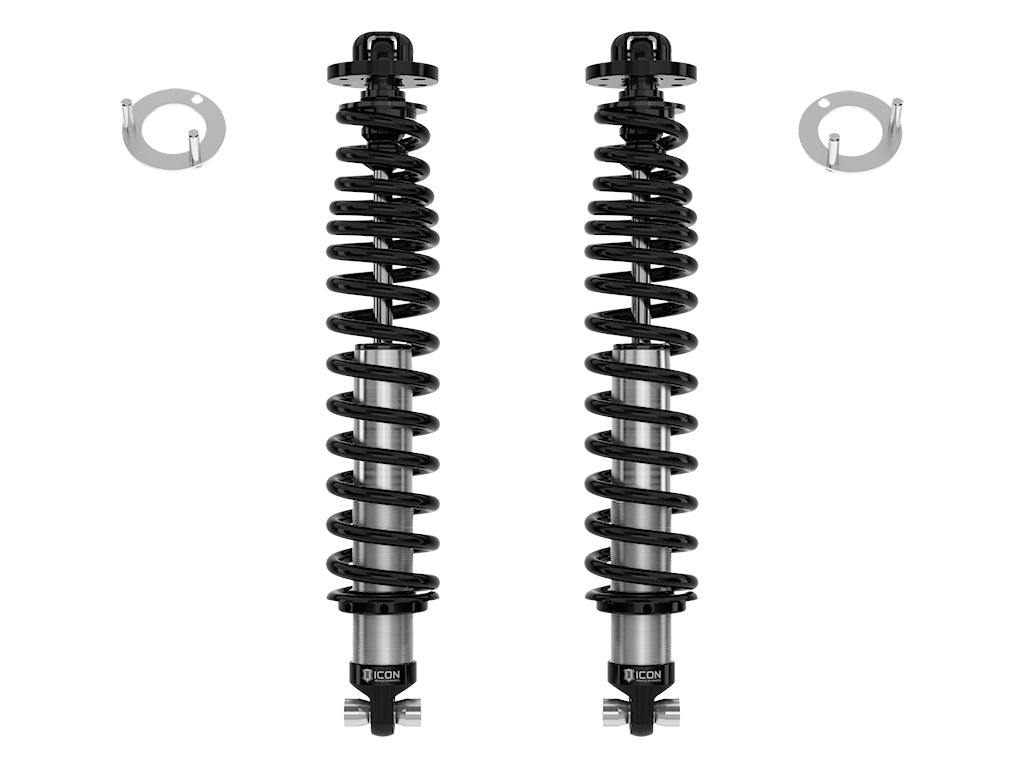

ICON 21-UP BRONCO REAR 2.5 VS IR COILOVER KIT |
| Description_DEF |
Coilover Spring and Shock Assembly |
| Description_DES |
21-23 BRONCO REAR 2.5 VS IR COILOVER KIT |
| Description_FAB |
Increased wheel travel (up to 14") and ride quality over stock |
| Description_FAB |
Vehicle specific tuned for superior shock damping and control |
| Description_FAB |
Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25" of rear lift on Sasquatch Broncos |
| Description_FAB |
Unique ICON engineered triple rate coil springs |
| Description_FAB |
6061 Aircraft grade aluminum CNC machined components |
| Description_FAB |
Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft |
| Description_FAB |
FK rod end bearings for extended longevity and minimal deflection |
| Description_FAB |
Fully rebuildable and re-tunable |
| Description_FAB |
100% Bolt-on - no drilling, cutting or welding necessary for installation |
| Description_EXT |
These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride quality across varying types of terrain. |
| Description_INV |
48610 |
| Description_SHO |
COILOVER KIT |
| Description_MKT |
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 2-3" of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25" of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5" shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive triple rate coil springs, allowing for softer spring rate at ride height that ramps up as the coil compresses for improved bottom out resistance. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco. |
| Description_TRA |
ICON 2021-Up Ford Bronco, Rear, 1.25-3" Lift, 2.5 VS Coilover Kit, 48610 |
| Description_TLE |
ICON 2021-2023 Ford Bronco, Rear, 1.25-3" Lift, 2.5 VS IR Coilover Kit |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Material |
Aluminum |
| Grade Type |
Performance |
| Dust Shield |
No |
| Spring Color |
Black |
| Title |
21-UP BRONCO REAR 2.5 VS IR COILOVER KIT |
| Recommended Aftermarket Tires |
(With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) |
| Adjustable Damping |
NO |
| Shaft Diameter |
0.875 |
| Add-On Part |
198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Maximum Lift |
3 |
| Recommended Aftermarket Wheels |
(With Sasquatch Package): ICON Alloys |
| Remote Reservoir |
NO |
| Damping Type |
Oil |
| Spring Material |
Steel |
| OEM Wheels & Tires Fitment |
Yes |
| Coil Over Springs Included |
Yes |
| Spring Rate Type |
Progressive Triple Rate |
| Service Parts |
252010 - 2.5 IFP REBUILD KIT |
| Length |
6.0000 |
| Width |
7.0000 |
| Height |
37.0000 |
| Weight |
65.0000 |
