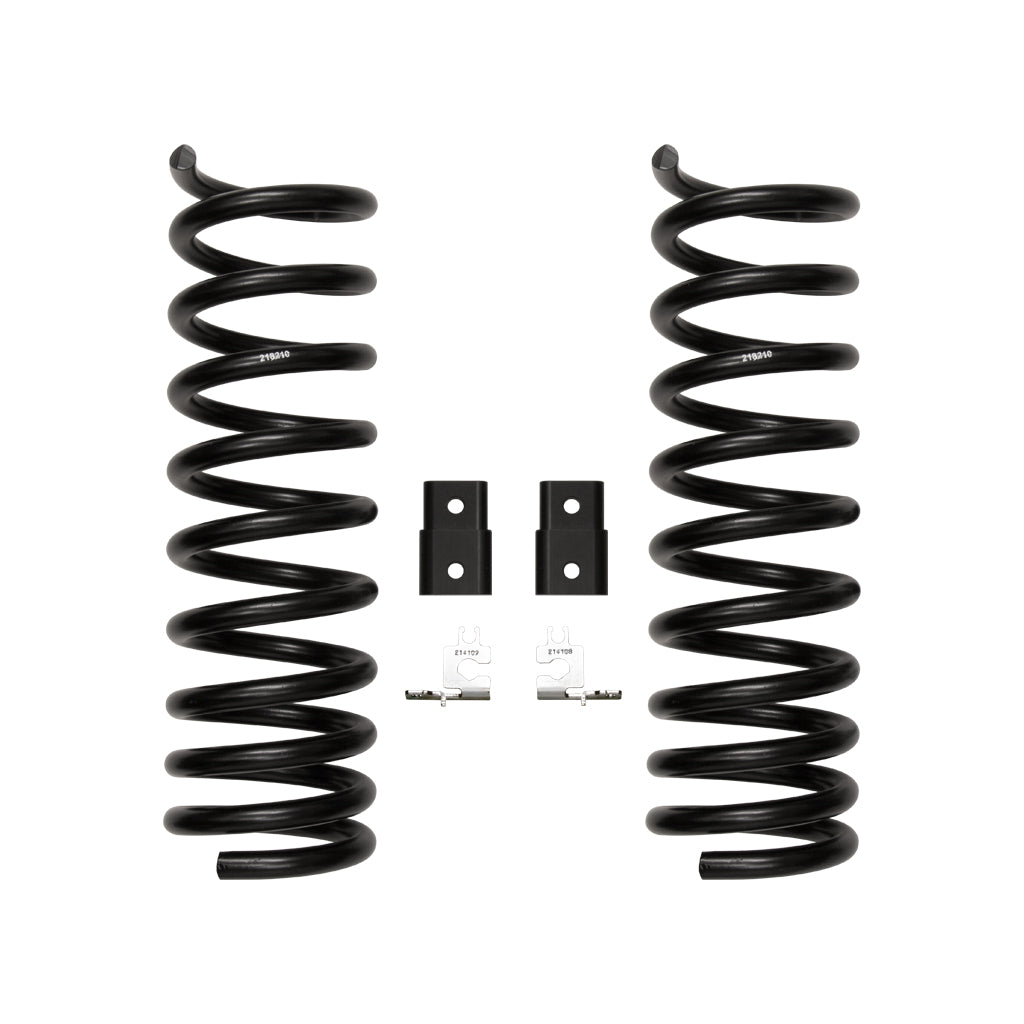

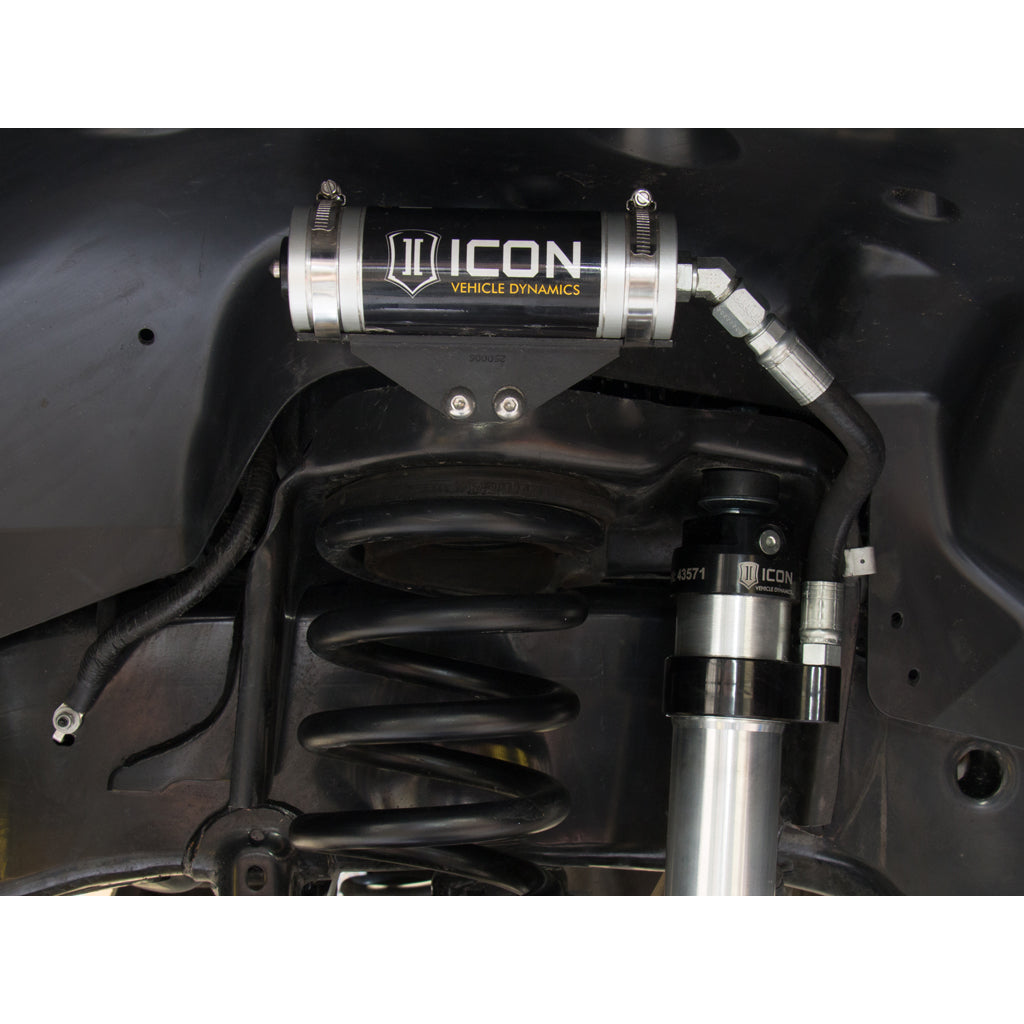

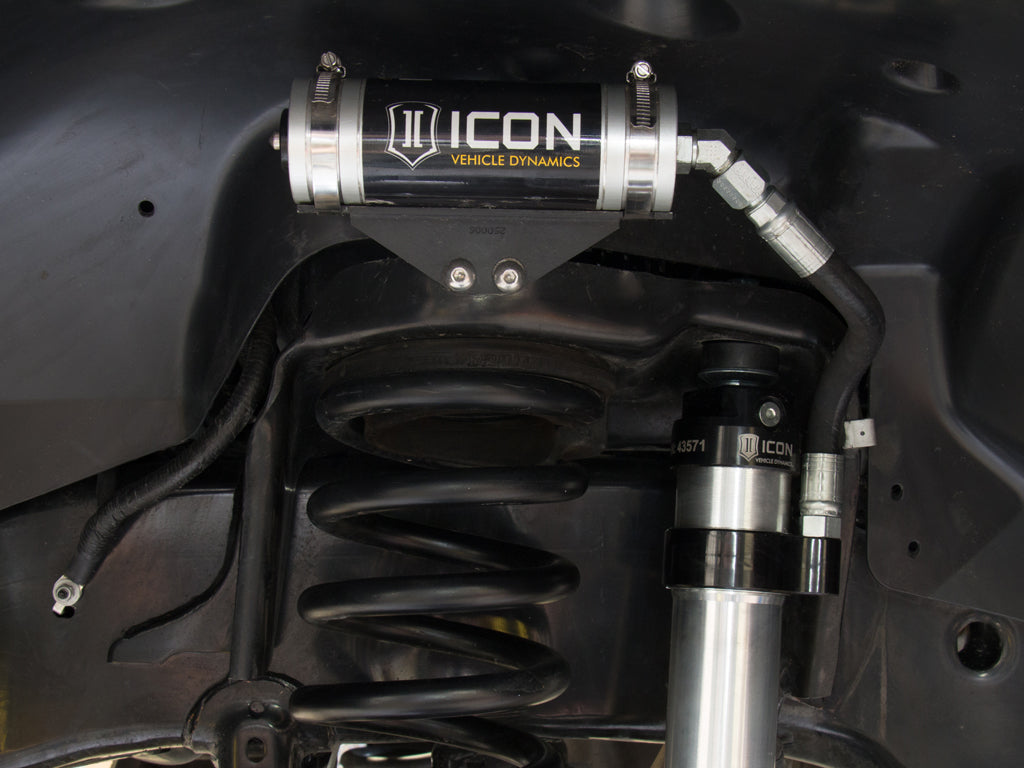

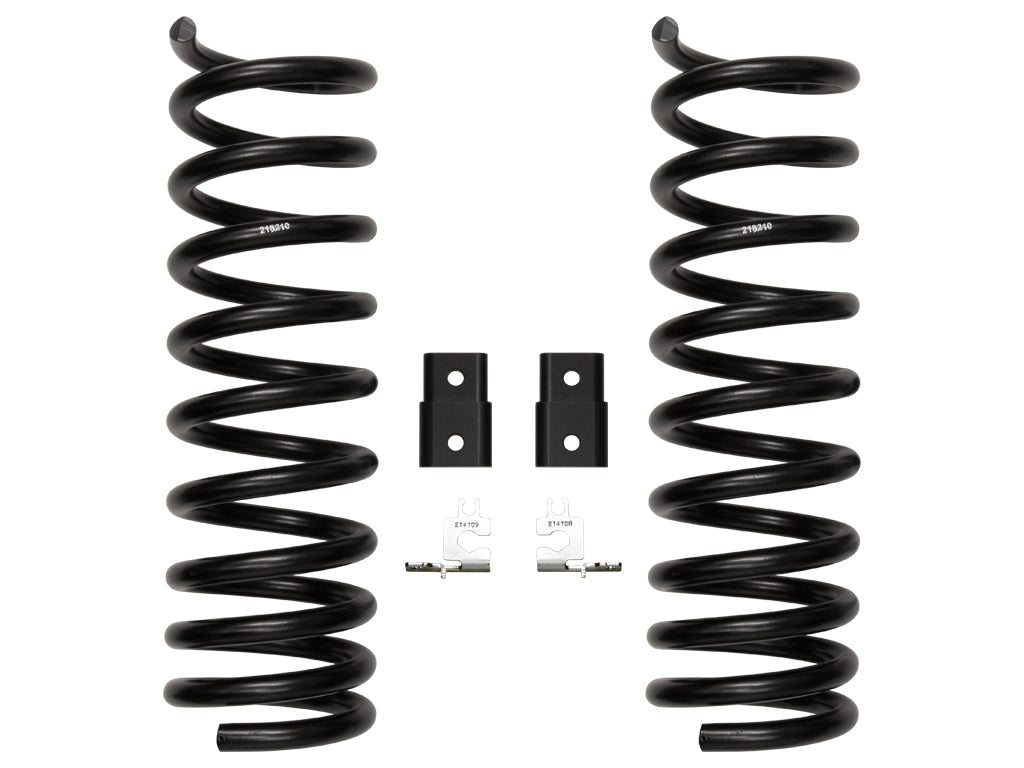

The ICON Vehicle Dynamics 2.5" Dual Rate Spring System for 2014-UP Ram 2500 / 2013-Up 3500 4WD levels out your truck and offers you both incredible ride quality and performance. This 2.5" dual rate spring system offers an initial soft ride zone with an aggressive second rate to help prevent bottoming out and are optimized for use on trucks equipped with diesel engines. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. Front extended length shocks are required for complete installation, and we offer 2.0 Aluminum Series smooth body and Remote Reservoir or our 2.5 Series Reservoir shock with or without CDC (Compression Damping Contol) Valve. All ICON shocks are engineered to be the correct length offering maximum droop and compression travel, then tuned to work hand in hand with these springs for the best available on and offroad performance.
Specifications:
| Description_ASC |
Factory Wheels & Tires Fitment: Yes |
| Description_ASC |
Recommended Aftermarket Wheels: 8.5" wide wheel with 5.75" backspace |
| Description_ASC |
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Description_ASC |
TECH NOTE: Springs rates optimized for use with trucks with diesel engines |
| Description_ASM |
ICON 14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT |
| Description_DEF |
Coil Spring Set |
| Description_DES |
14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT |
| Description_EXT |
Level out your truck and enjoy both incredible ride quality and rugged performance. These coils offer an initial soft ride zone for the street with an aggressive second rate to help prevent bottoming out on the trail. |
| Description_INV |
214200 |
| Description_MKT |
The ICON Vehicle Dynamics 2.5" Dual Rate Spring System for 2014-UP Ram 2500 / 2013-Up 3500 4WD levels out your truck and offers you both incredible ride quality and performance. This 2.5" dual rate spring system offers an initial soft ride zone with an aggressive second rate to help prevent bottoming out and are optimized for use on trucks equipped with diesel engines. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. Front extended length shocks are required for complete installation, and we offer 2.0 Aluminum Series smooth body and Remote Reservoir or our 2.5 Series Reservoir shock with or without CDC (Compression Damping Contol) Valve. All ICON shocks are engineered to be the correct length offering maximum droop and compression travel, then tuned to work hand in hand with these springs for the best available on and offroad performance. |
| Description_FAB |
ICON engineered dual rate coil springs |
| Description_FAB |
Increased wheel travel and ride quality over stock |
| Description_FAB |
Less body roll than stock |
| Description_FAB |
Front extended length shocks are required for complete installation |
| Description_FAB |
No drive shaft modifications needed |
| Description_FAB |
No change in towing capacity |
| Description_SHO |
FRONT SPRING KIT |
| Description_TLE |
ICON 2014-Up Ram 2500, 2.5" Lift, Front, Dual Rate Coil Spring Kit |
| Description_TRA |
ICON 2014-Up Ram 2500, 2.5" Lift, Front, Dual Rate Coil Spring Kit, 214200 |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| OEM Wheels & Tires Fitment |
Yes |
| Title |
14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT |
| Maximum Lift Height |
2.5 |
| Recommended Aftermarket Tires |
35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels |
ICON Alloys |
| Length |
7.0000 |
| Width |
13.0000 |
| Height |
21.0000 |
| Weight |
52.0000 |
