The ICON multi-rate leaf spring is a modular, user-adjustable product that offers a major performance gain for almost every accessory & gear setup imaginable. To improve the front-to-rear balance and increase the compliance of the truck, the spring rate has been lowered significantly compared to the OE spring. While many Ranger owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. Taking this into consideration, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding additional spring rate that will handle more "outfitted" vehicles. Aditionally, features like greaseable tip inserts and leaf separators reduce friction and increase ride comfort, while heavy duty eyelet bushings provide excellent durability and noise free operation.
Specifications:
| Description_ASC |
TECH NOTE: The ICON Multi-Rate Leaf Spring (Part# 198520A) reuses the OEM leaf spring rear eyelet hat bushings |
| Description_ASC |
TECH NOTE: These leaf springs are sold individually. A quantity of 2 are required per vehicle |
| Description_ASC |
TECH NOTE: Hardware kit part # 91200H required for installation (sold separately) |
| Description_ASC |
TECH NOTE: Not compatible with Ranger Raptor |
| Description_ASM |

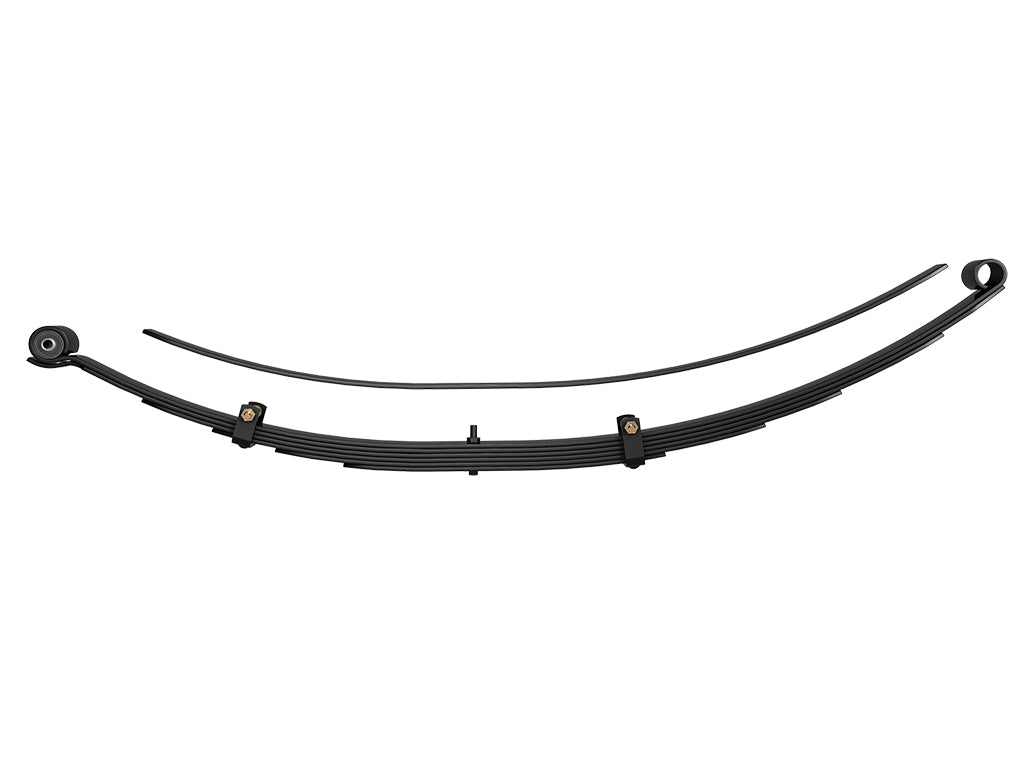

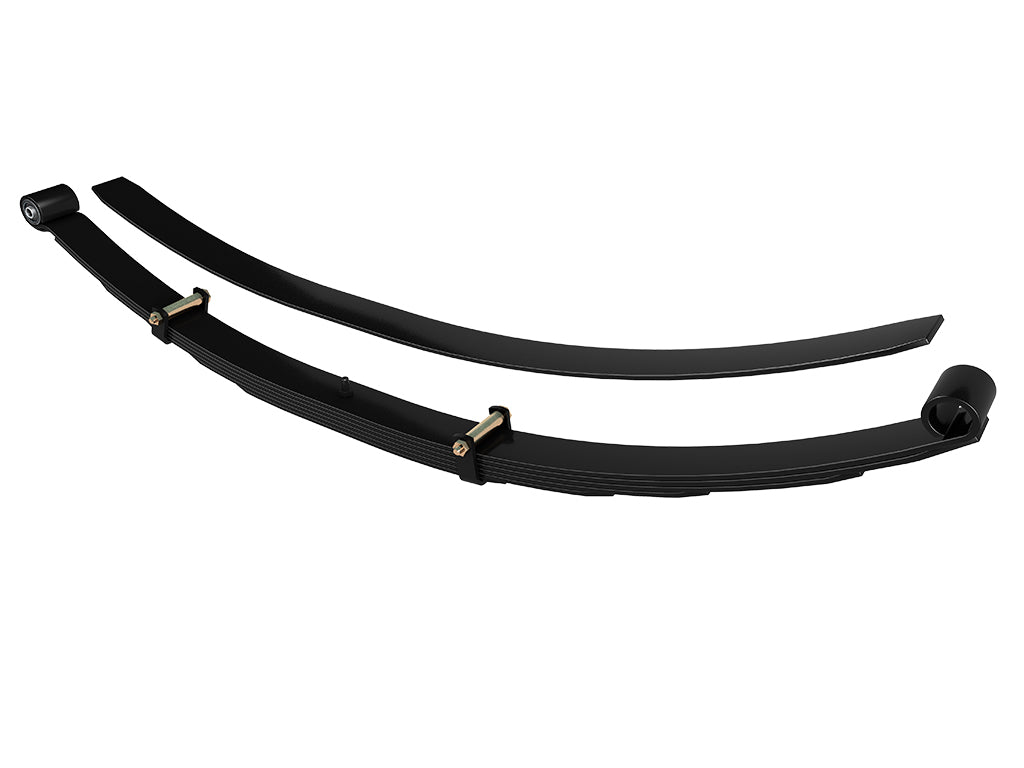

ICON 19-UP RANGER MULTI RATE LEAF PACK W/ ADD IN LEAF |
| Description_DEF |
Leaf Spring Kit |
| Description_DES |
19-23 RANGER MULTI RATE LEAF PACK W/ ADD IN LEAF |
| Description_EXT |
This ICON user-adjustable multi-rate leaf pack features tip inserts and leaf separators to reduce friction and increase ride comfort, while a military wrapped front eyelet improves durability and strength. |
| Description_INV |
198520A |
| Description_MKT |
The ICON multi-rate leaf spring is a modular, user-adjustable product that offers a major performance gain for almost every accessory & gear setup imaginable. To improve the front-to-rear balance and increase the compliance of the truck, the spring rate has been lowered significantly compared to the OE spring. While many Ranger owners will embrace this, there are those who have outfitted their trucks with a significant amount of weight in the form of a bed rack, roof top tent, spare tires, parts, or other additions. Taking this into consideration, the leaf pack was designed with an additional leaf (included with kit) that can be exchanged or added to the pack yielding additional spring rate that will handle more "outfitted" vehicles. Aditionally, features like greaseable tip inserts and leaf separators reduce friction and increase ride comfort, while heavy duty eyelet bushings provide excellent durability and noise free operation. |
| Description_FAB |
3 user-adjustable spring rates for unique vehicle configurations |
| Description_FAB |
Significantly lighter spring rate (up to 35%) allows for smooth motion throughout the entire range of travel |
| Description_FAB |
Improved front-to-rear vehicle balance and compliance |
| Description_FAB |
Optimized wheel position for maximum tire clearance |
| Description_FAB |
Galvanized leaf separators reduce friction and aid in corrosion resistance |
| Description_FAB |
Greaseable leaf tip inserts reduce noise and increase ride comfort |
| Description_FAB |
Direct bolt-in to OEM spring location makes for an easy install |
| Description_FAB |
ΓÇ£ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability |
| Description_SHO |
LEAF SPRING |
| Description_TLE |
ICON 2019-2023 Ford Ranger, Multi Rate Leaf Pack Spring w/Add In Leaf |
| Description_TRA |
ICON 2019-21 Ford Ranger, Multi Rate Leaf Pack Spring w/Add In Leaf, 198520A |
| Suspension Grade Type |
Performance |
| Minimum Lift |
.375 |
| California Proposition 65 |
WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm. |
| Maximum Lift |
2 |
| Mounting Hardware Included |
No |
| Add-On Part |
91200H - 19-23 RANGER MULTI RATE LEAF SPRING HARDWARE KIT |
| Leaf Quantity |
7 |
| Grade Type |
Performance |
| Title |
ICON 2019-2023 Ford Ranger, Multi Rate Leaf Pack Spring w/Add In Leaf |
| Spring Material |
Steel |
| Bushings Included |
Yes |
| Spring Color |
Black |
| U Bolts Included |
No |
| Length |
10.0000 |
| Width |
48.0000 |
| Height |
48.0000 |
| Weight |
75.0000 |
