All-New 5-Speed RWD Manual Transmission Designed Specifically for the Aftermarket. Designed for multiple applications with little to no floor pan modifications. Compact, end-loaded design provides the perfect solution for custom builds. Outstanding shift-ability at high RPMs (up to 7500) to match modern, high-performance engines. 600 pound-foot (lb.-ft.) of torque capacity. Single overdrive reduces engine wear and fuel consumption for comfortable roadway driving
Specifications:
| Description_DEF |
Manual Transmission Assembly |
| Description_DES |

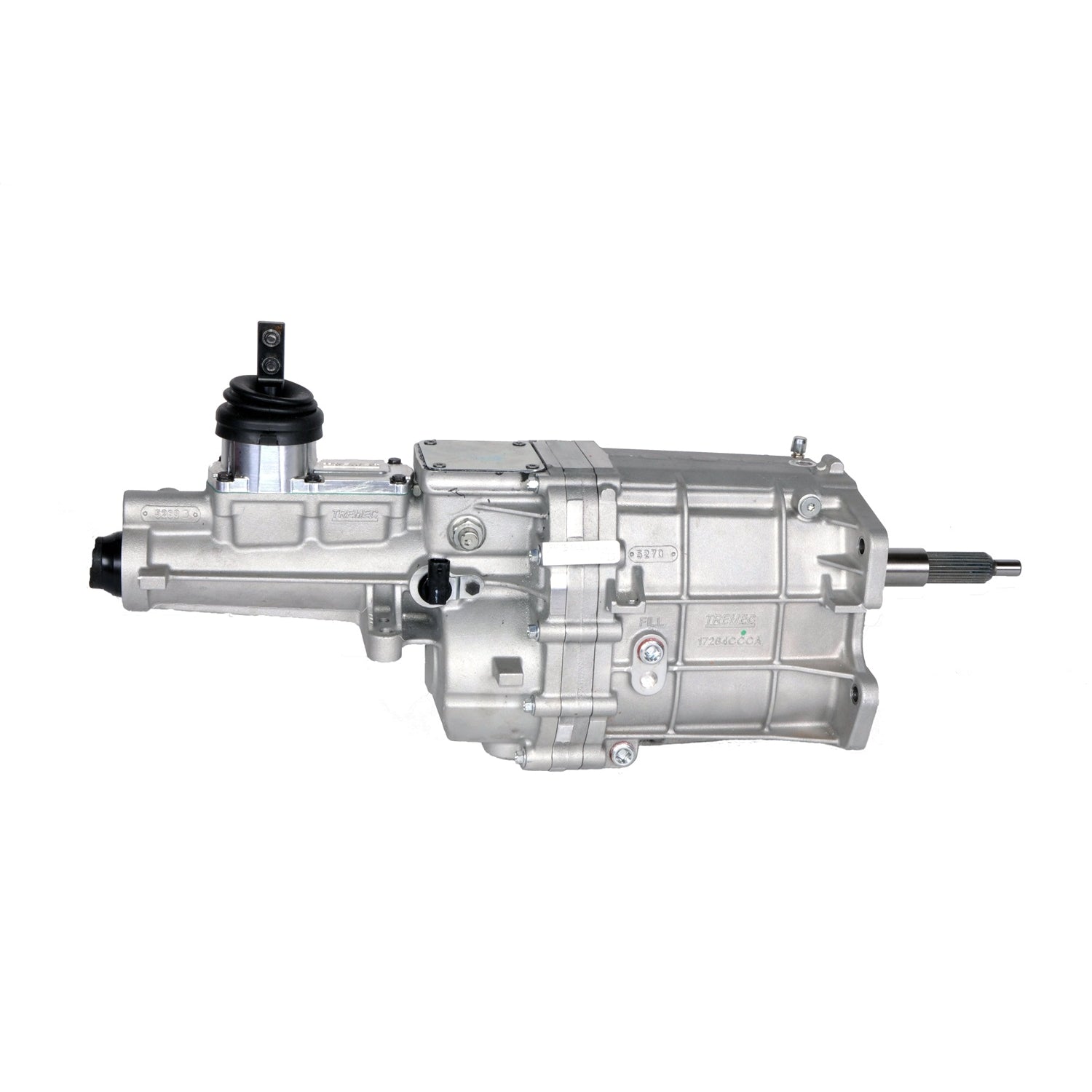

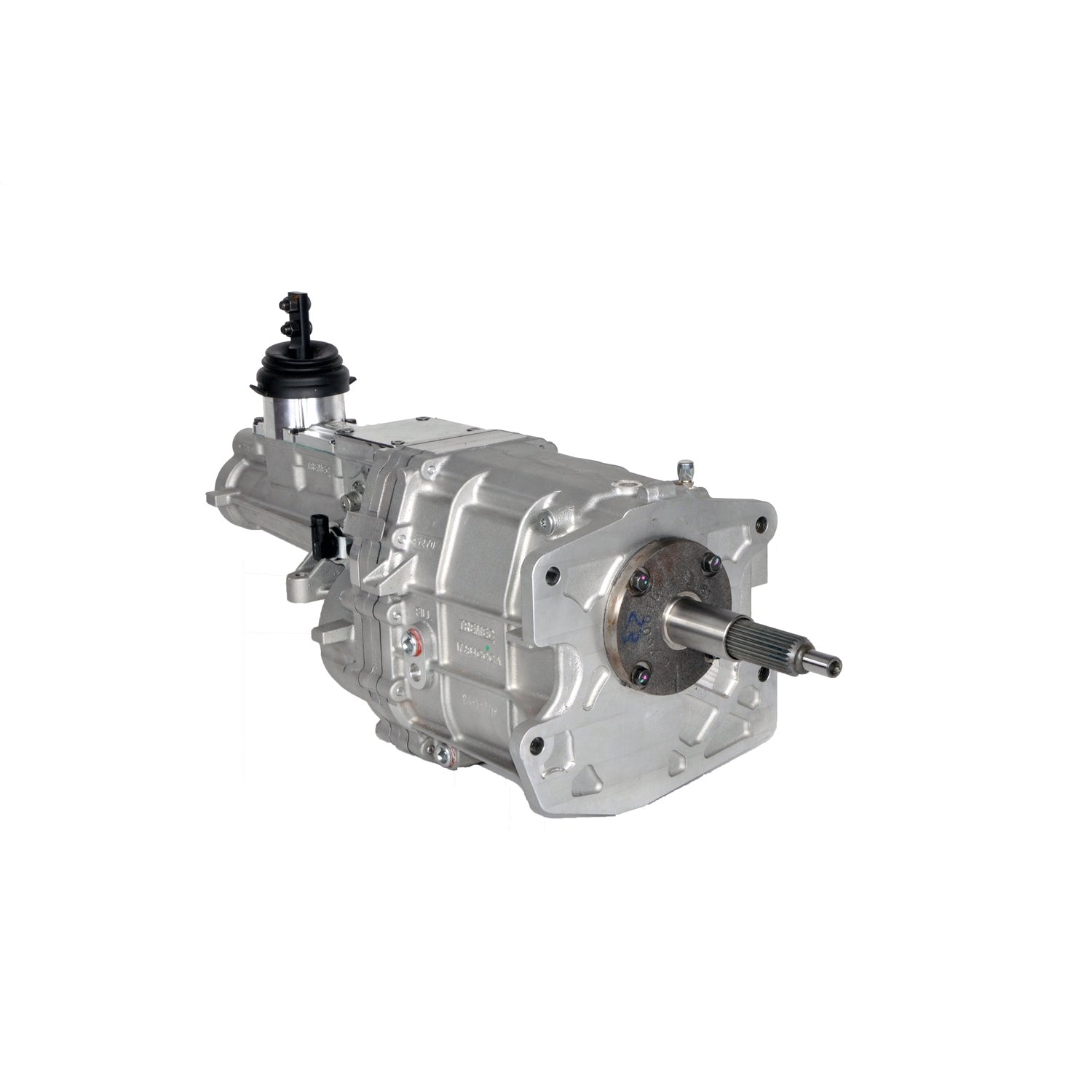

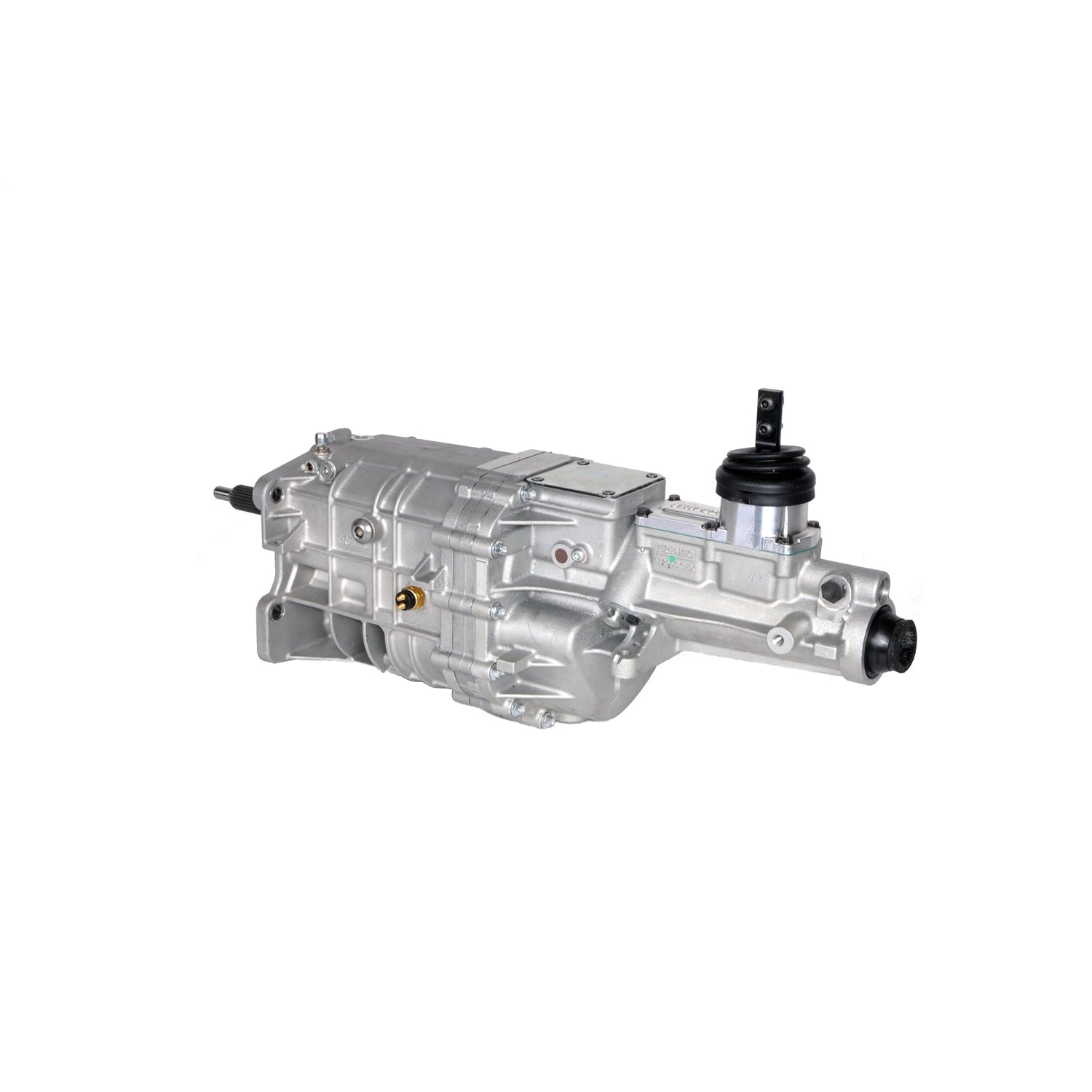

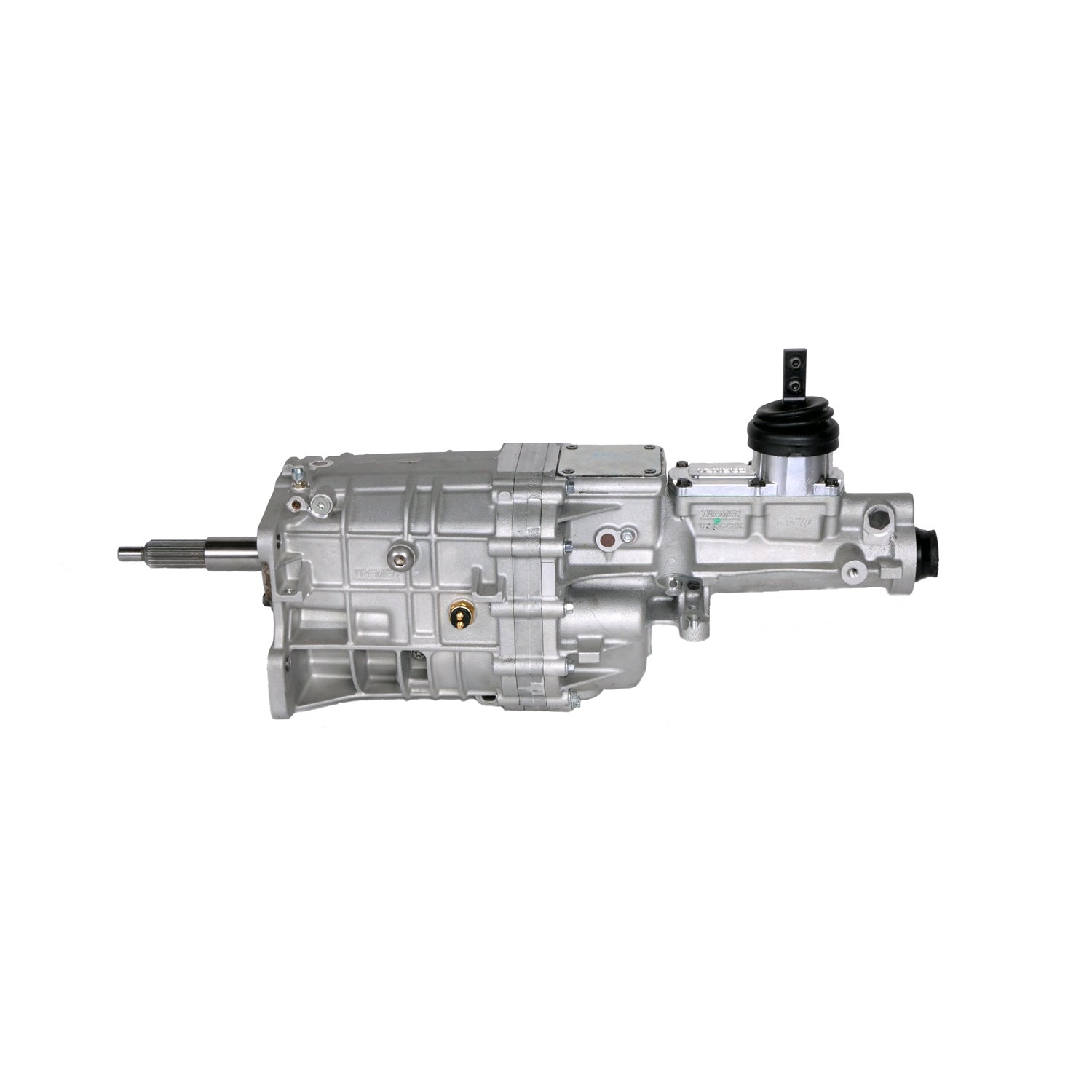

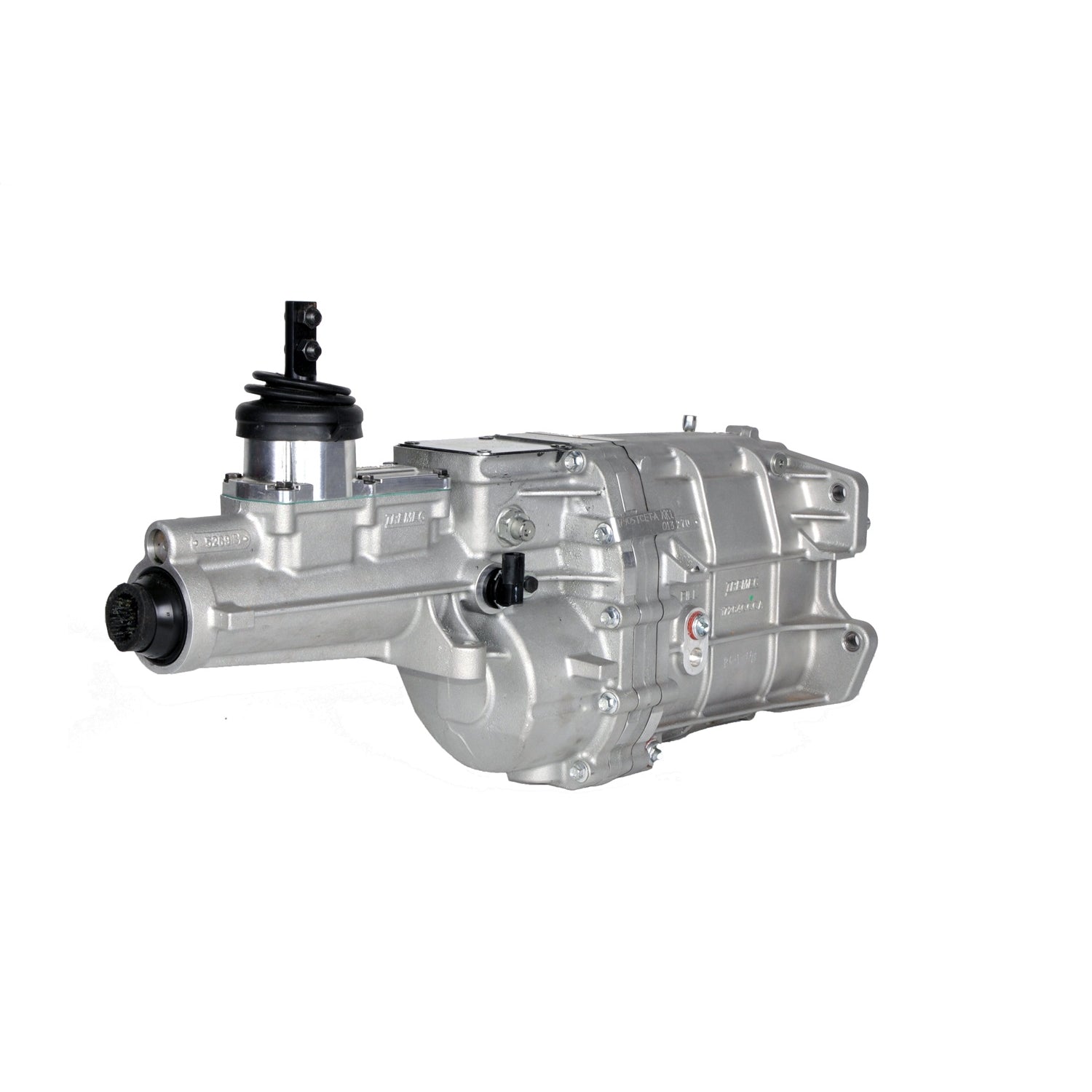

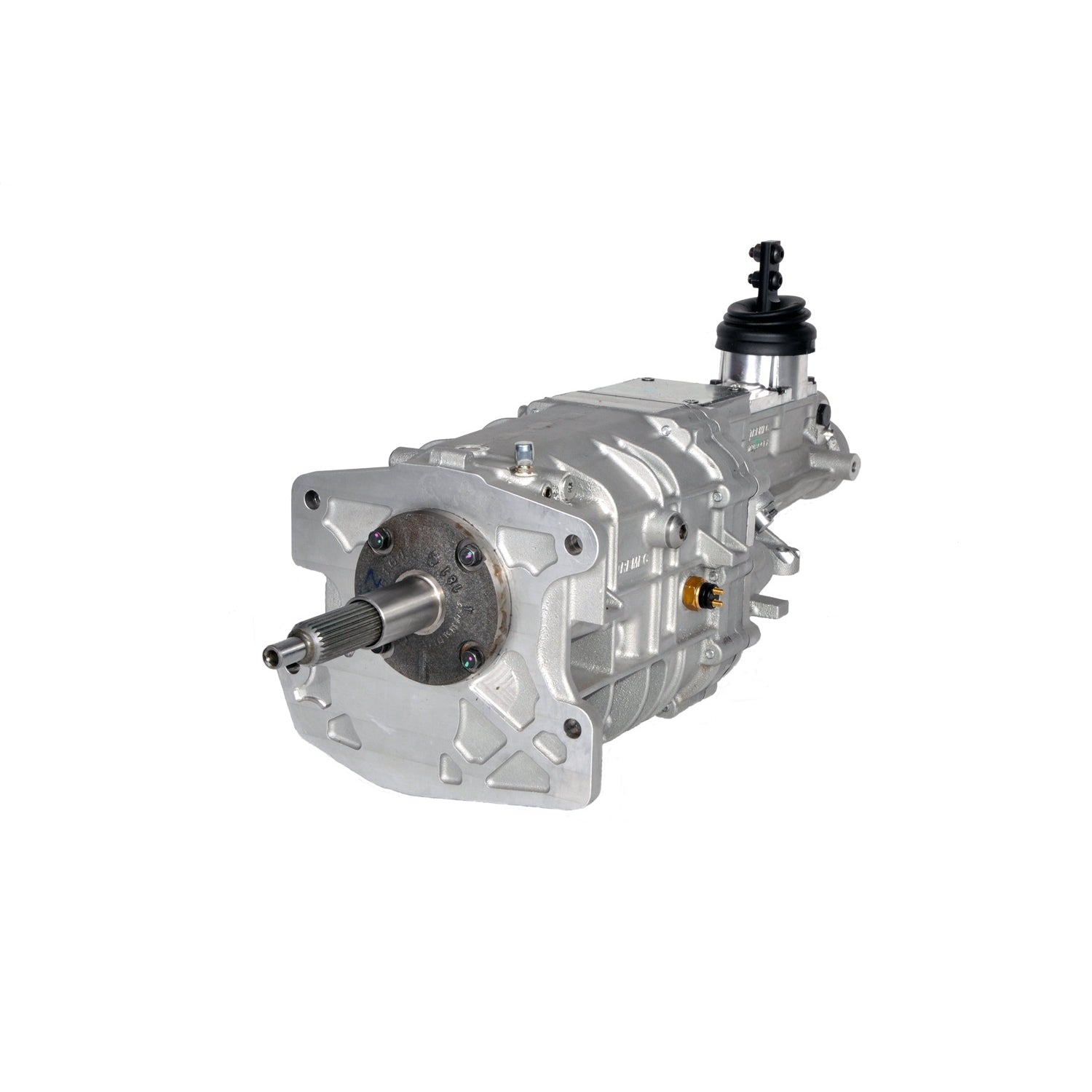

TREMEC TKX Transmission |
| Description_EXT |
TREMEC TKX Transmission; 5 Speed; Reverse Gear Ratio-2.56; Torque Rating- 600 ft./lbs.; 2.87 First Gear/.81 O.D.; For Use w/GM Engines; |
| Description_INV |
TKX GM, 26-SPLINE 2.87 1ST - .81 O.D. |
| Description_FAB |
All-New 5-Speed/Single Overdrive Manual Transmission Designed/Tested And Built Specifically For The Aftermarket |
| Description_FAB |
Special Grade Steel Shafts And Wide Gears |
| Description_FAB |
Three-Piece Aluminum Housing Provides Outstanding Structural Stiffness And Increased Case Strength |
| Description_FAB |
Gaskets At All Flanges To Simplify Installation And Eliminate Fluid Leaks |
| Description_FAB |
Superior Shift-Ability Through The Use Of Multi-Cone Synchronizers |
| Description_FAB |
Three Shifter Locations And A Compact Design Allow Multiple Applications With Little To No Floor Pan Modifications |
| Description_FAB |
26-Spline Input Shaft And 31-Spline Output Shaft For Added Strength |
| Description_SHO |
M/TAssembly |
| Description_MKT |
All-New 5-Speed RWD Manual Transmission Designed Specifically for the Aftermarket. Designed for multiple applications with little to no floor pan modifications. Compact, end-loaded design provides the perfect solution for custom builds. Outstanding shift-ability at high RPMs (up to 7500) to match modern, high-performance engines. 600 pound-foot (lb.-ft.) of torque capacity. Single overdrive reduces engine wear and fuel consumption for comfortable roadway driving |
| Trans Model |
Tremec TKX |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| WARNING CA Proposition 65 |
Yes |
| Trans Year |
N/A (Race) |

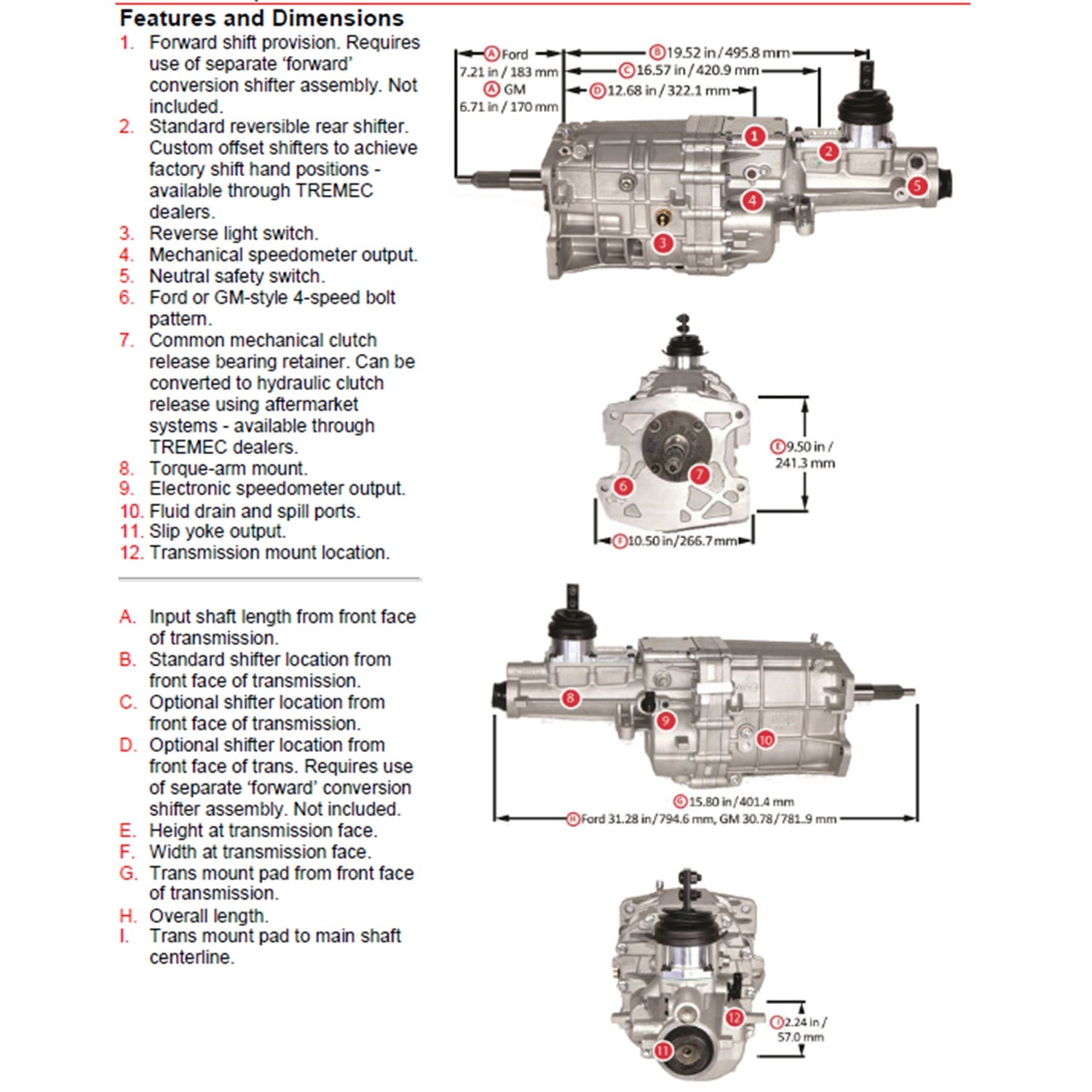

| Length |
17.4000 |
| Width |
14.0000 |
| Height |
32.8000 |
| Weight |
91.4000 |
