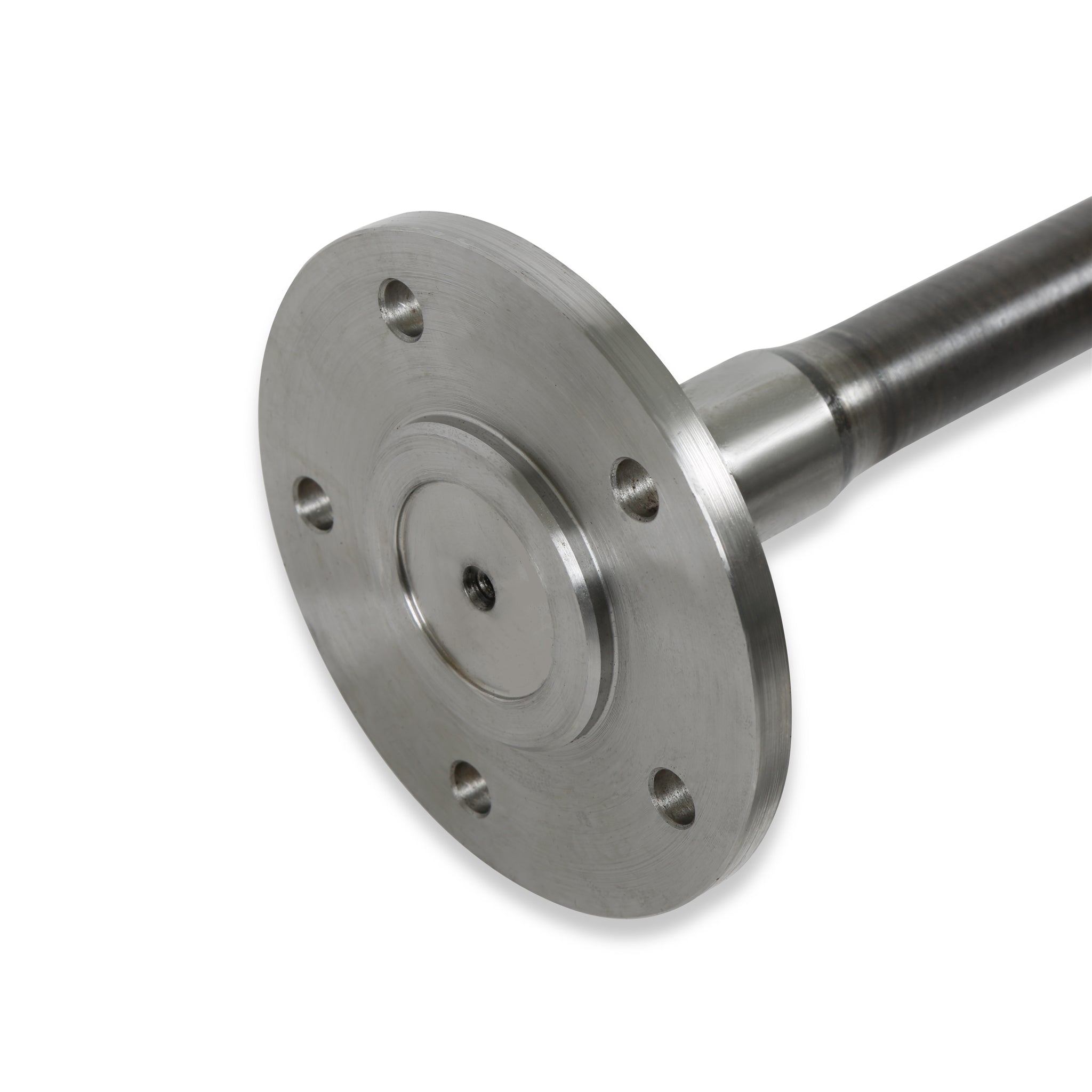

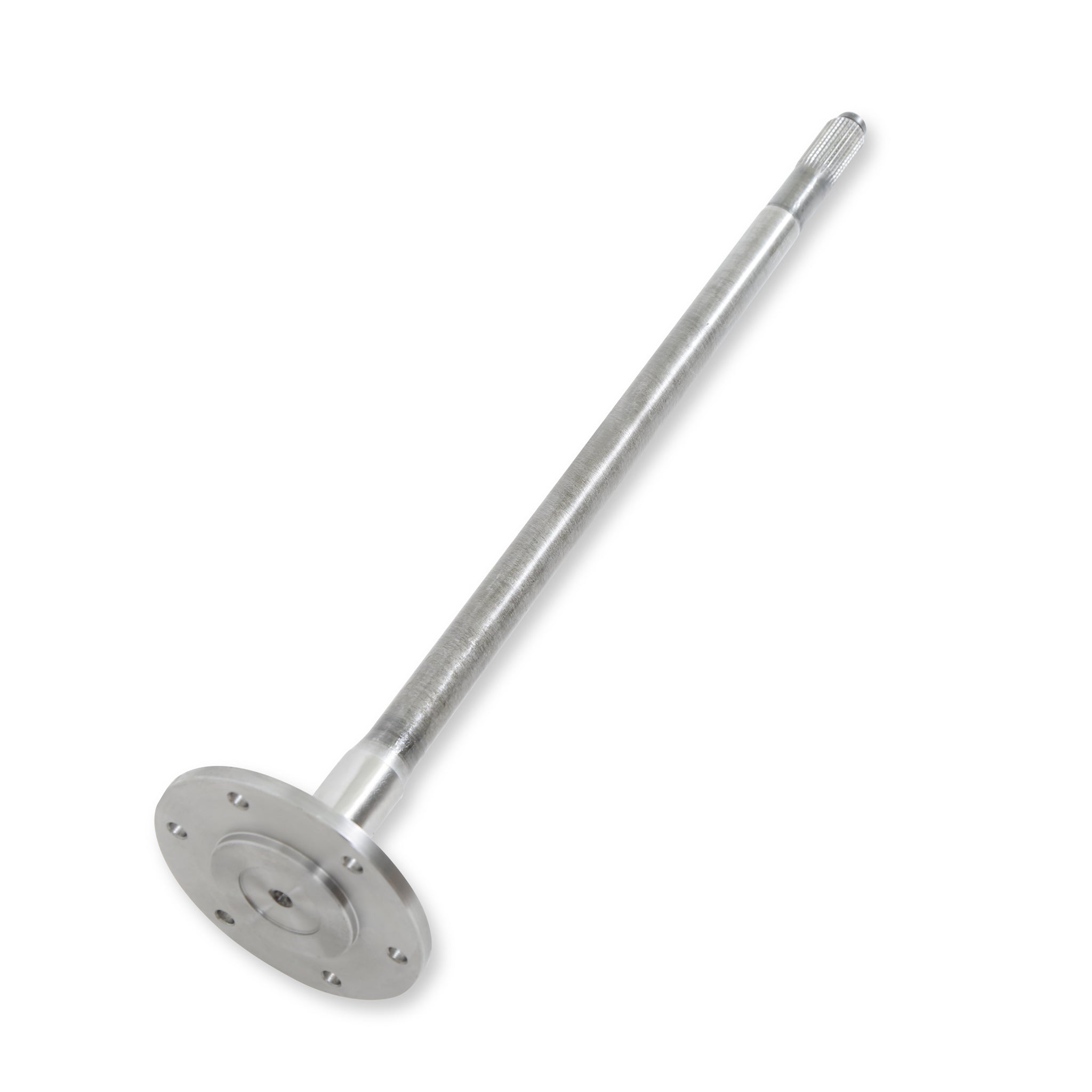

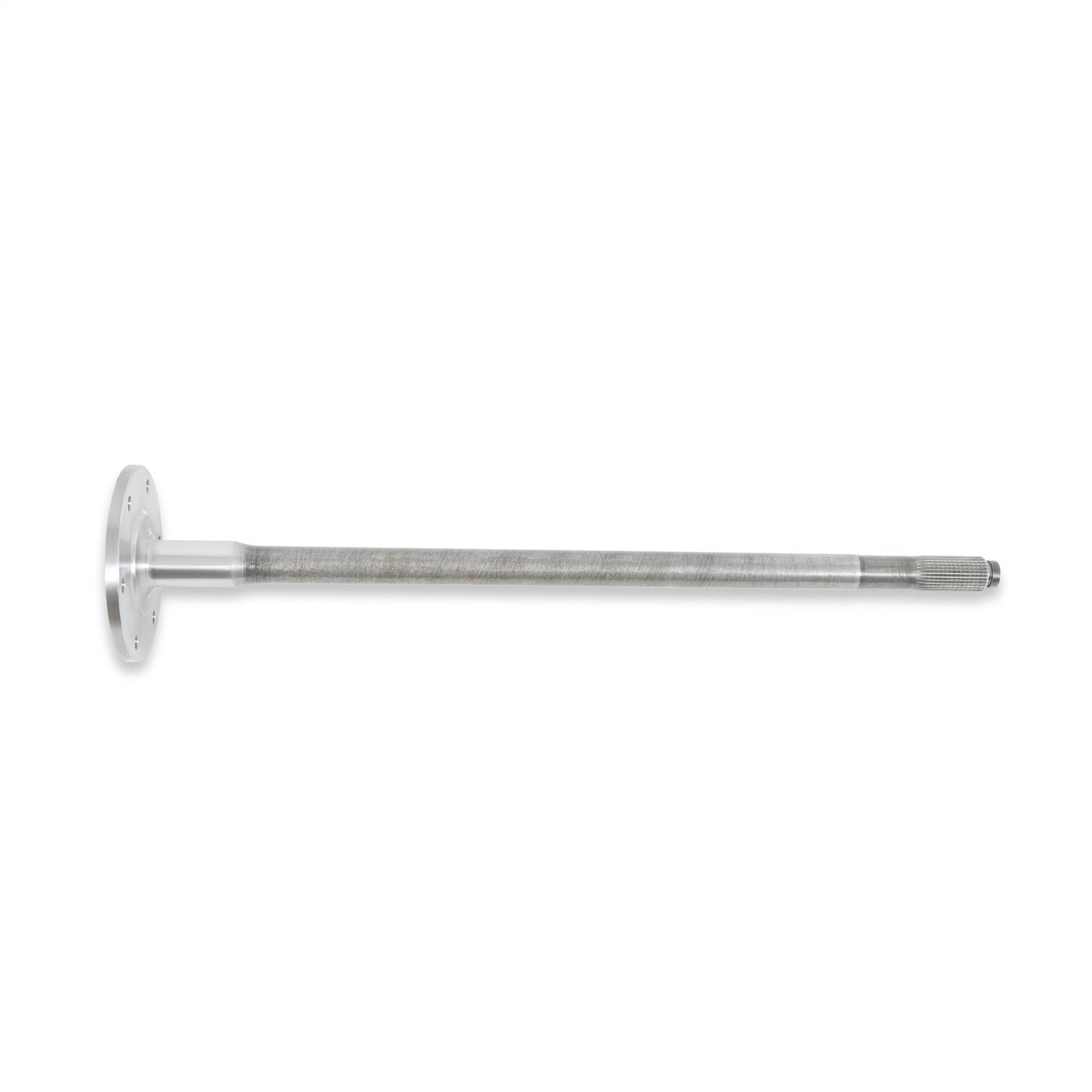

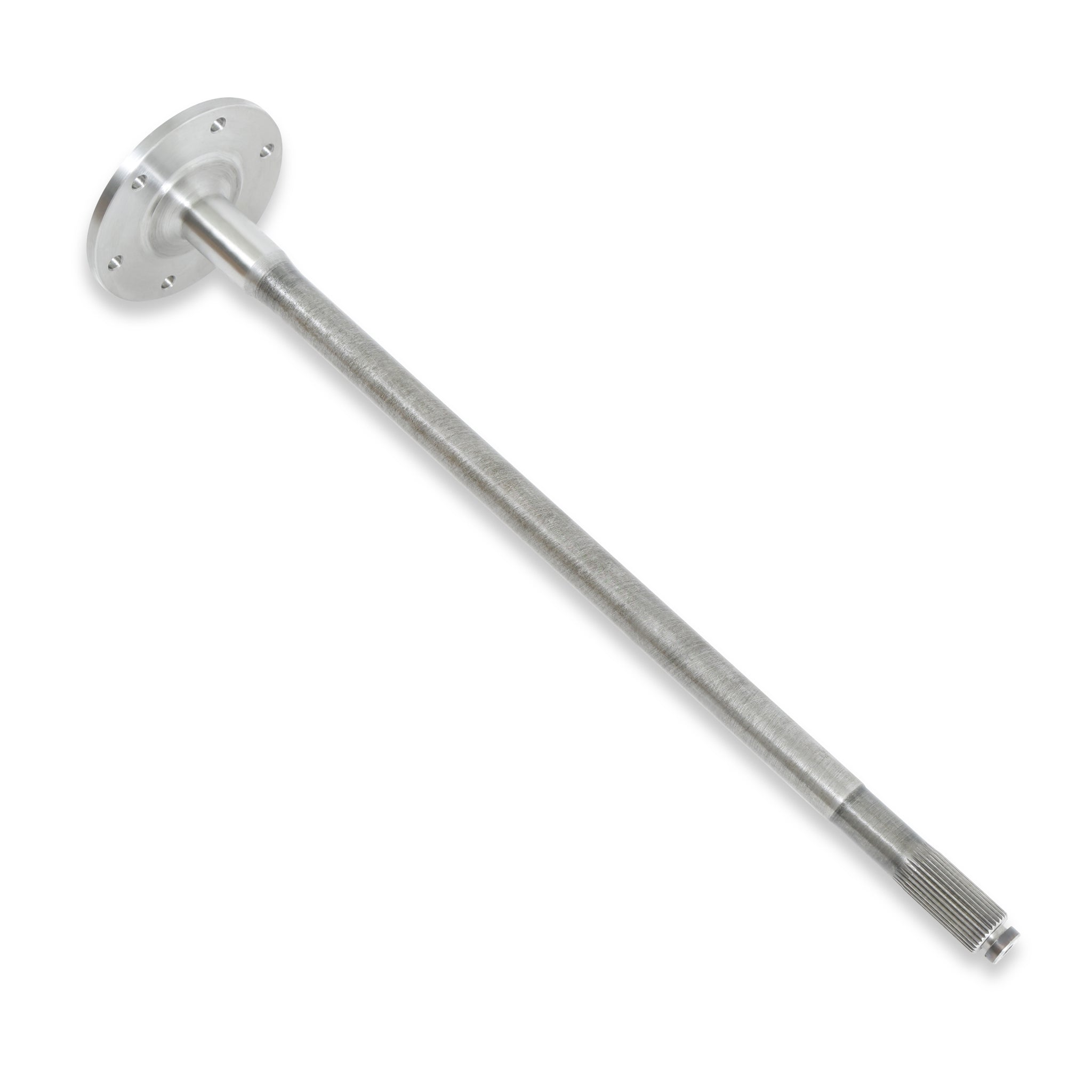

Early GM trucks all came with 6 lug axles. Not only does this limit your wheel choices, but it restricts your options on brakes as well. Hurst Engineering is here with the solution of our 5 lug conversion axles. These axles are made from 1541H alloy for supreme strength and durability. Our axles made for the 8.875 12-Bolt rear end feature 30 spline ends, a 5x5" lug pattern, and are 30-3/4" in length. Look to Hurst Engineering for your truck axle needs.
Sold individually.
Specifications:
| Description_ASC |
1963-1964 applications use axle seals with 2.535" OD. 1965-1969 applications use axle seals with 2.579" OD. |
| Description_CAP |
Sold individually. |
| Description_DEF |
Drive Axle Shaft |
| Description_DES |
Hurst Engineering 5 Lug Conversion Axle for GM 12-Bolt Truck |
| Description_EXT |
Compatible with 1963-1969 Chevy/GMC C/K Series Pickup & Blazer/Jimmy/Suburban |
| Description_MKT |
Early GM trucks all came with 6 lug axles. Not only does this limit your wheel choices, but it restricts your options on brakes as well. Hurst Engineering is here with the solution of our 5 lug conversion axles. These axles are made from 1541H alloy for supreme strength and durability. Our axles made for the 8.875 12-Bolt rear end feature 30 spline ends, a 5x5" lug pattern, and are 30-3/4" in length. Look to Hurst Engineering for your truck axle needs.
Sold individually. |
| Description_FAB |
Heat Treated High Quality 1541H Alloy For Strength And Durability |
| Description_FAB |

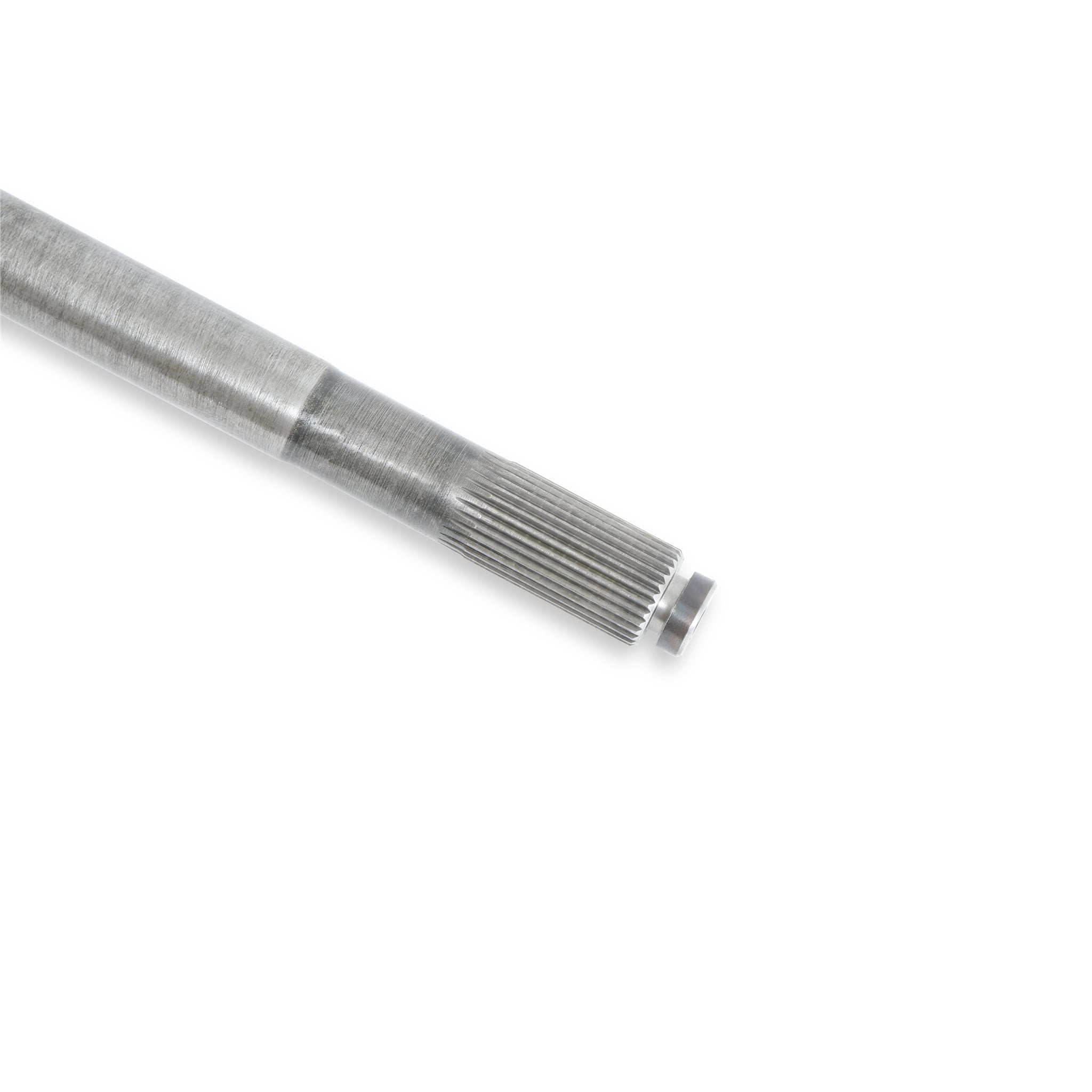

30 Spline And 30-3/4 in. Long For A Direct Replacement |
| Description_FAB |
5 X 5 in. Lug Pattern |
| Description_FAB |
Fits 8.875 in. GM Truck 12 Bolt |
| Description_KEY |
12 bolt;12-bolt;12T;rear end;GM;GMC;Chevy;8.875;axle;5 lug; 5-lug;conversion |
| Description_INV |
63-69 GM TRK AXLES 12 BLT 8.875 30 5X5 |
| Description_SHO |
Axle Shaft |
| Brand |
Hurst Engineering |
| Axle Type |
GM 12 Bolt |
| Product Type |
Axles |
| Spline Quantity |
30 |
| Warning |
California Proposition 65 |
| Wheel Bolt Pattern (in) |
5x5 |
| WARNING CA Proposition 65 |
No |
| Rear Axle Type |
GM 12-Bolt (12T) |
| Emission Code |
6 |
| Shaft Length |
30-3/4" |
| Length |
8.4000 |
| Width |
8.3000 |
| Height |
38.3000 |
| Weight |
20.4050 |
