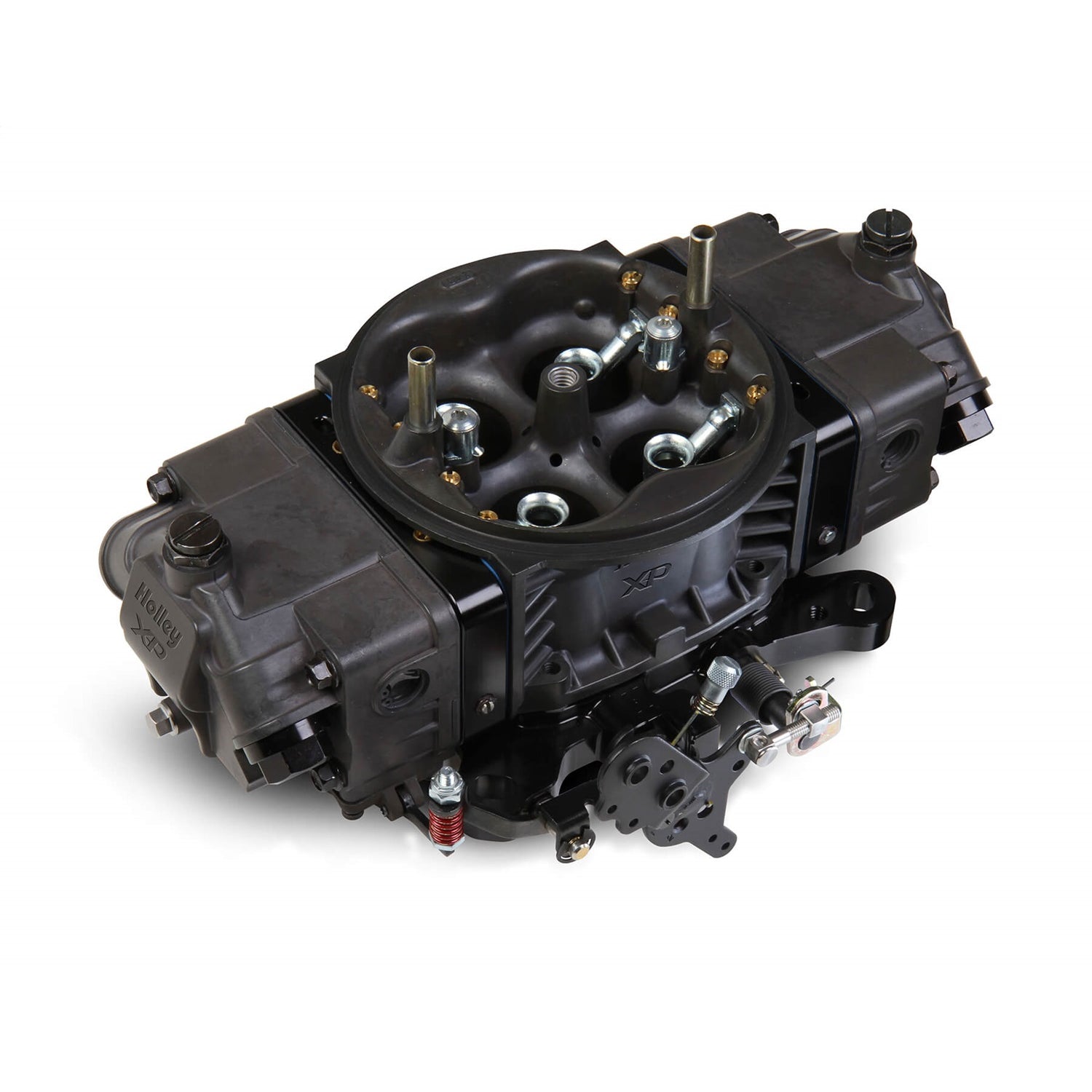

Holley 0-80803HBX 750CFM Ultra XP Carburetor

2 sold in last 8 days

Brand: Holley

SKU: ds_BBVL_0-80803HBX

In-Store:

Dist. Ctr: In stock

Product Code: Carburetor

$2,224.21 $1,993.55

Quantity

Subtotal: $1,993.55

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Holley 0-80803HBX 750CFM Ultra XP Carburetor

Details
Reviews

Details

Xtreme Performance - Holley Ultra XP (TM) carburetors! Ultra XP carbs are up to 38% lighter than our traditional race carbs, have fuel capacity that is 20% greater and 30 other new features! They're available in our all-new Hard Core Gray (TM) hard coat anodized finish with Black (TM) billet for improved corrosion protection. They're also available in natural tumble-polished aluminum with your choice of Black (TM) or Red (TM) metering blocks and base plate. The Aluminum Ultra XP comes in 600, 650, 750, 850, and True 950-CFM. Holley Ultra XP carburetors offer new features such as an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship, high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, fully tunable billet metering blocks, billet base plate, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. Holley Ultra XP carburetors are the ultimate in square bore race carburetors!

Specifications:

Description_ASC	This carburetor was designed with a dual mounting pattern, so that it can be installed on a manifold machined for a 4150 or 4500 series carburetor.
Description_DEF	Carburetor
Description_DES	750CFM Ultra XP Carburetor
Description_FAB	Aluminum Construction (saves 4.5 lbs - 38% weight savings)
Description_FAB	Hard Core Gray with black anodized billet aluminum metering block and booster inserts
Description_FAB	Designed for use on Drag race, circle track, or any high horsepower engines
Description_FAB	Contoured venturri inlet offers balanced airflow for increased horsepower
Description_FAB	Air bleeds moved outward to allow a smoother transition of airflow from the top of the carburetor into the venturii

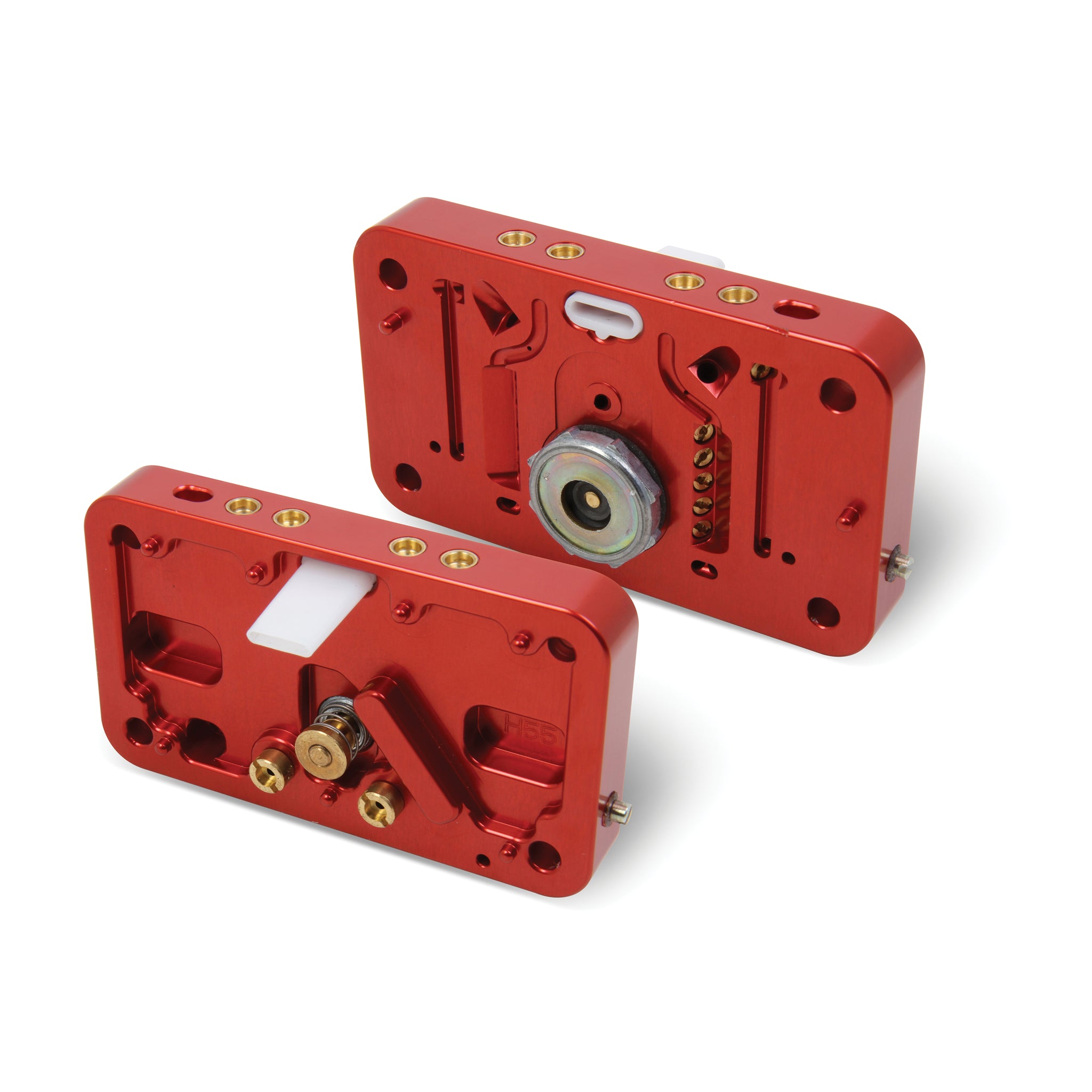

Description_FAB	Metering blocks feature improved durability, true gasket sealing and fully adjustable (emulsion bleeds, power valve channel restrictors & idle feed restrictors)
Description_FAB	Integrated idle bypass valve eliminates the need for holes in throttle plates and allows for proper adjustment of idle while maintaining correct throttle plate to transfer slot relationship. Helps maintain good idle control when using radical camshafts.
Description_FAB	Dual 30cc accelerator pumps provide the perfect amount of fuel from idle to full throttle

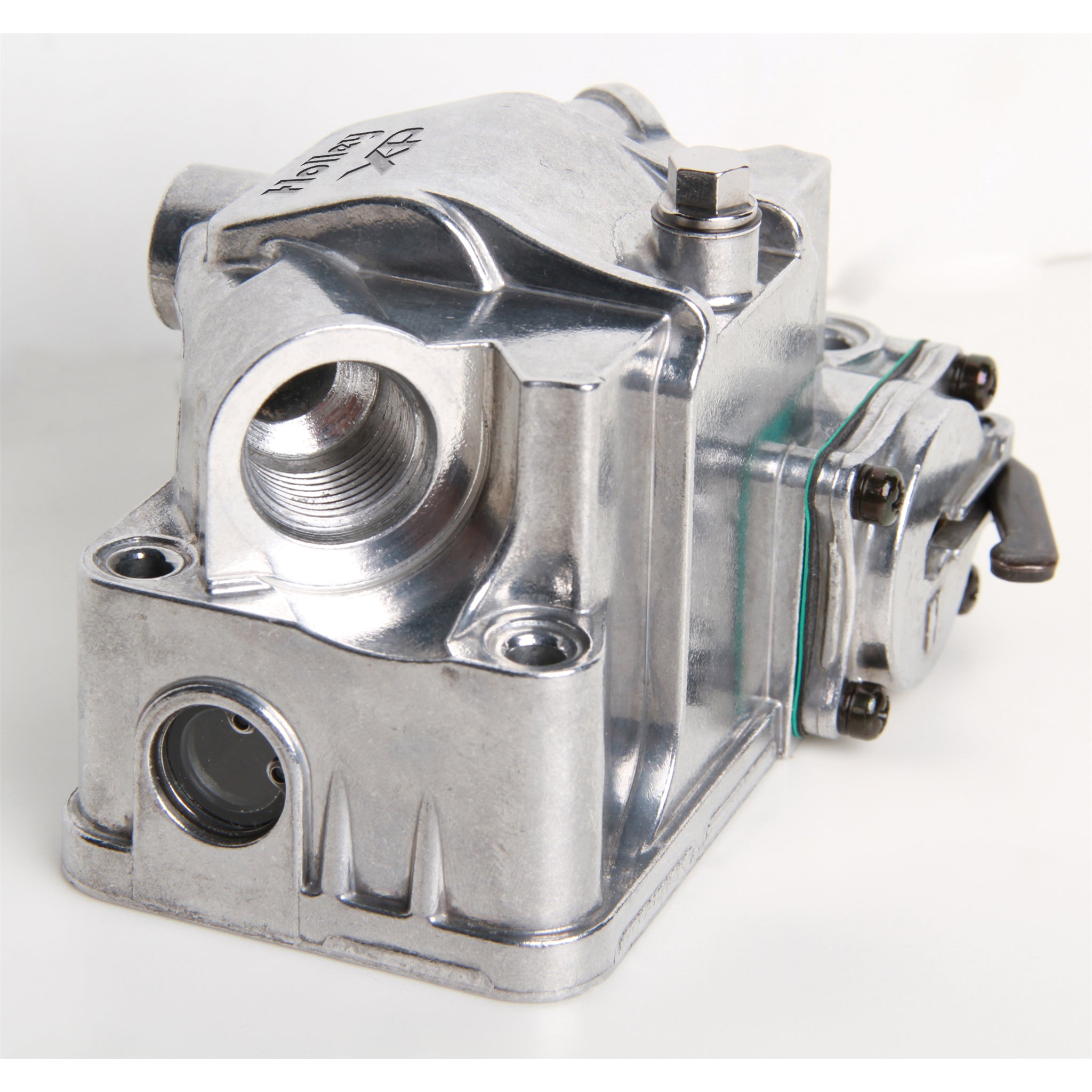

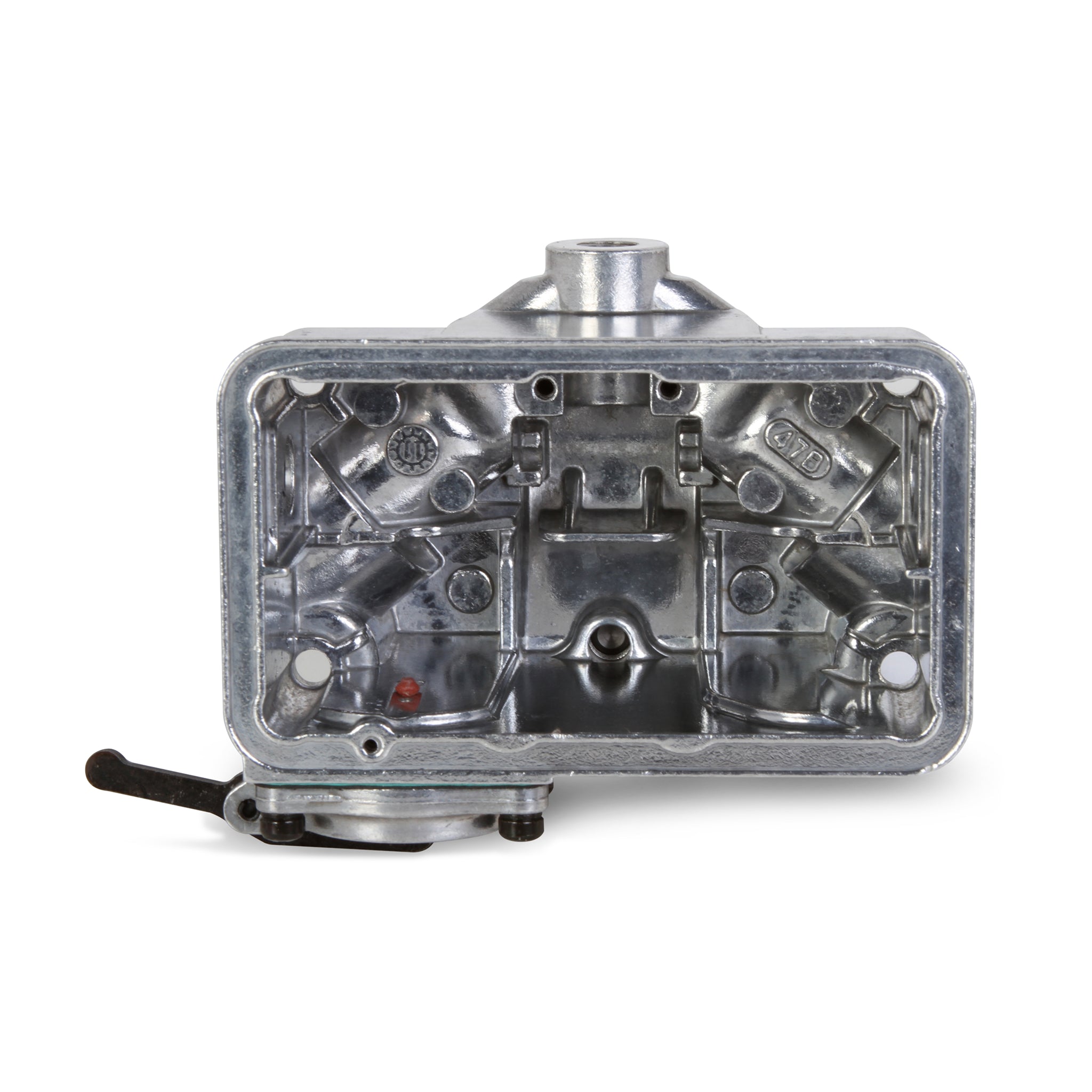

Description_FAB	Fuel bowls provide 20% more fuel capacity while controlling slosh with internal baffling
Description_FAB	Clear sight windows on both sides of bowls for easy and safe fuel level adjustments

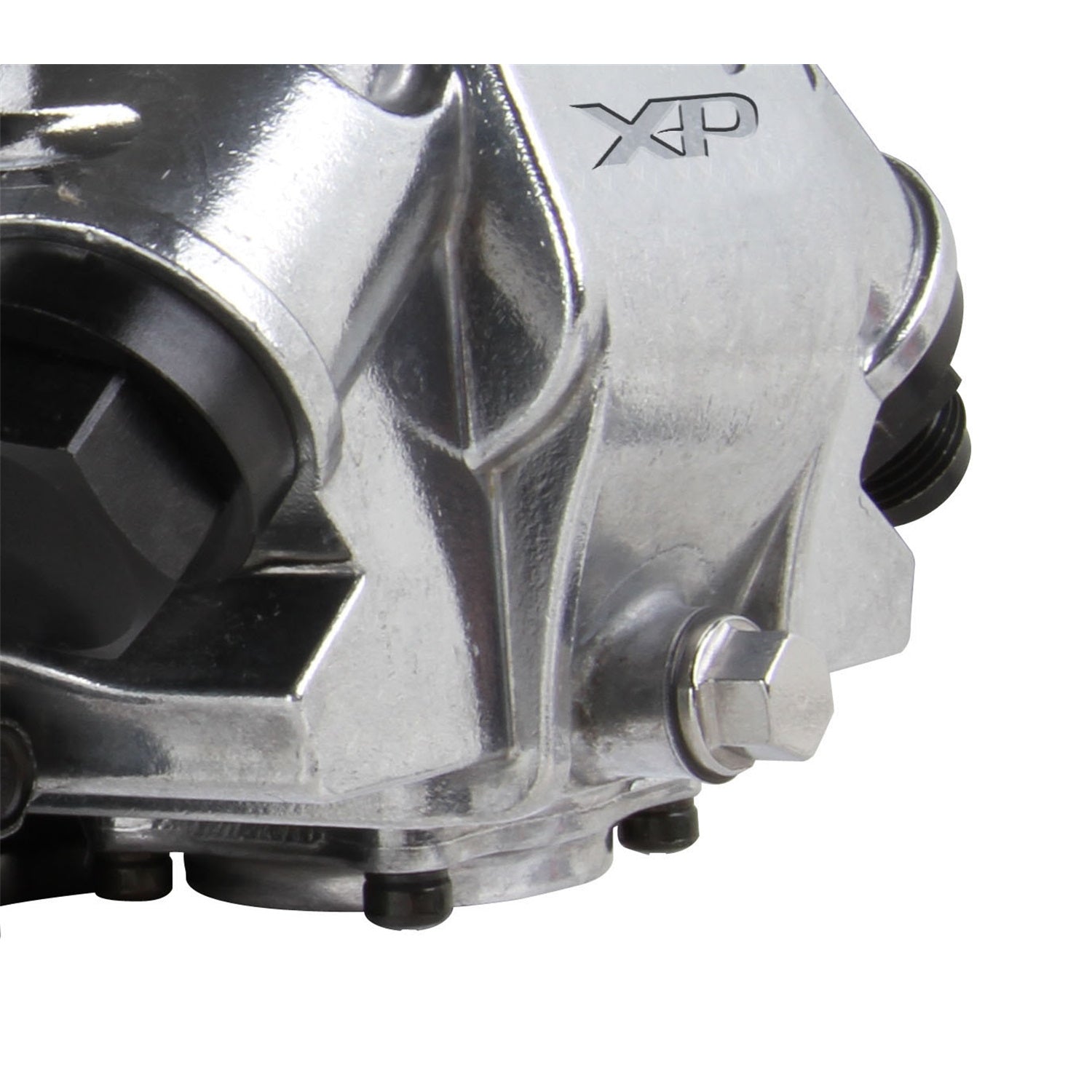

Description_FAB	Built in drain plug in front center of bowl provides easy access to empty contents of bowl
Description_FAB	8AN (o-ringed) inlet threads offer a large variety of plumbing options and can be plumbed from either side
Description_FAB	4 corner idle allows you to precisely control your idle system
Description_FAB	Mechanical Secondaries for perfect off the line launches

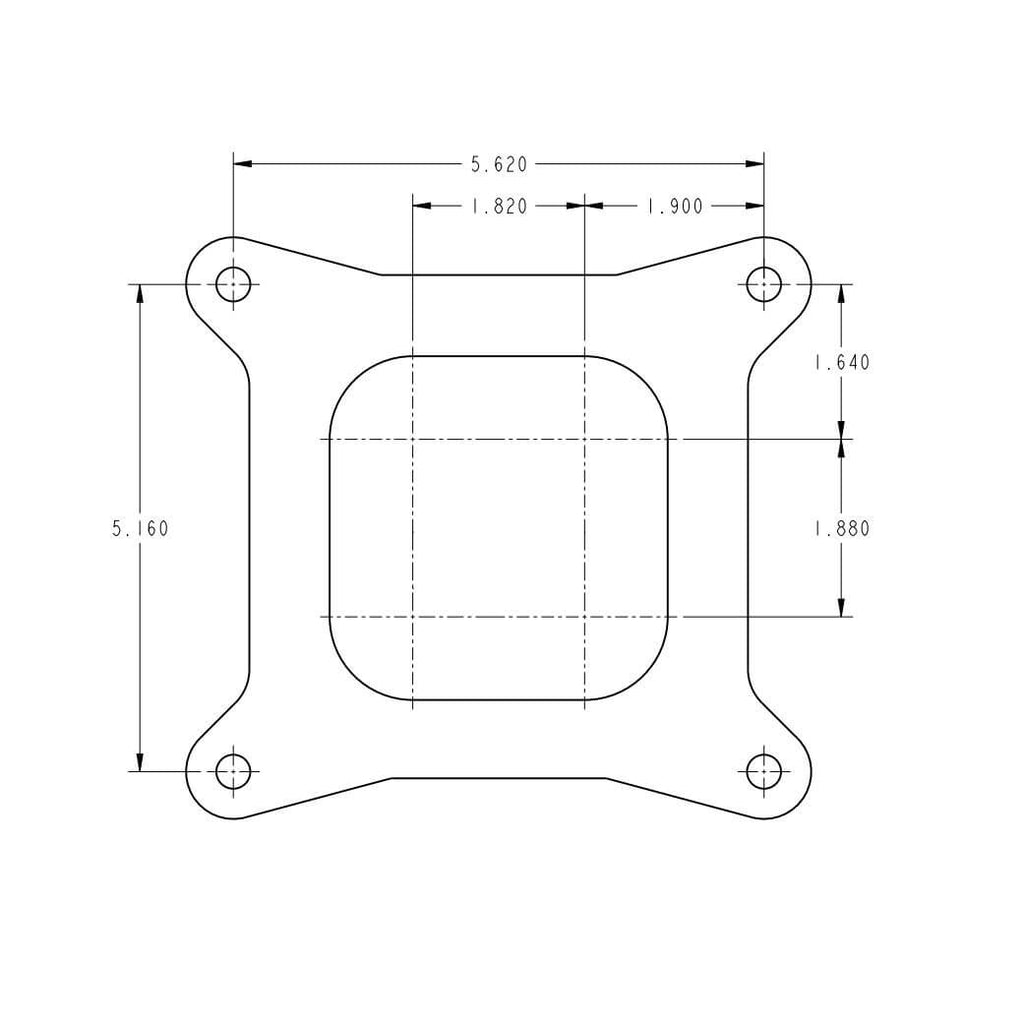

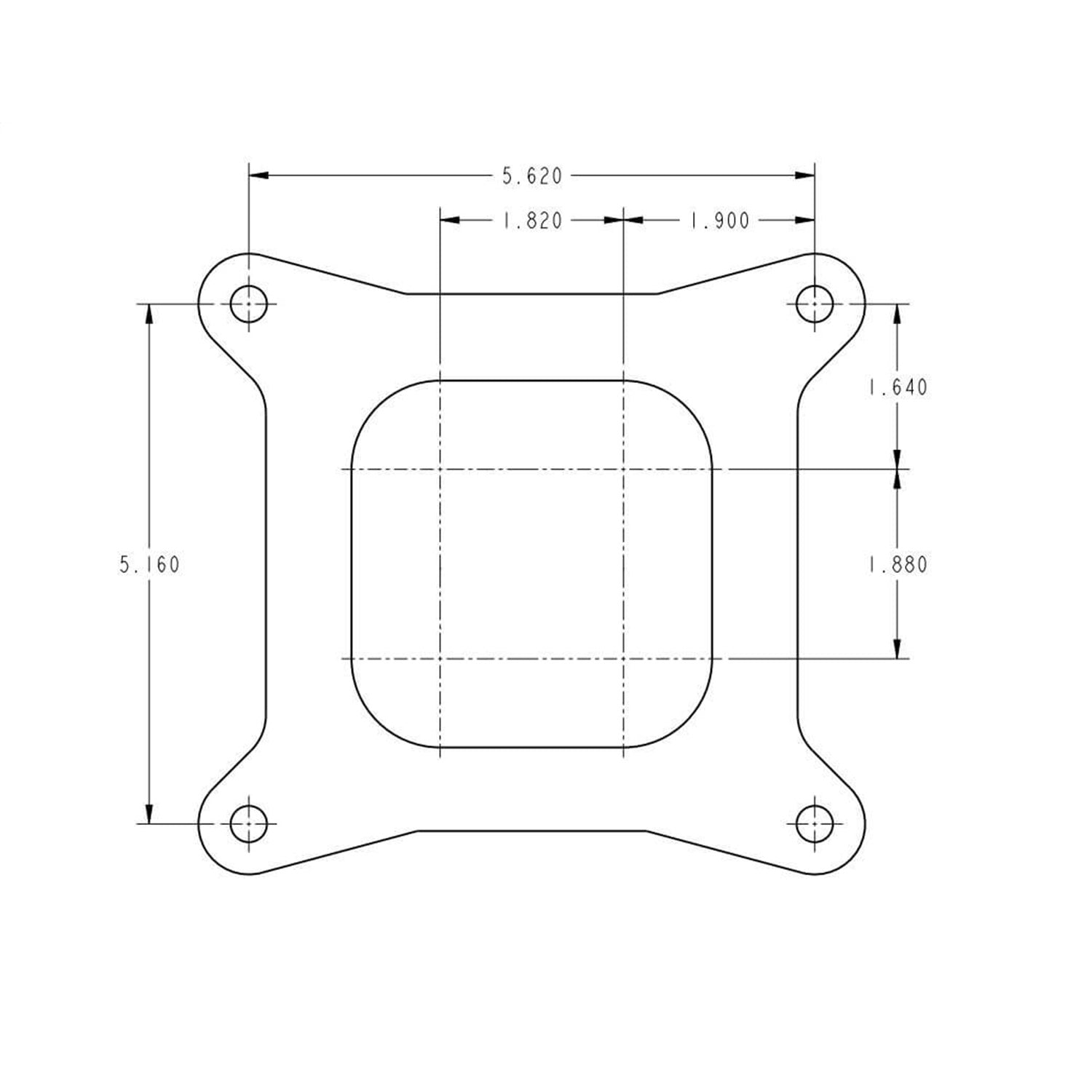

Description_FAB	Elongated (dual pattern) mounting holes allow fitment on intakes with square flange (Holley 4150 (TM) style) or large flange (Holley Dominator (R) style)
Description_FAB	Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
Description_FAB	Primary throttle shaft capped to prevent entry of debris & contaminates
Description_FAB	Factory machined accessory mounting hole for easy addition of adjustable primary throttle stop. New secondary pump cam lever designed to provide positive throttle stop on secondary side
Description_FAB	Stainless steel adjustable secondary link. Provides choice of 1:1 or progressivesecondary throttle actuation for ultimate control of secondary opening rate

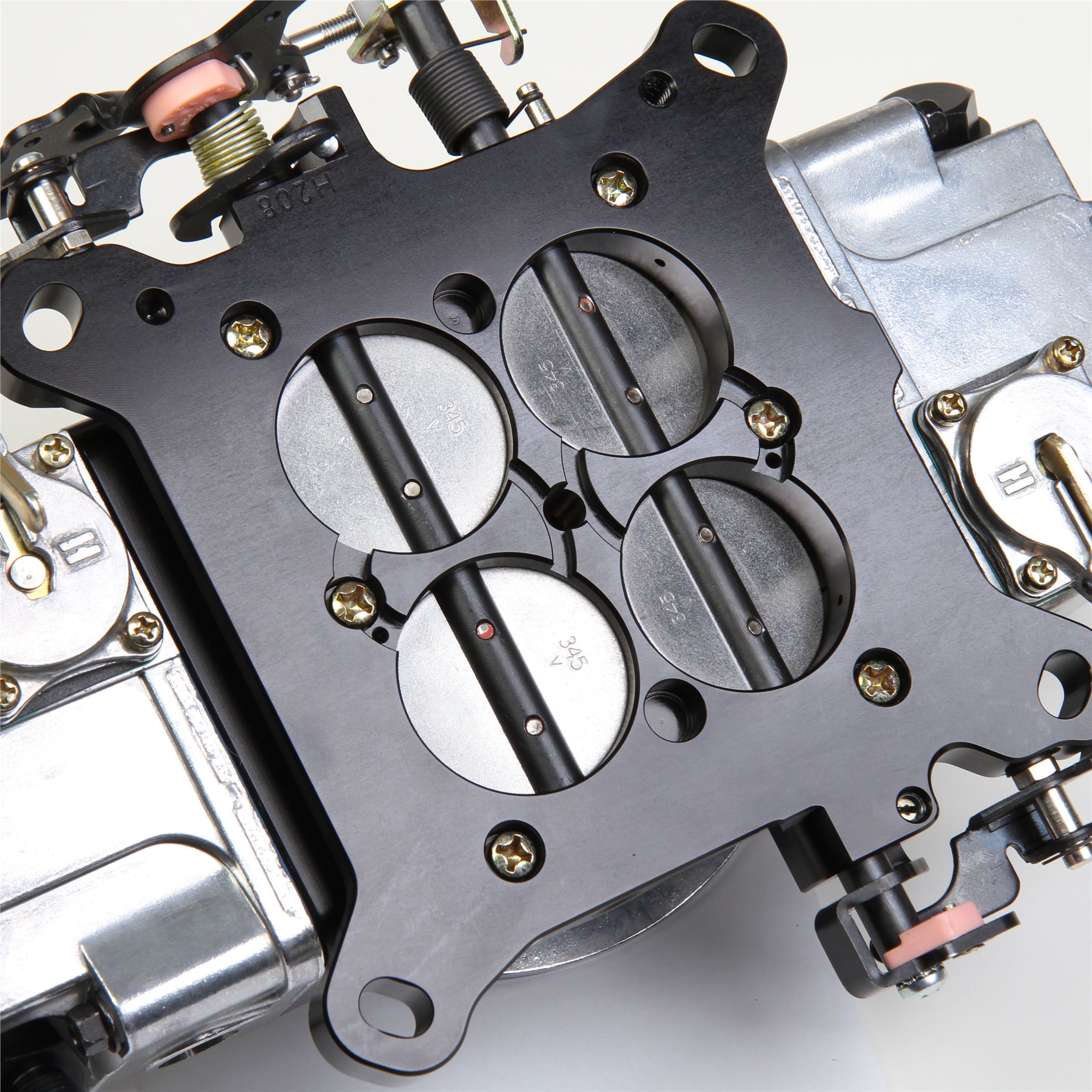

Description_FAB	Baseplate designed with a boss that can be consumer machined for vacuum source
Description_FAB	Includes notched float and jet extensions
Description_FAB	100% wet-flow tested by Holley technicians to assure it arrives ready to run!
Description_KEY	holley; carburetor; carb; alum carb
Description_INV	4150 ALUM ULTRA XP 750 CFM (HARD BLACK)
Description_EXT	Ultra XP Carburetor; 4 bbl; 750 cfm; 2 Circuit Metering; Model 4150UXP; Mech. Secondary; Gas; Dual Fuel Inlet; Dbl Accelerator Pump; Gray w/Blk Metering Block/Booster Inserts;
Description_MKT	Xtreme Performance - Holley Ultra XP (TM) carburetors! Ultra XP carbs are up to 38% lighter than our traditional race carbs, have fuel capacity that is 20% greater and 30 other new features! They're available in our all-new Hard Core Gray (TM) hard coat anodized finish with Black (TM) billet for improved corrosion protection. They're also available in natural tumble-polished aluminum with your choice of Black (TM) or Red (TM) metering blocks and base plate. The Aluminum Ultra XP comes in 600, 650, 750, 850, and True 950-CFM. Holley Ultra XP carburetors offer new features such as an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship, high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, fully tunable billet metering blocks, billet base plate, adjustable secondary linkage and knurled (hand adjustable) curb idle screws. Holley Ultra XP carburetors are the ultimate in square bore race carburetors!
Description_SHO	Carburetor
Secondary Main Jet	76
Warning	California Proposition 65
WARNING CA Proposition 65 Message	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Brand	Holley
Carburetor Use	Professional Race
Primary Power Valve	6.5
Primary Main Jet	76
CFM	750
WARNING CA Proposition 65	Yes
Type	Automotive
Model	4150
Product Type	Carburetor
Secondaries	Mechanical
Sale Category	Carburetors and Components
Carburetor Type	4150
Fuel Type	Gasoline
Circuit	2
Choke	None
Secondary Type	Mechanical
Booster Type	Down Leg
Finish	Hard Core Gray
Emission	Without EGR
Billet Color	Hard Core Gray with Black
Supercharged Application	No
Usage	Street/Hi-Performance
Barrels	4
Booster	Down Leg
Emission Code	3
Fuel	Gasoline
Primary Pump Nozzle Size	32
Warranty	Limited 90 Day
Fuel Inlet	Dual
Secondary Pump Nozzle Size	32
Barrel	Four
Material	Aluminum
Flange	Square Bore
Condition	New
Marine Use	No
Throttle Bore	1.688 inch
Venturii Size	1.376 inch
Length	10.0000
Width	13.0000
Height	15.0000
Weight	10.0000
