| Description_ASC |
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932. |
| Description_DES |

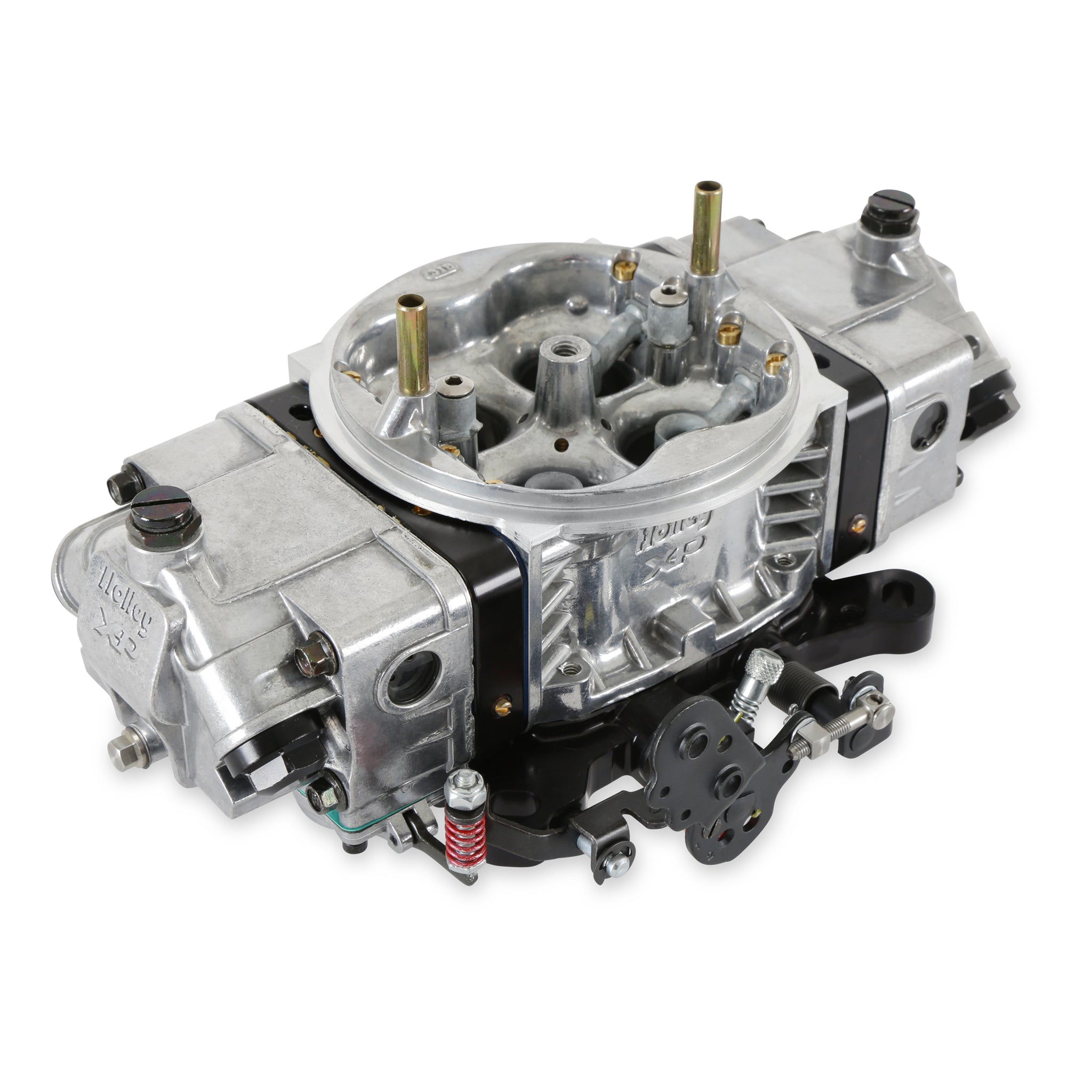

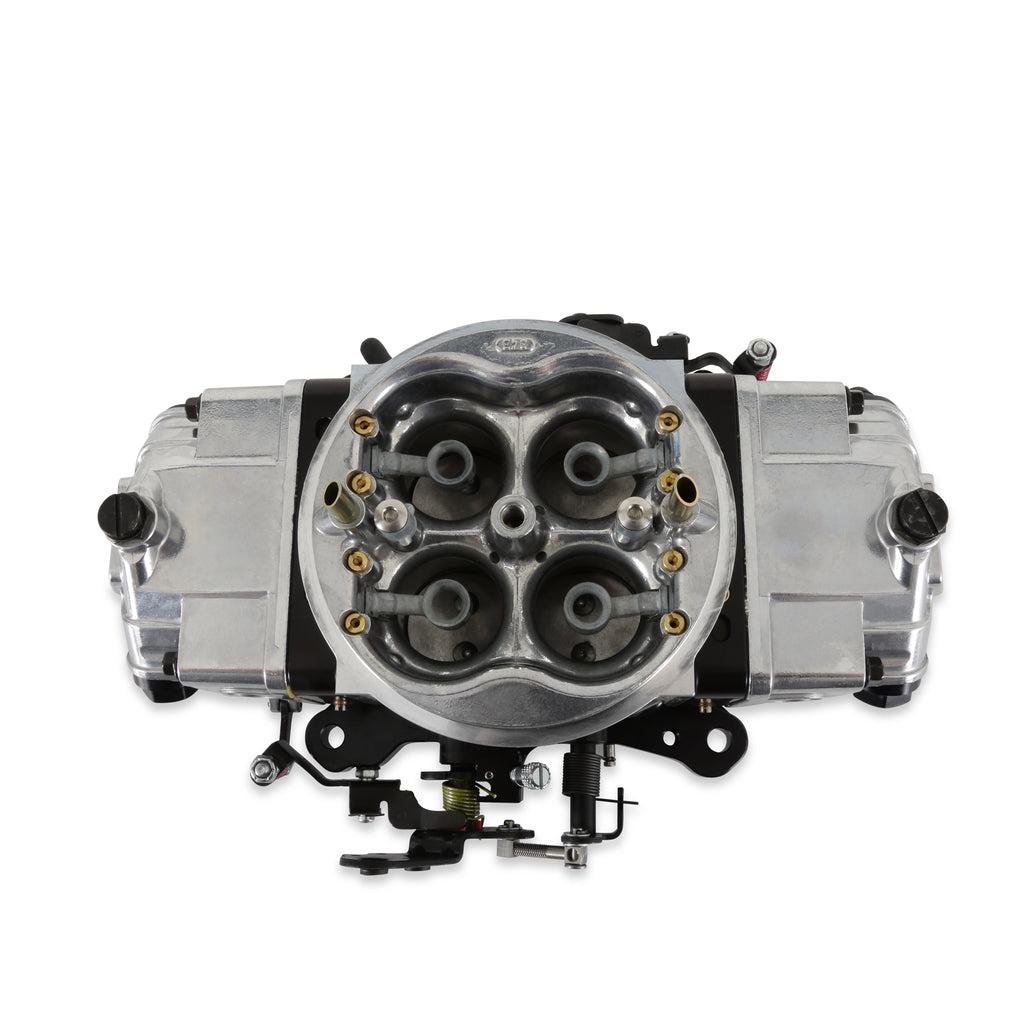

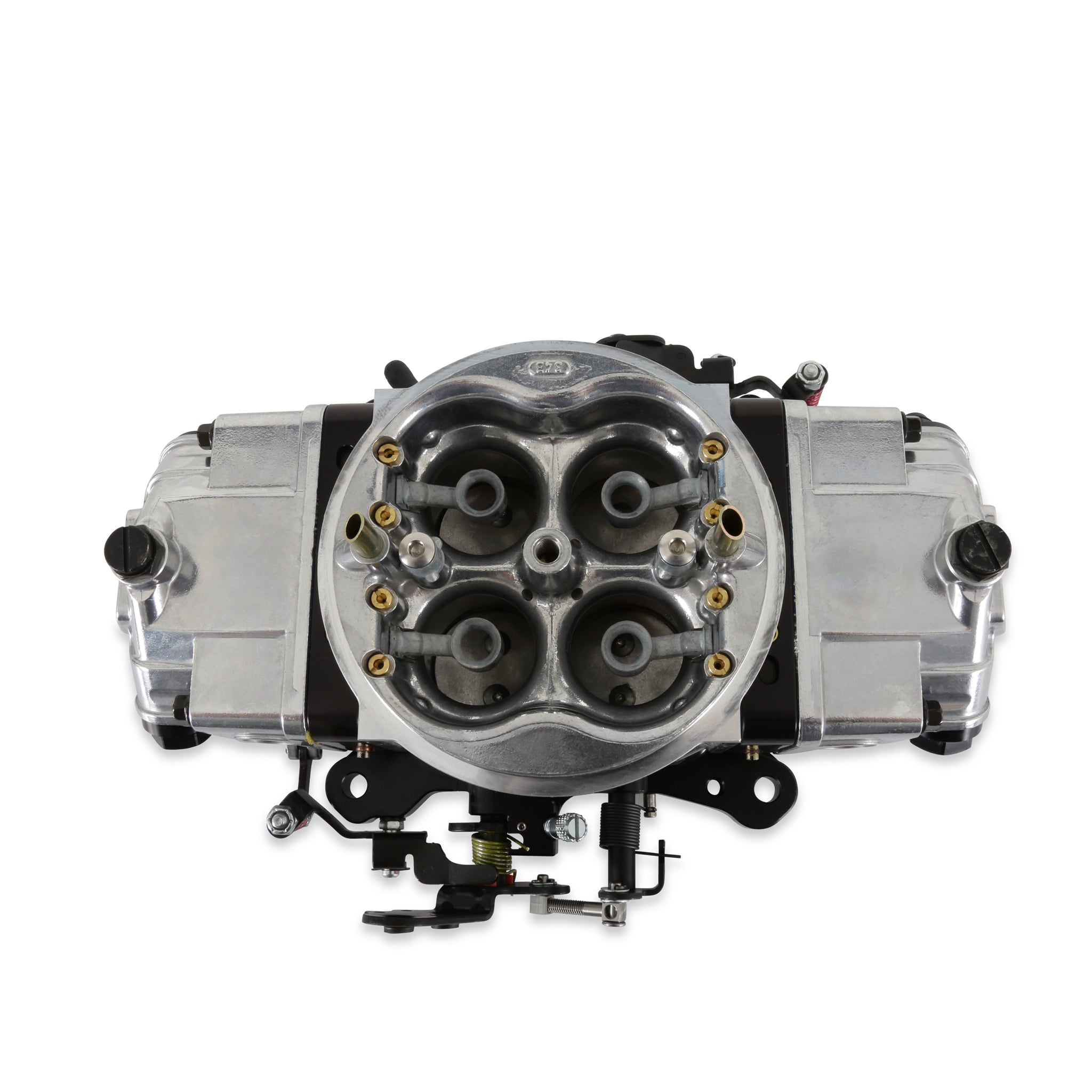

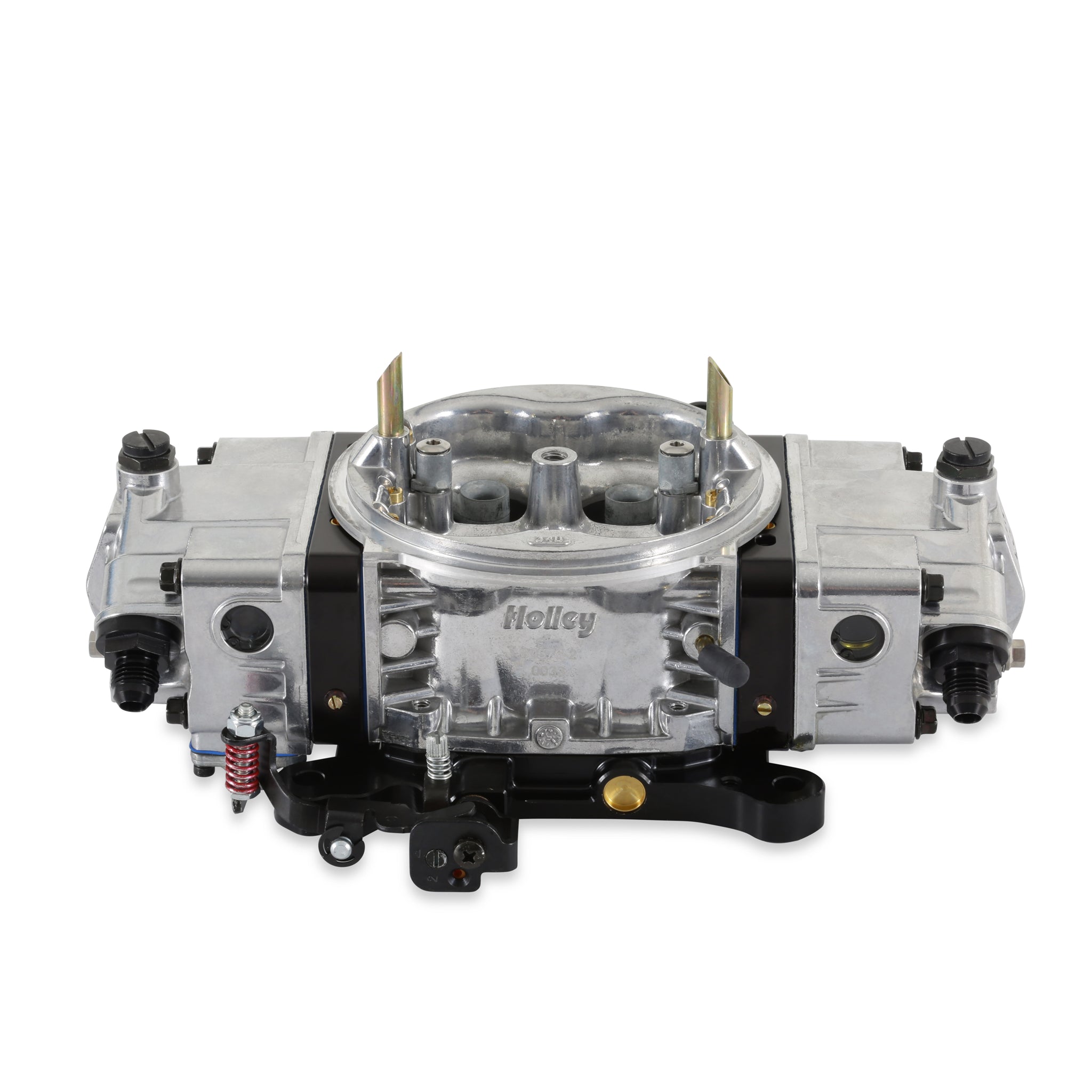

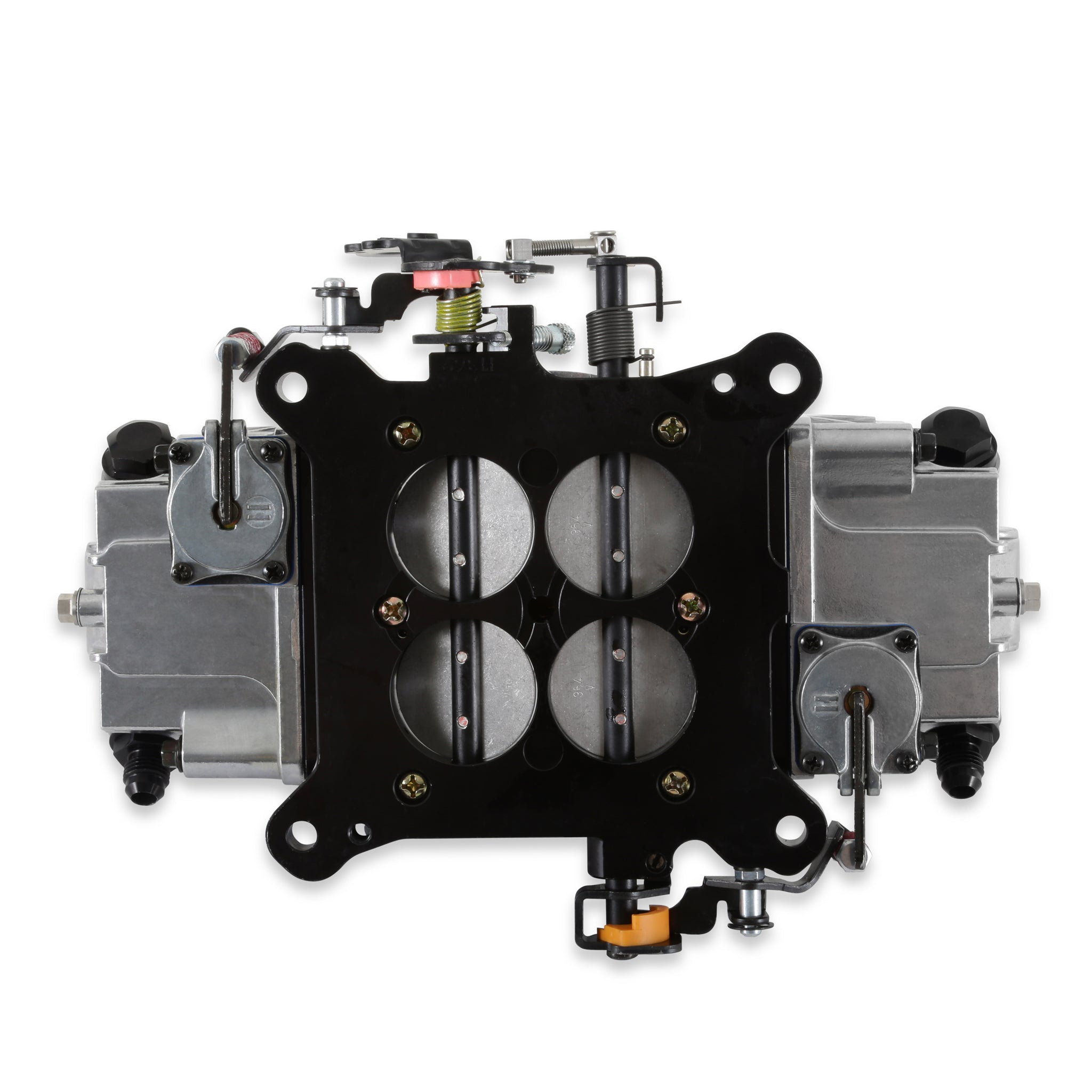

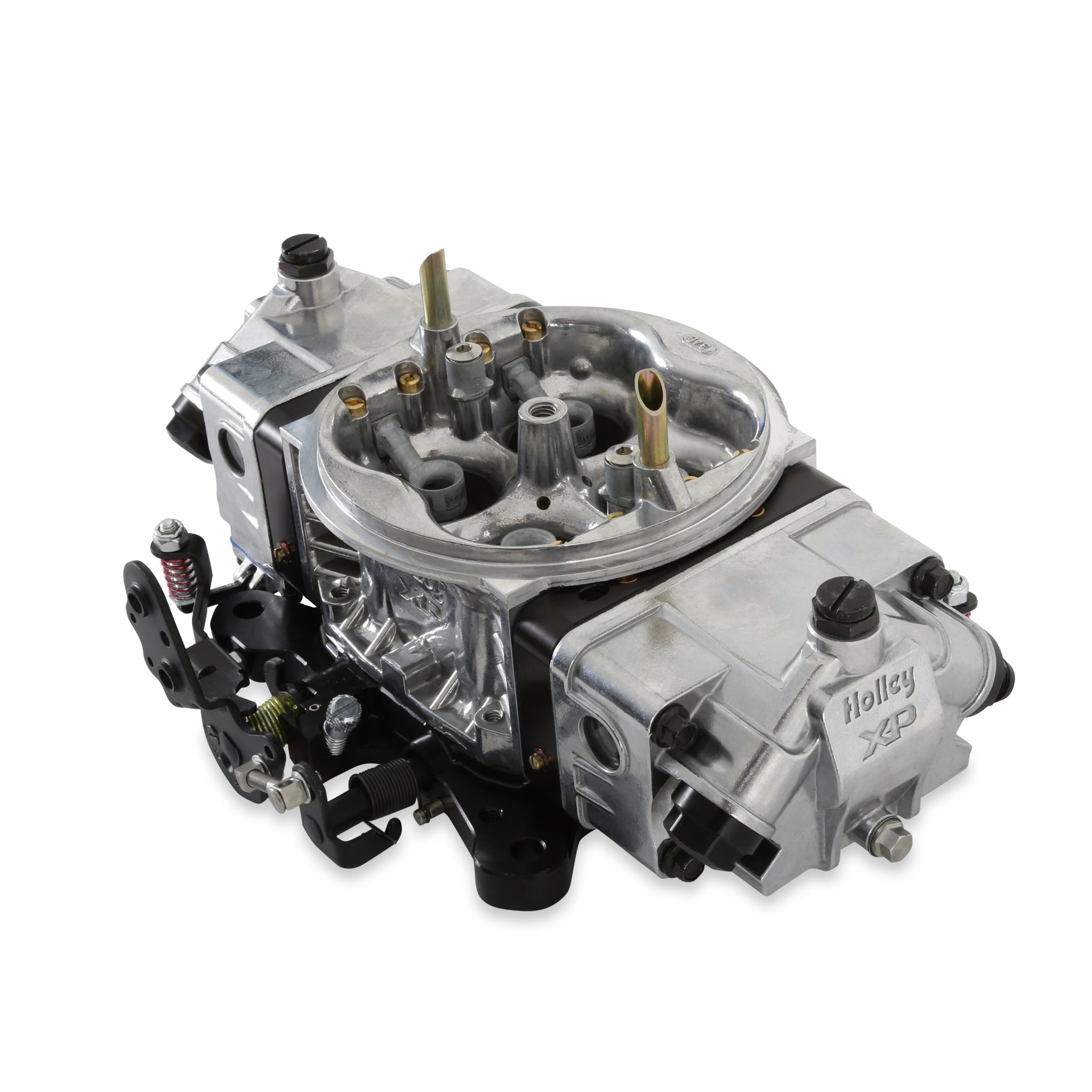

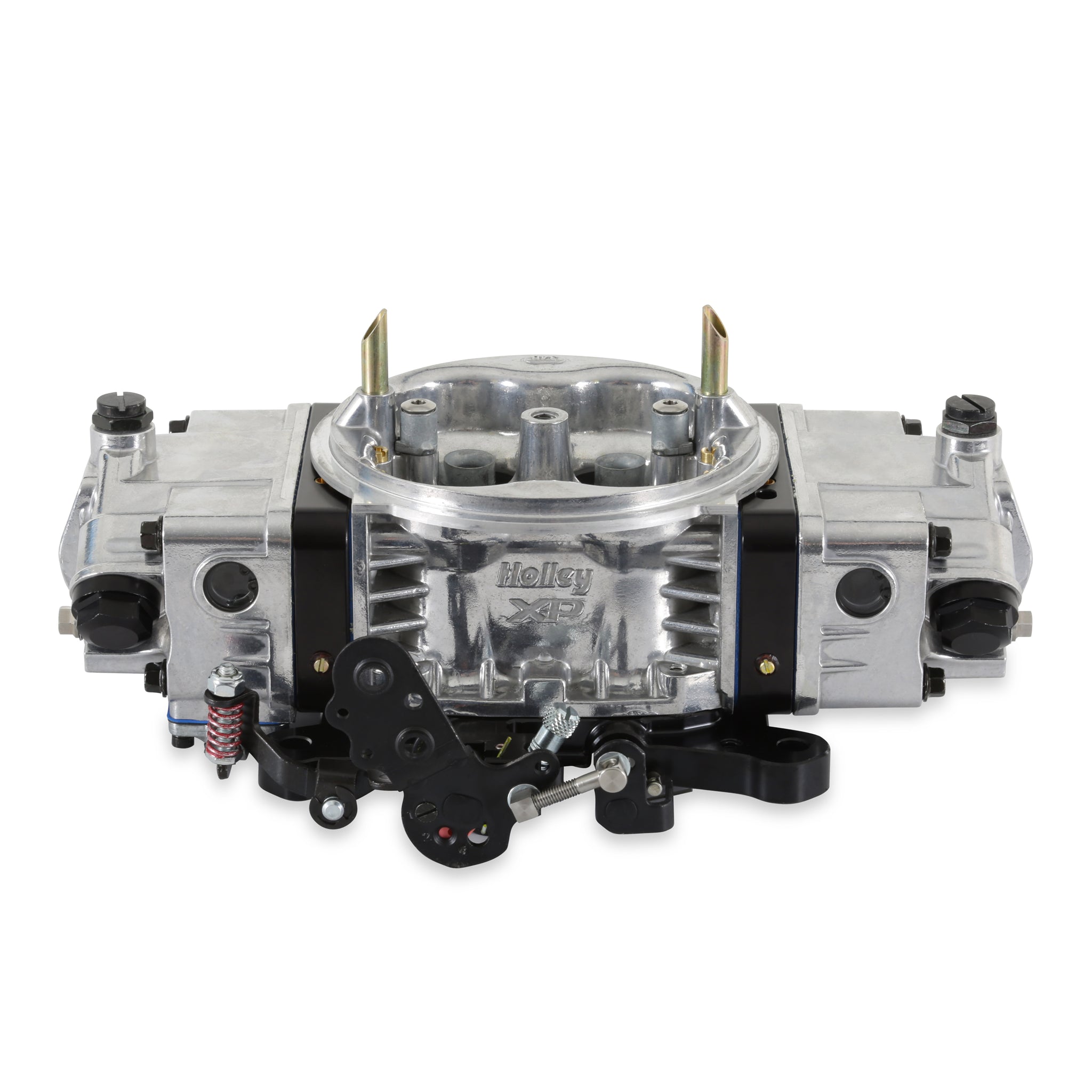

750 CFM Supercharger XP Carburetor-Draw Thru Design |
| Description_EXT |
Mechanical Secondary-4150 |
| Description_INV |
4150 750CFM XP ALUM DP SC W BLACK BILLET |
| Description_FAB |
Tumble polished shiny finish for good looks |
| Description_FAB |
Designed for use on the WEIAND (R) 671 supercharger (big block Chevrolet/Chrysler 392) or WEIAND (R) 871 supercharger (small block Chevrolet/Chrysler 426) |
| Description_FAB |
Contoured venturri inlet offers balanced airflow for increased horsepower |
| Description_FAB |
Screw in air bleeds for precision tuning capabilities |
| Description_FAB |
Dual 30cc accelerator pumps for additional fuel under initial acceleration |
| Description_FAB |
Dual feed fuel inlets for constant high volume fuel delivery |
| Description_FAB |
4 corner idle allows you to precisely control your idle system |
| Description_FAB |
Mechanical Secondaries for perfect off the line launches |
| Description_FAB |
Boost referenced power valve for proper enrichment under acceleration |
| Description_FAB |
Throttle lever cut off for clearance on a sideways application |
| Description_FAB |
100% wet-flow tested by Holley technicians to assure it arrives ready to run! |
| Description_MKT |
By popular demand, Holley is expanding the draw-thru supercharger carburetor line to now include the XP series. Like the existing HP line, these are available in 600, 750, and 950 CFM flow rates and standard polished with black accents. The feature-laden XP includes a contoured venturi inlet for balanced air flow, screw in air bleeds for precision tuning capabilities, high flow billet metering blocks, billet base plate, and Dominator style fuel bowls which allow plumbing from either side. |
| Description_MKT |
Supercharger XP carburetors also have a unique capability that allows their power valves to reference the intake manifold vacuum below the supercharger. This allows the power valve to operate as it should, based off intake manifold vacuum. A power valve provides further enrichment to the main metering system under load (low vacuum) conditions. |
| Description_MKT |
Holley XP carburetors are the standard for square bore race carburetors. Race-Ready out of the box! |
| Product Type |
Carburetor |
| Sale Category |
Carburetors and Components |
| Secondary Main Jet |
86 |
| Warning |
California Proposition 65 |
| Supercharged Application |
Yes |
| Warranty |
Limited 90 Day |
| Carburetor Use |
Performance and Race |
| CFM |
750 |
| Model |
XP-Series |
| Primary Main Jet |
72 |
| Secondaries |
Mechanical |
| System Type |
Draw Thru |
| Barrels |
4 |
| Booster |
Down Leg |
| Brand |
Holley |
| Choke |
None |
| Circuit |
2 |
| Condition |
New |
| Emission Code |
3 |
| Finish |
Shiny |
| Fuel |
Gasoline |
| Marine Use |
No |
| Primary Power Valve |
10.5 |
| Primary Pump Nozzle Size |
31 |
| Throttle Bore |
1.688 inch |
| Venturii Size |
1.375 inch |
| Fuel Inlet |
Dual |
| Material |
Aluminum |
| Secondary Pump Nozzle Size |
31 |
| Length |
9.5000 |
| Width |
12.6000 |
| Height |
14.3000 |
| Weight |
9.5100 |
