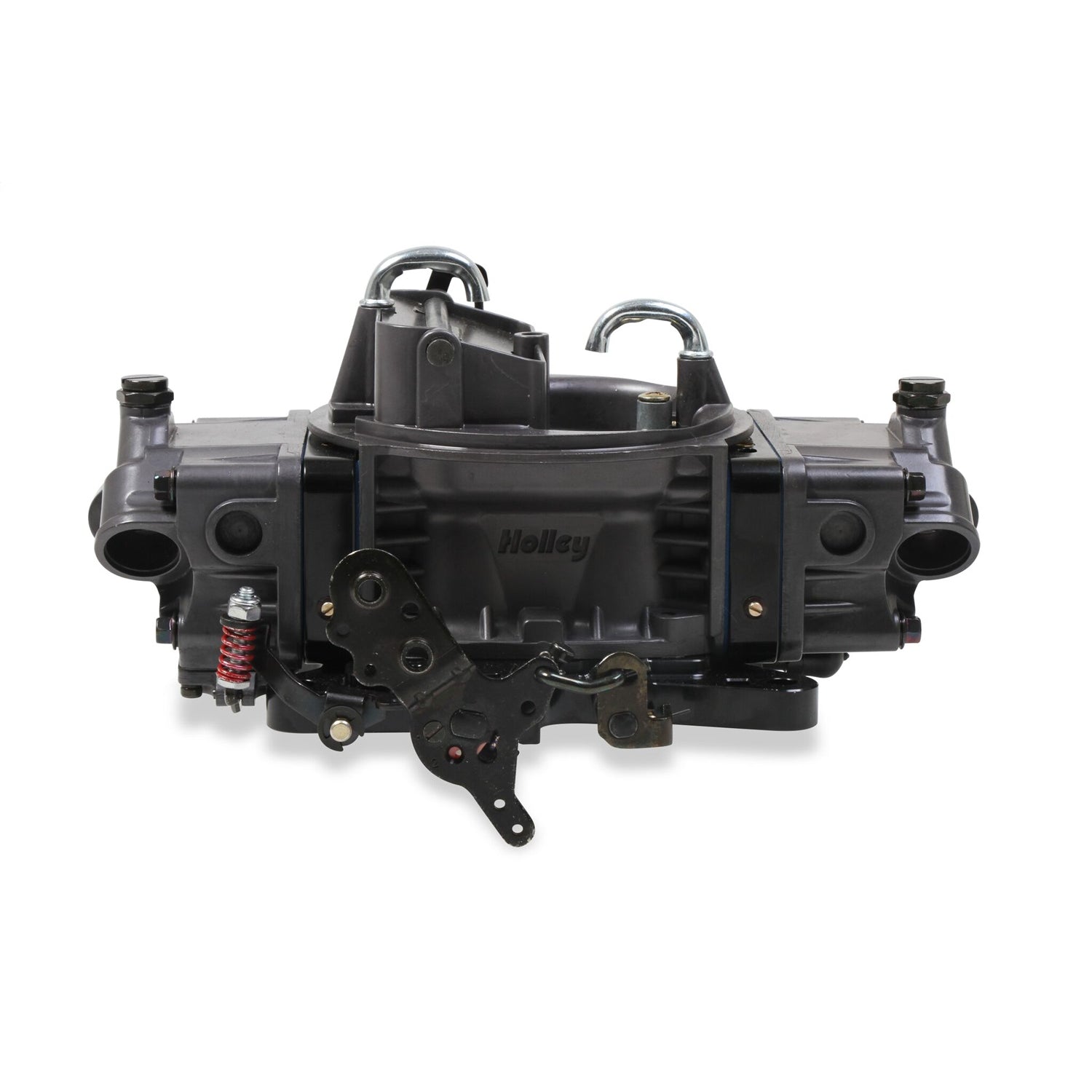

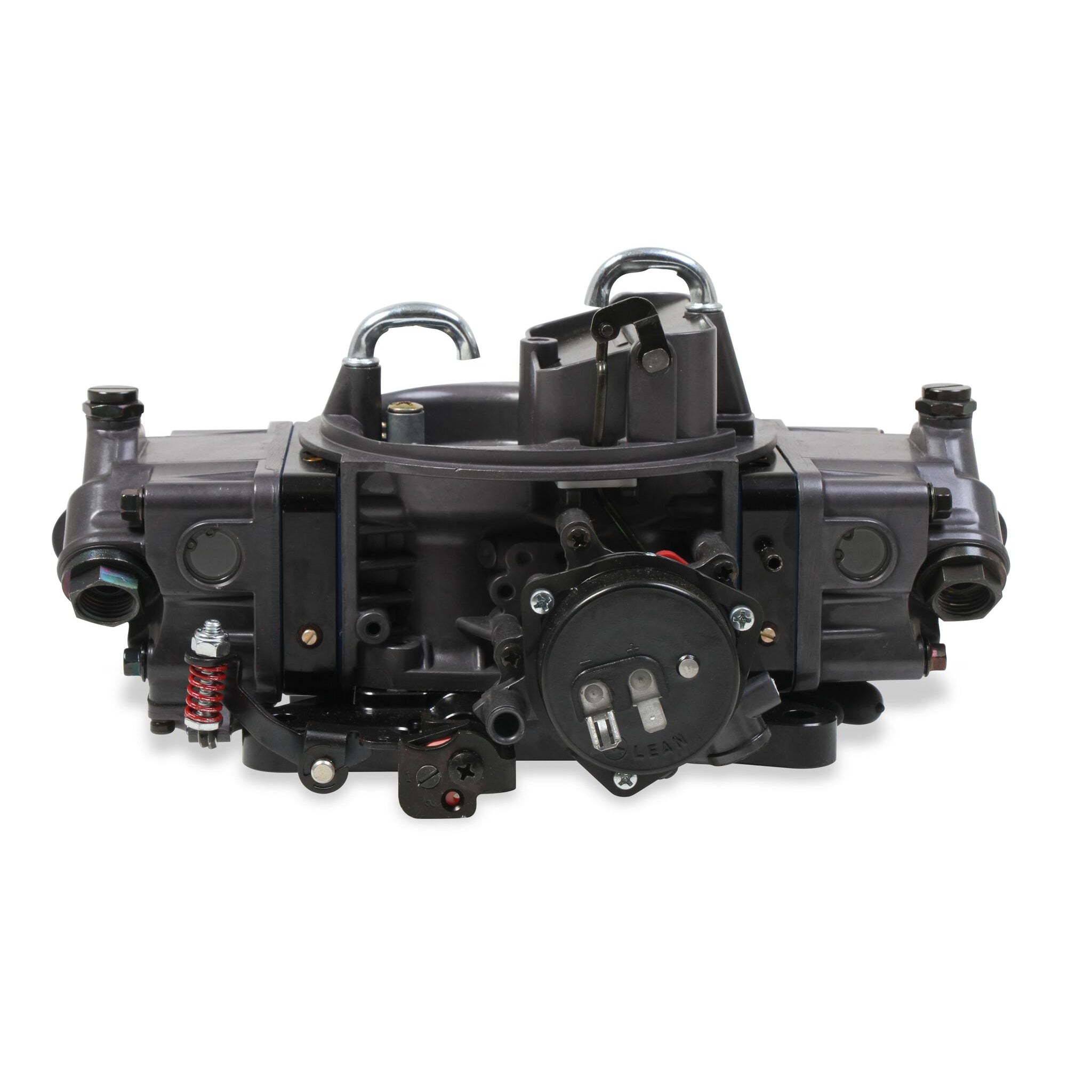

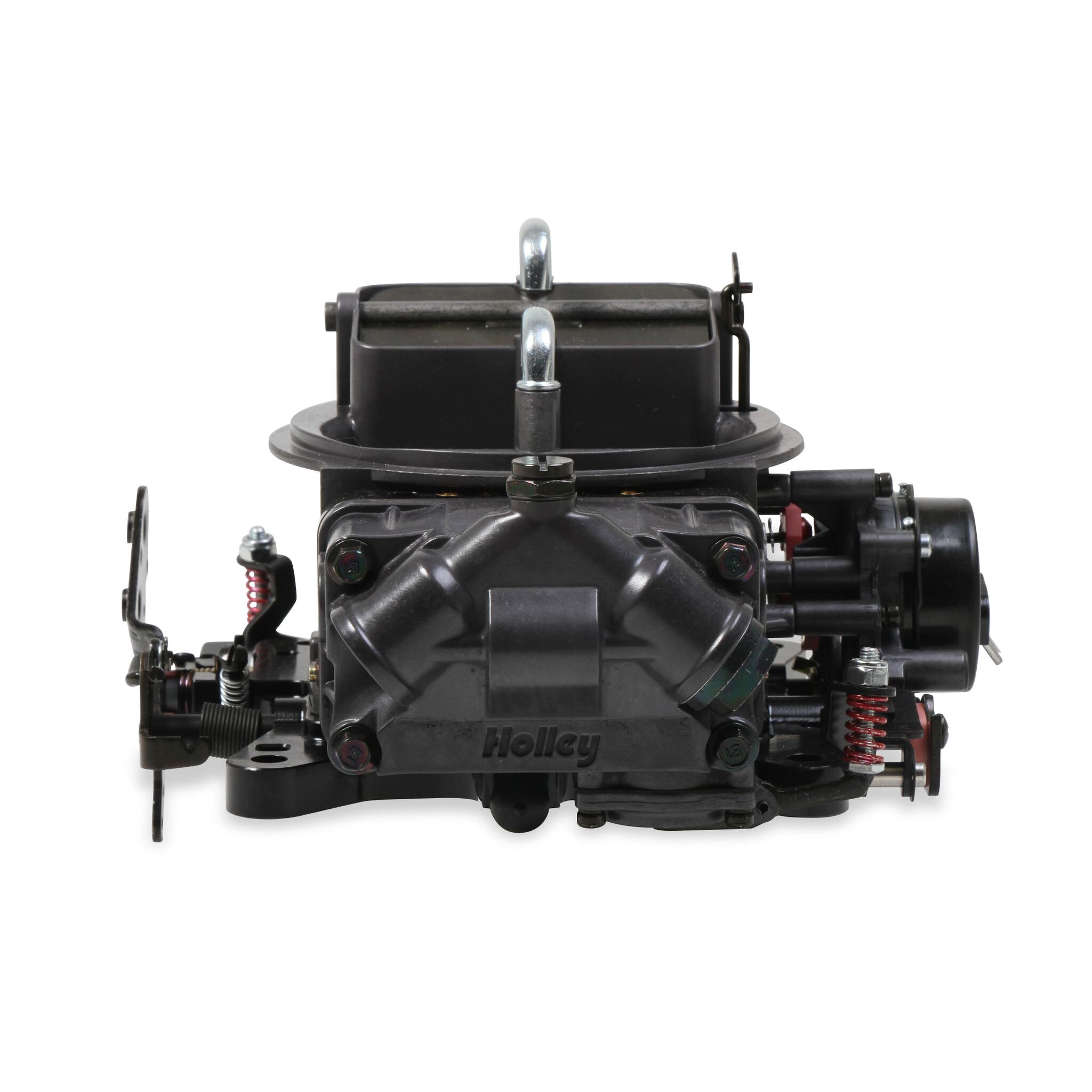

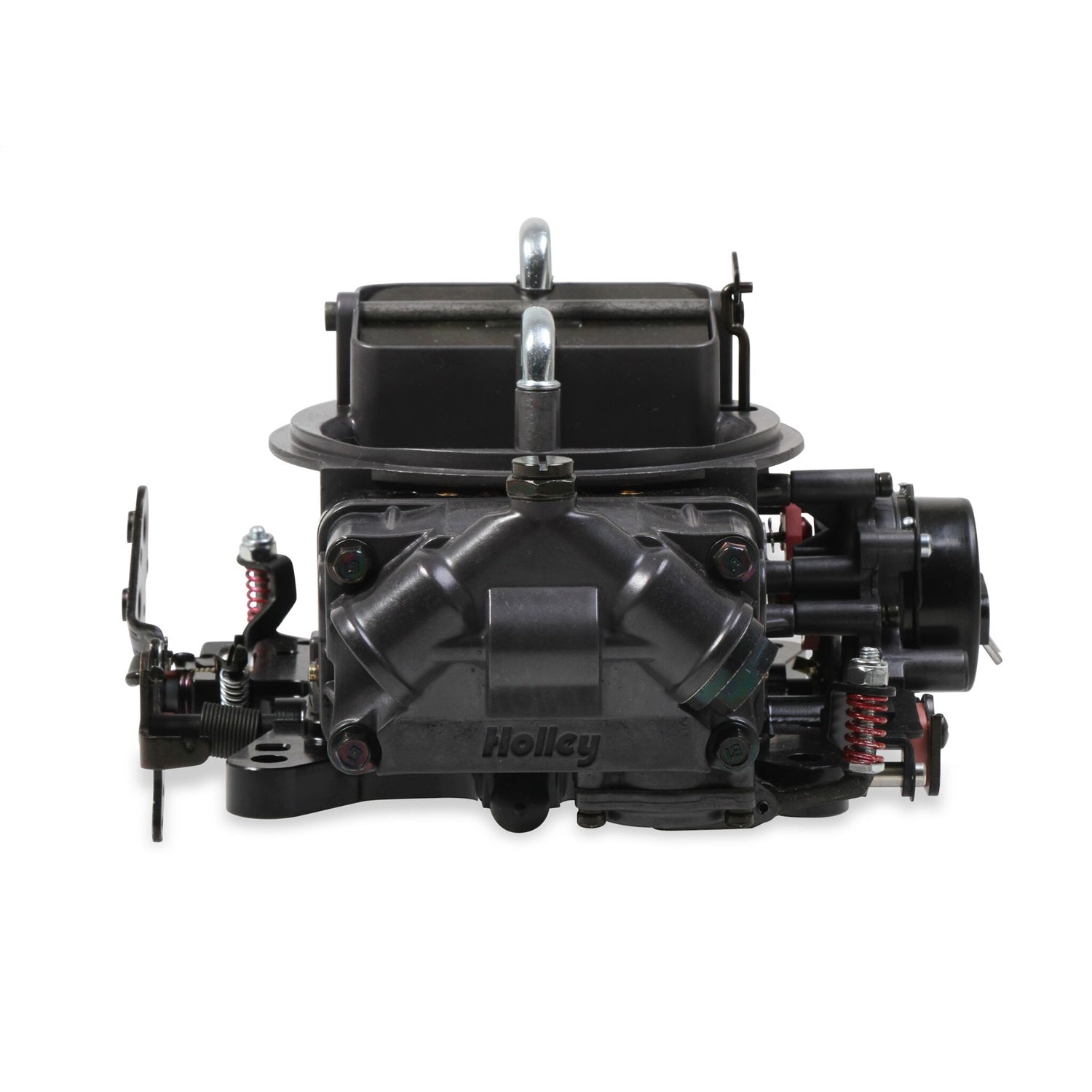

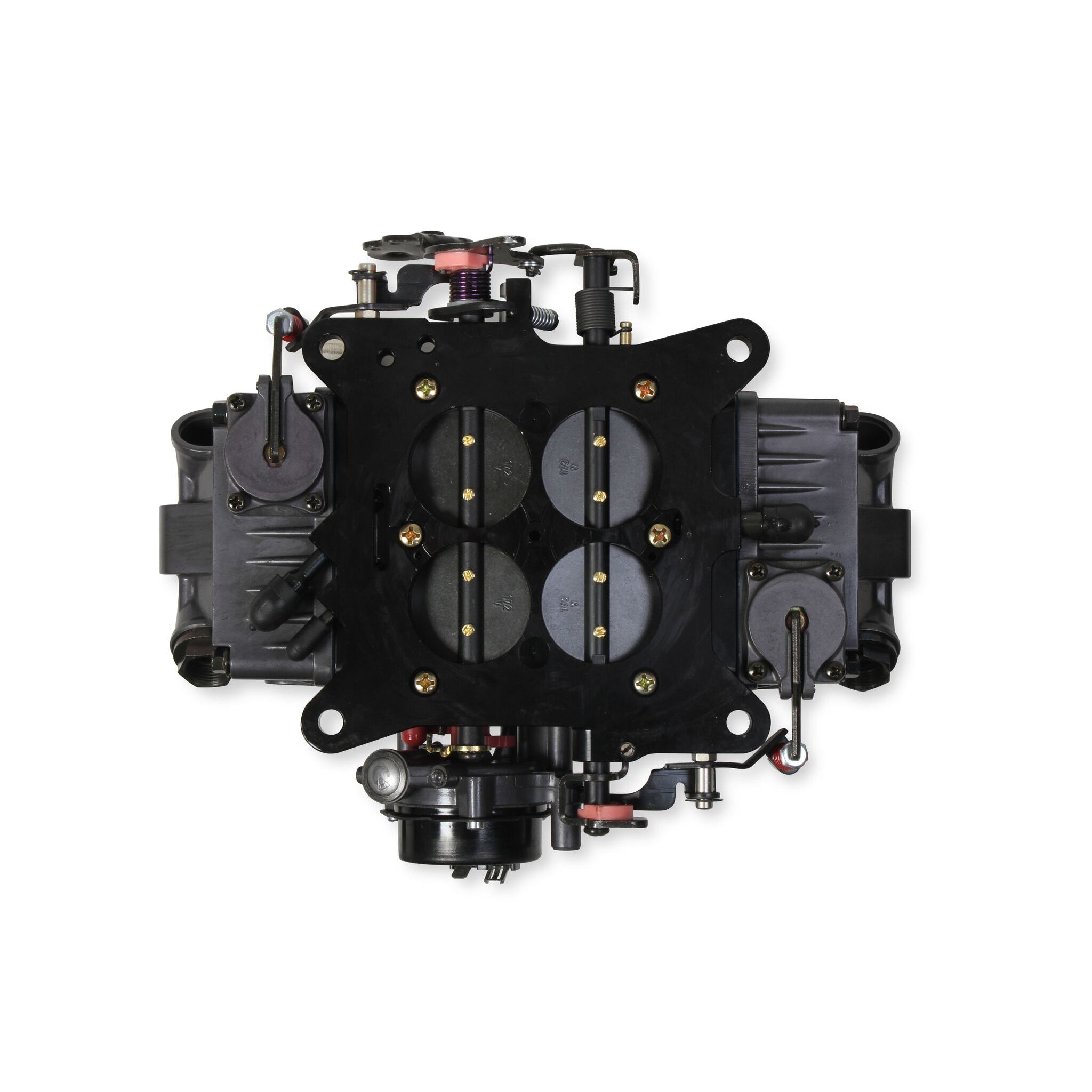

The new Ultra Marine Double Pumper (TM) Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs. less than a comparable zinc carburetor.
Specifications:
| Description_ASC |

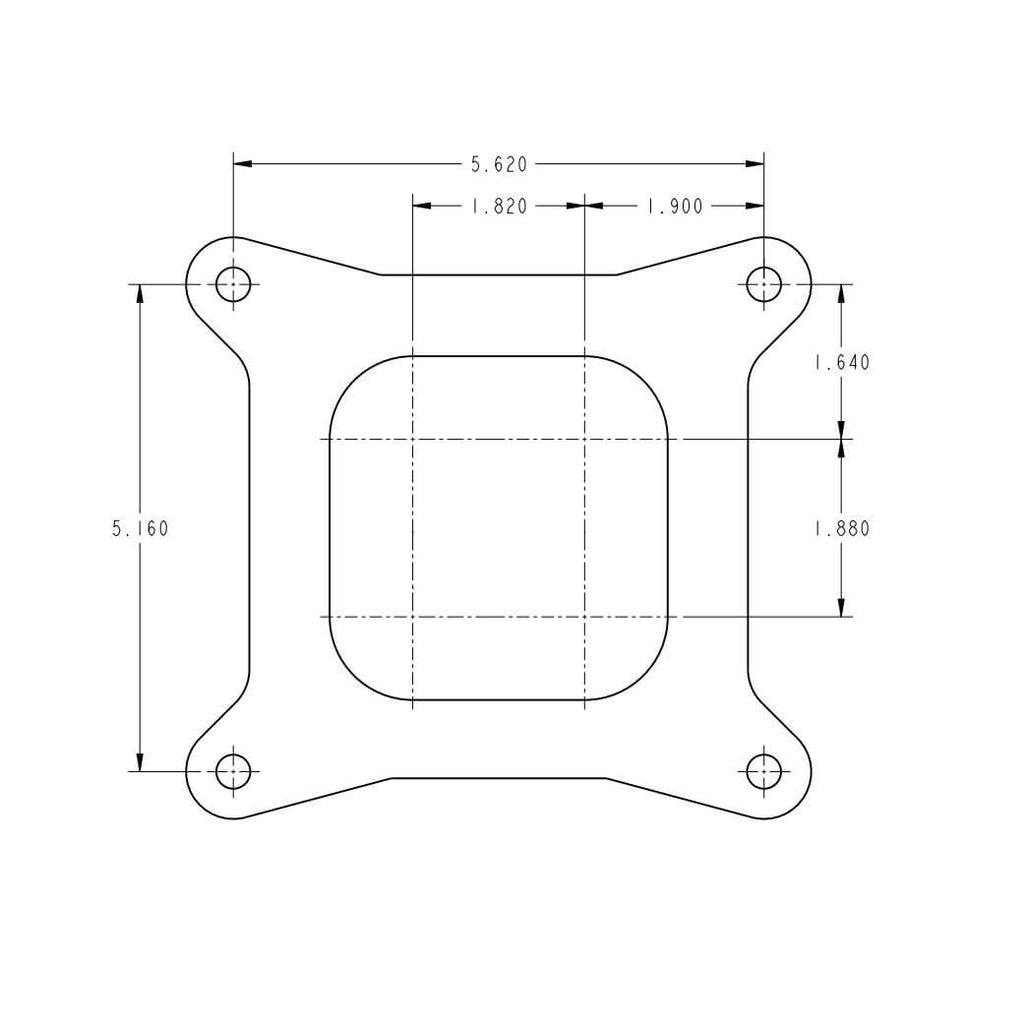

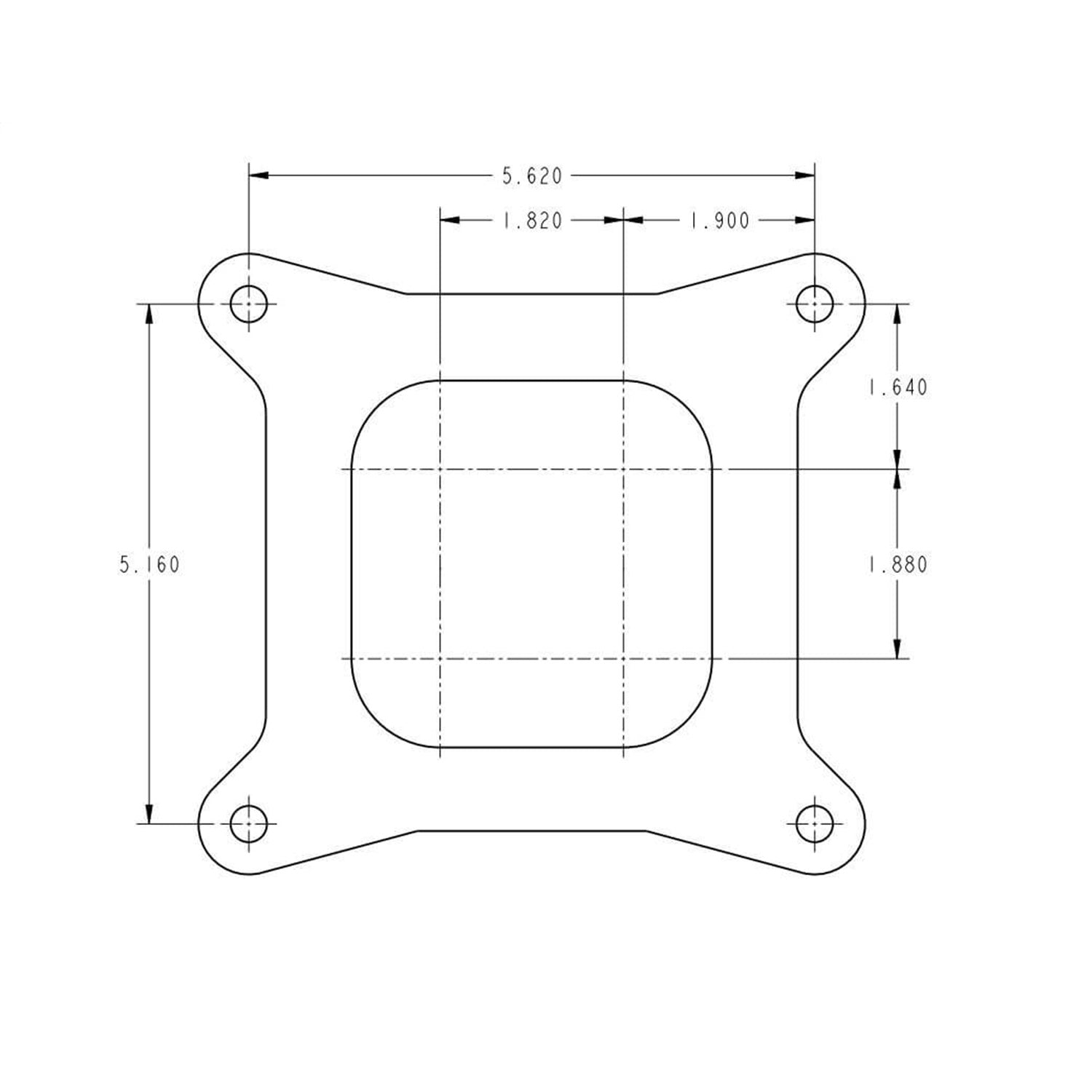

This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932. |
| Description_DEF |
Carburetor |
| Description_DES |

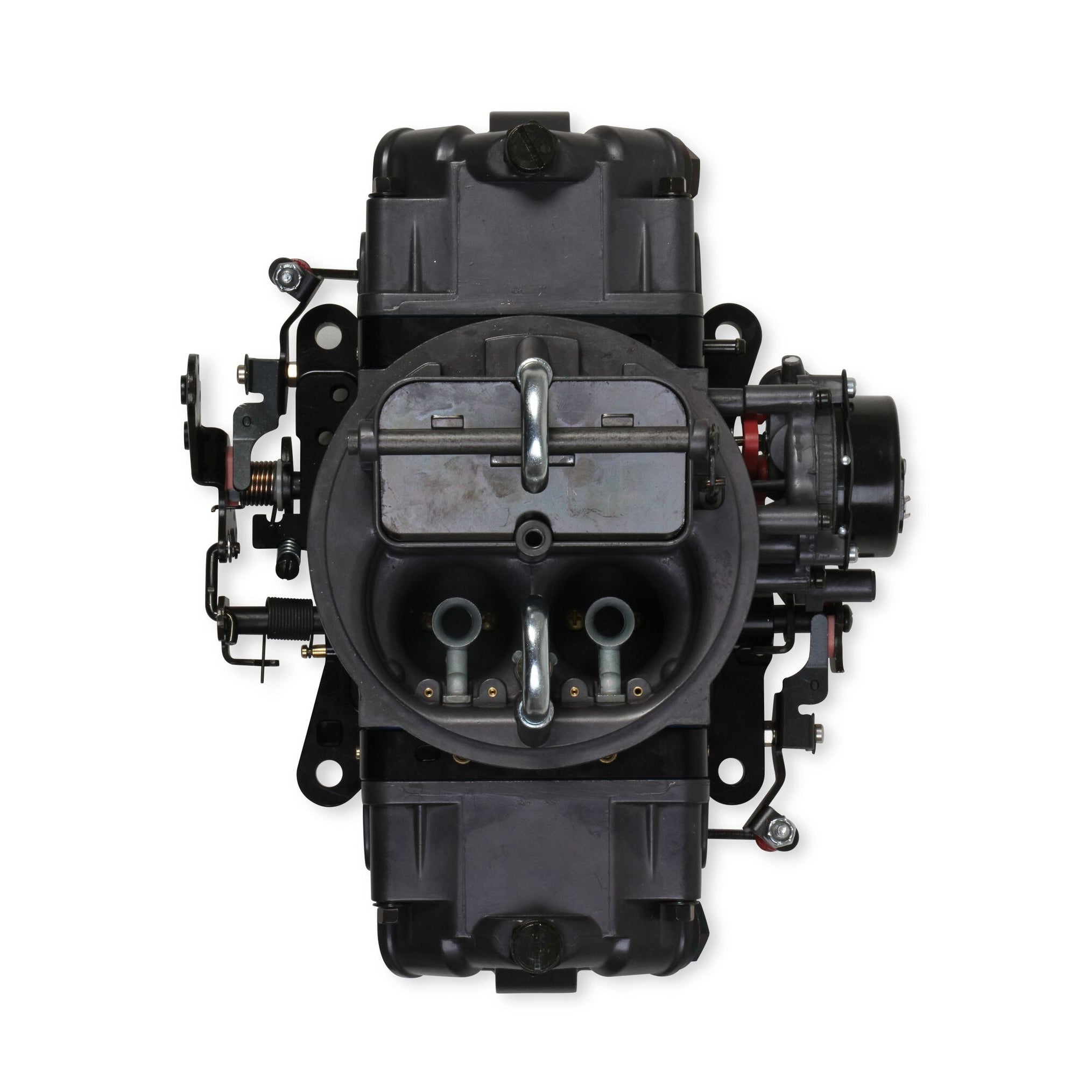

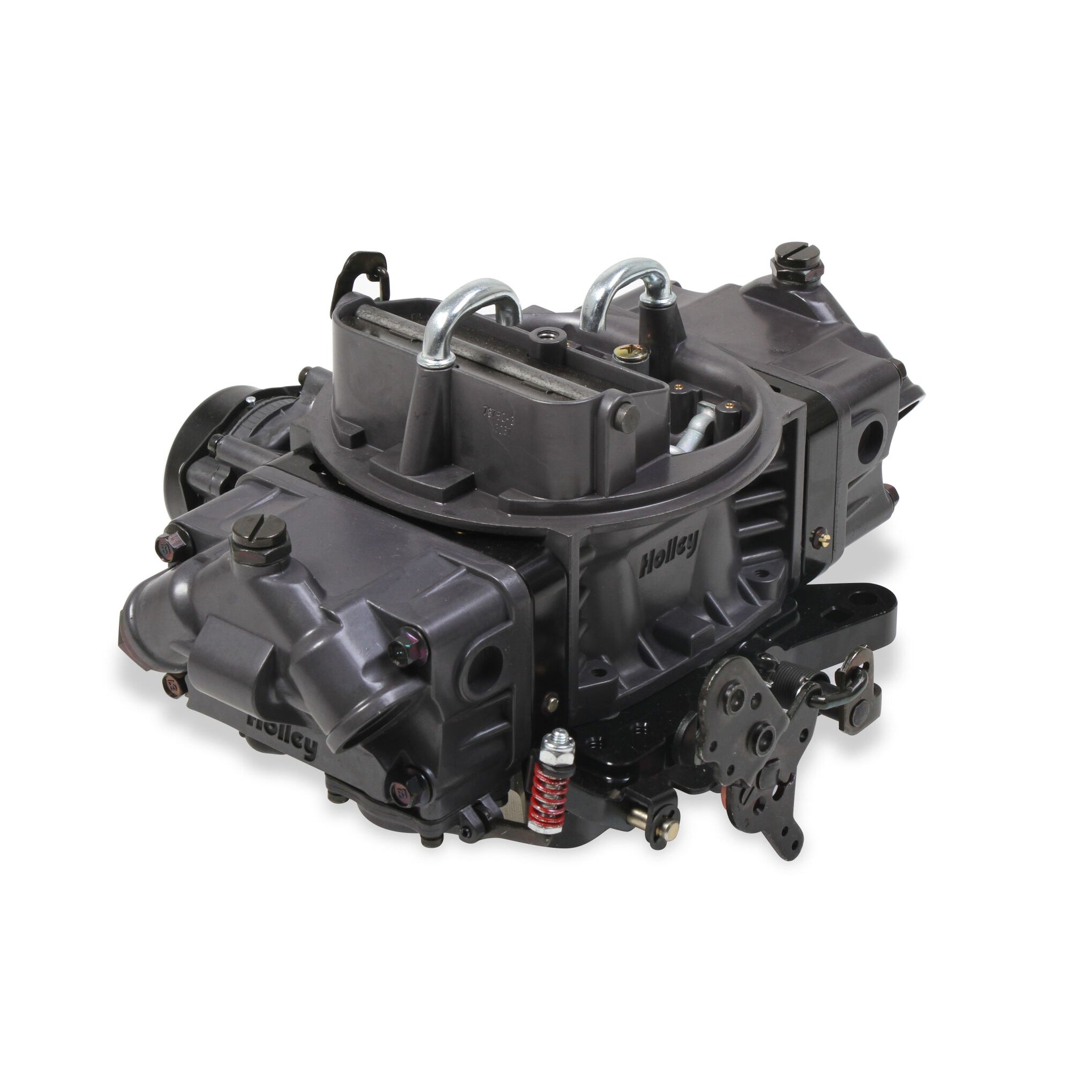

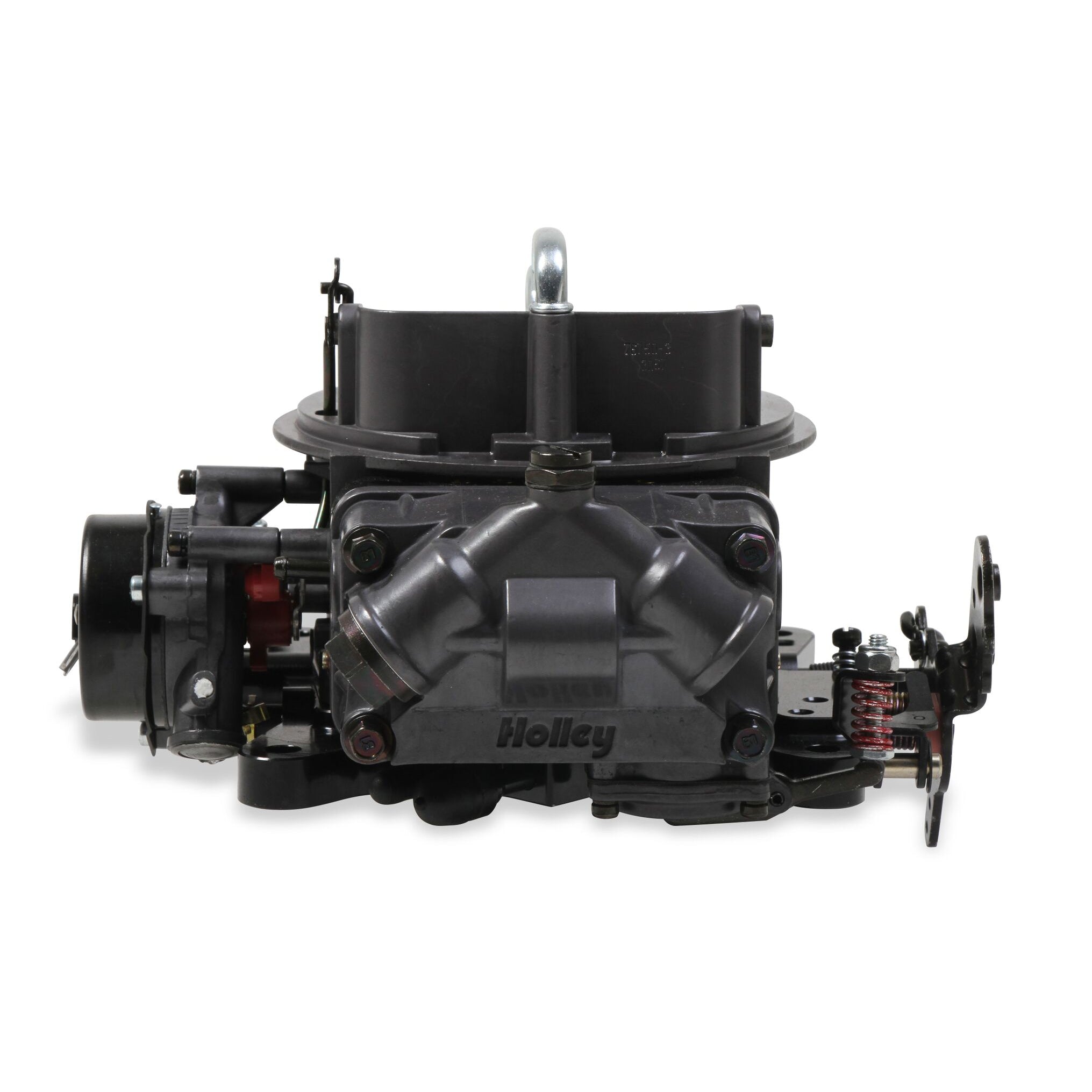

750 CFM Ultra Double Pumper Marine Carburetor |
| Description_FAB |
Hard Core Gray (TM) w/ black anodized billet aluminum metering blocks/base plate. Casting is hard coat anodized for ultimate corrosion resistance |
| Description_FAB |
Ultra Double Pumpers feature an Optimized marine calibration that works out-of-the-box |
| Description_FAB |
Factory preset electric choke for easy startups |
| Description_FAB |
Mechanical secondaries for awesome performance |
| Description_FAB |
4 corner idle allows you to precisely control your idle system |
| Description_FAB |
Built in, clear fuel level sight glass for easy, no mess fuel level adjustments |
| Description_FAB |
Aluminum construction for a 43% weight savings |
| Description_FAB |
100% wet-flow tested by Holley technicians to assure it arrives ready to run! |
| Description_INV |
750 ULTRA MARINE DOUBLE PUMPER - HB |
| Description_EXT |
Ultra Double Pumper (R) Carburetor; 4 bbl; 750 cfm; Model 4150; Mech. Secondary; Electric Choke; Gasoline; Dual Fuel Inlet; Black Metering Block/Base Plate; Hard Core Gray Finish; |
| Description_MKT |
The new Ultra Marine Double Pumper (TM) Carburetors feature all aluminum construction and are equipped with metering blocks and a base plate made from 6061-T6 billet aluminum. They weigh in at approximately 5 lbs. less than a comparable zinc carburetor. |
| Description_MKT |
The new Ultra Marine Double Pumper Carburetors have an enhanced fuel curve for optimum performance, with many more features such as aluminum construction; anodized billet aluminum metering blocks and base plate; 4 corner idle for precise idle control; mechanical secondaries for great performance; clear fuel level sight plugs for easy, no mess fuel level adjustments; four vacuum ports for all necessary vacuum accessories; |
| Description_MKT |
The new Ultra Double Pumpers are built to exceed the Coast Guard standards and are J1223 Marine Standard certified. So, if you are hitting the lake for an easy cruise or some high speed fun, these new performance carburetors will meet and exceed your performance demands! |
| Description_SHO |
Carburetor |
| Secondary Main Jet |
84 |
| Warning |
California Proposition 65 |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Primary Main Jet |
74 |
| Type |
4150 |
| Brand |
Holley |
| Carburetor Use |
Marine |
| Primary Power Valve |
6.5 |
| WARNING CA Proposition 65 |
Yes |
| Vacuum Port Quantity |
1 timed (spark); 2 full; 1 PCV |
| CFM |
750 |
| Model |
4150 |
| Product Type |
Marine Carburetor |
| Secondaries |
Mechanical |
| Vacuum Ports |
1 timed (spark) port, 2 full, and 1 PCV port |
| Sale Category |
Carburetors and Components |
| Fuel Type |
Gasoline |
| Billet Color |
Black |
| Emission |
Without EGR |
| Booster Type |
Down Leg |
| Supercharged Application |
No |
| Marine Engine Size |
Universal |
| Choke |
Electric |
| Finish |
Hard Core Gray |
| Secondary Type |
Mechanical |
| Usage |
Marine |
| Carburetor Type |
4150 |
| Barrels |
4 |
| Booster |
Down Leg |
| Condition |
New |
| Emission Code |
3 |
| Fuel |
Gasoline |
| Primary Pump Nozzle Size |
31 |
| Warranty |
Limited 90 Day |
| Fuel Inlet |
Dual |
| Flange |
Square Bore |
| Secondary Pump Nozzle Size |
31 |
| Material |
Aluminum |
| Barrel |
Four |
| Marine Use |
Yes |
| Throttle Bore |
1.688 inch |
| Length |
8.0000 |
| Width |
11.0000 |
| Height |
12.0000 |
| Weight |
10.0000 |
