Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford Windsor block headers, even if it is not perfectly aligned with the header collectors.

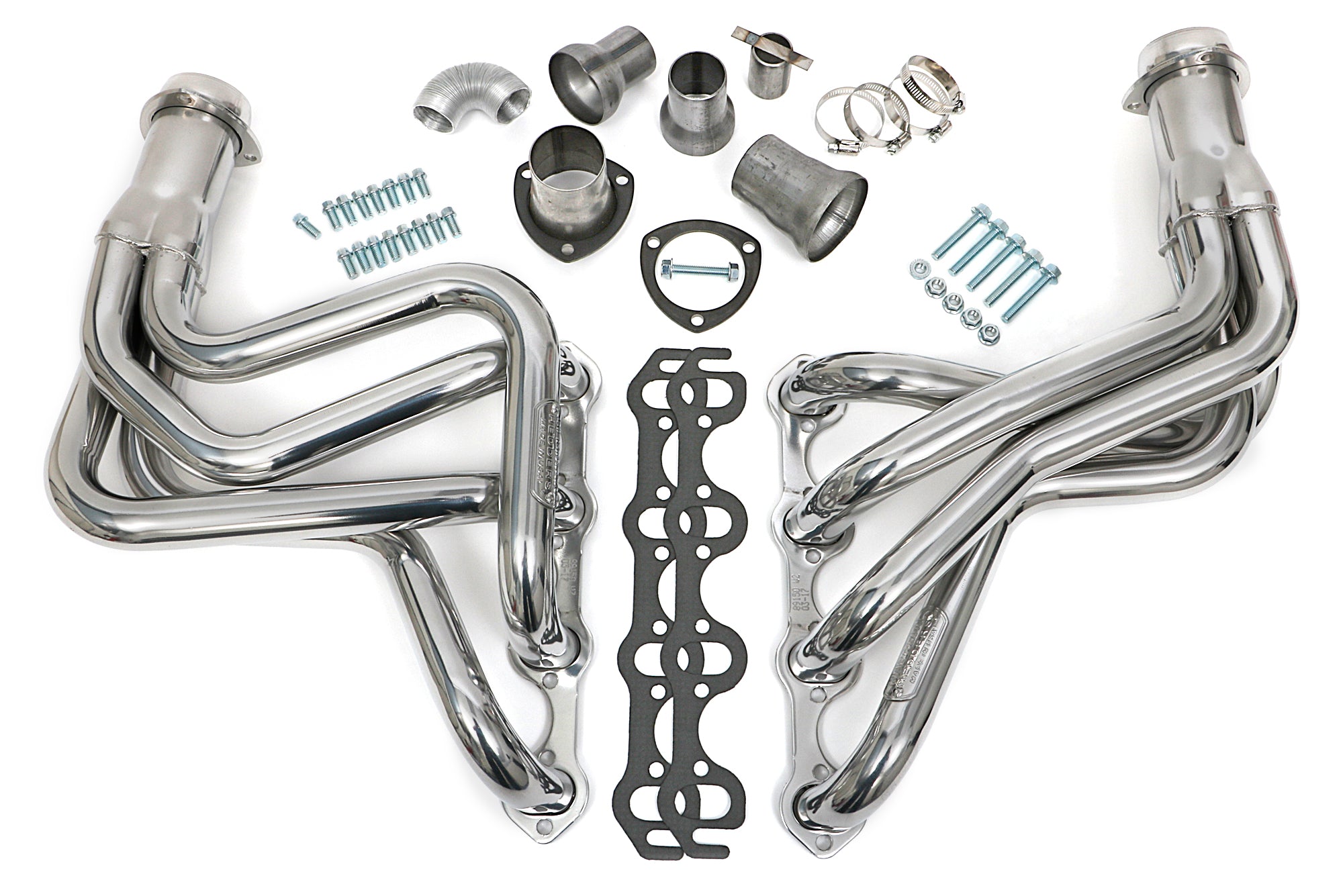

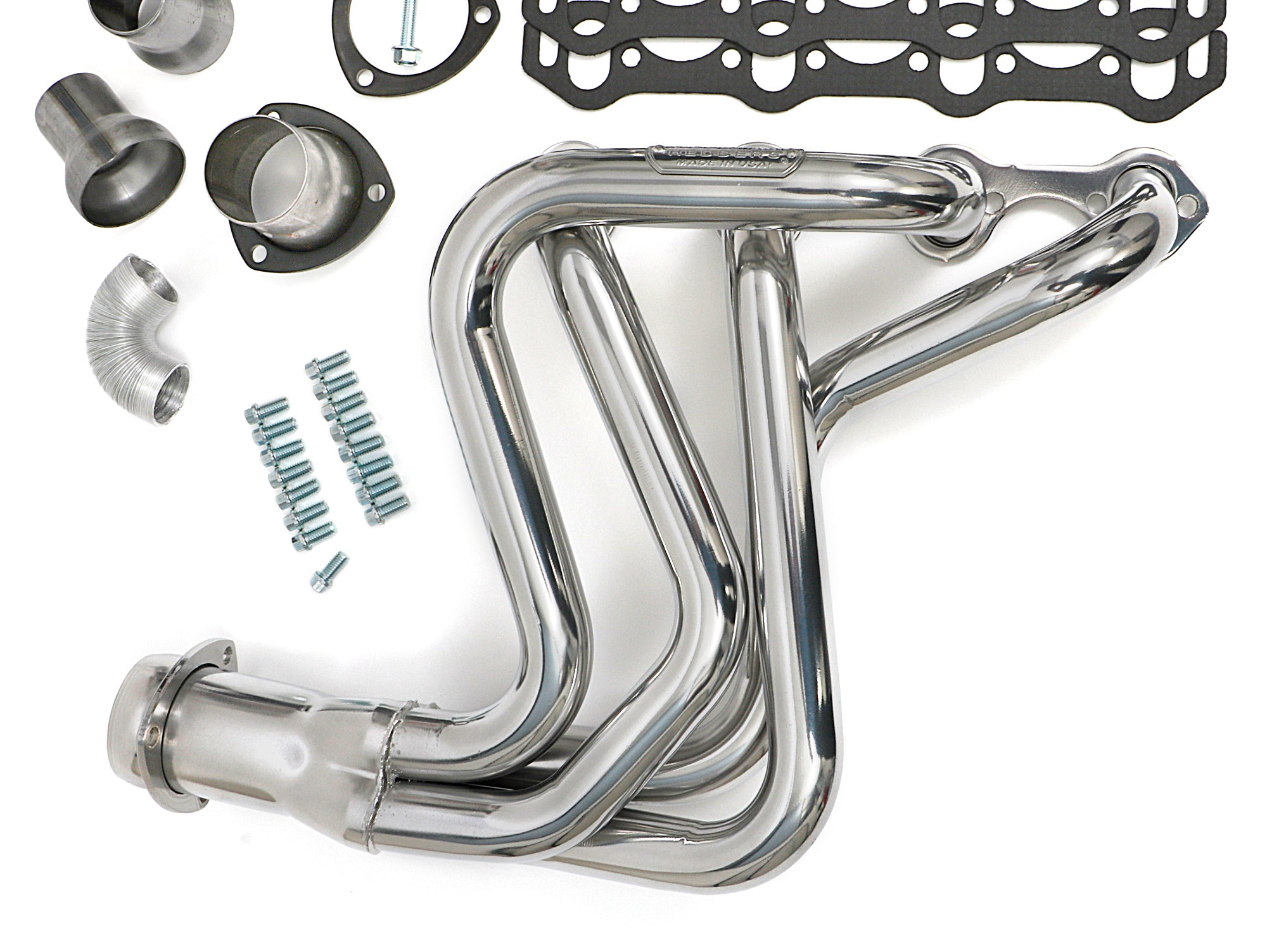

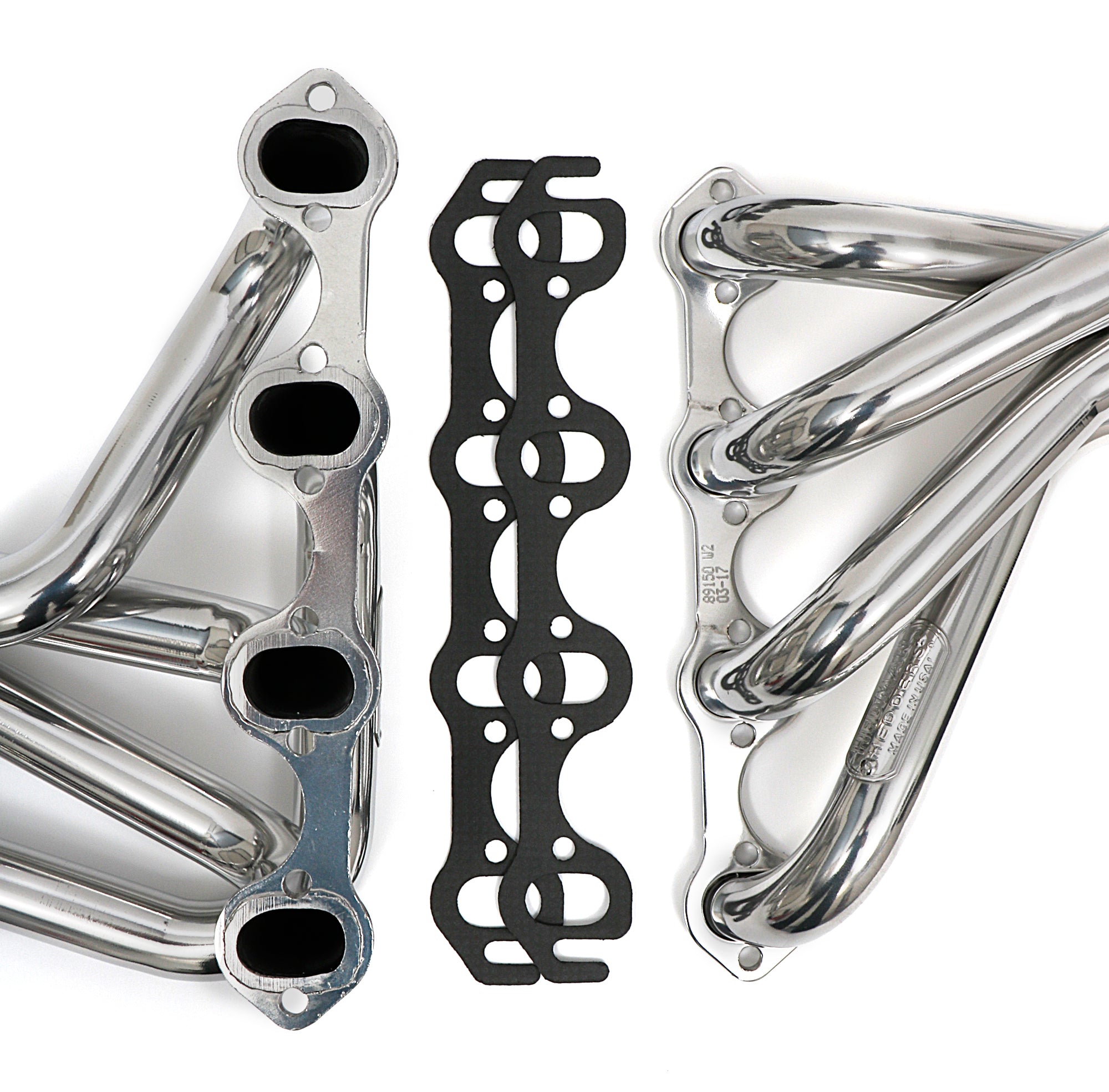

These HTC coated, LONG-TUBE headers fit 1969-79 Ford 1/2 ton, 2WD Trucks with a Small-Block Ford 289-302W engine. These headers have been successfully tested and assigned E.O. number D167-27 by C.A.R.B., making them 50-state legal on the emissions-controlled 1975-1979 models without A.I.R. System. The long, smooth-flowing 1-5/8 in. oval port tube design provides excellent exhaust flow to let your Ford truck's SB Ford engine exhale, and produce excellent horsepower and torque. They fit manual and auto transmissions, but not for use on Camper Special models, or trucks with a lift kit.

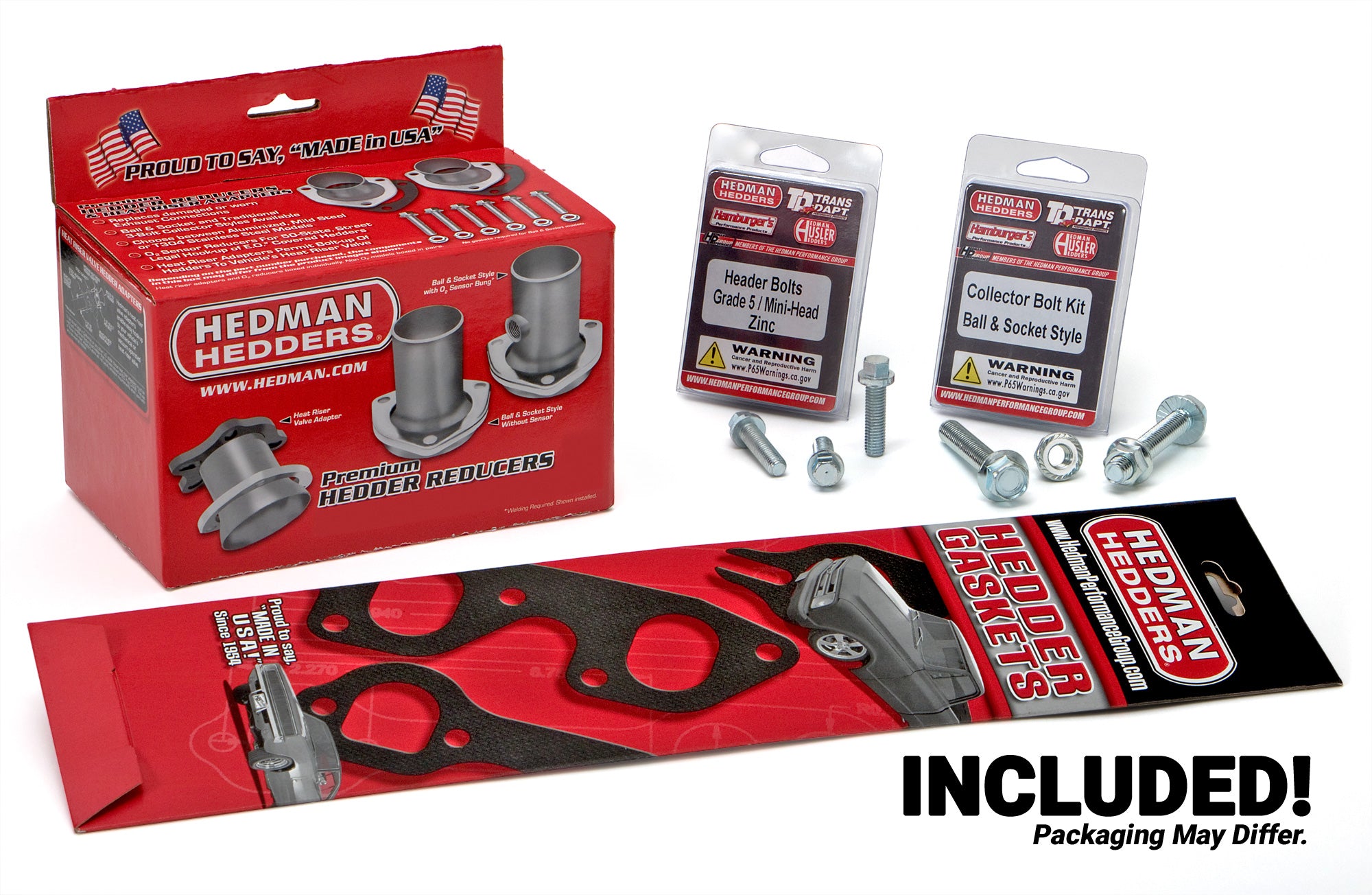

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

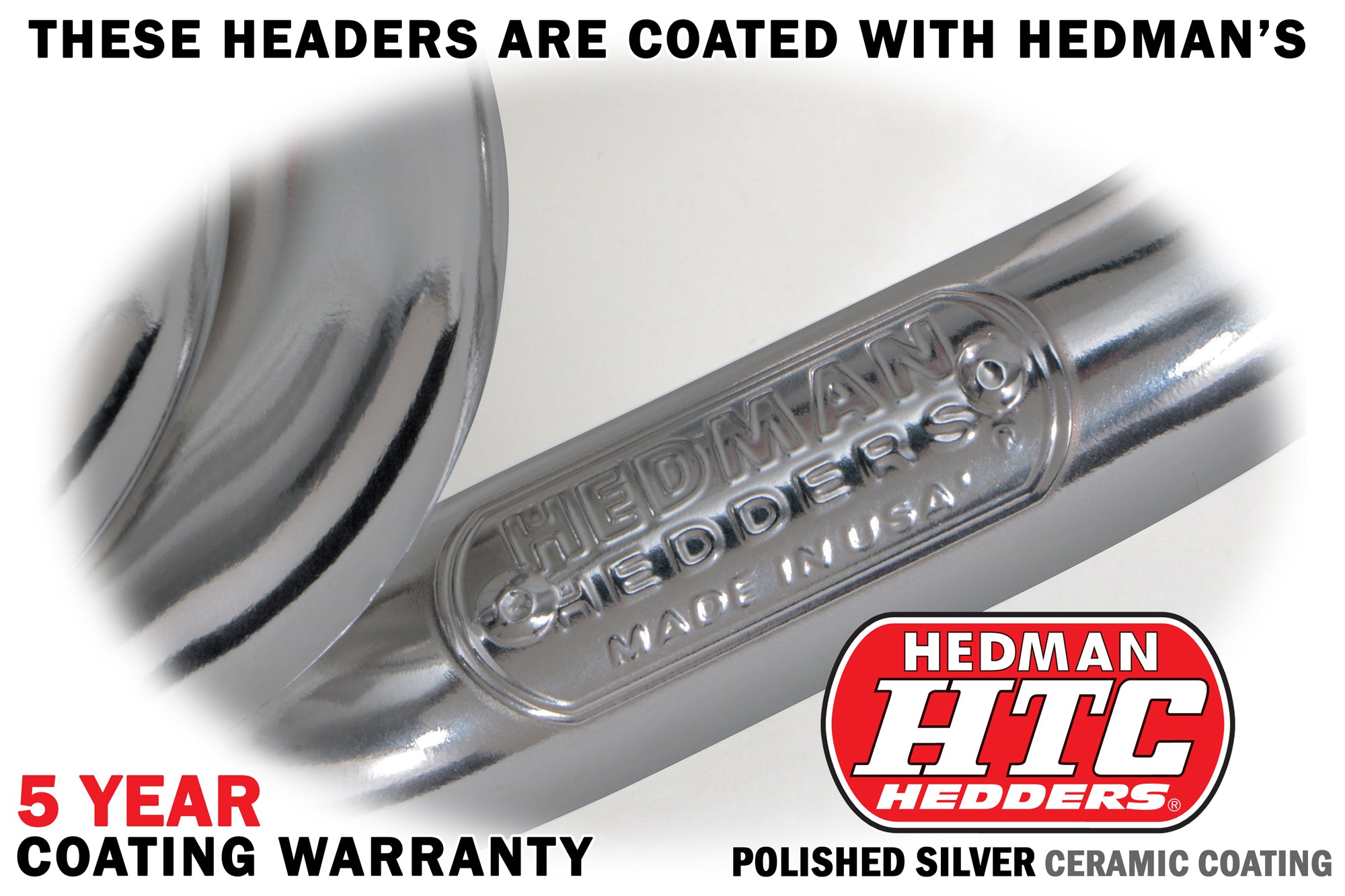

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_ASM |
1976-1978 Ford F-100 Base CID 302 Naturally Aspirated GAS, 1975 Ford F-100 Custom CID 302 Naturally Aspirated GAS, 1979 Ford F-100 Custom CID 302 Naturally Aspirated GAS, 1976-1978 Ford F-150 Base CID 302 Naturally Aspirated GAS, 1975 Ford F-150 Custom CID 302 Naturally Aspirated GAS, 1979 Ford F-150 Custom CID 302 Naturally Aspirated GAS |
| Description_DEF |
Exhaust Header |
| Description_DES |
HTC Coated Headers; 1-5/8 in. Tube Dia; FULL LENGTH Design |
| Description_MKT |
Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford Windsor block headers, even if it is not perfectly aligned with the header collectors.
These HTC coated, LONG-TUBE headers fit 1969-79 Ford 1/2 ton, 2WD Trucks with a Small-Block Ford 289-302W engine. These headers have been successfully tested and assigned E.O. number D167-27 by C.A.R.B., making them 50-state legal on the emissions-controlled 1975-1979 models without A.I.R. System. The long, smooth-flowing 1-5/8 in. oval port tube design provides excellent exhaust flow to let your Ford truck's SB Ford engine exhale, and produce excellent horsepower and torque. They fit manual and auto transmissions, but not for use on Camper Special models, or trucks with a lift kit.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
|
| Description_FAB |
Handcrafted, Mild Steel Construction. |
| Description_FAB |
Long Tube Header Design Provides Excellent Top-End Horsepower and Torque. |
| Description_FAB |
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors |
| Description_FAB |
Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters) |
| Description_FAB |
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating! |
| Description_FAB |
Proud To Say, Made In The USA, Since 1954! |
| Description_INV |
HEDMAN FORD TRUCK HEADERS-SILVER |
| Description_EXT |
HTC Coated Headers; 1-5/8 in. Tube Dia.; 3 in. Coll.; FULL LENGTH Design |
| Description_SHO |
HEADERS, COATED |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Bolts/Studs Included |
Yes |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Catalytic Converter(s) Included |
No |
| Collector Attachment |
3 in. |
| Collector Bolts Included |
Yes |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Crossover Pipe Included |
No |
| Cylinder Head |
Stock Profile Heads |
| Cylinder Head Port Shape |
Oval |
| Drivetrain |
2WD Only! |
| E.O. # |
Yes |
| Emissions Notes |
EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website) |
| Engine Version |
Ford Windsor Block (W) |
| Exhaust System Dia |
2-1/2 in. |
| Finish |
HTC Polished Silver Ceramic-Metallic |
| Finish Type |
HTC SILVER (polished) Ceramic-metallic Coating |
| Flange Style |
Standard |
| Flange Thickness |
0.3125 in. |
| Footnotes |
138. Will not fit Camper Special or vehicles equipped with front sway bar. |
| Gasket Or Seal Included |
Yes |
| Header Construction |
MILD STEEL- Standard-Duty |
| Header Fasteners Included |
Yes |
| Header Finish |
HTC Polished Silver Ceramic-Metallic |
| Header Material |
Mild Steel |
| Header Port Shape |
Oval Port |
| Header Style |
Long Tube |
| Installation Hardware Included |
Yes |
| Manual Transmission - Column |
Yes |
| Manual Transmission - Floor |
Yes |
| Material |
Mild Steel |
| Motor Mounts Included |
No |
| Mounting Hardware Included |
Yes |
| Notes |
69-79 Ford 1/2 Ton Trucks; 2WD 302 |
| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Port Shape |
Oval |
| Power Steering |
Yes |
| Primary Tube Diameter (in) |
1.625 in. |
| Primary Tube Gauge |
16g |
| Quantity |
Sold as a pair. |
| Reducer Outlet Size |
2-1/2 in. |
| Reducers Included |
Yes |
| Replacement Gasket |
27700 |
| Replacement Head Flange Gasket |
27700 |
| Title |
HEDMAN HEDDERS HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Tube Design |
Standard |
| Tube Diameter |
1-5/8 in. |
| Tube Length |
Long Tubes |
| Tube Material Thickness |
16g |
| Tube Size |
1-5/8 in. |
| Tube Style |
Long Tubes |
| Tuned |
No |
| Variations |
89150, 89158 |
| Weld-Up |
No |
| with A.I.R. System |
No |
| with EGR |
No |
| Y-Pipe Included |
No |
| Length |
8.0000 |
| Width |
17.0000 |
| Height |
29.0000 |
| Weight |
25.0000 |
