Stepped Long Tube Headers; 1998-2002 Chevy Camaro/ Pontiac Firebird 5.7L with LS; 1-1/2 in. to 1-5/8 in. Tube Diameter; 3 in. Collector- BLACK-MAXX Satin Black Ceramic-Metallic Coated, Mild Steel Construction
Specifications:
| Description_ASM |
1998-2002 Chevrolet Camaro 5.7 Liter Naturally Aspirated GAS, 1998-2000 Chevrolet Camaro Z28 5.7 Liter Naturally Aspirated GAS, 1998-2002 Pontiac Firebird 5.7 Liter Naturally Aspirated GAS |
| Description_DEF |
Exhaust Header |
| Description_DES |
1998-02 CAMARO/FB HEADERS; STEPPED 1-5/8 in. to 1-3/4 in. LONG TUBE- BLACK MAXX |
| Description_EXT |
Stepped Long Tube Headers; 1998-2002 Chevy Camaro/ Pontiac Firebird 5.7L with LS; 1-1/2 in. to 1-5/8 in. Tube Diameter; 3 in. Collector- BLACK-MAXX Satin Black Ceramic-Metallic Coated, Mild Steel Construction |
| Description_INV |
HEDMAN GM CAR HEADERS-BLACK |
| Description_FAB |
Handcrafted, Mild Steel Construction. |
| Description_FAB |
STEPPED, Long Tube Header Design Is a Race-Proven Configuration. The Primary Tubes on This Header Step Up In Diameter To Provide Excellent Horsepower and Torque Increases Across The Entire RPM Range. |
| Description_FAB |
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors |
| Description_FAB |

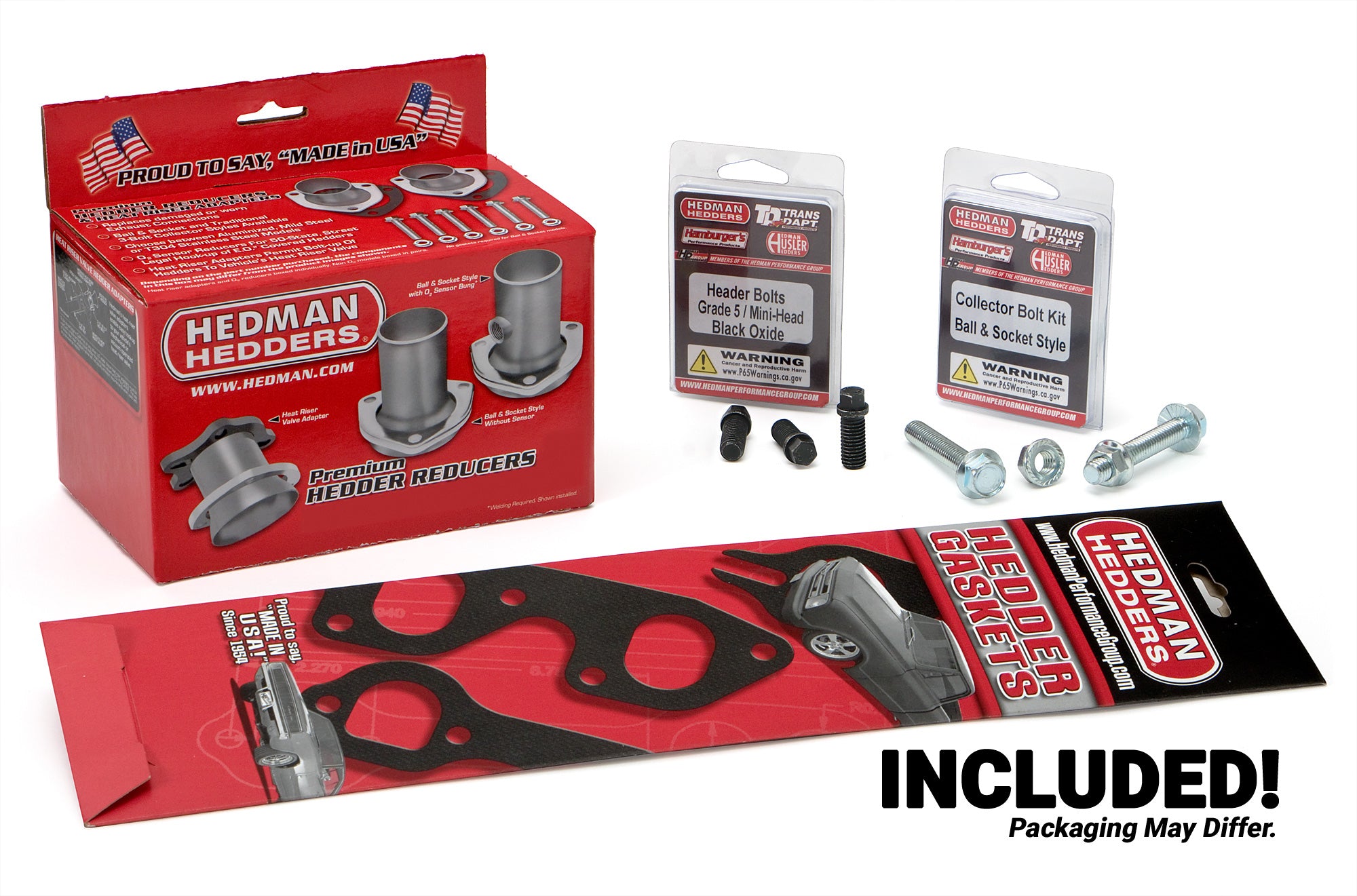

Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters) |
| Description_FAB |
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating! |
| Description_FAB |
Proud To Say, Made In The USA, Since 1954! |
| Description_SHO |
HEADERS, COATED |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
No |
| Automatic Transmission - Floor |
Yes |
| Bolts/Studs Included |
Yes |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Catalytic Converter(s) Included |
No |
| Collector Attachment |
3 in. |
| Collector Bolts Included |
Yes |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Contents |
Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| Crossover Pipe Included |
No |
| Cylinder Head |
Stock Profile Heads |
| Cylinder Head Port Shape |
Round |
| E.O. # |
No |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Exhaust System Dia |
2-1/2 in. |
| Finish |

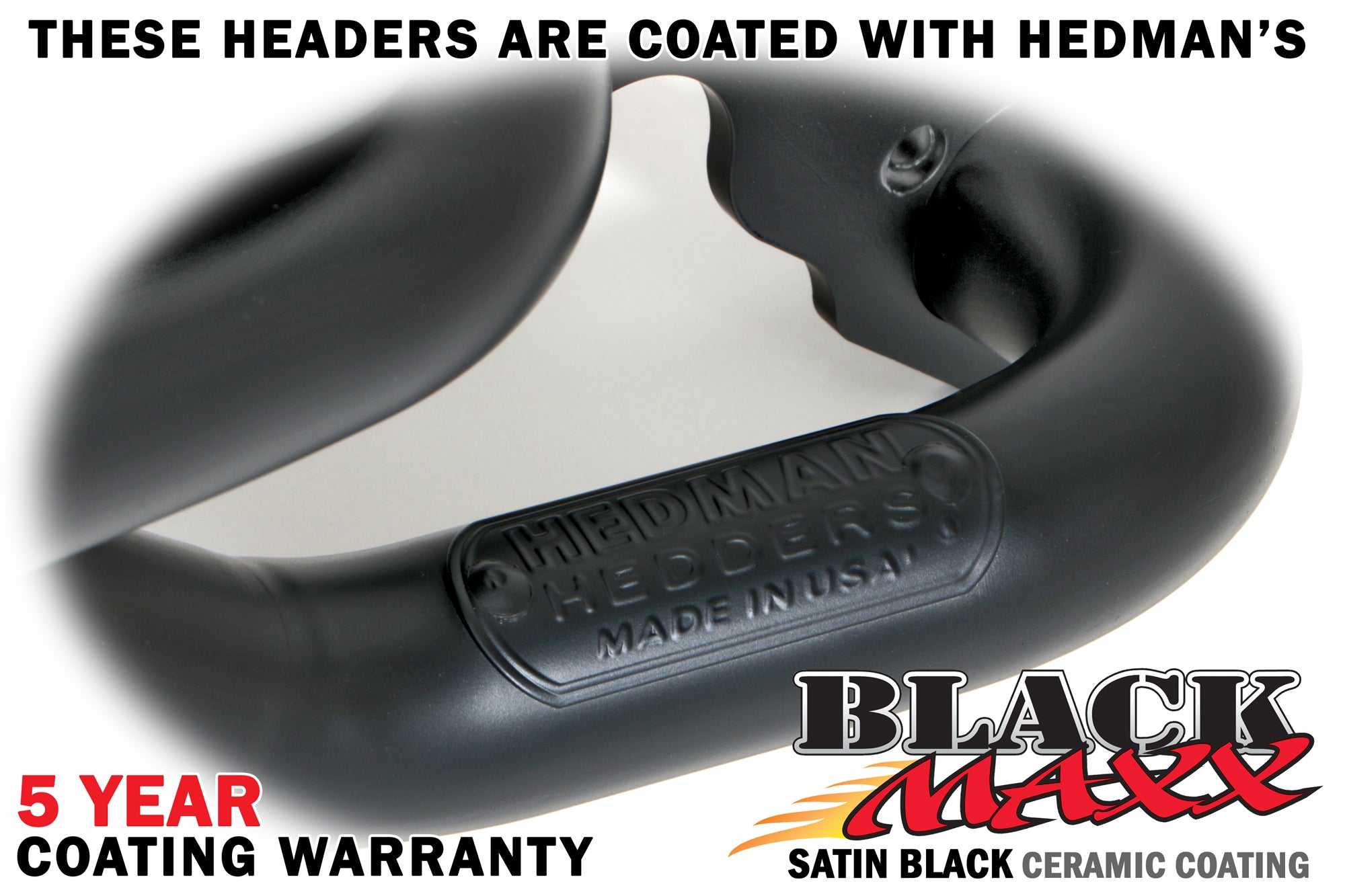

BLACK MAXX Satin Black Ceramic-Metallic |
| Finish Type |
BLACK MAXX- Black Ceramic-Metallic Coating |
| Flange Style |
Standard |
| Flange Thickness |
0.375 in. |
| Gasket Or Seal Included |
Yes |
| Header Construction |
MILD STEEL- Standard-Duty |
| Header Fasteners Included |
Yes |
| Header Finish |
BLACK MAXX Satin Black Ceramic-Metallic |
| Header Material |
Mild Steel |
| Header Port Shape |
Round |
| Header Style |
Long Tube- Stepped |
| Installation Hardware Included |
Yes |
| Installation Notes |
Y-pipe available and recommended for an easier install. |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
Yes |
| Material |
Mild Steel |
| Motor Mounts Included |
No |
| Mounting Hardware Included |
Yes |
| Notes |
98-02 Camaro. Firebird LS1 (Stepped) |
| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Port Shape |
Round |
| Power Steering |
Yes |
| Primary Tube Diameter (in) |
1.625 in. x 1.75 in. |
| Primary Tube Gauge |
16g |
| Quantity |
Sold as a pair. |
| Reducer Outlet Size |
2-1/2 in. |
| Reducers Included |
Yes |
| Replacement Gasket |
27470 |
| Replacement Head Flange Gasket |
27470 |
| Title |
HEDMAN HEDDERS STEPPED-HTC HEADERS FOR 1998-2002 CHEVROLET CAMARO OR PONTIAC FIREBIRD; 5.7L LS ENGINE; 1-5/8 IN. TO 1-3/4 IN. STEPPED TUBE DIAMETER; 3 IN. BALL/SOCKET COLLECTOR; BLACK-MAXX SATIN BLACK CERAMIC-METALLIC FINISH; MILD STEEL CONSTRUCTION |
| Tube Design |
Stepped Tubes |
| Tube Diameter |
1-5/8 in. x 1-3/4 in. |
| Tube Length |
Long Tubes |
| Tube Material Thickness |
16g |
| Tube Size |
1-5/8 in. x 1-3/4 in. |
| Tube Style |
Long Tubes |
| Tuned |
No |
| Variations |
68534 |
| Weld-Up |
No |
| with A.I.R. System |
No |
| with EGR |
No |
| Y-Pipe Included |
No |
| Length |
9.0000 |
| Width |
18.0000 |
| Height |
38.0000 |
| Weight |
34.0000 |
