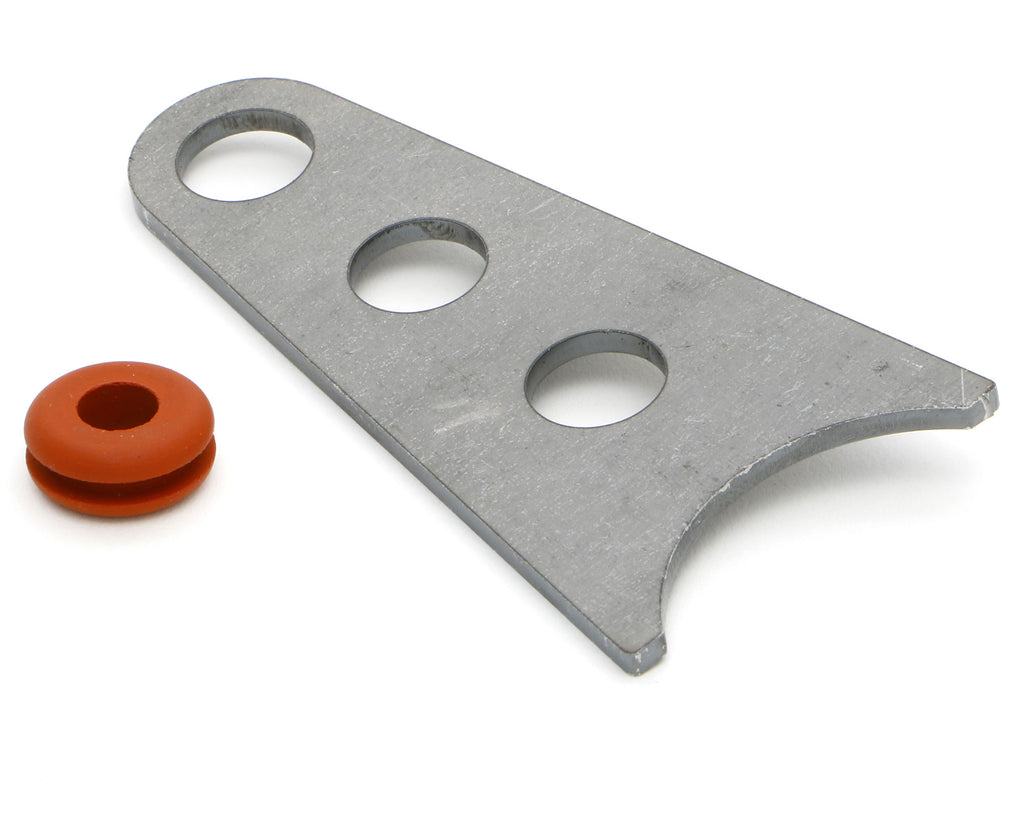

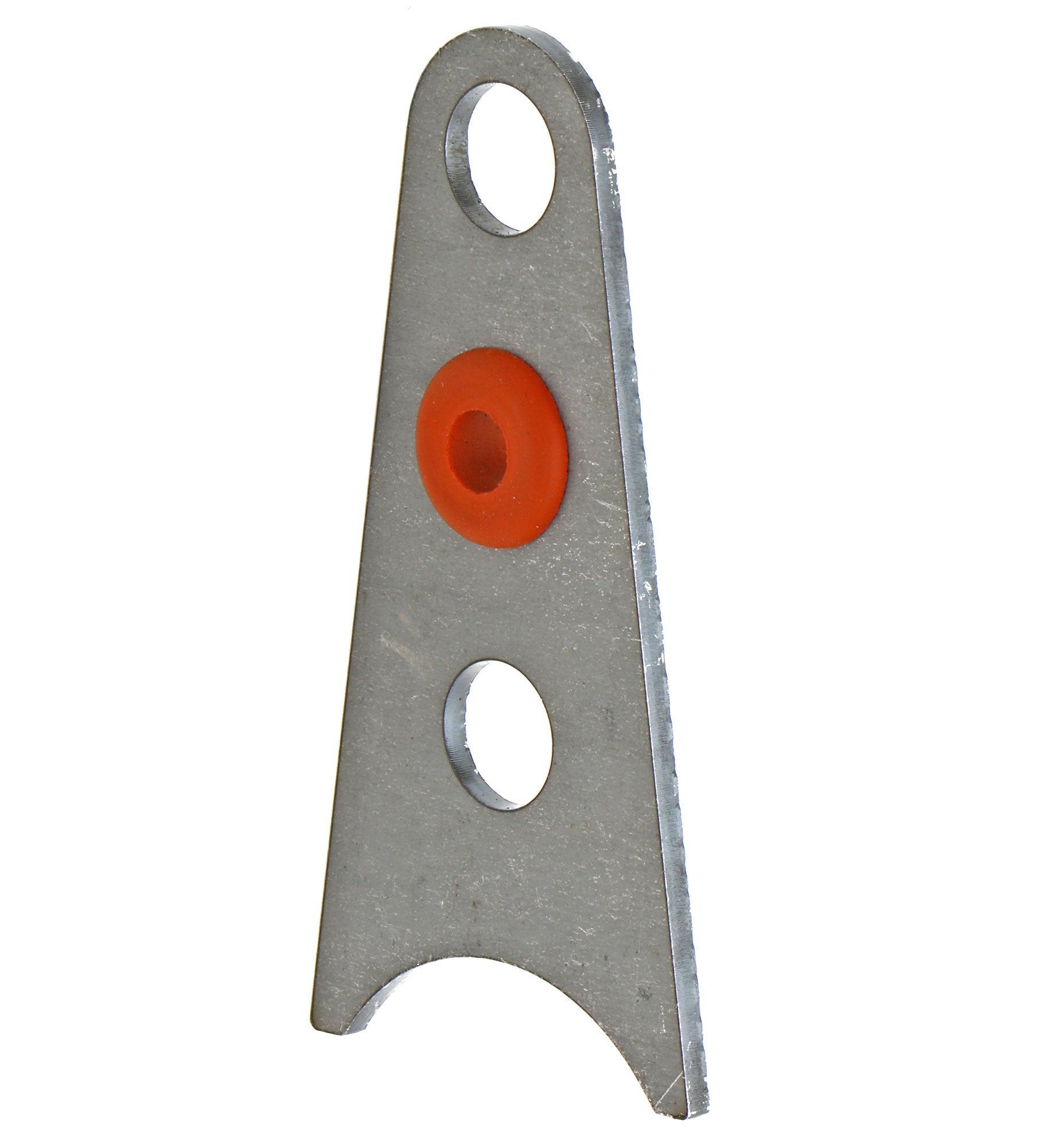

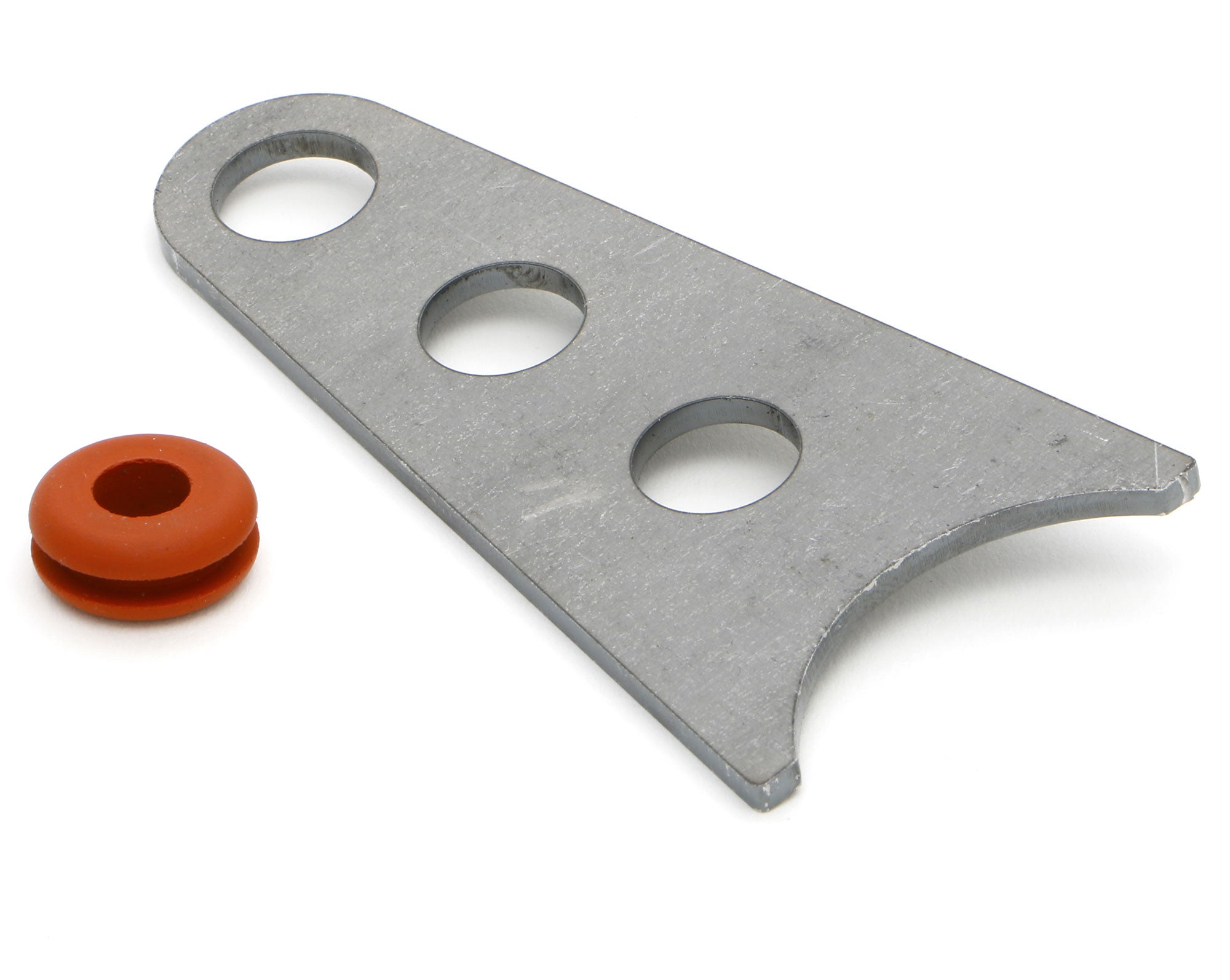

Properly hanging your vehicle s exhaust system is crucial to the system s longevity. In fact, missing or improperly located exhaust hangers don t just shorten the life of your exhaust system, they increase the forces generated on your vehicles headers, and can lead to cracked welds near the header collectors, as well as, cracks where the header tubes are welded to the head flange. Hedman s Universal-use weld-on exhaust hanger brackets allow you to correctly position the exhaust hangers on your exhaust to ensure a secure installation, and reduce the risk of header or exhaust damage. This Flat bracket is for use with 2 in. exhaust systems and includes high temperature grommets that can be installed in one of three different heights, and are for use with hanger rods or bolts that run parallel with the exhaust system. Once welded to the exhaust system, the brackets are attached to the vehicle using standard 3/8 in. diameter exhaust hanger rods (not included), or 3/8 in. diameter bolts (not included).
Specifications:
| Description_DES |
UNIVERSAL, FLAT WELD-ON EXHAUST HANGER; 2 IN. TUBE DIAMETER; MILD STEEL |
| Description_DEF |
Exhaust System Hanger Bracket |
| Description_INV |
HEDMAN WELD-ON EXHAUST HANGER |
| Description_EXT |
Universal WELD-ON, FLAT Exhaust Hanger Bracket For 2 in. Exhaust Pipe; Laser-Cut, Mild Steel Construction; Includes High Temperature Rubber Grommet. |
| Description_MKT |
Properly hanging your vehicle?s exhaust system is crucial to the system?s longevity. In fact, missing or improperly located exhaust hangers don?t just shorten the life of your exhaust system, they increase the forces generated on your vehicles headers, and can lead to cracked welds near the header collectors, as well as, cracks where the header tubes are welded to the head flange. Hedman?s Universal-use weld-on exhaust hanger brackets allow you to correctly position the exhaust hangers on your exhaust to ensure a secure installation, and reduce the risk of header or exhaust damage. This Flat bracket is for use with 2 in. exhaust systems and includes high temperature grommets that can be installed in one of three different heights, and are for use with hanger rods or bolts that run parallel with the exhaust system. Once welded to the exhaust system, the brackets are attached to the vehicle using standard 3/8 in. diameter exhaust hanger rods (not included), or 3/8 in. diameter bolts (not included). |
| Description_SHO |
EXHAUST HANGER |
| Bolt On |
No |
| Bracket Finish |
Raw Steel |
| Bracket Included |
Yes |
| Bushing Color |
Red |
| Bushing Material |
Rubber |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Contents |
Laser Cut, Weld-On Bracket, Rubber Grommet |
| Diameter Of Tubing |
2 in. |
| Exhaust Hanger Rod Diameter |
3/8 in. |
| Exhaust Hanger Rod Included |
No |
| Exhaust System Dia |
2 in. |
| Grommets Included |
Yes |
| Hanger Included |
No |
| Installation Hardware Included |
No Hardware required |
| Length |
4-1/2 in. |
| Material |
Mild Steel |
| Material Thickness |
1/8 in. |
| Materials |
Mild Steel, Rubber |
| Package Contents |
Laser Cut, Weld-On Bracket, Rubber Grommet |
| Pipe Diameter |
2 in. |
| Style |
Flat |
| Title |
HEDMAN HEDDERS WELD-ON STYLE, UNIVERSAL FLAT EXHAUST HANGER BRACKET; 2 IN. EXHAUST PIPE; LASER-CUT, MILD STEEL CONSTRUCTION; INCLUDES HIGH TEMPERATURE RUBBER GROMMET. |
| Tube Diameter |
2 in. |
| Tube Size |
2 in. |
| Type |
Weld-On |
| Welding Required |
Yes |
| Width |
2-1/4 in. |
| Length |
6.0000 |
| Width |
1.0000 |
| Height |
7.0000 |
