| Description_ASC |

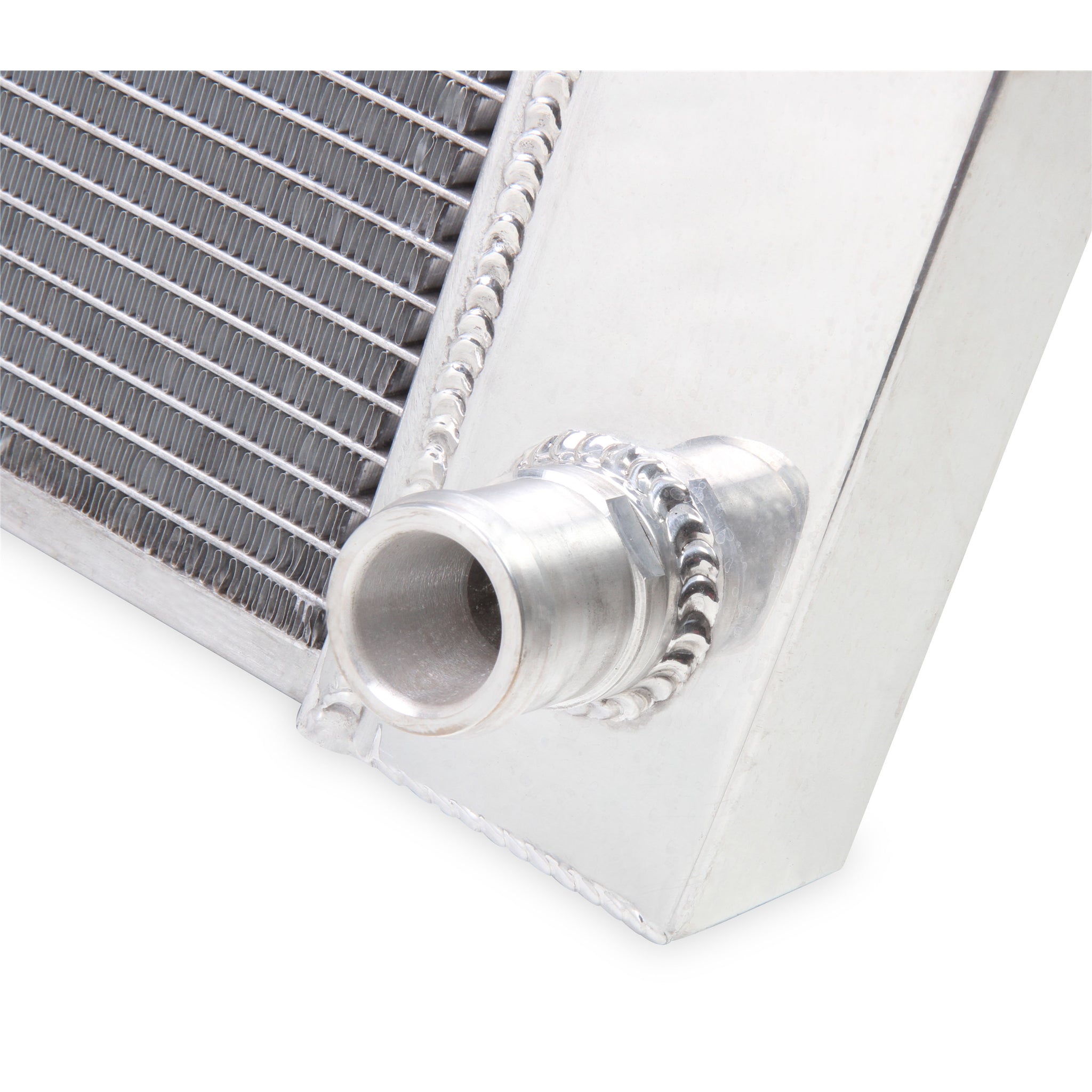

*** Inlet and Outlet hose ends show on photo for representative purposes. Fittings must be purchased separately ***
While there is no specific size to use with a particular swap, a good general rule of thumb
4.8L GM LS Engine 1.25" inlet (FB400), 1.50" outlet (FB401)
5.3L GM LS Engine 1.50" inlet (FB401). 1.50" outlet (FB401)
5.7L GM LS Engine 1.50" inlet (FB401), 1.50" outlet (FB401)
6.0L GM LS Engine 1.50" inlet (FB401), 1.75" outlet (FB402)
6.2L GM LS Engine 1.50" inlet (FB401), 1.75" outlet (FB402)
7.0L GM LS Engine 1.75" inlet (FB402), 1.75" outlet (FB402)
This again only serves as a guide and any size fitting can be utilized with any LS-Swap Radiator.
Our Frostbite LS-Swap Series Radiators do not come with Inlet and Outlet fittings. Please reference Related Parts & Kits for fitting options based on your engine swap needs. |
| Description_EXT |
1994-2004 S10 (2wd), 1995-2005 Blazer (2wd) with GM LS engine Swap 4.8/5.3/6.0/6.2/7.0L (3-Row) |
| Description_DES |

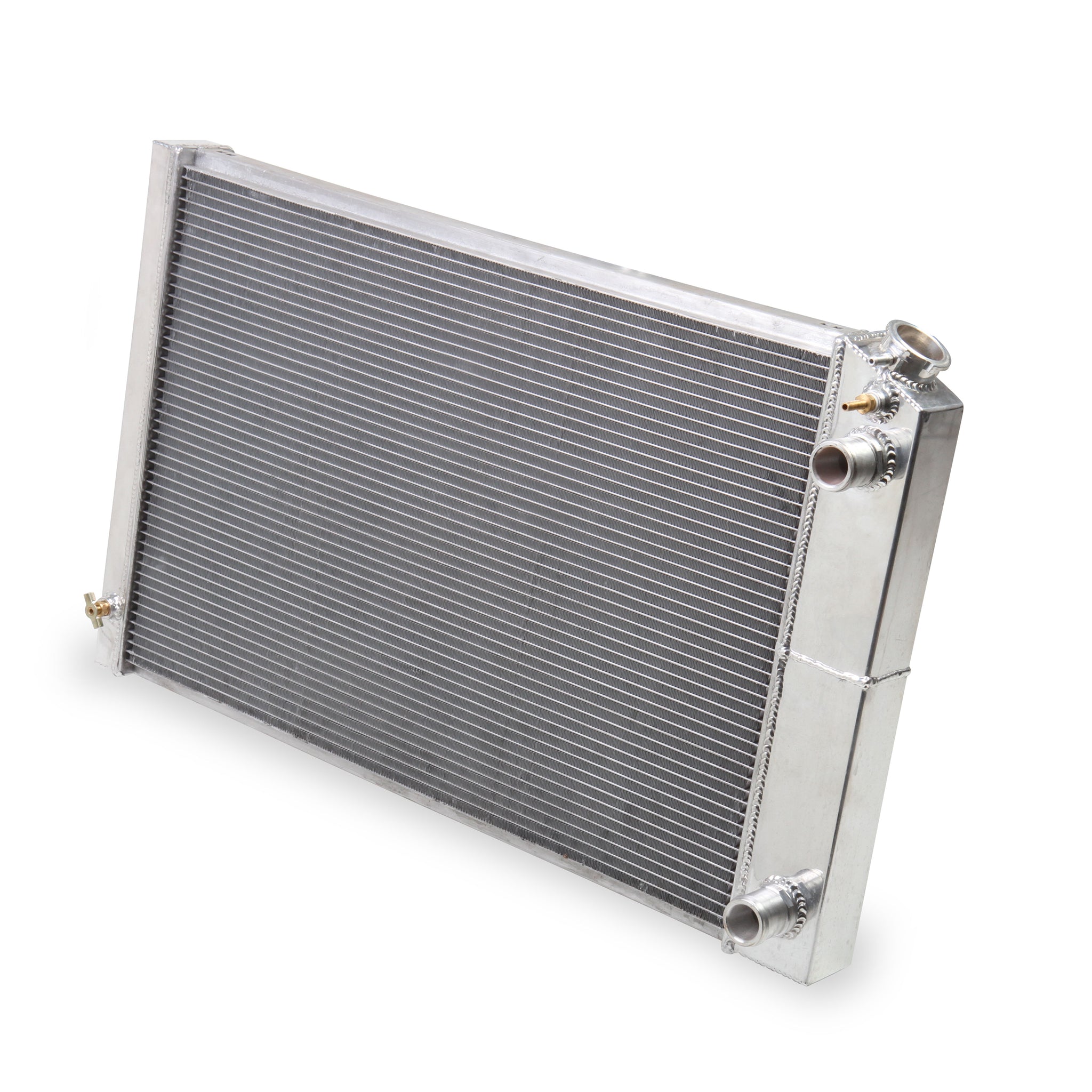

Frostbite Aluminum Radiator, w/ GM LS Swap- 3 Row |
| Description_INV |
FROSTBITE ALUM RADTR 3-ROW LS-SWAP 94-04 |
| Description_FAB |
100% TIG welded (brazed) seams |
| Description_FAB |
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings) |
| Description_FAB |
Dual Pass, Cross Flow design to maximize cooling efficiency |
| Description_FAB |

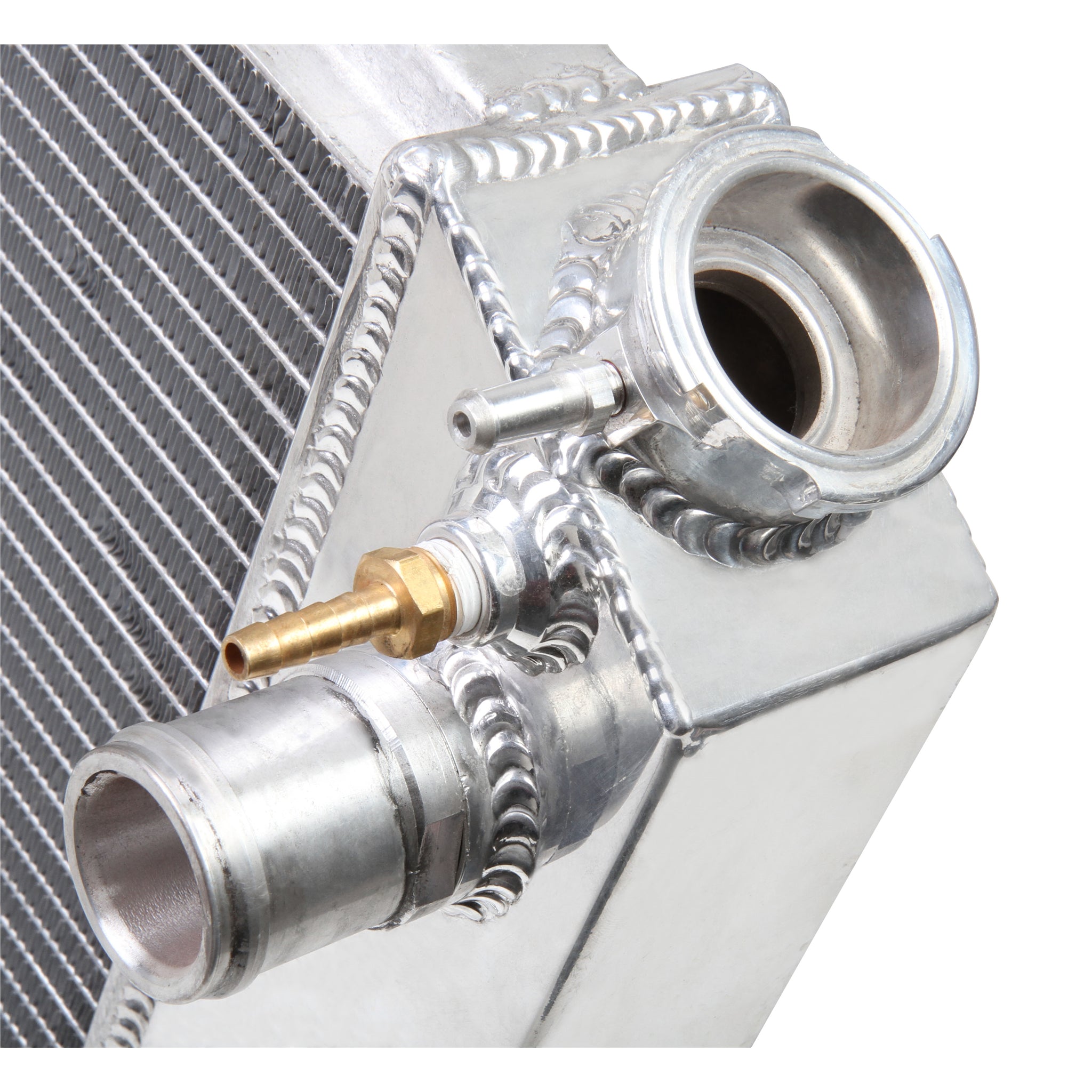

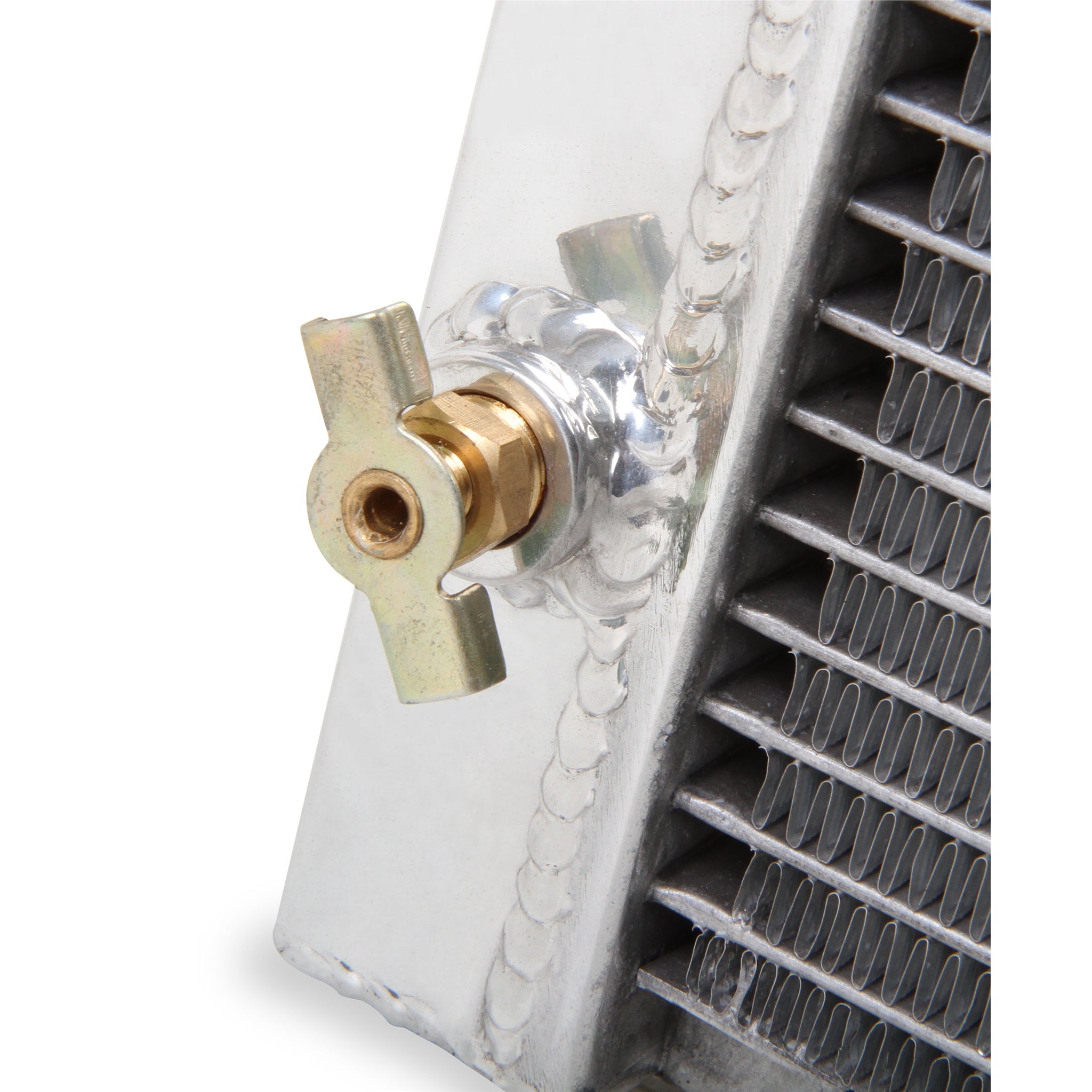

Billet Aluminum Filler Neck and Factory Style Brass Petcock |
| Description_FAB |
More cooling fins per inch for more efficient cooling |
| Description_FAB |

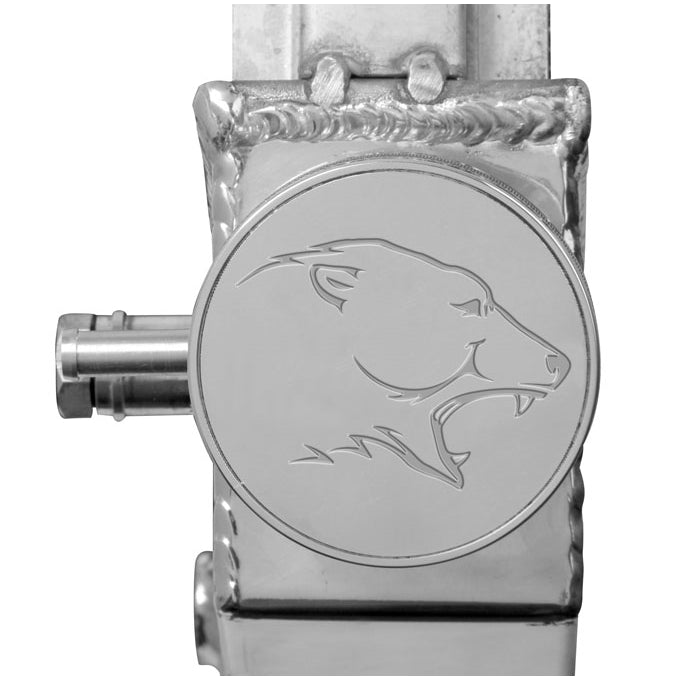

Custom Frostbite High Performance 16lb. radiator cap |
| Description_FAB |
Polished top and tanks for custom show appearance |
| Description_FAB |
3-Row Radiators supporting applications with 600+ horsepower |
| Description_FAB |
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available |
| Description_FAB |
Manufacturer's 1-year Limited Warranty |
| Description_KEY |
Radiator; frostbite; 3 row; aluminum radiator; general motors; GM; 3 ROW; LS Swap; ls swap; a body; S10: S-10; 2WD: 4WD: 2wd; 2-wd; 4-wd; 4wd; 1994; 1995; 1996; 1997; 1998; 1999; 2000; 2001; 2002; 2003; 2004;2005; 94;95;96;97;98;99;00;01;02;03;04;05 |
| Description_MKT |
High-Horsepower street cars and truck can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weight less than older brass units. Choose from a variety of popular application specific fitments. |
| Description_MKT |
Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. |
| Description_MKT |
When it comes to keeping your ride cool, Make it Frostbite! |
| Core Thickness |
2.20" |
| Inlet Size |
AN Bungs |
| Emission Code |
5 |
| ROWS |
3 |
| Inlet Diameter |
AN Bungs |
| Outlet Diameter |
AN Bungs |
| Flow Style |
Dual Pass |

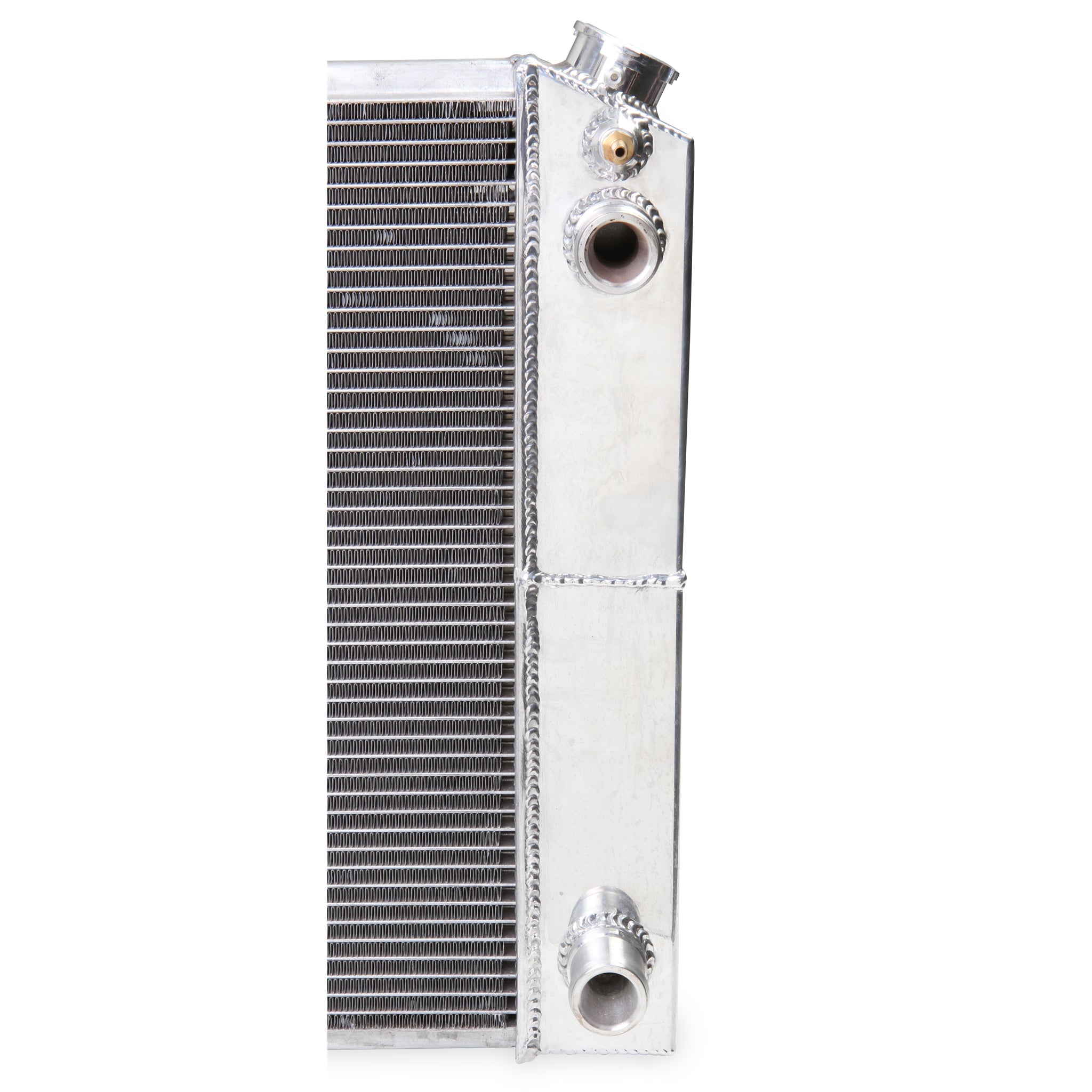

| Hose Location Inlet |
Passenger |
| Product Type |
Radiator |
| Mounting Type |
Saddle Mount |
| Transmission Oil Cooler Included |
No |
| # of Passes |
Dual |
| Brand |
Frostbite |
| Inlet / Outlet Size |
AN Bungs |
| Outlet Location |
Passenger |
| Outlet Size |
AN Bungs |
| Overall Dimension |
18 x 32 |
| Cooling Row Diameter |
11/16" |
| Core Dimension |
14-3/4 x 26-1/4 |
| Hose Location Outlet |
Passenger |
| Inlet Location |
Passenger |
| Row Quantity |
3 |
| Steam Port Fitting Size |
1/4" NPT |
| Transcooler Provision |
No |
| Length |
5.6000 |
| Width |
22.0000 |
| Height |
35.2000 |
| Weight |
14.0500 |
