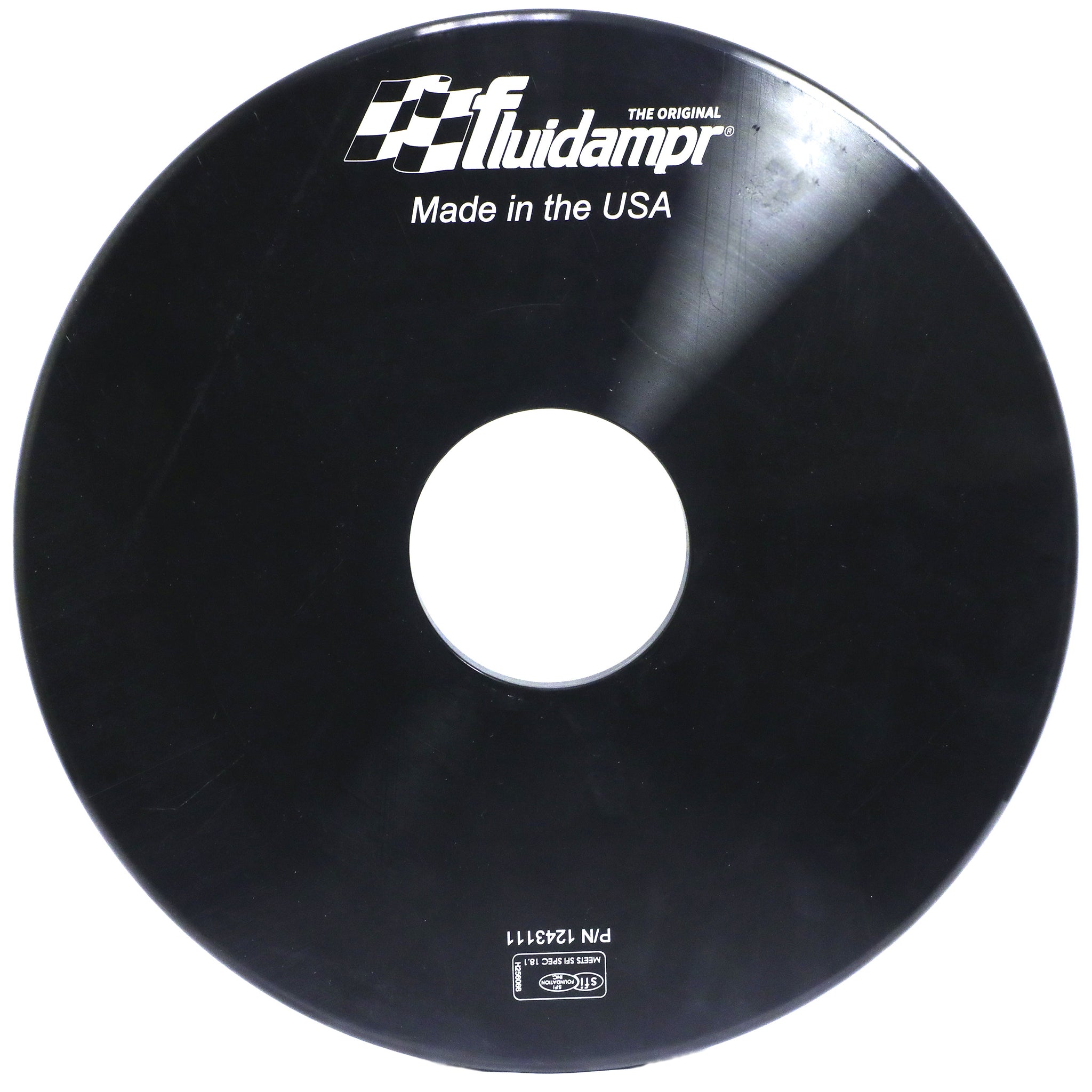

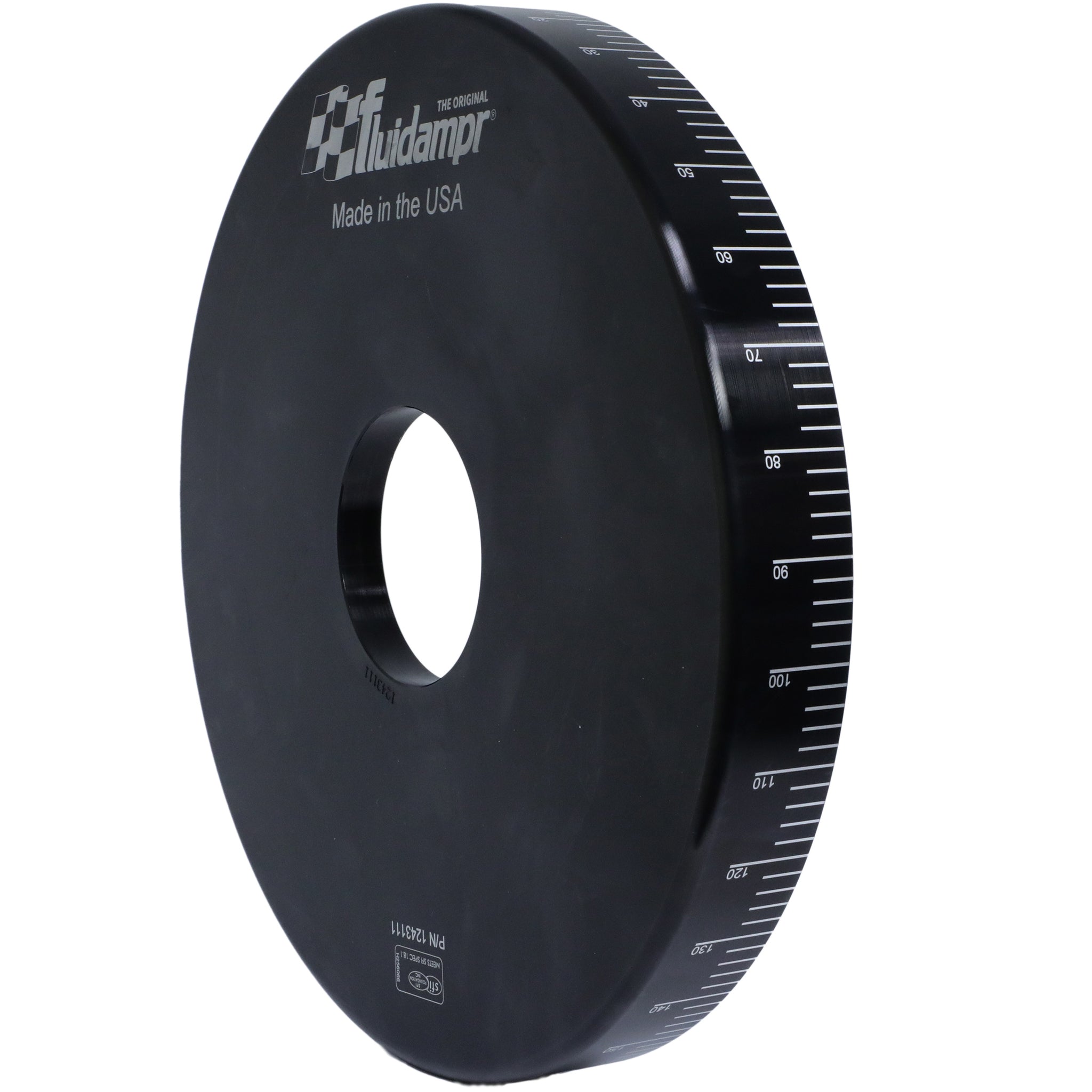

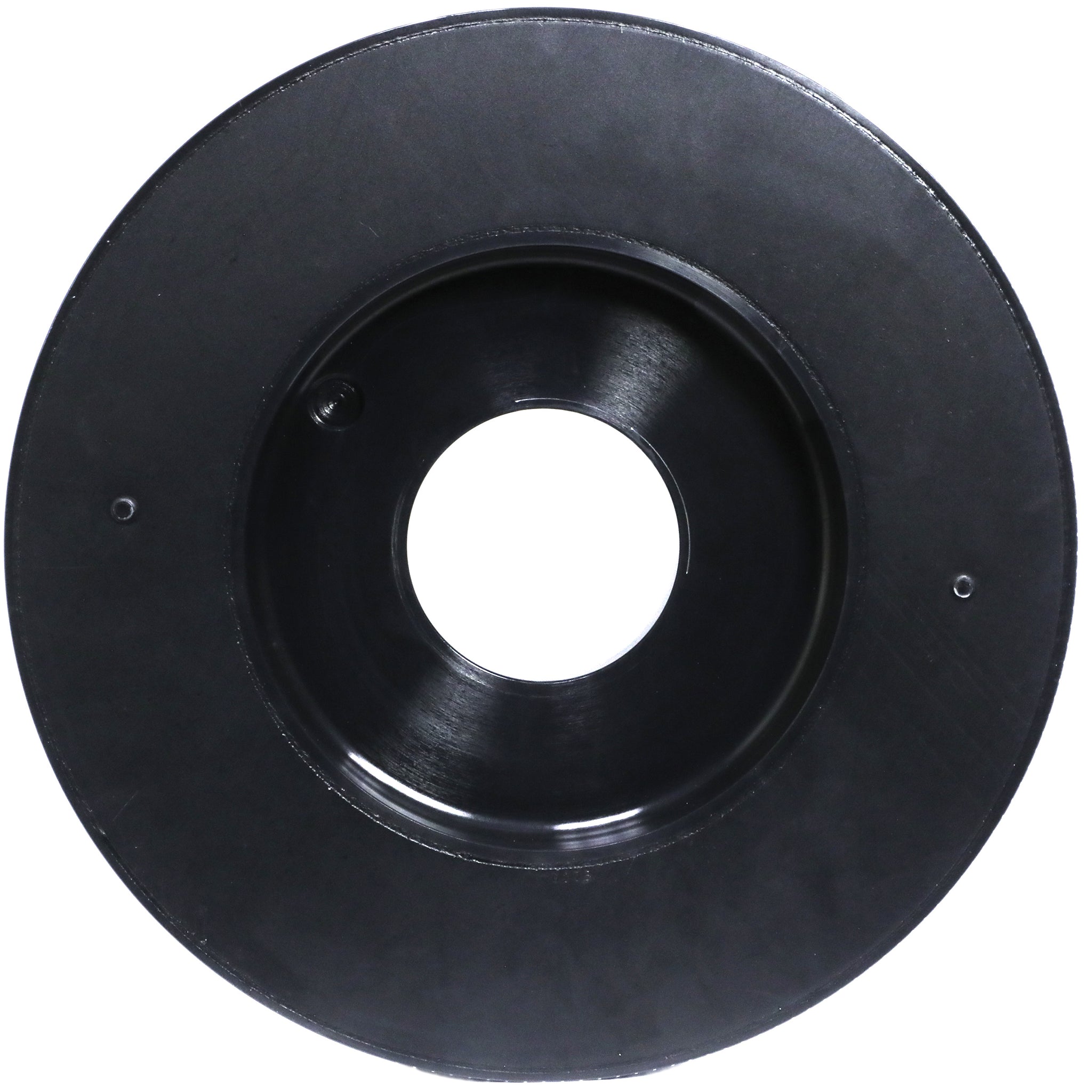

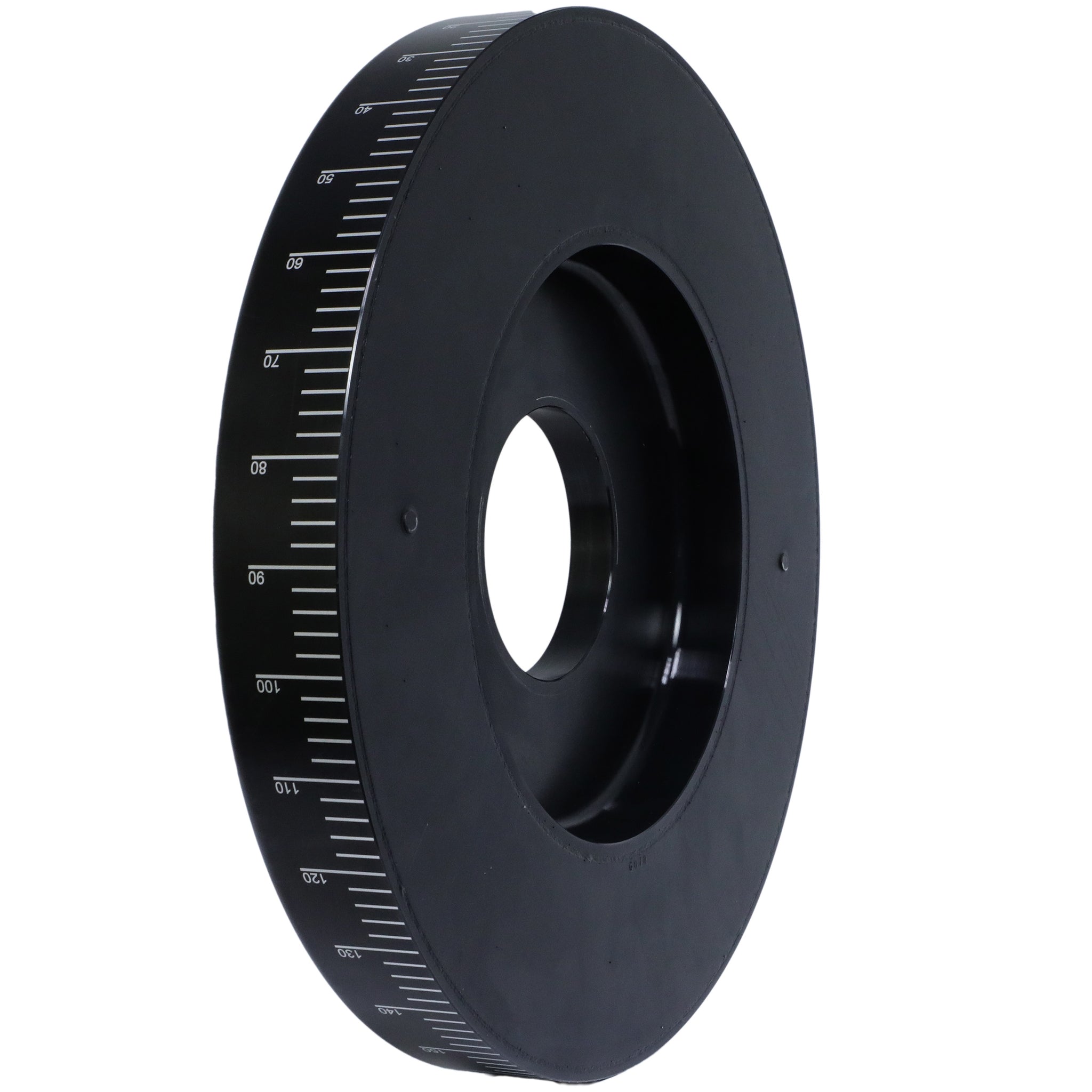

Designed specifically for professional tractor pulling competition. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with laser engraved clockwise and counter-clockwise timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA. NOTE: Requires Bolt Hole Drilling.
Specifications:
Description_ASM |
Tractor Pulling. Universal Fit For Taper Lock Hubs. |
Description_DEF |
Engine Harmonic Balancer |
Description_DES |
Harmonic Balancer - Fluidampr - Tractor Pulling - Universal - No Pulley - Each |
Description_EXT |
Harmonic Balancer - Fluidampr - Tractor Pulling - Universal Fit For Taper Lock Hubs - No Pulley - No Mandrel Bolt Holes - Steel - Black Zinc Chromate - 12-3/8" dia - 37 lbs - SFI 18.1 - Made in USA - Each |
Description_FAB |
Requires taper lock hub with 3.25" pilot. |
Description_FAB |
Clockwise and counter-clockwise laser engraved timing marks |
Description_FAB |
Robust competition design specifically for tractor pulling. |
Description_FAB |
SFI 18.1 spec. |
Description_FAB |
Made in USA. |
Description_KEY |
fluidampr, fluidamper, fluid damper, fluidampener, fluidampnr, harmonic balancer, harmonic, balancer, damper, dampener, crankshaft damper, crank pulley, viscous damper, tractor, pulling, SFI 18.1 |
Description_MKT |
Designed specifically for professional tractor pulling competition. Superior viscous damper design controls harmful torsional vibration across the entire rpm range. Reduce wear on engine components. Reduce risk of crankshaft failure. Improve timing. Unleash lost torque and horsepower. Competition built precision CNC machined and balanced high-grade steel components. Corrosion resistant black zinc finish with laser engraved clockwise and counter-clockwise timing marks. No maintenance required. Trusted by leading performance diesel engine builders worldwide. SFI 18.1 certified. Made in USA. NOTE: Requires Bolt Hole Drilling. |
Description_SHO |
Harmonic Balancer |
Mounting Hole Quantity |
None. Requires mandrel bolt-hole drilling by customer to custom specifications. |
Outside Diameter |
12-13/32 |
Pulley Size |
NO PULLEY - FOR COMPETITION USE |
Material |
Steel |
Prop 65 Yes/No |
Yes |
Title |
Fluidampr - 1243111 - Harmonic Balancer - Fluidampr - Tractor Pulling - Universal Fit For Taper Lock Hub - Requires Mandrel Bolt-Hole Drilling - No Pulley - Each |
Safety Rating |
SFI 18.1 |

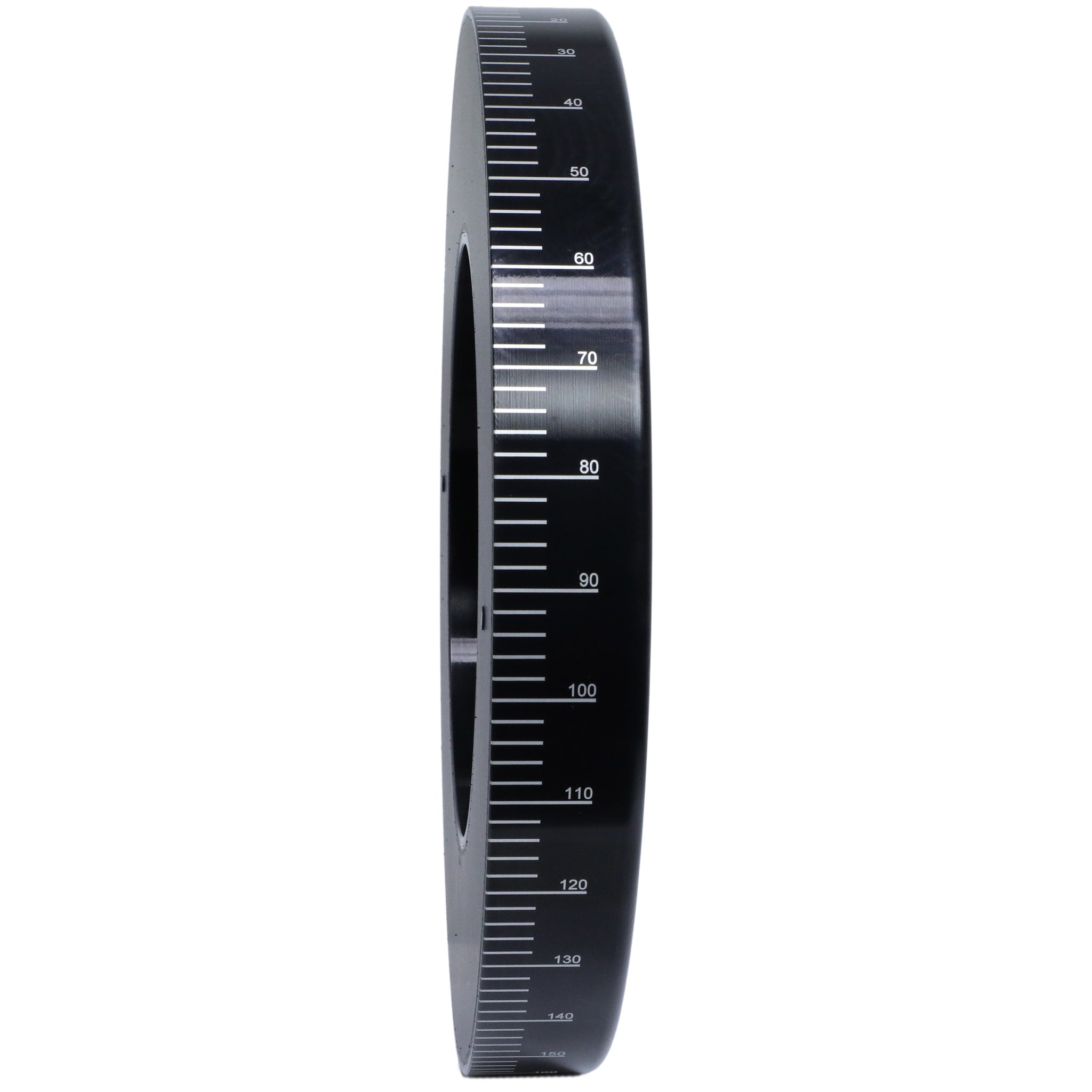

Degree Marking Range |
at 2 degree increments. Clockwise and counter-clockwise. |
Degree Markings |
Engraved |
Engine Balance |
Internal |
Finish |
Black Zinc |
Prop 65 - Short Label |
CA-Prop65-label.jpg |
Prop 65 (C, R, CR) |
CR |
Weight / Rotating Weight |
37 lbs / 24.4 lbs |
Length |
2.0000 |
Width |
14.0000 |
Height |
14.0000 |
Weight |
37.0000 |
