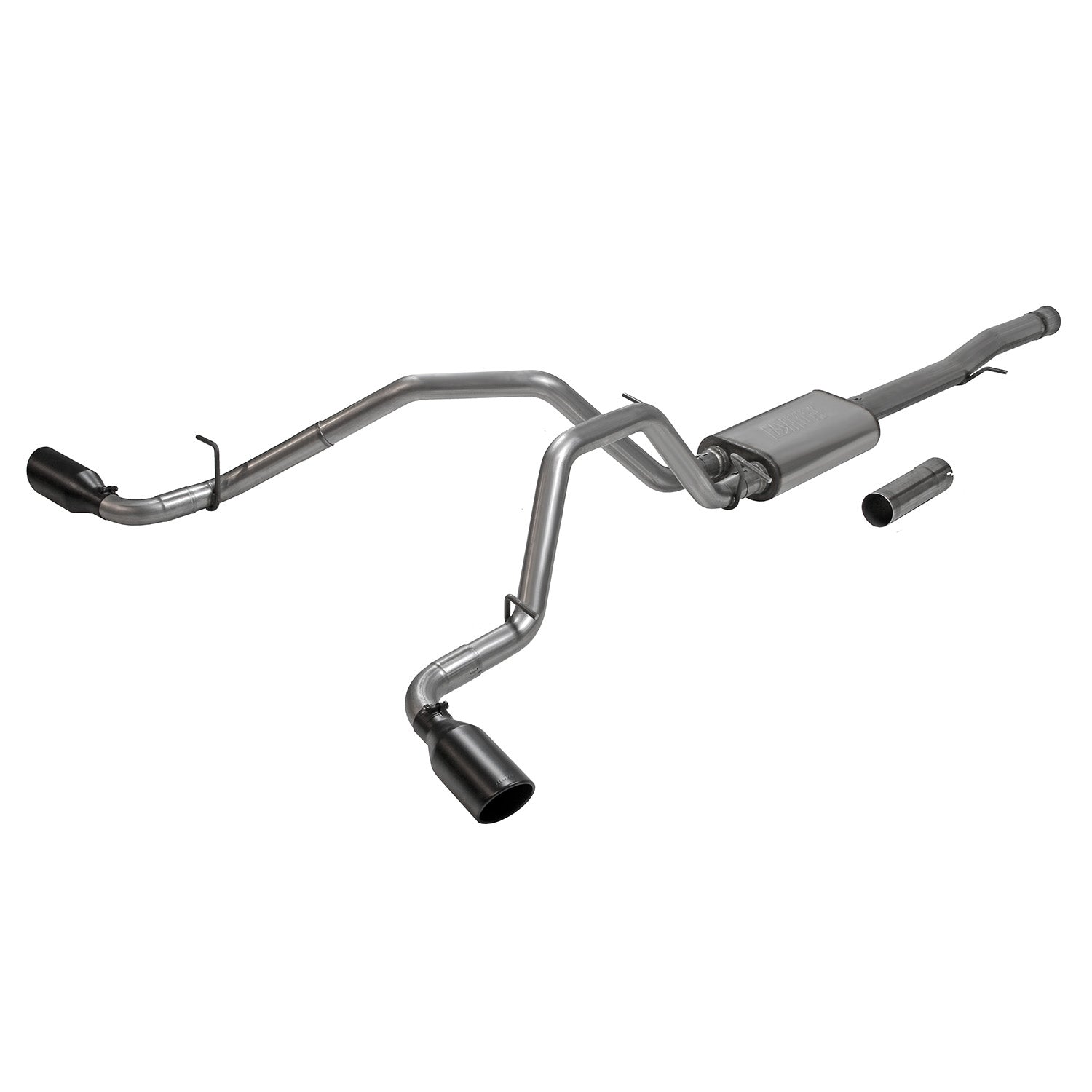

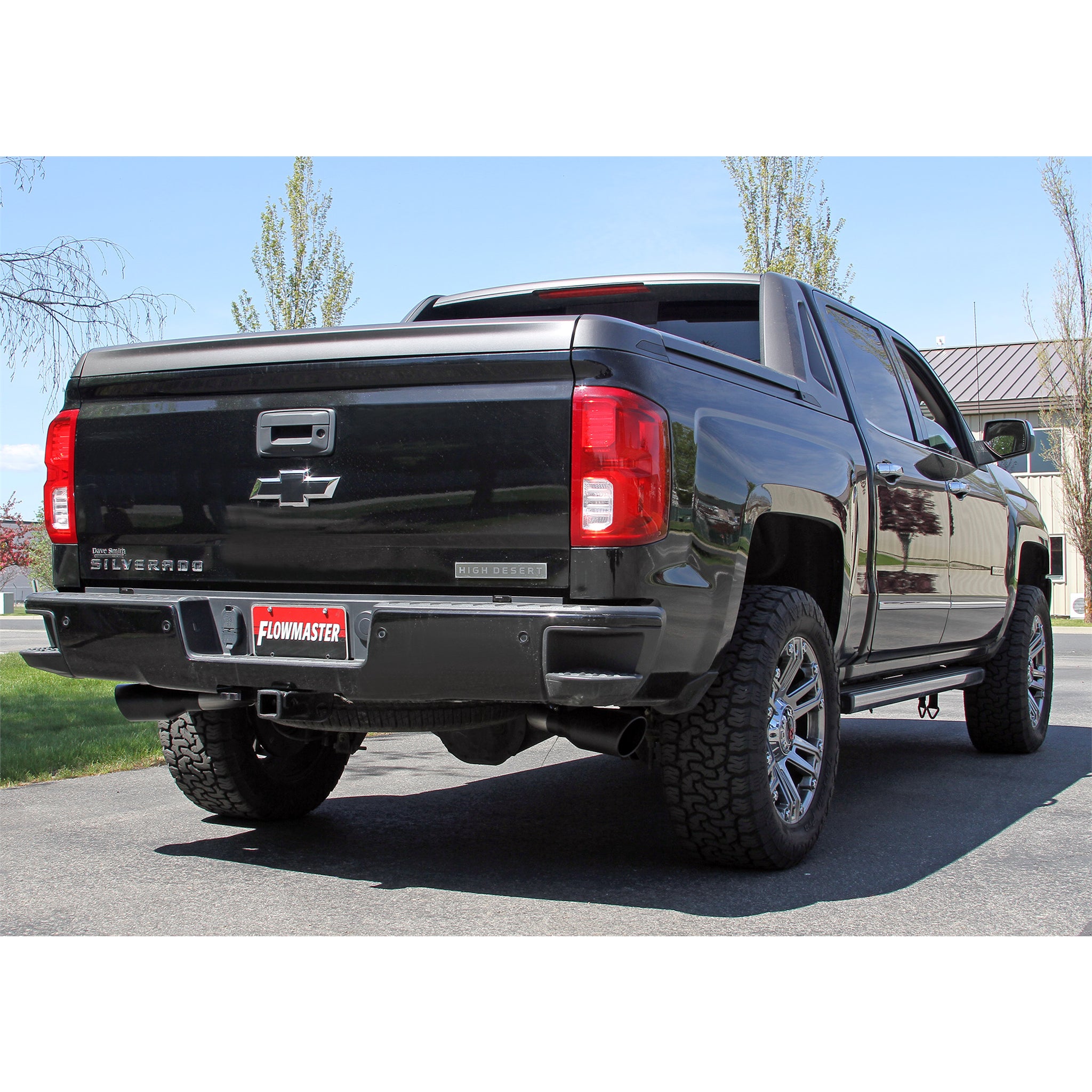

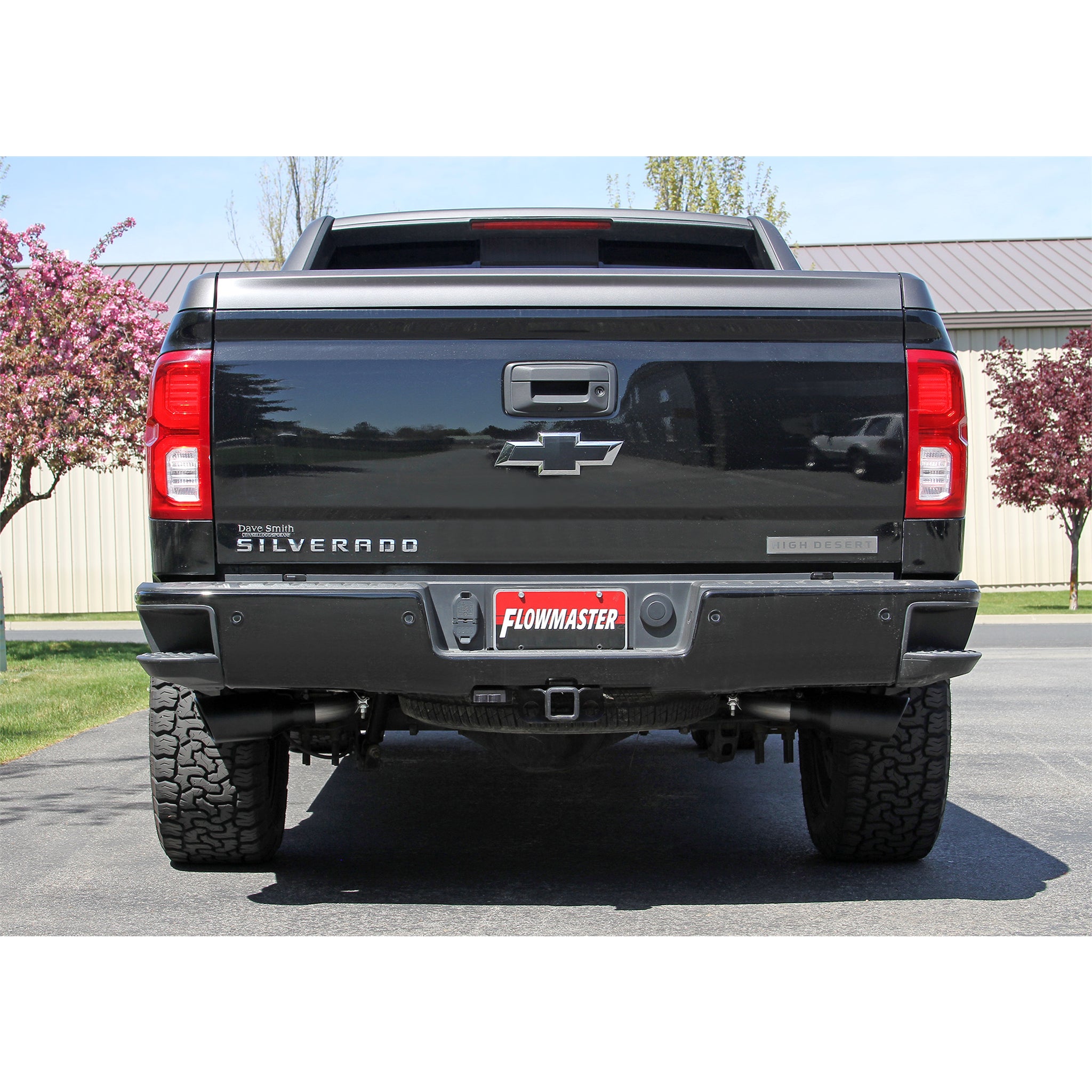

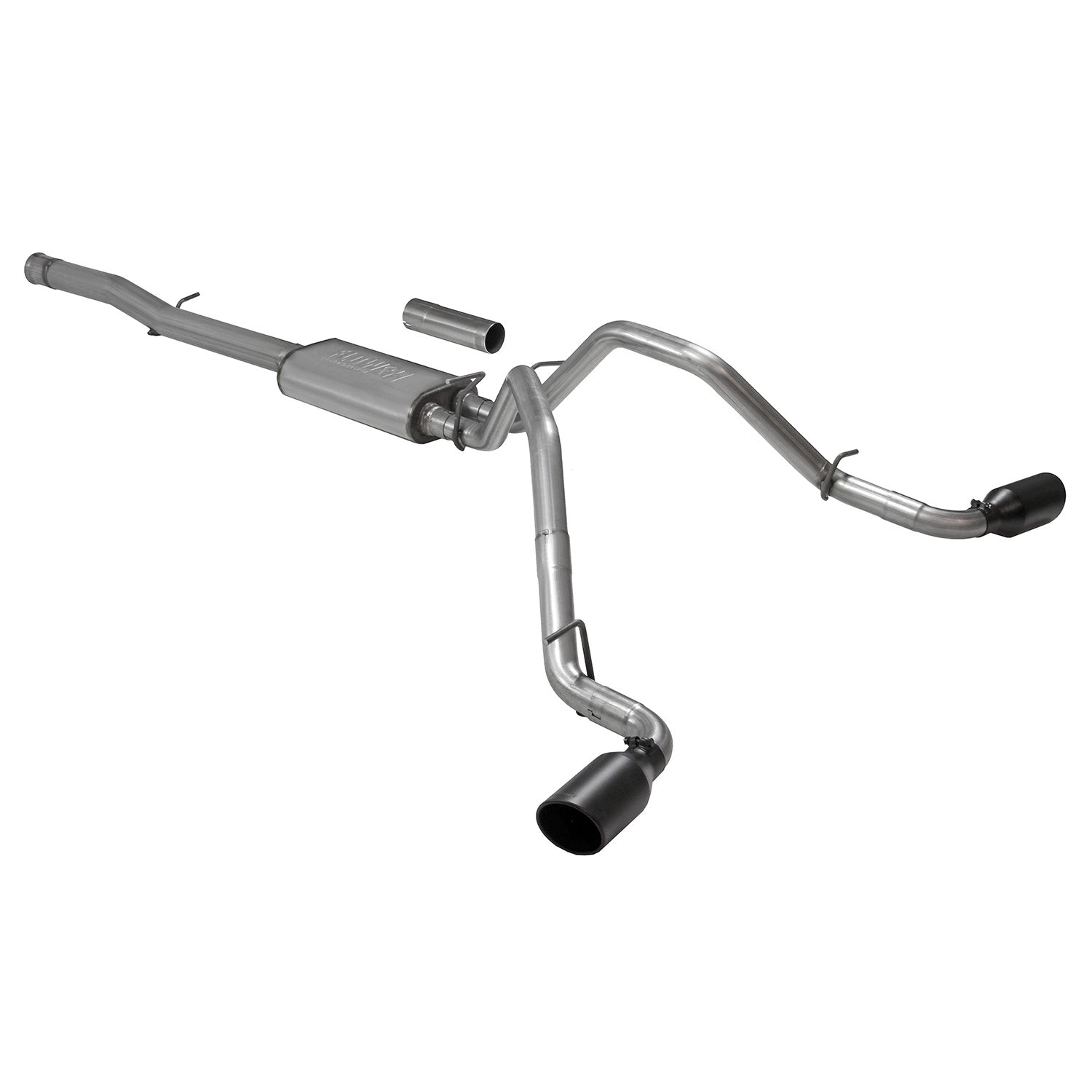

This Flowmaster[R] FlowFX[R] cat-back exhaust system for the 2011-2018 GM 1500 trucks with the 6.2 liter V8 engine is manufactured using durable 409 stainless steel throughout and features single 3.50 in. to dual 2.50 in. mandrel bent pipes for better exhaust gas flow, and a FlowFX straight-through muffler is used for a moderate sound level and maximum performance. Maximum increases on the dyno revealed plus 11 hp and plus 15 lb-ft at the rear wheels. This system exits out both sides, behind the rear wheels with 4.50 in. black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty.
Specifications:
Description_ASC |
2011-2018 GM 1500 trucks with 6.2-liter engines. Fits 2 & 4-wheel drive, All Wheelbases. |
Description_DEF |
Exhaust System Kit |
Description_DES |
Flowmaster FlowFX Cat-Back Exhaust System |
Description_MKT |
This Flowmaster[R] FlowFX[R] cat-back exhaust system for the 2011-2018 GM 1500 trucks with the 6.2 liter V8 engine is manufactured using durable 409 stainless steel throughout and features single 3.50 in. to dual 2.50 in. mandrel bent pipes for better exhaust gas flow, and a FlowFX straight-through muffler is used for a moderate sound level and maximum performance. Maximum increases on the dyno revealed plus 11 hp and plus 15 lb-ft at the rear wheels. This system exits out both sides, behind the rear wheels with 4.50 in. black ceramic tips for added style and a custom look. The system uses all the existing factory hanger locations and includes installation instructions and all necessary hardware for an easy installation that you can do at home. Backed by Flowmaster's Lifetime Limited Warranty. |
Description_EXT |
FlowFX Cat-Back Exhaust System; Dual; 2.5 in. Tubing; 3.5 in. ID.; 409S Stainless Steel/Natural/Brushed; 4.5 in. Dia./304 Stainless Steel/Black Ceramic Tip; |
Description_INV |
11-18 GM 1500 TRUCK 6.2L FFX CB DOS |
Description_FAB |

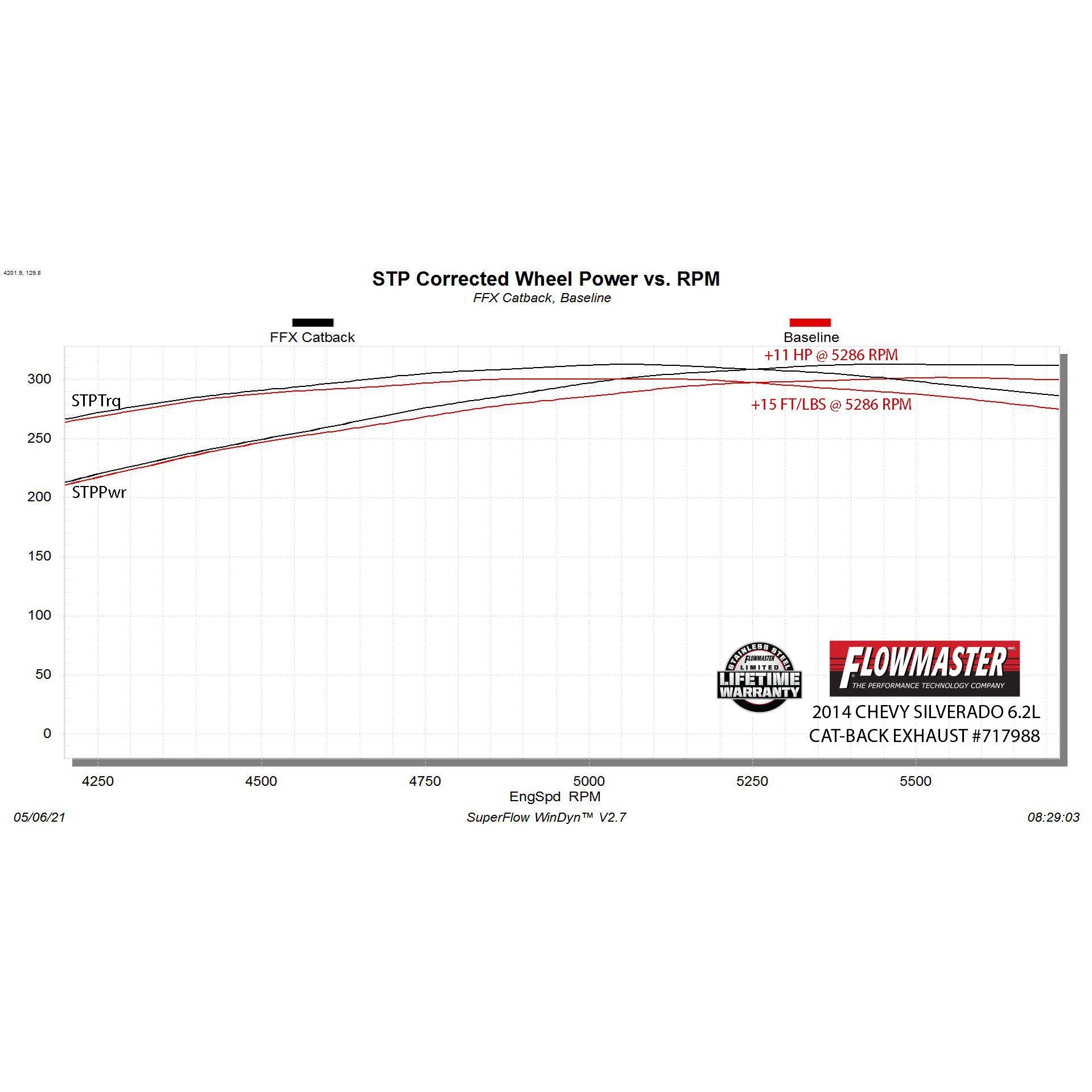

Max increases of up to 11 hp and 15 lb-ft over the stock exhaust at the rear wheels |
Description_FAB |
Single 3.50-inch to dual 2.50-inch mandrel bent 16-gauge 409 stainless steel tubing maximizes exhaust flow and improves durability |
Description_FAB |

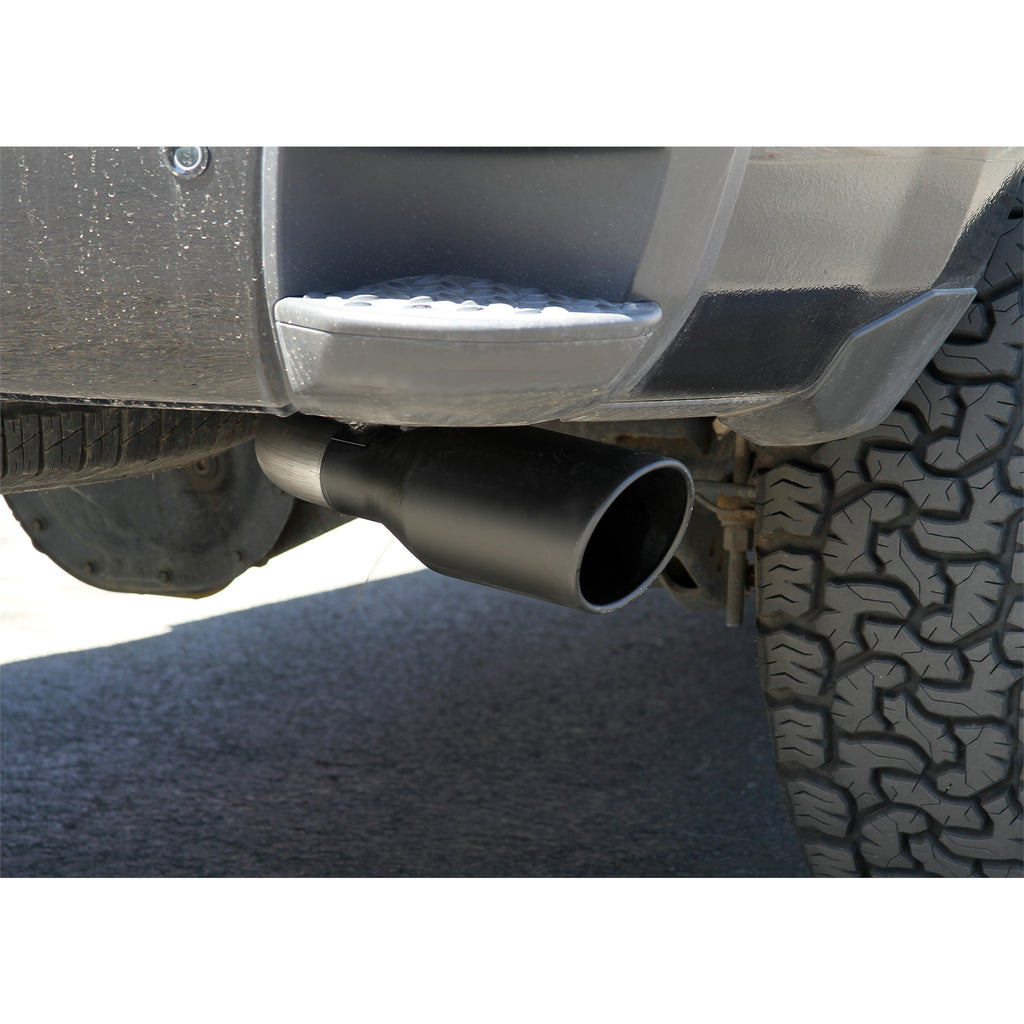

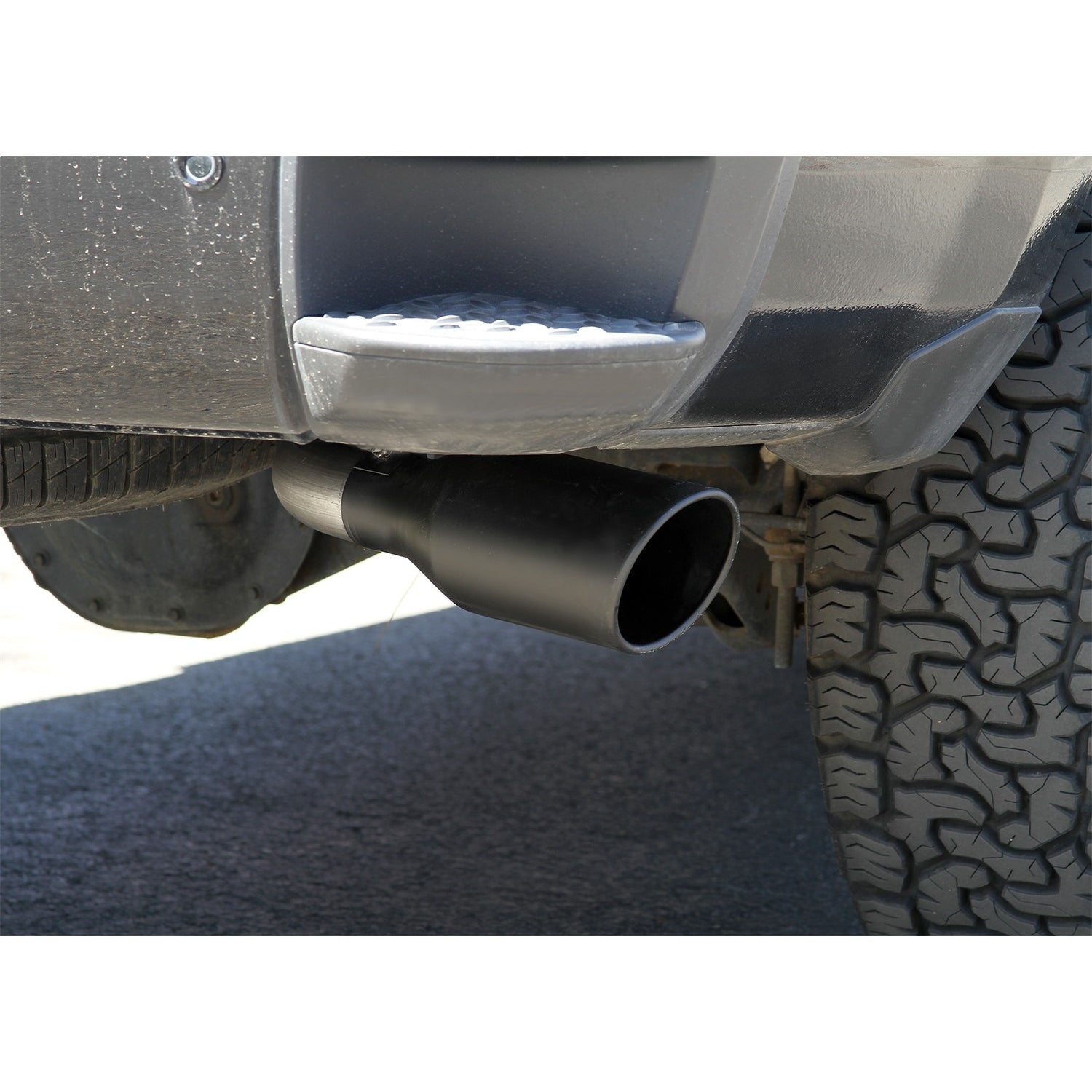

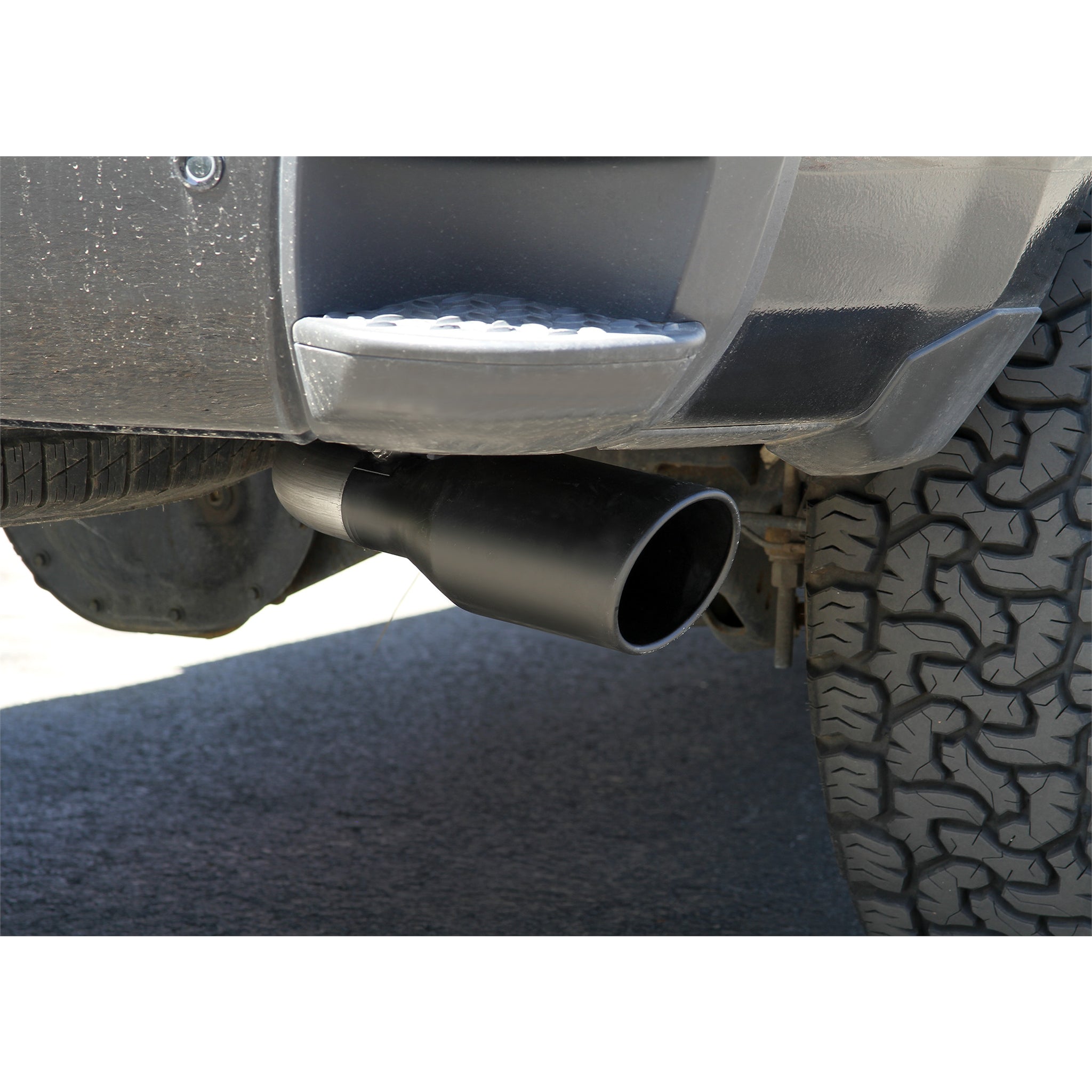

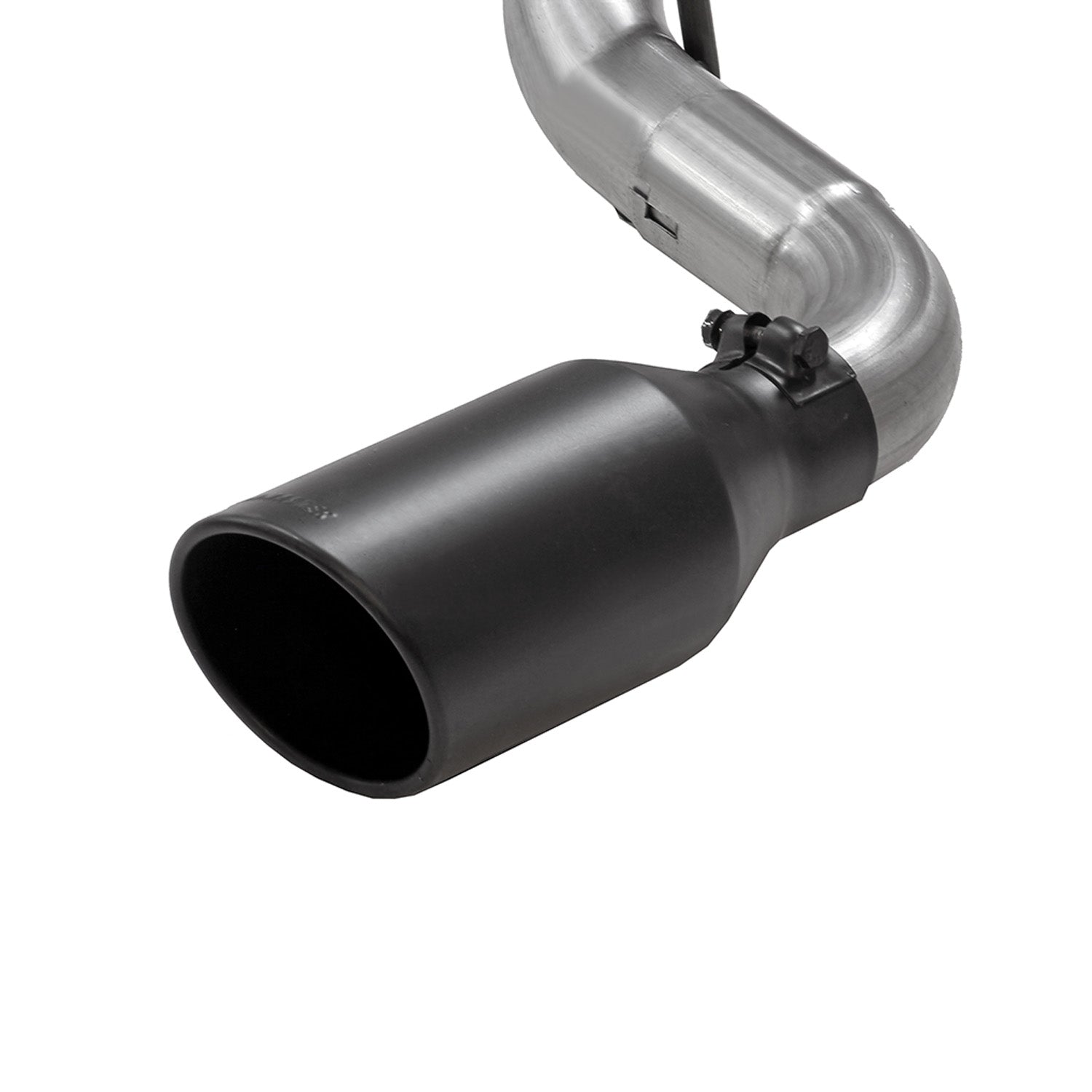

4.50-Inch black ceramic coated tips add a custom look to the truck |
Description_FAB |

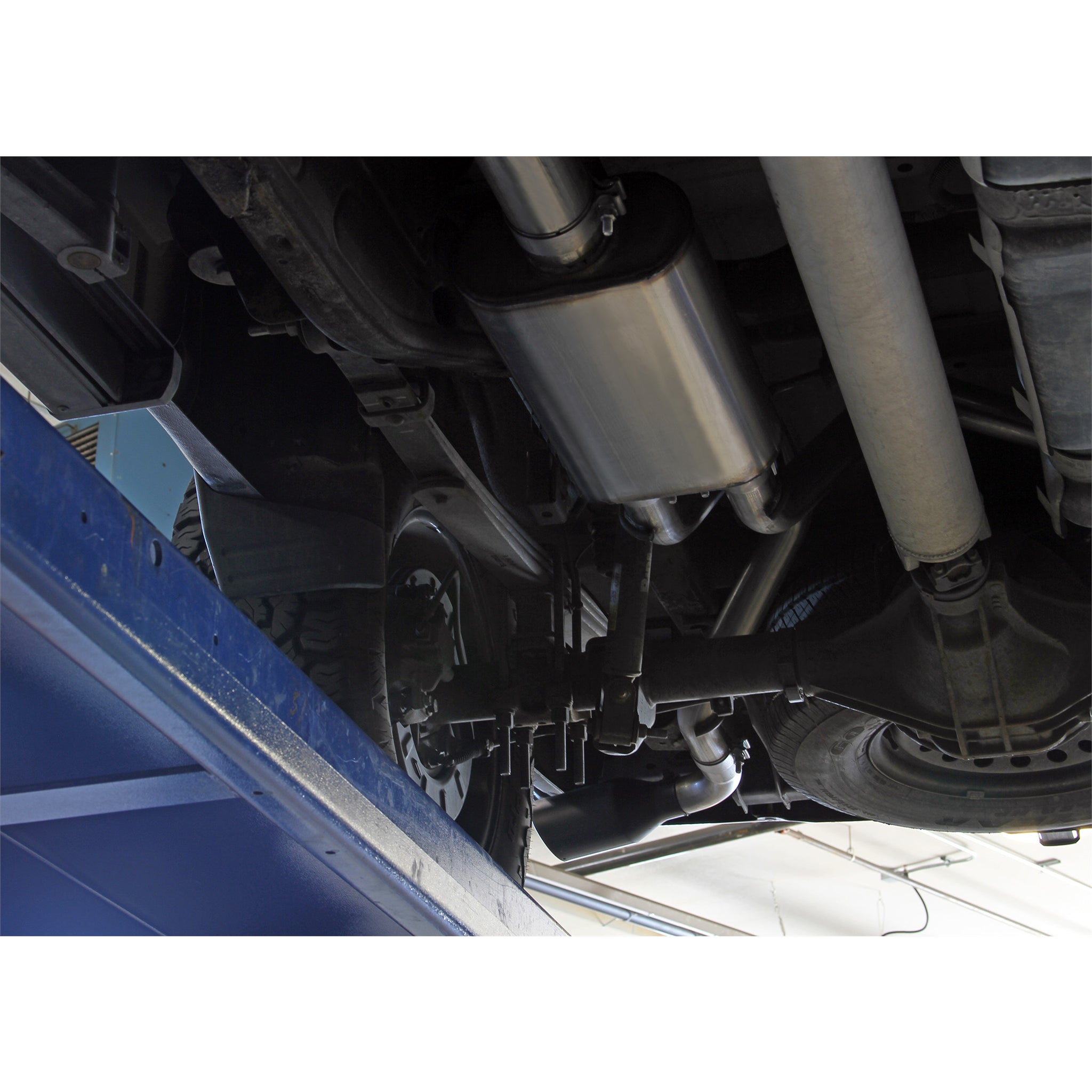

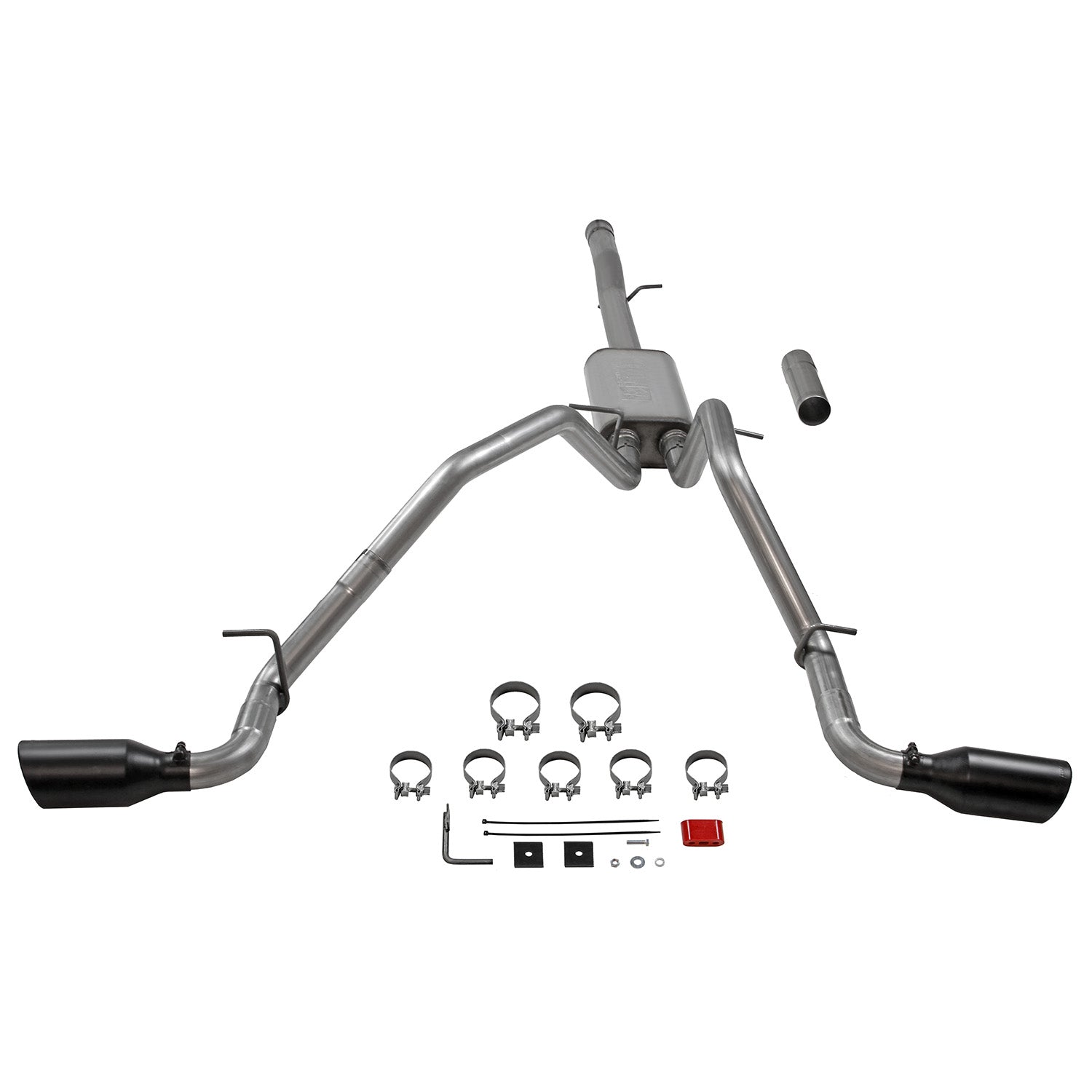

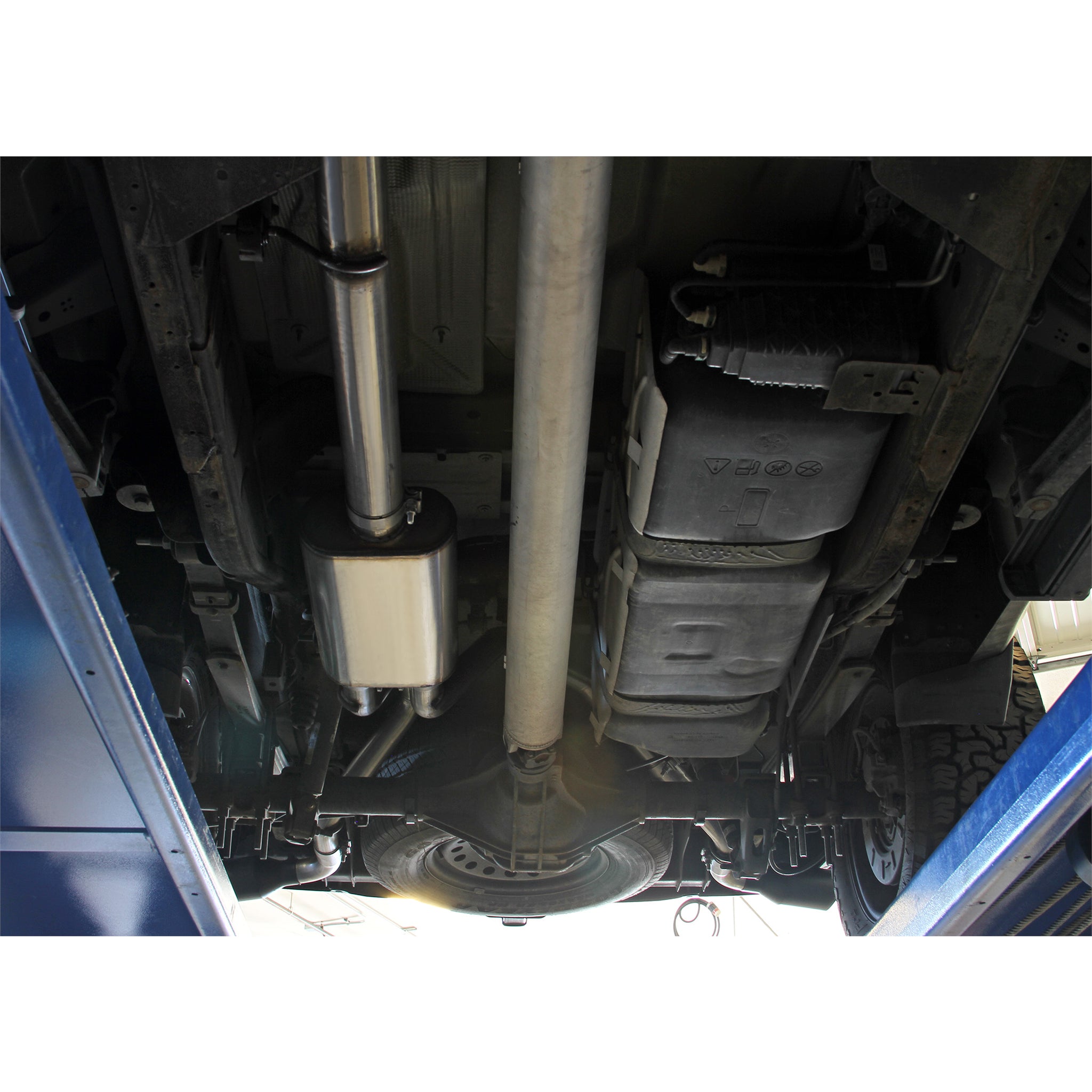

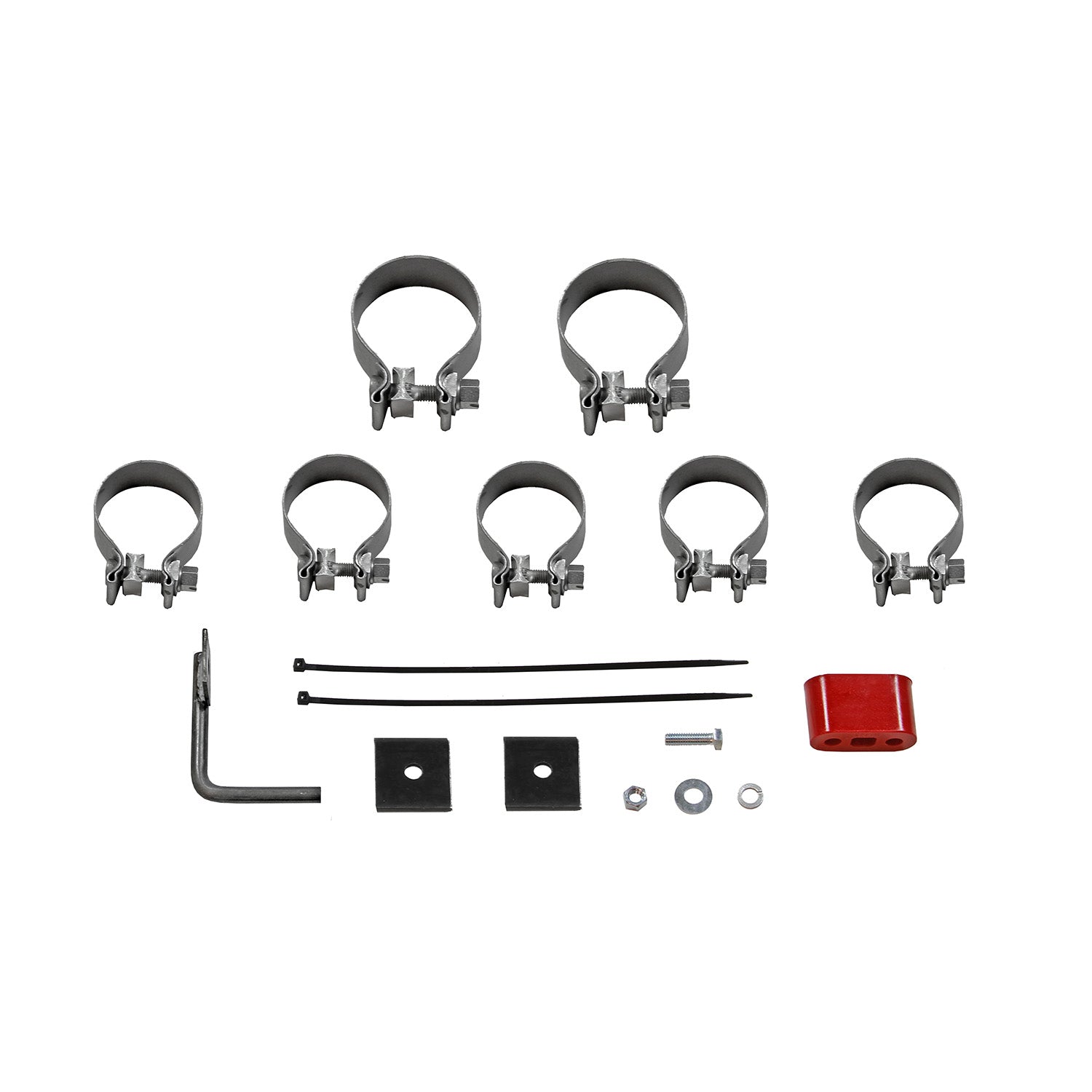

Includes complete hardware and factory styled hangers in the stock locations for an easy installation |
Description_FAB |

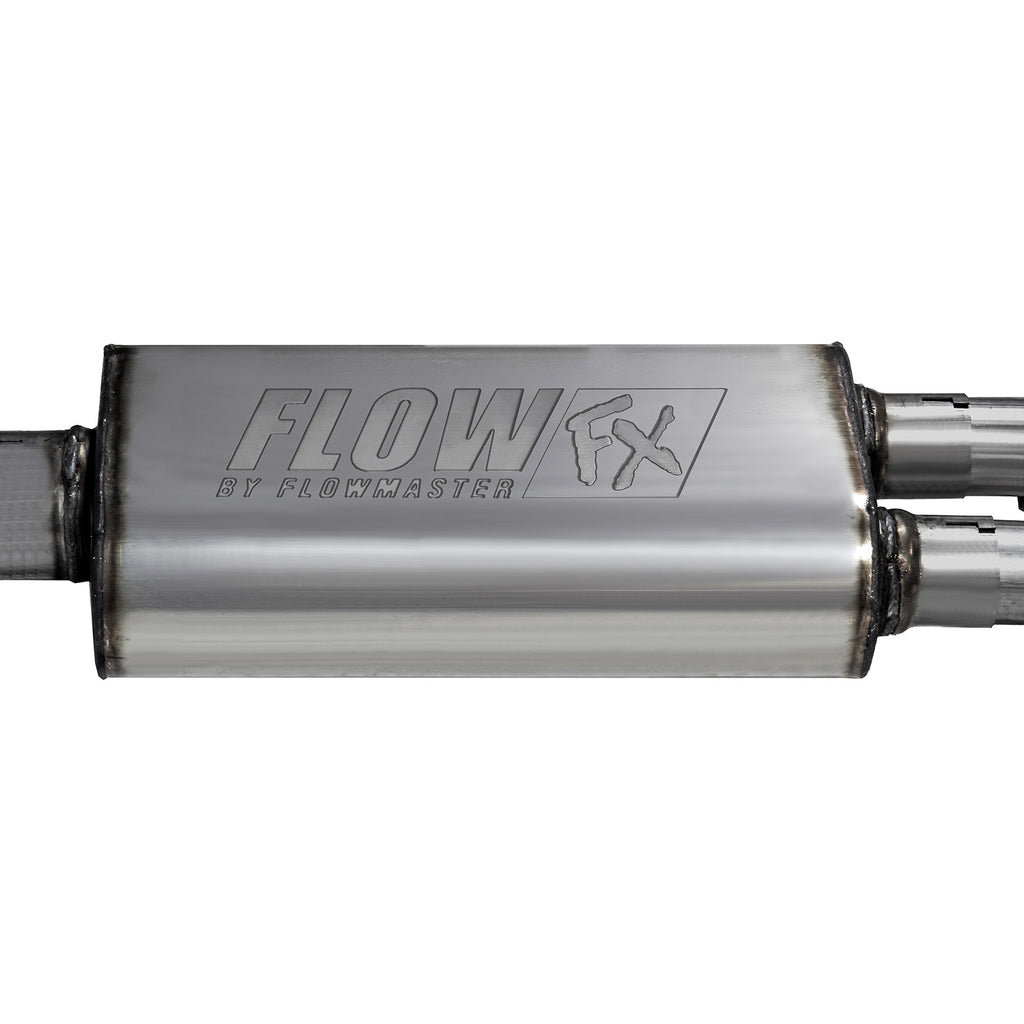

FlowFX ΓÇ£straight through" performance muffler delivers a deep, moderate performance tone and improves exhaust flow |
Description_SHO |
Exhaust System Kit |
Tubing Diameter |
2.500 in. |
Emission Code |
5 |
Muffler Outlet Diameter |
2.50 |
Exhaust Type |
Cat-Back |
Exit Position |
Dual Out Side |
Inlet Inside Diameter |
3.500 in. |
Mount Type |
Uses Factory Hangers |
Muffler Inlet Diameter |
3.50 |
Muffler Series |
FlowFX |
Tip Cut |
Angle |
Muffler Body Length |
18.000 in. |
Muffler Body Length (in) |
18 |
Muffler Inlet Location |
Centered |
Muffler Overall Length (in) |
24 |
Muffler Part Number |
Kit Only |
Tip Material |
304 Stainless |
Tubing Material |
409S Stainless Steel |
Tail Pipe Diameter |
2.500 in. (64mm) |
Tip Diameter |
4.500 in. |
WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
WARNING CA Proposition 65 |
Yes |
Material |
409S Stainless Steel |
Brand |
Flowmaster |
California Proposition 65 Chemical Name |
Chromium (hexavalent compounds), Nickel (Metallic) |
California Proposition 65 Required |
Yes |
Exhaust Series |
FlowFX |
Muffler Finish |
Brushed |
Muffler Material |
409S Stainless Steel |
Muffler Outlet Location |
Dual Outlet |
Muffler Quantity |
1 |
Muffler Shape |
Oval |
Muffler Type |
Absorption |
Product Type |
Exhaust System |
Single Dual |
Dual |
Sound Level |
Moderate |
System Type |
Cat-back |
Tip Finish |
Black Ceramic |
Tip Length |
11 |
Tip Quantity |
2.00 |
Tip Shape |
Round |
Tip Style |
Single Wall |
Tubing Diameter (in) |
2.50 |
Warning |
California Proposition 65 |
Muffler Color |
Natural |
Tip Edge Style |
Rolled |
Tip Logo |
Embossed |
Length |
12.1000 |
Width |
16.0000 |
Height |
59.0000 |
Weight |
54.4000 |
