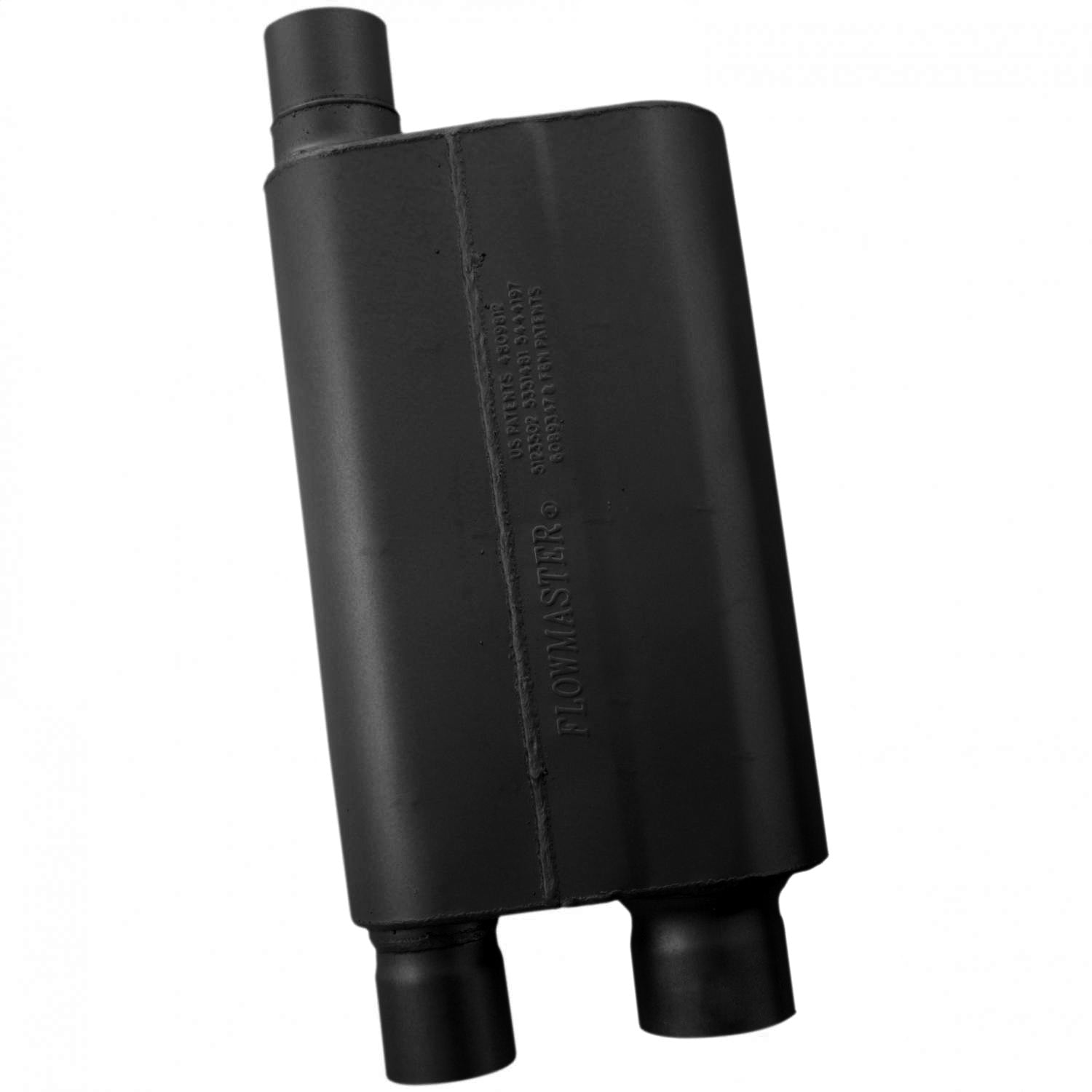

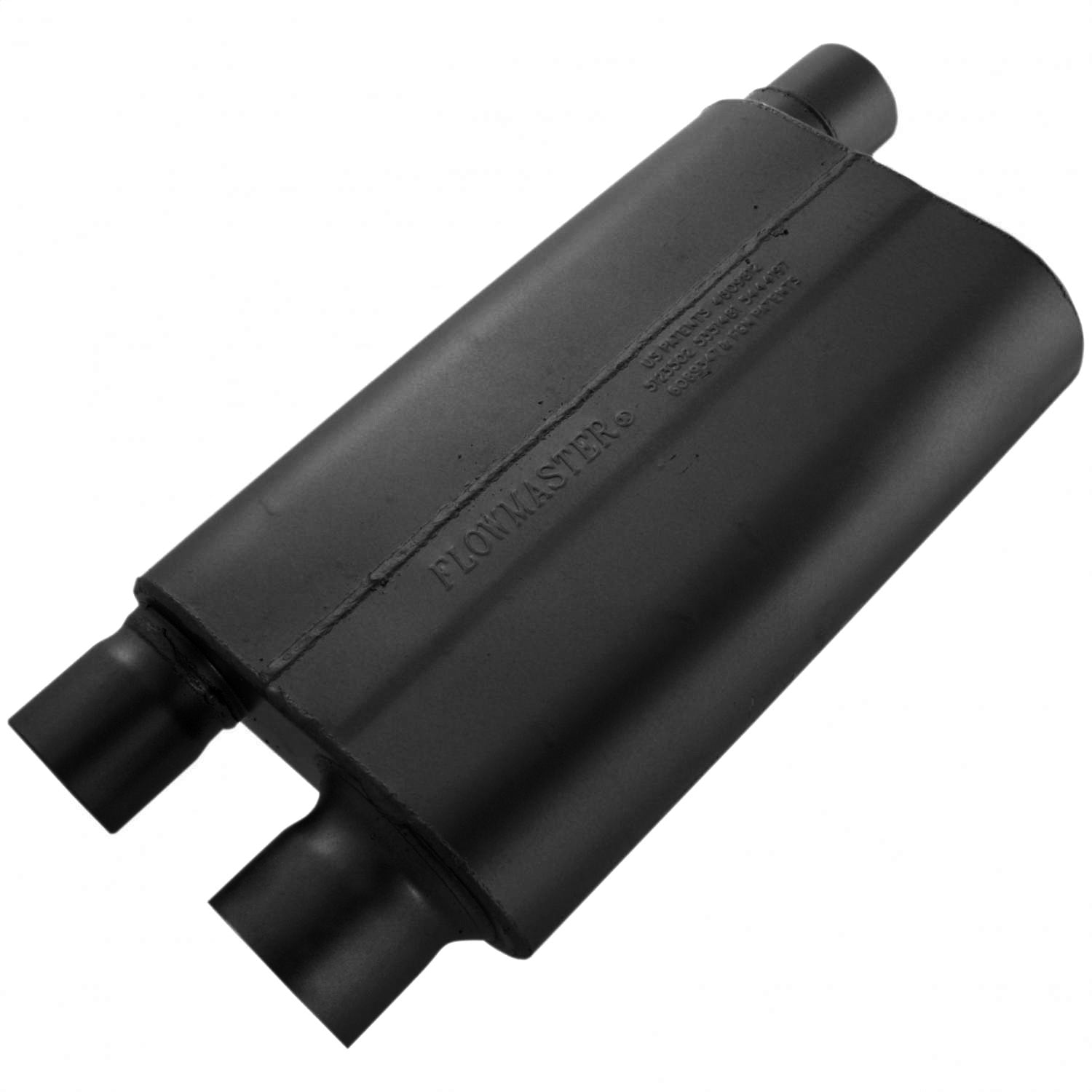

The 80 series is a cross-flow design for applications where the muffler is mounted transversely behind the rear end. Delivering an aggressive muscle car sound both inside and outside the vehicle. Constructed of 16 gauge aluminized steel and fully MIG welded for maximum durability.
Specifications:
Description_ASC |
Universal Muffler - Some adaptation may be required. |
Description_DEF |
Exhaust Muffler |
Description_DES |
Flowmaster 80 Series Chambered Muffler |
Description_EXT |
80 Series (TM) Cross-Flow Muffler; 3.0 in. Offset Inlet/2.5 in. Dual Outlet; Case Dimensions 4 in. x 9.75 in. x 15 in.; 21 in. Overall Length; Aluminized Steel; |
Description_FAB |
Durable Fully Welded 16ga Aluminized Steel |
Description_FAB |
3 Year Limited Warranty |
Description_FAB |
Aggressive And Powerful Exterior Exhaust Tone |
Description_FAB |
Notable Interior Resonance |
Description_FAB |
Cross Flow Applications |
Description_FAB |

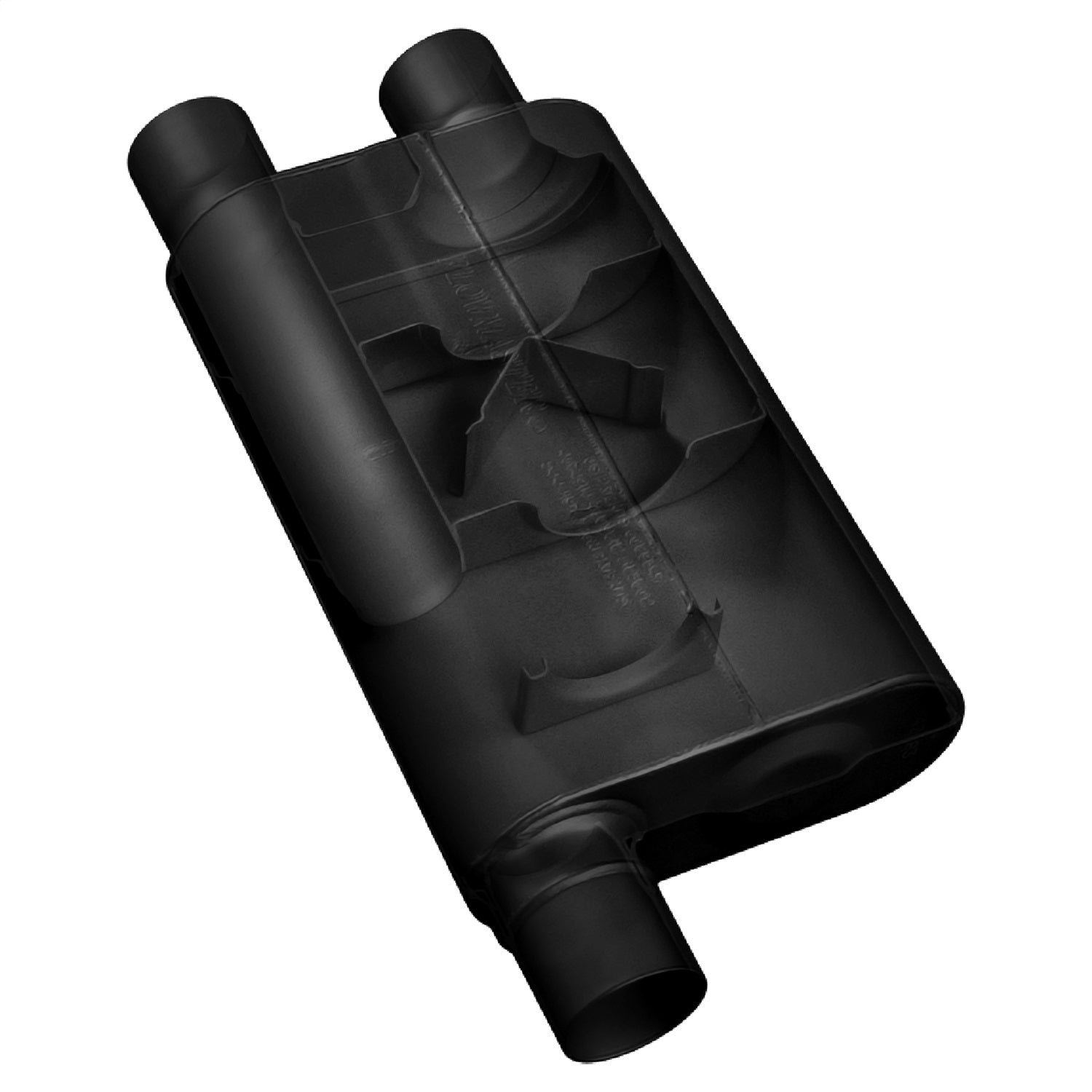

The Original Two Chamber Design |
Description_FAB |
Premium Flowmaster Quality |
Description_INV |
3 IN/DUAL 2.5 OUT 80 SERIES |
Description_MKT |
The 80 series is a cross-flow design for applications where the muffler is mounted transversely behind the rear end. Delivering an aggressive muscle car sound both inside and outside the vehicle. Constructed of 16 gauge aluminized steel and fully MIG welded for maximum durability. |
Description_SHO |
Muffler |
Inlet Diameter |
3.000 in. |
WARNING CA Proposition 65 |
No |
Outlet Diameter |
2.500 in. |
Body Height (in) |
4 |
Title |
Flowmaster 43083 80 Series Crossflow Muffler, 3.00 IN (O) / OUT (D), 4x9 16 Gauge |
Fitment |
Universal |
Main Piping Diameter |
3.000 in. |
Inlet Diameter (in) |
3 |
Body Width |
9.750 in. |
Body Width (in) |
9.75 |
Finish |
Paint |
Overall Length (In) |
19 |
Type of Muffler |
Chambered |
Shape |
Oval |
Inlet Outside Diameter |
3.000 in. |
Inlet Type |
Single Offset |
Tip Quantity |
0 |
Color |
Black |
Material |
Aluminized Steel |
Muffler Type |
Reflection |
Outlet Position |
Dual |
California Proposition 65 Required |
No |
Inlet Connection Type |
Pipe Connection |
Outlet Diameter (in) |
2.5 |
Product Type |
Street Mufflers |
Reversible |
No |
Sound Level |
Aggressive Sound |
Vehicle Type |
Classic Muscle Car, Late Model Muscle Car, Street/Strip |
Inlet Inside Diameter |
3.000 in. |
Mount Type |
Uses New Hangers (Not Included) |
Overall Length |
19.000 in. |
Automotive Item Grade |
High Performance |
Body Height |
4.000 in. |
Inlet Position |
Offset |
Outlet Type |
Dual Opposite End Outlet |
Outlet Outside Diameter |
2.500 in. |
Muffler Series |
80 Series Crossflow |
Body Length |
15.000 in. |
Body Length (in) |
15 |
Brand |
Flowmaster |
Emission Code |
5 |
Outlet Connection Type |
Pipe Connection |
Length |
4.4000 |
Width |
9.9000 |
Height |
23.6000 |
Weight |
14.0350 |
