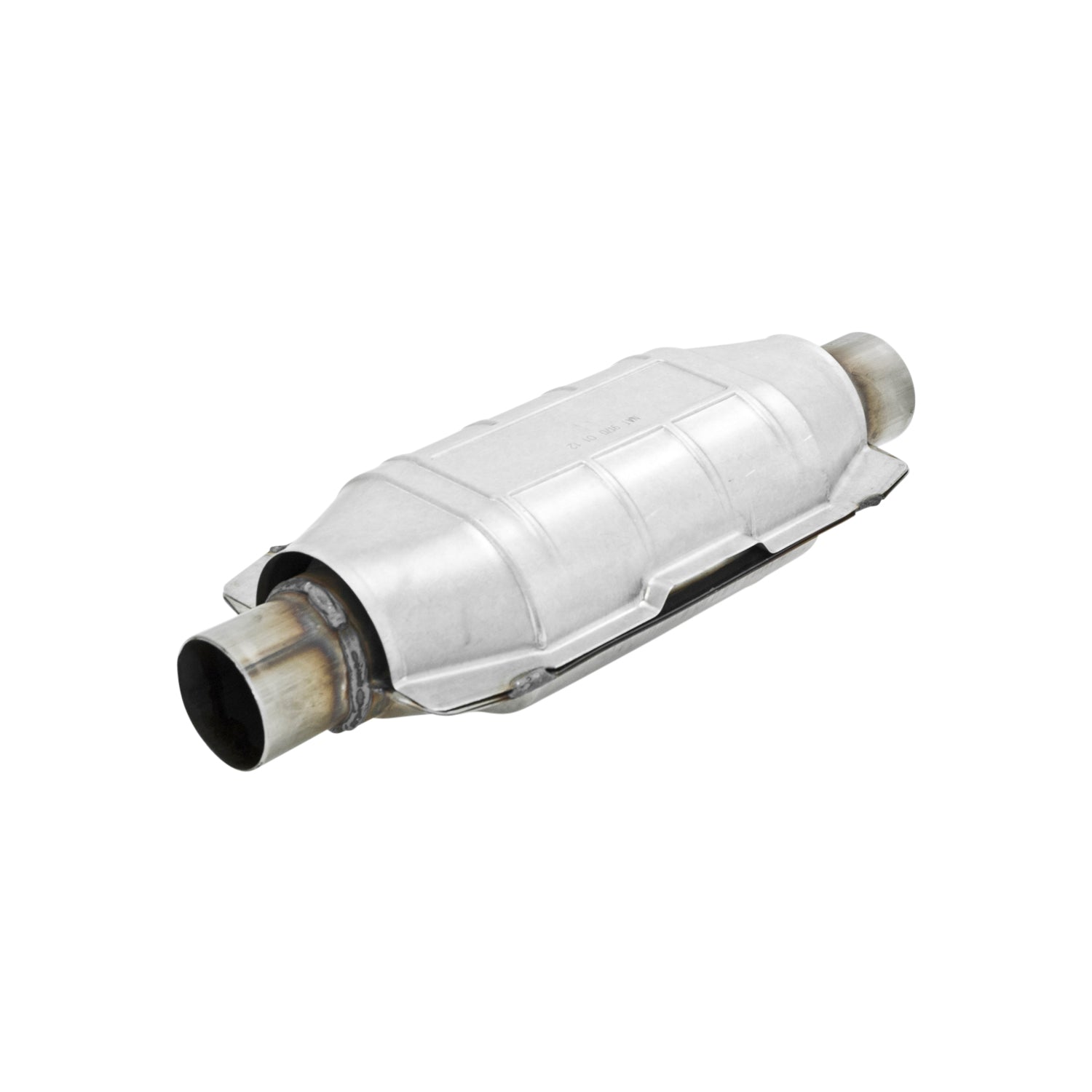

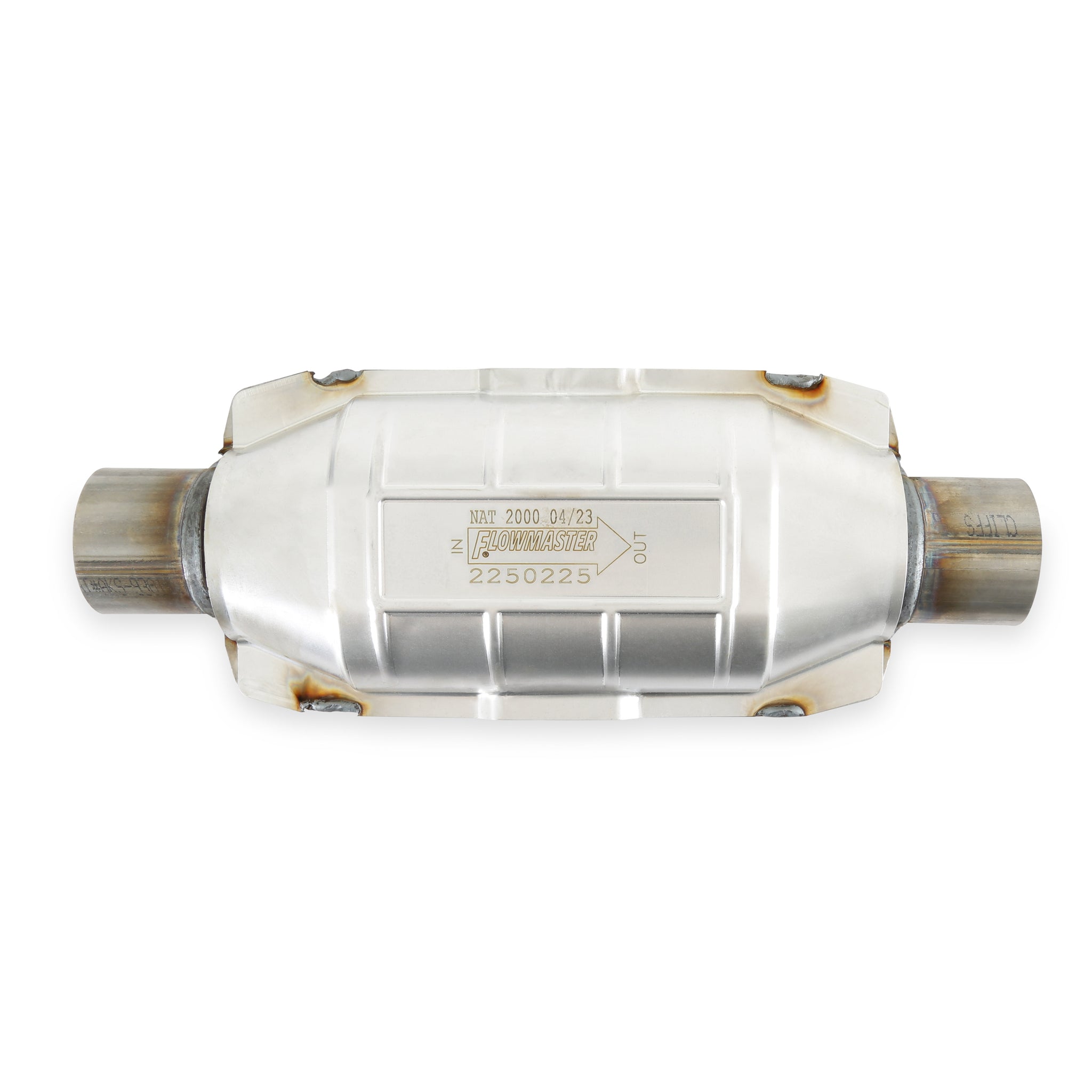

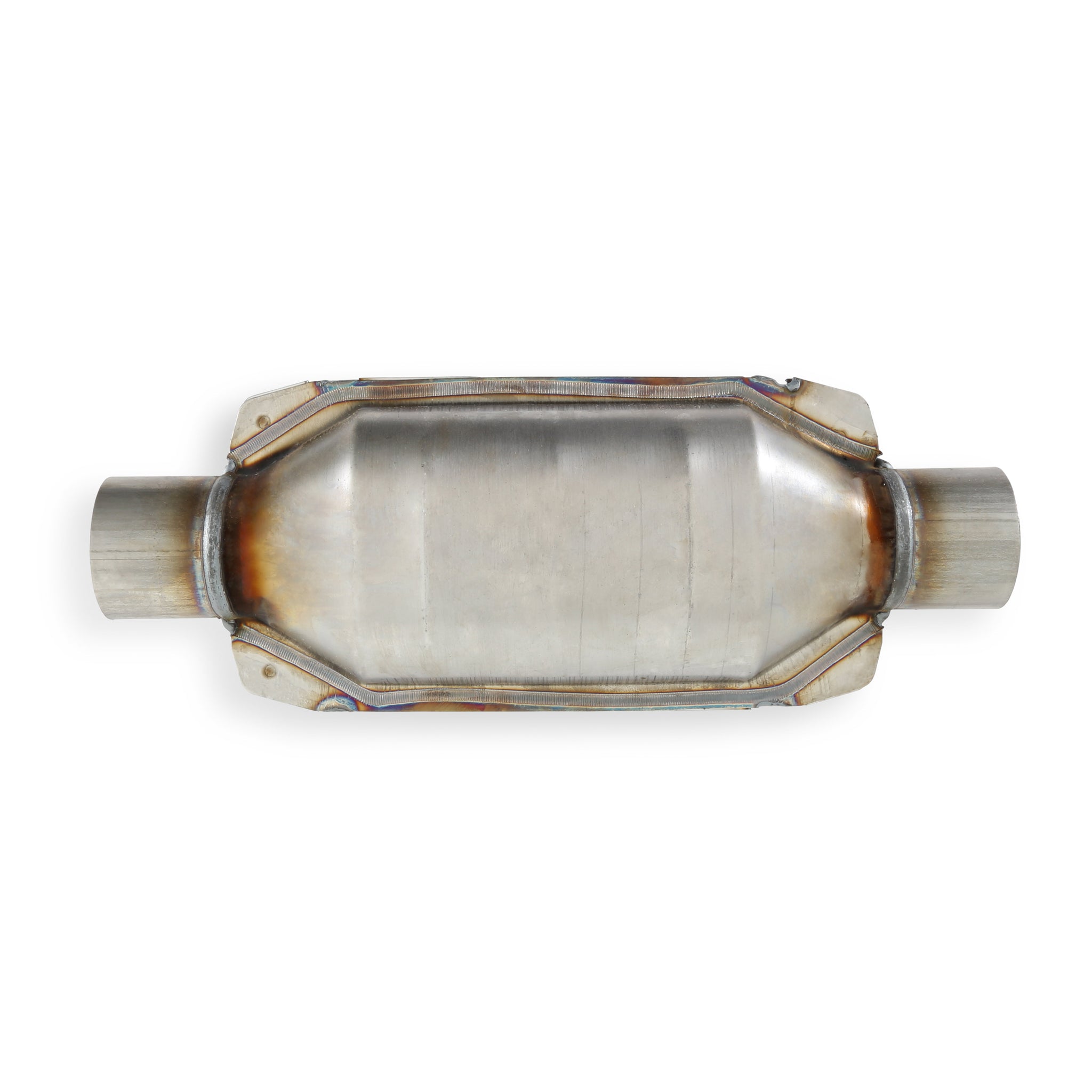

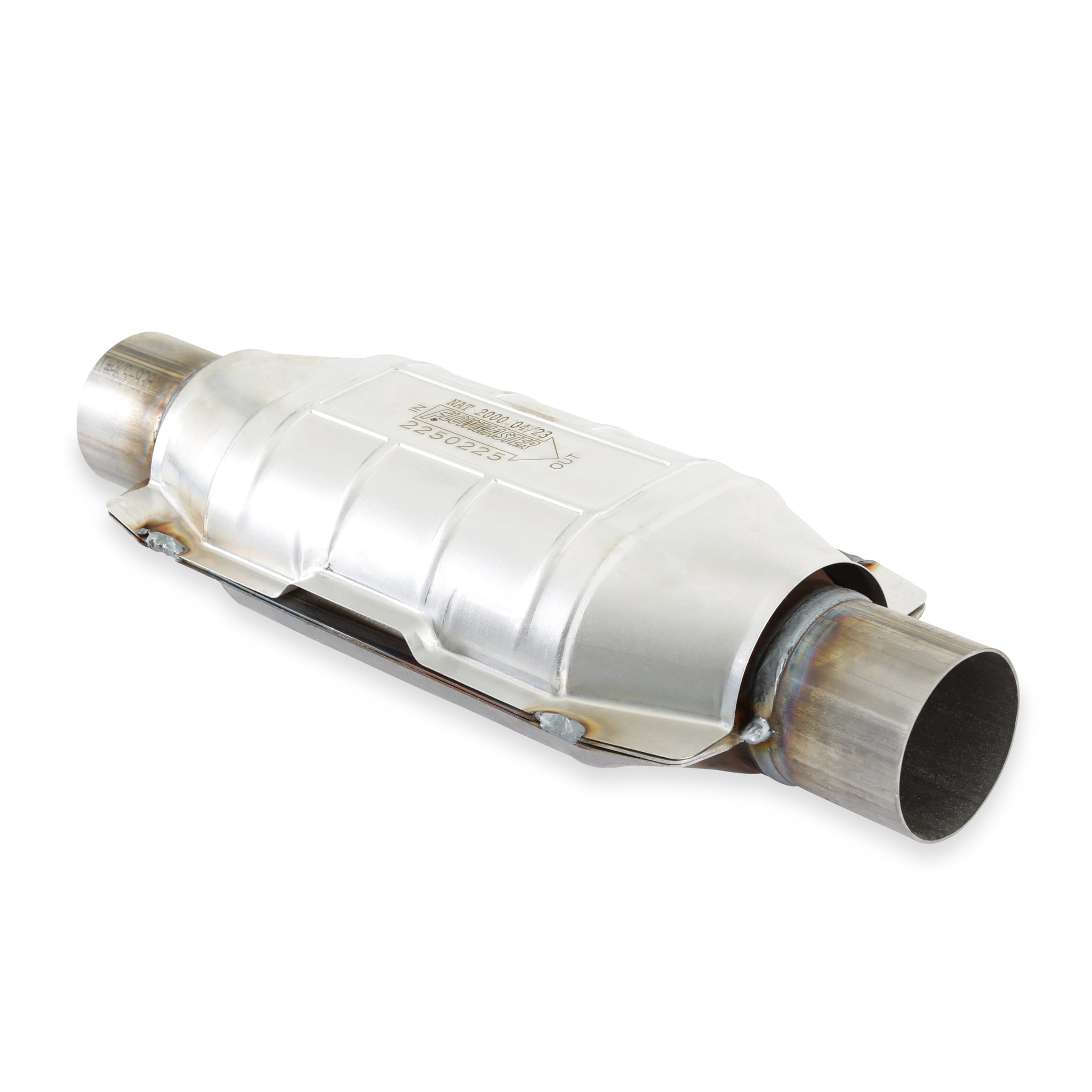

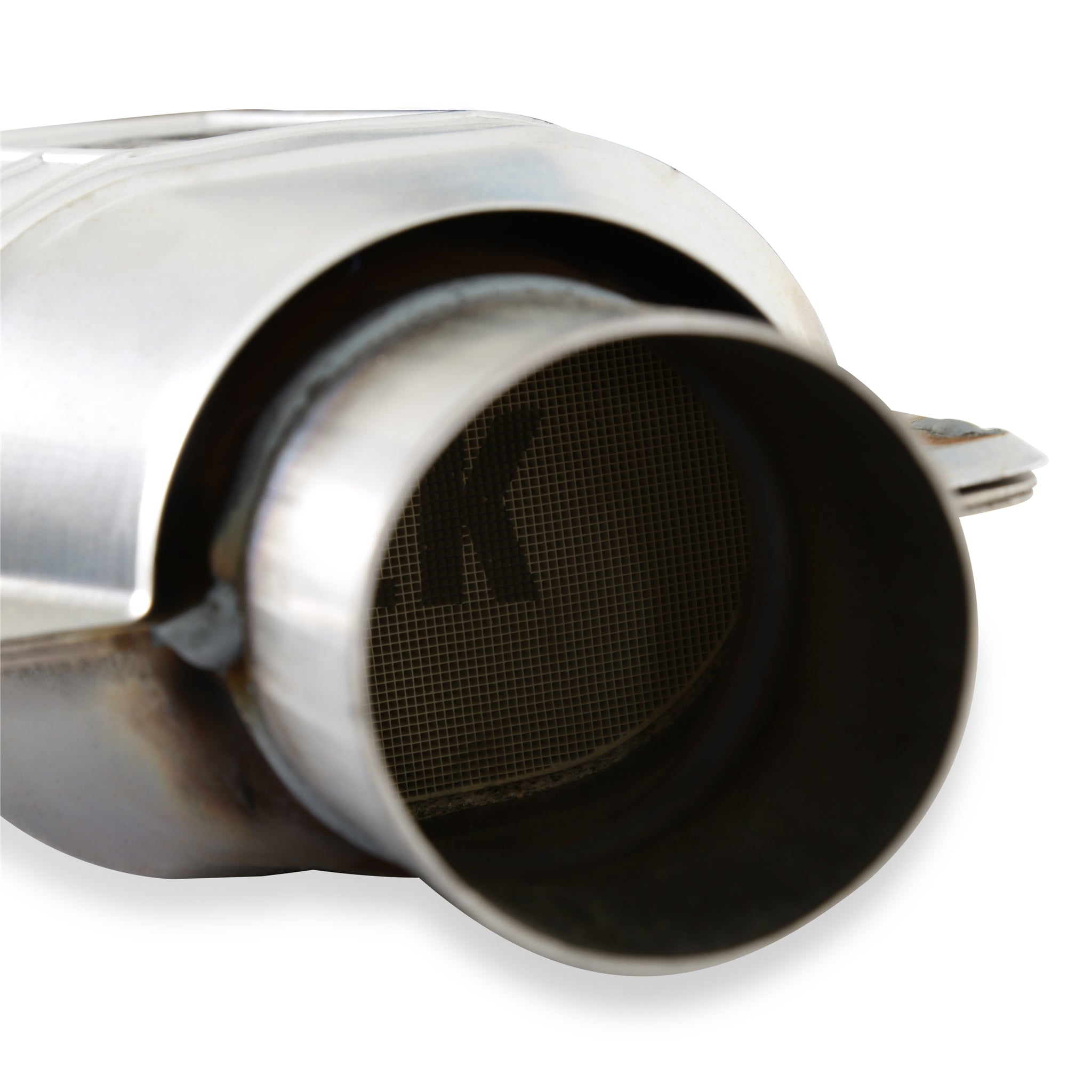

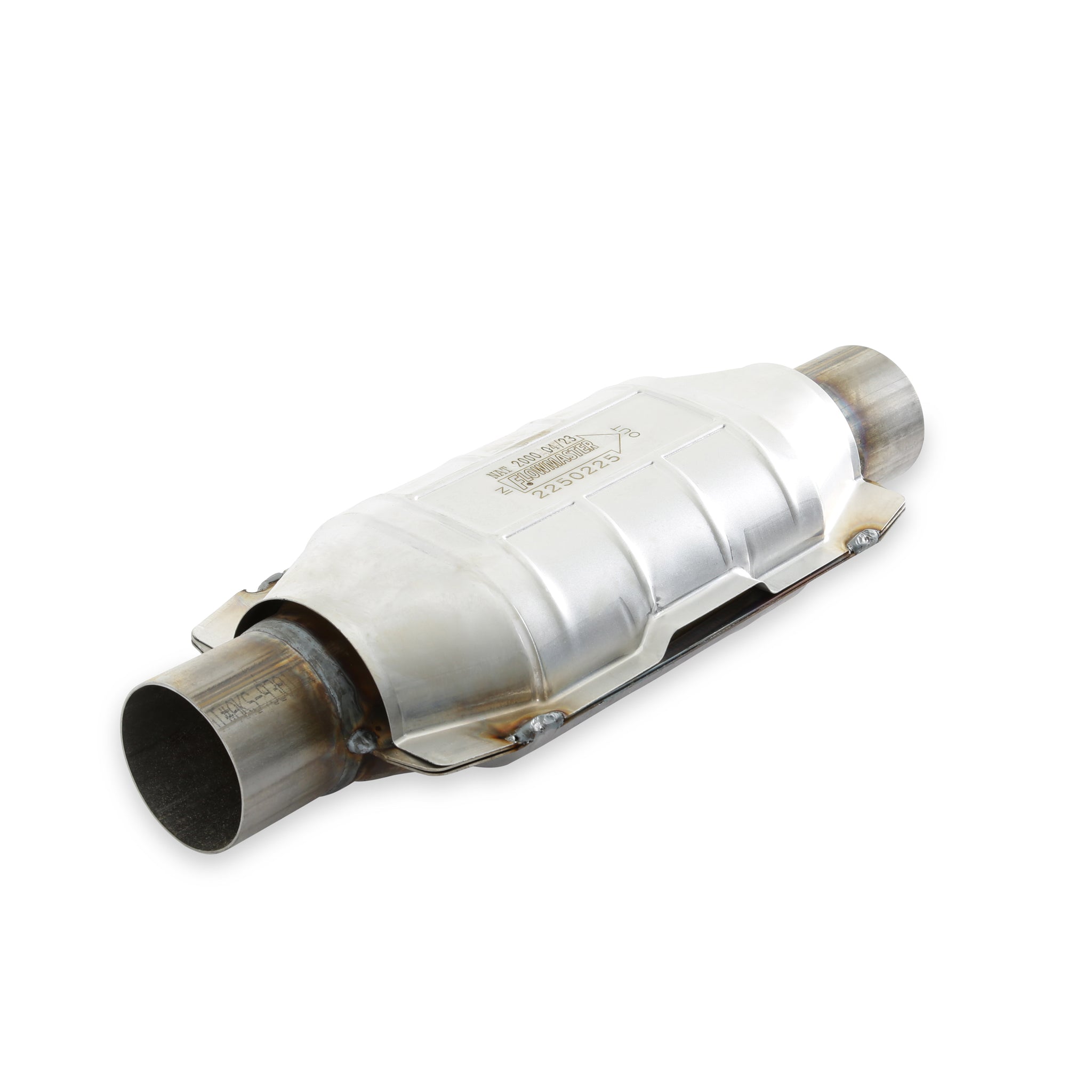

Flowmaster Federal universal catalytic converters are designed to meet federal EPA emissions requirements on a wide variety of applications. These high quality catalytic converters are manufactured in the USA, and feature stainless steel outer shell construction for maximum durability. The internal substrate material and precious metal loading have been carefully engineered for maximum efficiency and to avoid MIL (Malfunction Indicator Lamp) code issues that are common with lower quality converters. Universal catalytic converters require welding and/or fabrication and should be installed by qualified technicians. Please refer to the Flowmaster application guide for specific part number/vehicle applications. Flowmaster Federal converters are not legal for sale or use on vehicles licensed or operated in the state of California.
Specifications:
| Description_DEF |
Catalytic Converter |
| Description_DES |
Flowmaster Catalytic Converter - Universal - Federal |
| Description_INV |
CAT. UNIV 225 SRS. E.D. 2.50" |
| Description_EXT |
Universal Catalytic Converter; 49 State; 225 Series; 2.5 in. Inlet/Outlet; Slip Fit Inlet/Outlet Conn.; Body Width 6.125 in.; Oval; 6515 Max GVW; 5.9L Max Engine Size; |
| Description_FAB |
Enhanced Duty |
| Description_FAB |
Excellent Flow Characteristics |
| Description_FAB |
Engineered To Keep The MIL Light Off |
| Description_FAB |
Meets Federal EPA Emissions Requirements |
| Description_FAB |
Requires Welding And/Or Fabrication |
| Description_FAB |
25000 Mile Emissions Warranty |
| Description_FAB |
5 Year/50000 Mile Exterior Case Warranty |
| Description_FAB |
Stainless Steel |
| Description_FAB |
Made In The USA |
| Description_MKT |
Flowmaster Federal universal catalytic converters are designed to meet federal EPA emissions requirements on a wide variety of applications. These high quality catalytic converters are manufactured in the USA, and feature stainless steel outer shell construction for maximum durability. The internal substrate material and precious metal loading have been carefully engineered for maximum efficiency and to avoid MIL (Malfunction Indicator Lamp) code issues that are common with lower quality converters. Universal catalytic converters require welding and/or fabrication and should be installed by qualified technicians. Please refer to the Flowmaster application guide for specific part number/vehicle applications. Flowmaster Federal converters are not legal for sale or use on vehicles licensed or operated in the state of California. |
| Description_SHO |
Catalytic Converter |
| Gross Vehicle Weight |
6515 lbs. |
| Inlet Diameter |
2.500 in. |
| Body Width (in) |
6.125 |
| Emission Code |
2 |
| Cell Count |
400 |
| Assembly Width (in) |
6.125 |
| Body Shape |
Oval |
| Body Width |
6.125 in. |
| CARB (California) Compliant |
No |
| Core Substrate Material |
Ceramic |
| Inlet Inside Diameter |
2.500 in. |
| Material |
Stainless Steel |
| Outlet Diameter |
2.500 in. |
| Outlet Quantity |
1 |
| Oxygen Sensor Location |
None |
| Style |
3-Way |
| Title |
2250225 Flowmaster Catalytic Converters Catalytic Converter - Universal - 225 Series - 2.50 in. Inlet/Outlet - 49 State |
| California Proposition 65 Required |
No |
| Catalytic Converter Format |
Pre-OBDII |
| Heat Shield |
Yes |
| Inlet Diameter (in) |
2.5 |
| Max Engine Size |
5.9L |
| Max Gross Vehicle Weight (lb) |
6515 |
| Product Type |
Catalytic Converter |
| Substrate Material |
Ceramic |
| Air Tube Adaptable |
No |
| Catalytic Converter Air Tube Adapter |
Not Air Tube Kit Adaptable |
| Heat Shield Included |
Yes |
| Inlet Connection Type |
Slip-Fit |
| Inlet Quantity |
1 |
| Maximum Engine Size |
5.9L |
| Outlet Connection Type |
Slip-Fit |
| Outlet Outside Diameter |
2.500 in. |
| WARNING CA Proposition 65 |
No |
| Brand |
Flowmaster |
| Outlet Diameter (in) |
2.5 |
| Length |
5.0000 |
| Width |
9.0000 |
| Height |
11.0000 |
| Weight |
5.0000 |
