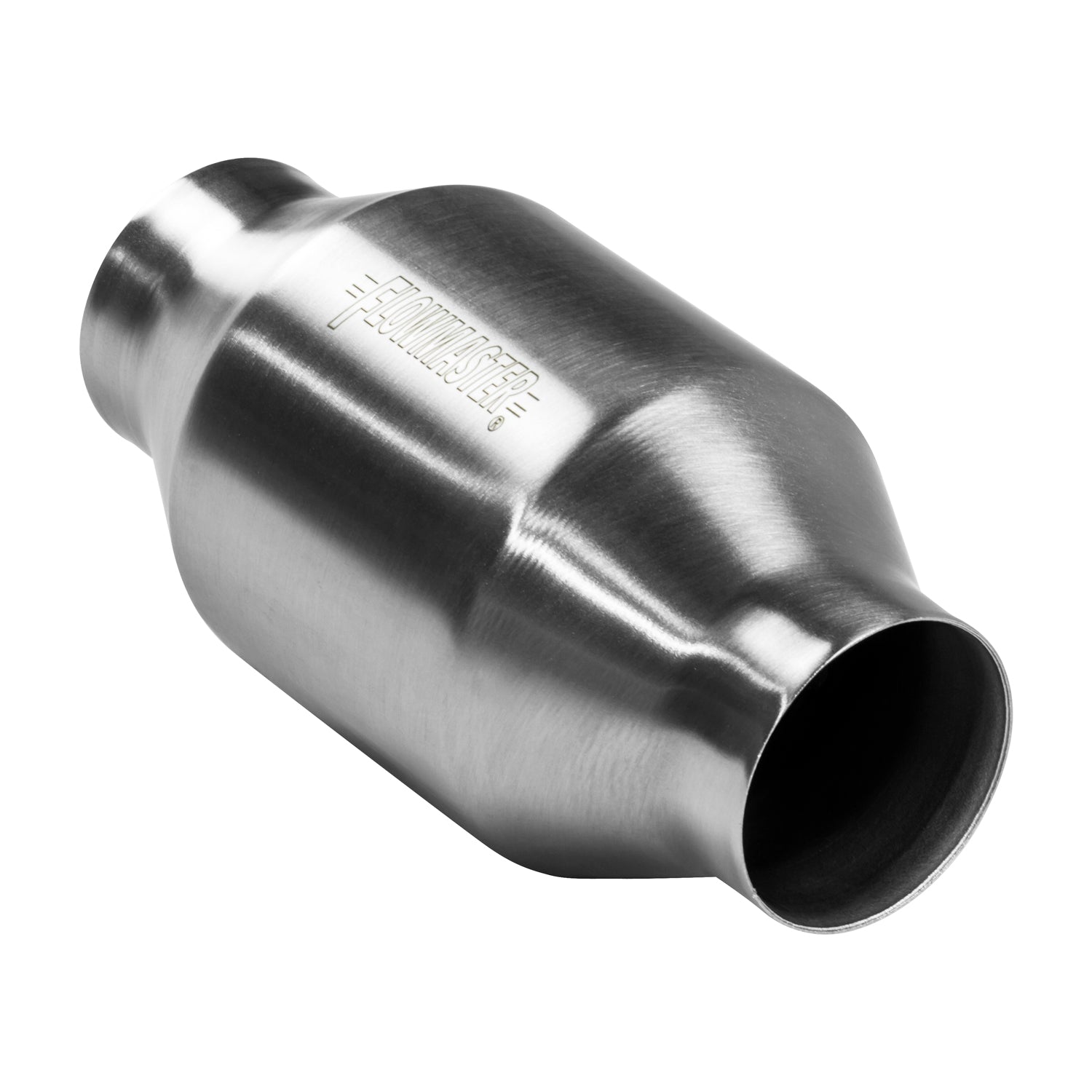

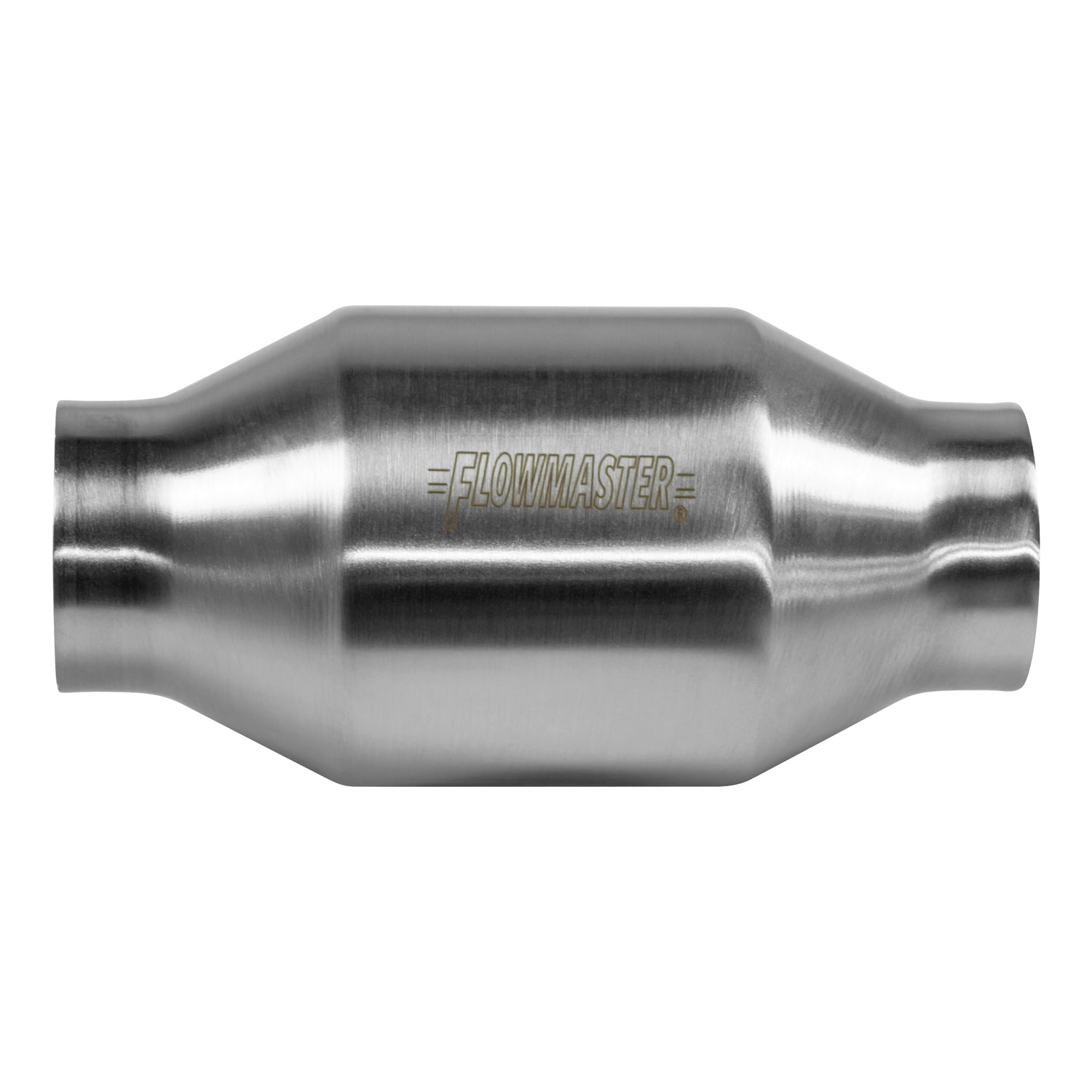

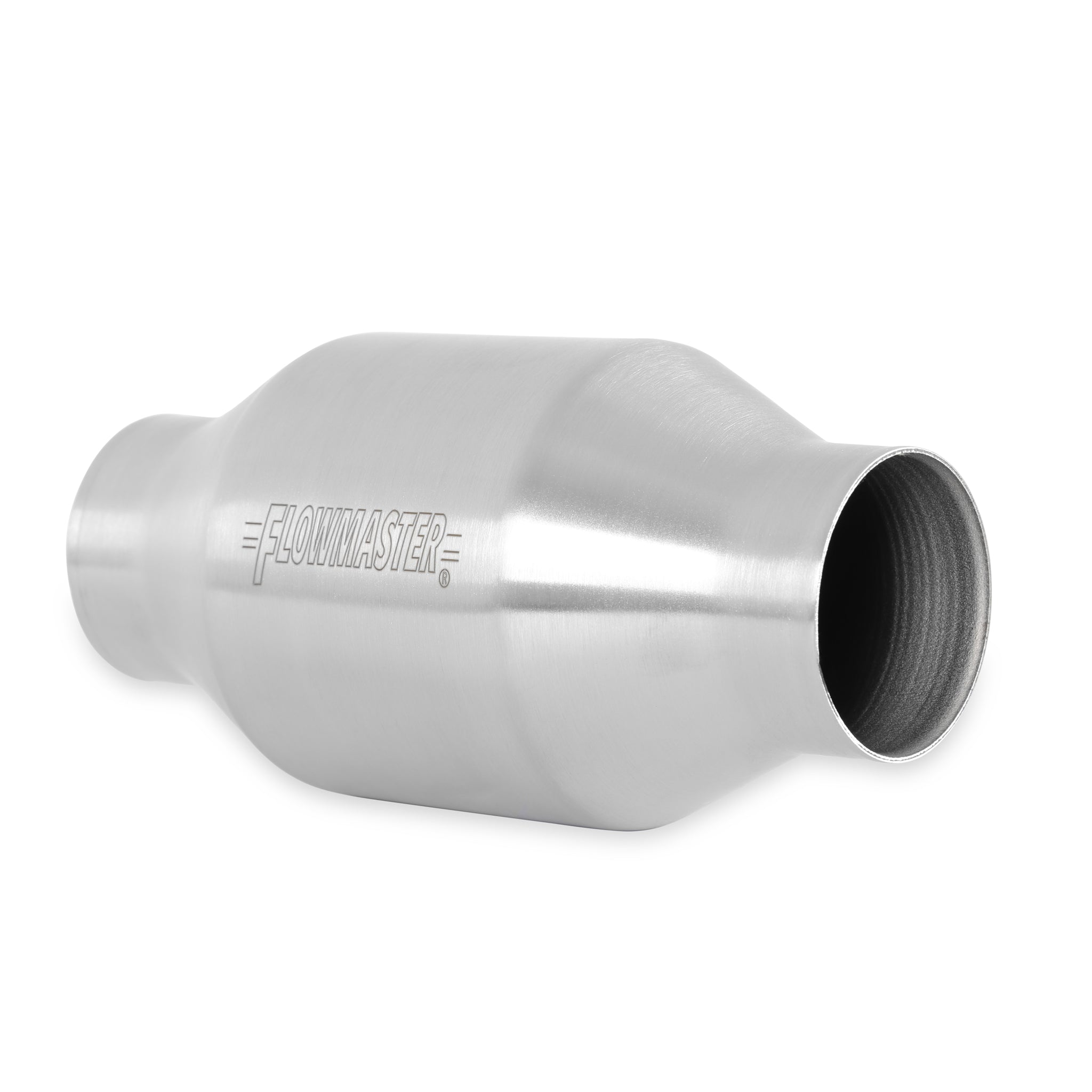

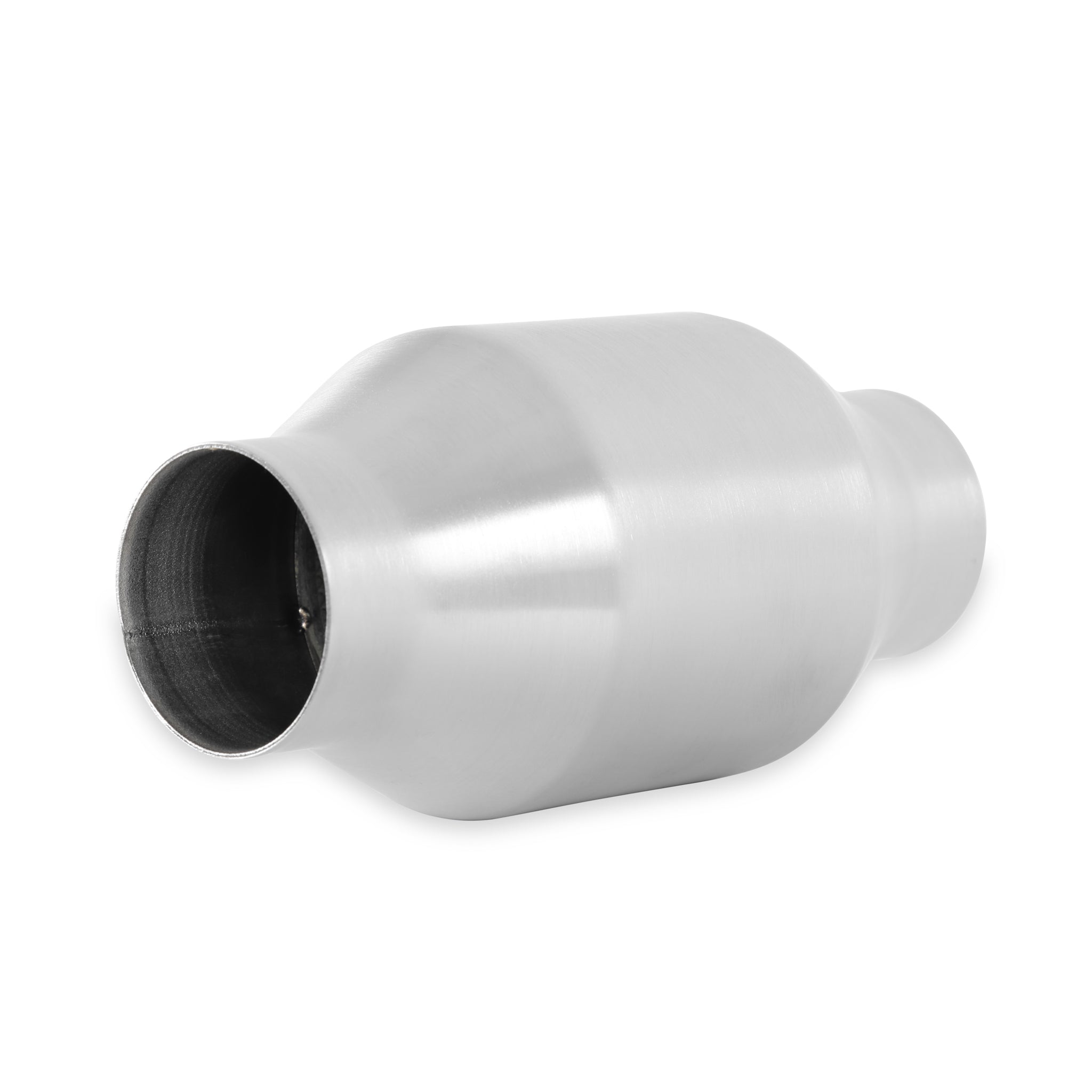

These high quality round catalytic converters are designed to work for a wide variety of universal applications. Features include a compact 4.00-inch diameter x 8.00-inch long spun outer casing for ease of fitment in tight spaces along with High Flow 200 Cell Metallic Substrate for severe-duty/high temperature applications. They feature a 2.25-inch inlet/outlet diameter connections and are intended for customized Pre-OBDII racing applications, and as a "green" solution for vintage hot rods or vehicles that did not originally come equipped with catalytic converters from the factory. These are Not intended to meet on-highway compliance programs and are Not Legal for Sale or for Use in California. Also, may Not be Legal in States that follow CARB regulations.
Specifications:
| Description_ASC |
For customized Pre-OBDII racing applications, and as a "green" solution for vintage hot rods or vehicles that did not originally come equipped with catalytic converters from the factory. |
| Description_DEF |
Catalytic Converter |
| Description_DES |
Flowmaster Universal Metallic Catalytic Converter |
| Description_INV |
CAT UNIV 200 SRS. METAL H.F. 2.25 |
| Description_FAB |
Standard Duty |
| Description_FAB |
Metallic Substrate Material For Severe Duty Applications |
| Description_FAB |
Meets All EPA 49-State Requirements |
| Description_FAB |
25000 Mile Performance/Emissions Warranty |
| Description_FAB |
5 Year/50000 Mile Case Warranty |
| Description_FAB |
Stainless Steel |
| Description_FAB |
Flowmaster Quality |
| Description_FAB |
Made In The USA |
| Description_EXT |
Universal Catalytic Converter; 49 State; 200 Series; 2.25in. Inlet/Outlet; Slip Fit Inlet/Outlet Conn.; Body Length 12.75in./Width 4in.; Round; 6000 Max GVW; 5.7L Max Engine Size; |
| Description_MKT |
These high quality round catalytic converters are designed to work for a wide variety of universal applications. Features include a compact 4.00-inch diameter x 8.00-inch long spun outer casing for ease of fitment in tight spaces along with High Flow 200 Cell Metallic Substrate for severe-duty/high temperature applications. They feature a 2.25-inch inlet/outlet diameter connections and are intended for customized Pre-OBDII racing applications, and as a "green" solution for vintage hot rods or vehicles that did not originally come equipped with catalytic converters from the factory. These are Not intended to meet on-highway compliance programs and are Not Legal for Sale or for Use in California. Also, may Not be Legal in States that follow CARB regulations. |
| Description_SHO |
Catalytic Converter |
| Assembled Length |
8.000 in. |
| Core Substrate Material |
Metal |
| Housing Material |
Stainless Steel |
| Exhaust Inlet Connection Type |
Weld-On |
| Catalytic Converter Air Tube Adapter |
Not Air Tube Kit Adaptable |
| Inlet Diameter |
2.250 in. |
| Material |
Stainless Steel |
| Body Width (in) |
4 |
| Inlet Diameter (in) |
2.25 |
| CARB (California) Compliant |
No |
| Outlet Diameter |
2.500 in. |
| Oxygen Sensor Location |
No Port Location |
| Title |
2000124 Flowmaster Catalytic Converters Catalytic Converter - Universal - 200 Series - 2.25 in. Inlet/Outlet - 49 State |
| WARNING CA Proposition 65 |
No |
| Assembly Width (in) |
4 |
| Max Engine Size |
5.7L |
| Max Gross Vehicle Weight (lb) |
6000 |
| Substrate Material |
Metal |
| Body Shape |
Round |
| Body Width |
4.000 in. |
| Exhaust Component Mount Type |
Uses New Hangers (Not Included) |
| Gross Vehicle Weight |
6000 lbs. |
| Heat Shield Included |
No |
| Inlet Inside Diameter |
2.250 in. |
| Inlet Quantity |
1 |
| Maximum Engine Size |
5.7L |
| Outlet Quantity |
1 |
| California Proposition 65 Required |
No |
| Product Type |
Catalytic Converter |
| Cell Count |
200 |
| Sale Category |
Exhaust |
| Assembled Width |
4.000 in. |
| Body Length |
3.500 in. |
| Catalytic Converter Format |
Pre-OBDII |
| Catalytic Converter Location |
Universal |
| Exhaust Outlet Connection Type |
Weld-On |
| Fitment |
Universal |
| Inlet Connection Type |
Slip-Fit |
| Outlet Connection Type |
Slip-Fit |
| Outlet Outside Diameter |
2.250 in. |
| Overall Length |
8.000 in. |
| Style |
3-Way |
| Air Tube Adaptable |
Not Air Tube Kit Adaptable |
| Assembly Length (in) |
8 |
| Body Length (in) |
3.5 |
| Brand |
Flowmaster |
| California/CARB Compliant |
No |
| Emission Code |
4 |
| Heat Shield |
No |
| Outlet Diameter (in) |
2.25 |
| Length |
5.0000 |
| Width |
5.0000 |
| Height |
9.0000 |
| Weight |
2.0000 |
