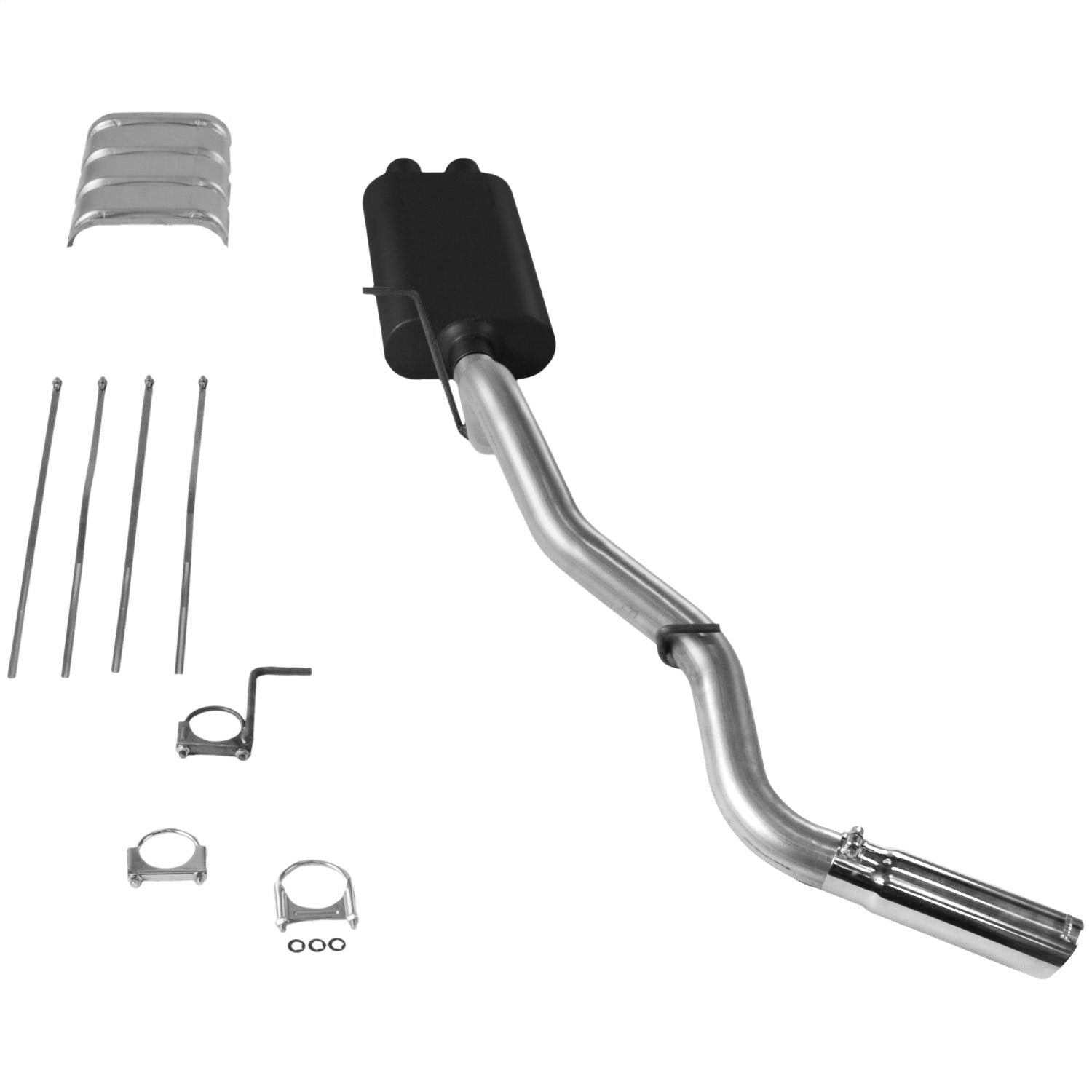

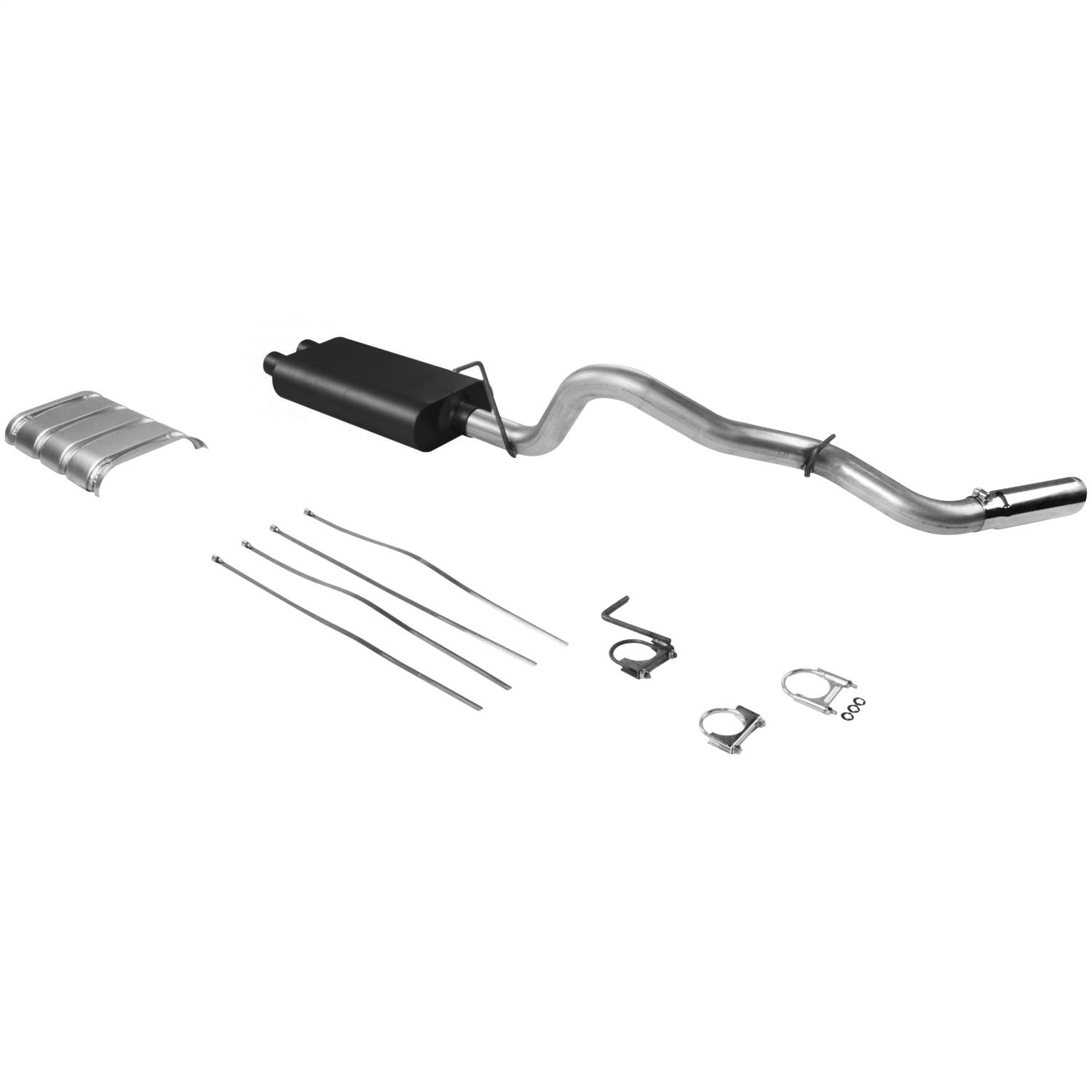

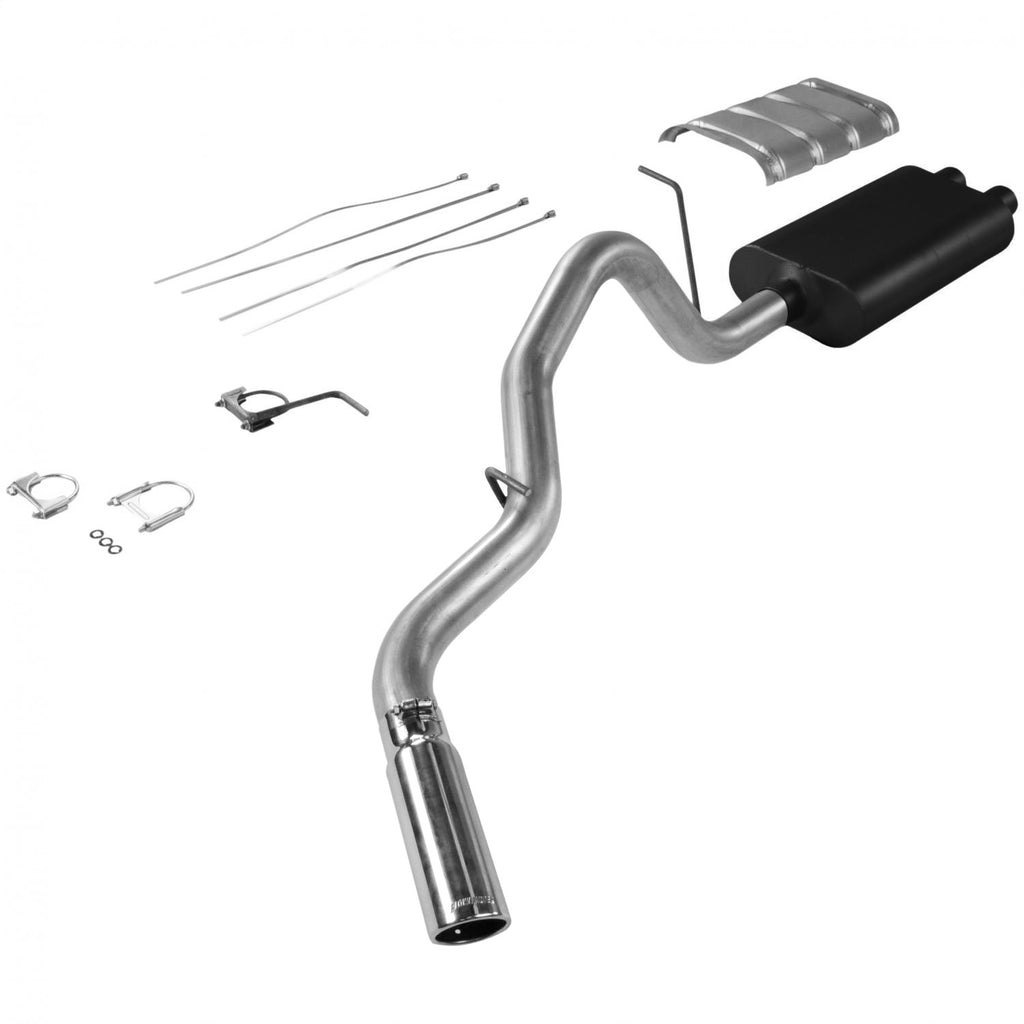

For the person who wants a subtle custom appearance with all the benefits that a Flowmaster Cat-back exhaust system provides. This American Thunder system delivers a moderate interior tone with a deep powerful exterior tone and is suited to the enthusiast who wants their performance to be heard. The system attaches to the back of the catalytic converter with a dual inlet 50 Series Big Block muffler for a deep powerful sound without being obnoxious. Includes a large custom formed aluminum heat shield with stainless clamps and easily attaches directly to the muffler body. The custom bent 3.00-inch aluminized steel tailpipe uses the factory hanger locations for an easy installation and exits out behind the right side rear wheel which is ideal for towing. The tailpipe is finished off with a large 3.50-inch polished 304 stainless steel tip embossed with the Flowmaster logo. Like all Flowmaster systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts, hardware and easy to follow instructions for a trouble free installation. Notes: Fits 2/4 wheel drive trucks with the extended cab/short bed configuration - 143.5-inch wheelbase.
Specifications:
| Description_ASC |
Fits 1999-2002 Chevrolet Silverado and GMC Sierra 2500 3/4 Ton truck (not-HD) with 6.0L engine, fits 2/4 wheel drive with extended cab/short bed configuration on 143.5-inch wheelbase. |
| Description_DES |
Flowmaster American Thunder Cat-back Exhaust System |
| Description_INV |
99-02 CHEV/GMC TRK 144" WB A T |
| Description_MKT |
For the person who wants a subtle custom appearance with all the benefits that a Flowmaster Cat-back exhaust system provides. This American Thunder system delivers a moderate interior tone with a deep powerful exterior tone and is suited to the enthusiast who wants their performance to be heard. The system attaches to the back of the catalytic converter with a dual inlet 50 Series Big Block muffler for a deep powerful sound without being obnoxious. Includes a large custom formed aluminum heat shield with stainless clamps and easily attaches directly to the muffler body. The custom bent 3.00-inch aluminized steel tailpipe uses the factory hanger locations for an easy installation and exits out behind the right side rear wheel which is ideal for towing. The tailpipe is finished off with a large 3.50-inch polished 304 stainless steel tip embossed with the Flowmaster logo. Like all Flowmaster systems, the benefits include improved throttle response, power and mileage. Designed for an easy fit, these systems include all necessary parts, hardware and easy to follow instructions for a trouble free installation. Notes: Fits 2/4 wheel drive trucks with the extended cab/short bed configuration - 143.5-inch wheelbase. |
| Description_FAB |
Includes an Aluminum Heat Shield for Rapid Heat Dissipation |
| Description_FAB |
Includes a Large 3.50-inch Polished 304 Stainless Steel Tip |
| Description_FAB |
Includes Hangers and Hardware for an Easy Installation |
| Description_FAB |
Mandrel-bent 16-gauge Aluminized Steel Tubing |
| Description_FAB |
Dyno-tuned for Maximum Performance |
| Description_FAB |
Stainless Steel Heat Shield Clamps |
| Description_FAB |
Uses the Factory Hanger Locations |
| Description_FAB |
Aggressive Exterior Exhaust Tone |
| Description_FAB |
Easy Installation |
| Description_EXT |
1999-2002 Chevrolet Silverado 2500 & GMC Sierra 2500 with 6.0L engine - Non HD models. - Aggressive sound |
| System Type |
Cat Back |
| Tip Diameter |
3.500 in. |
| Tail Pipe Diameter |
3.000 in. |
| Brand |
Flowmaster |
| Tip Diameter (in) |
3.5 |
| Tubing Diameter (in) |
3 |
| Muffler Quantity |
1 |
| Outlet Diameter (in) |
3 |
| Single Dual |
Single |
| Single or Dual |
Single |
| California Proposition 65 Chemical Name 2 |
Chromium (hexavalent compounds) |
| WARNING CA Proposition 65 |
Yes |
| Exhaust Series |
American Thunder |
| Muffler Count |
1 |
| Tip Quantity |
1 |
| Inlet Diameter |
2.750 in. |
| Muffler Series |
50 Series Big Block |
| Outlet Outside Diameter |
3.000 in. |
| Muffler Part Number |
Kit Only |
| Inlet Position |
Dual |
| Emission Code |
5 |
| Exit Position |
Single Side Exit |
| Inlet Inside Diameter |
6.000 in. |
| Outlet Diameter |
3.000 in. |
| Title |
Flowmaster 17325 Cat-back System - Single Side Exit - American Thunder - Aggressive Sound |
| Heat Shield Attached |
No |
| Sound Level |
Aggressive |
| Exit Style |
Straight |
| WARNING CA Proposition 65 Message |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| California Proposition 65 Chemical Name 1 |
Nickel (metallic) |
| Material |
Aluminized Steel |
| Tubing Diameter |
3.000 in. |
| Exhaust Type |
Single |
| California Proposition 65 Chemical Name |
Chromium (hexavalent compounds), Nickel (Metallic) |
| California Proposition 65 Required |
Yes |
| Heat Shield |
Yes |
| Inlet Diameter (in) |
2.75 |
| Product Type |
Exhaust System |
| Warning |
California Proposition 65 |
| Length |
17.0000 |
| Width |
12.0000 |
| Height |
58.0000 |
| Weight |
41.0000 |
