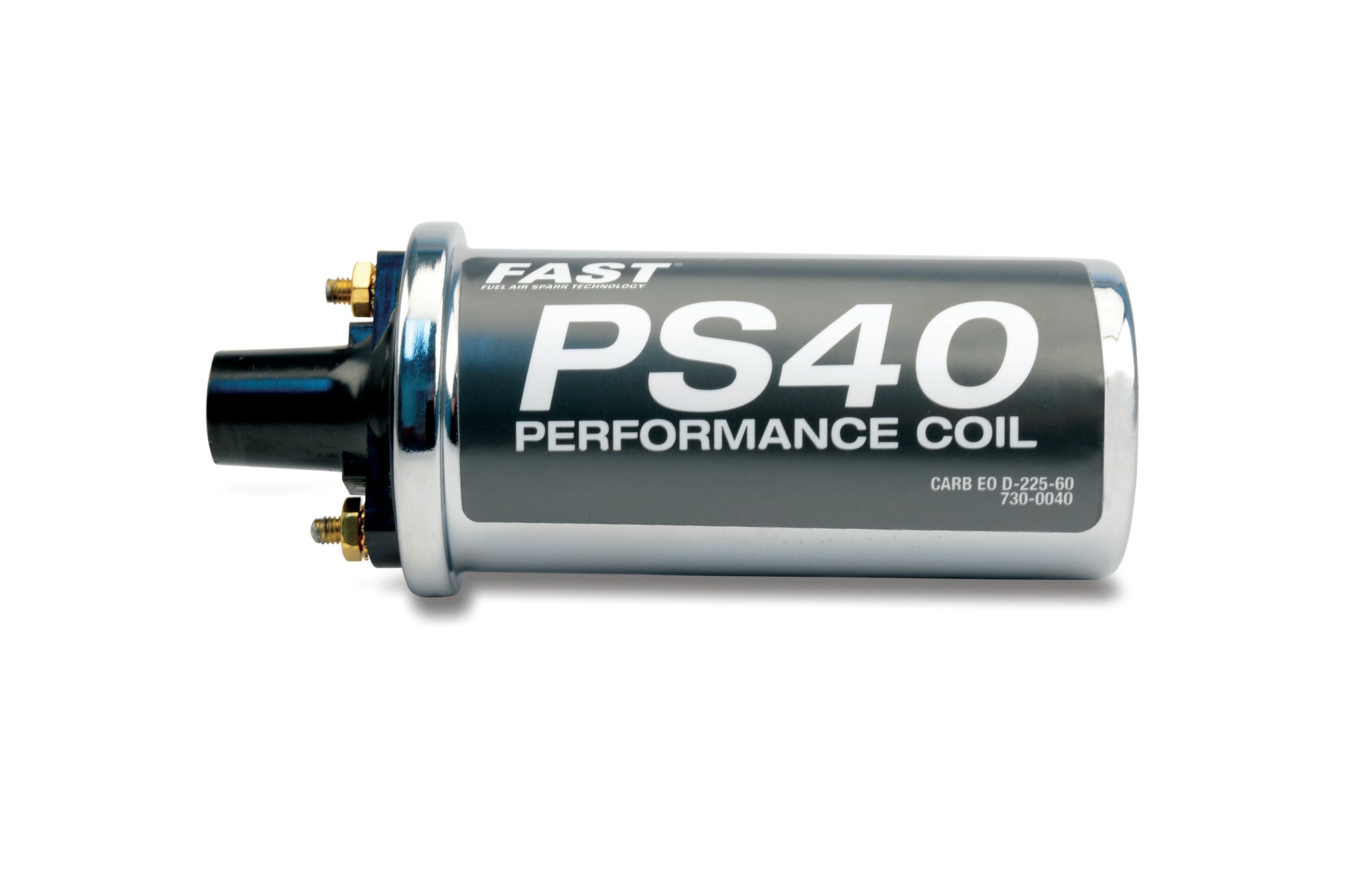

The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system.
Specifications:
Description_DEF |
Ignition Coil |
Description_DES |
PS40 Premium Canister Street Ignition Coil |
Description_MKT |
The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system. |
Description_EXT |
Nickel Plated |
Description_FAB |
PS20 Canister Style coil |
Description_FAB |
Black |
Description_FAB |
20-50% higher energy at spark plug than typical stockcoils |
Description_FAB |
Oil filled for maximum cooling of internal windings and high reliability |
Description_FAB |
Windings optimized with computer aided design for maximum spark gap current and high available voltage |
Description_FAB |
Alkyd coil towers eliminate failure from flash over and carbon tracking. |
Description_FAB |
50 state legal CARB E.O. D-225-60 |
Description_INV |
PS40 Street Coil |
Description_SHO |
PS40 Coil |
Description_SHP |
No |
Coil Wire Terminal Quantity |
1 |
Diameter |
2.125 |
Primary Resistance |
1.4 ohms |
Spark Duration |
385 uS |
Terminal Quantity |
2 |
Title |
PS40 Premium Street Coil |
C.A.R.B. EO Number |
D-225-60 |
Coil Wire Included |
No |
Secondary Resistance |
5.2K ohms |
Turns Ratio |
60:1 |
Ballast Resistor Included |
Yes |
C.A.R.B. Exempt? |
Yes |
Coil Shape |
Round |
Maximum Voltage |
46,000 V |
Mounting Position |
Upright |
Oil Filled |
Yes |
Primary Inductance |
7.5 mH |
Quantity |
Sold Individually |
Weight |
1.75 lbs |
California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
Coil Color |
Nickel Plated |
Coil Internal Construction |
Oil-Filled |
Coil Style |
Canister |
Coil Wire Attachment |
Female/Socket |
Height |
5.75 |
Leakage Inductance |
1.3 mH |
Meets or Exceeds OEM Specs |
Yes |
Mount Type |
Bracket |
Mounting Bracket Included |
No |
Peak Current |
145 mA |
Secondary Inductance |
26 H |
Length |
9.0000 |
Width |
3.0000 |
Height |
3.0000 |
Weight |
2.0000 |
