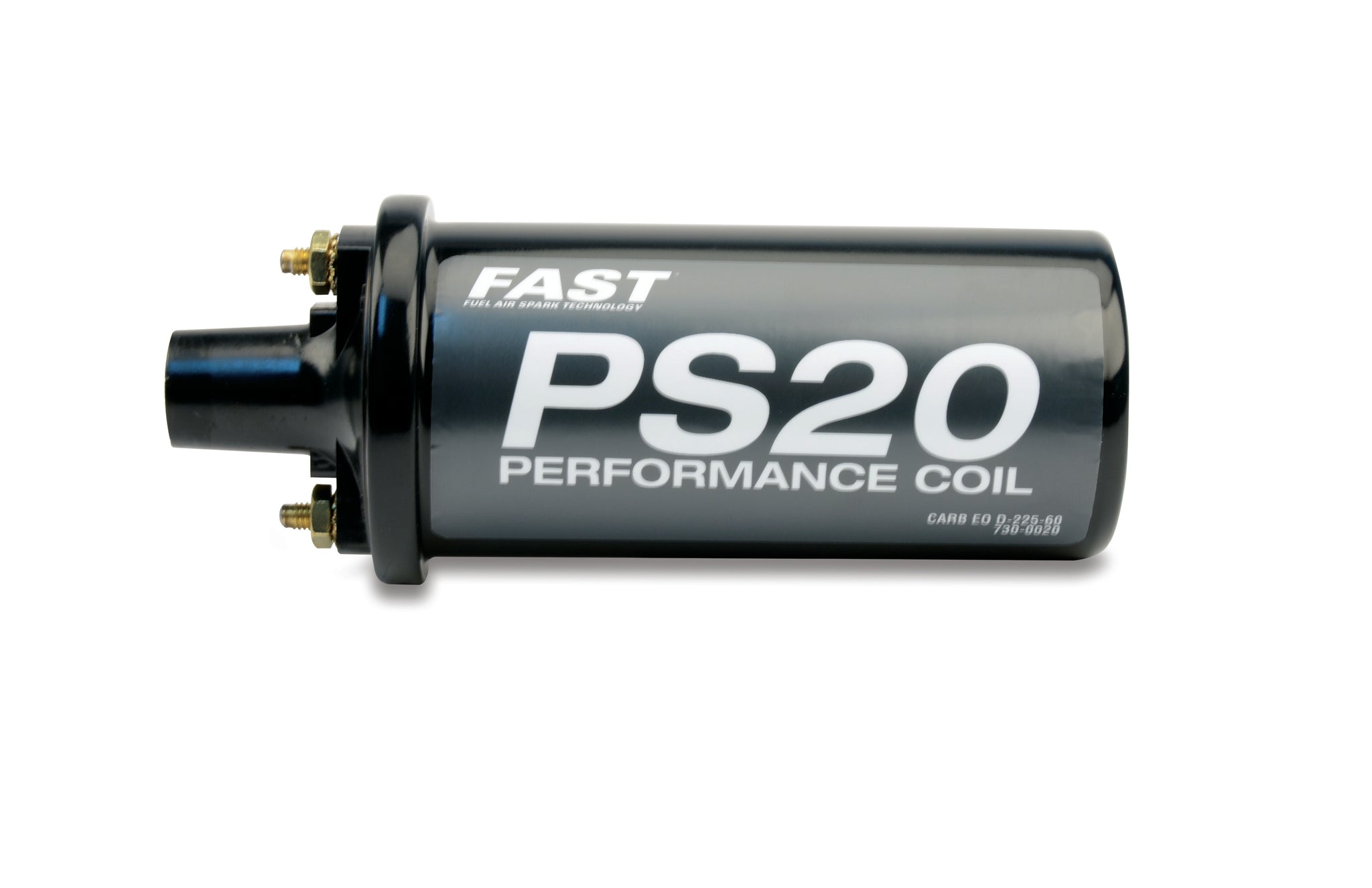

The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system.
Specifications:
| Description_DEF |
Ignition Coil |
| Description_DES |
PS20 Premium Canister Street Ignition Coil |
| Description_EXT |
Black Color |
| Description_INV |
PS20 Street Coil |
| Description_FAB |
PS20 Canister Style coil |
| Description_FAB |
Black |
| Description_FAB |
20-50% higher energy at spark plug than typical stockcoils |
| Description_FAB |
Oil filled for maximum cooling of internal windings and high reliability |
| Description_FAB |
Windings optimized with computer aided design for maximum spark gap current and high available voltage |
| Description_FAB |
Alkyd coil towers eliminate failure from flash over and carbon tracking. |
| Description_FAB |
50 state legal CARB E.O. D-225-60 |
| Description_SHO |
PS20 Coil |
| Description_MKT |
The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system. |
| Description_SHP |
No |
| Coil Style |
Canister |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Color |
Black |
| Coil Wire Attachment |
Female/Socket |
| Coil Wire Included |
No |
| Mounting Bracket Included |
No |
| Secondary Inductance |
26 H |
| Title |
PS20 Premium Street Coil |
| Coil Shape |
Round |
| Diameter |
2.125 |
| Leakage Inductance |
1.3 mH |
| Meets or Exceeds OEM Specs |
Yes |
| Mount Type |
Bracket |
| Mounting Position |
Upright |
| Oil Filled |
Yes |
| Peak Current |
145 mA |
| Terminal Quantity |
2 |
| Turns Ratio |
60:1 |
| Ballast Resistor Included |
Yes |
| C.A.R.B. EO Number |
D-225-60 |
| C.A.R.B. Exempt? |
Yes |
| Coil Internal Construction |
Oil-Filled |
| Coil Wire Terminal Quantity |
1 |
| Height |
5.75 |
| Maximum Voltage |
46,000 V |
| Primary Inductance |
7.5 mH |
| Primary Resistance |
1.4 ohms |
| Quantity |
Sold Individually |
| Secondary Resistance |
5.2K ohms |
| Spark Duration |
385 uS |
| Weight |
1.75 lbs |
| Length |
9.0000 |
| Width |
3.0000 |
| Height |
3.0000 |
| Weight |
2.0000 |
