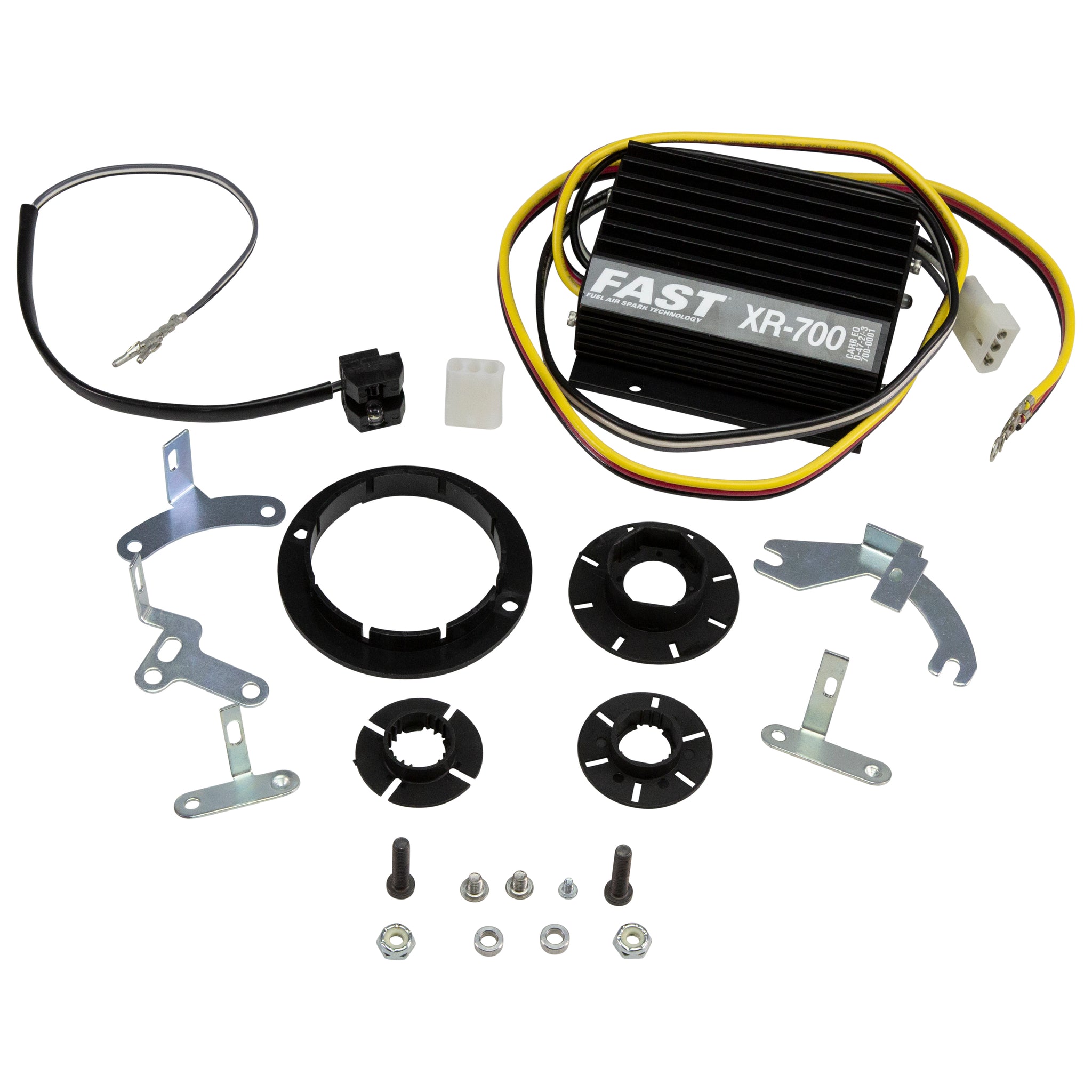

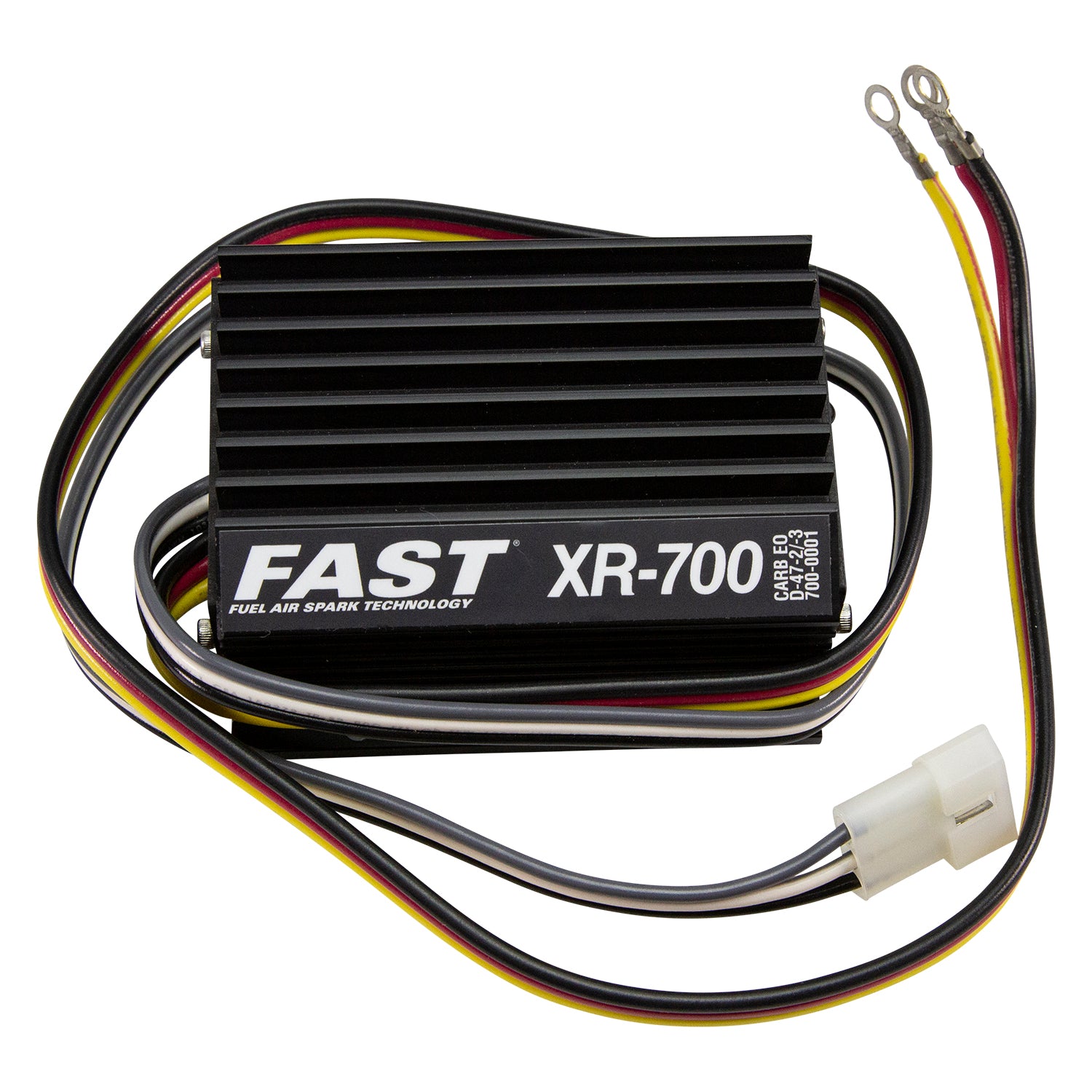

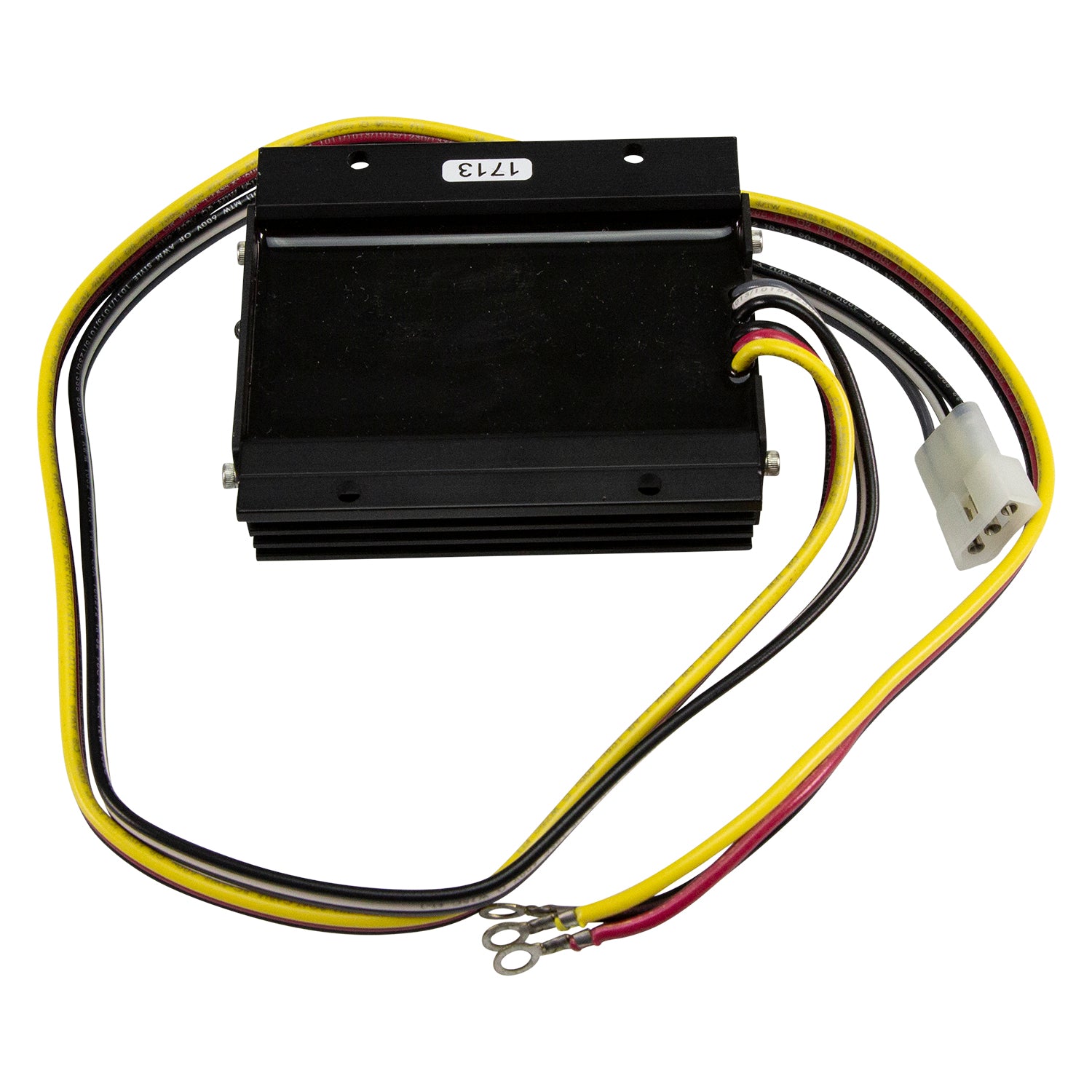

The XR-700 Points Replacement System is designed as an affordable and better performing alternative to many factory points/electronic module systems such as those from Hitachi, Nippondenso, Bosch, Lucas and others. The system starts with the reliable FAST optical trigger that bolts in place of the breaker points in the distributor. From there, it triggers the XR-700 Ignition Module. This compact inductive ignition module is compatible with 12-volt systems and even accepts positive ground systems. It improves the spark output and delivers up to 400 primary volts with about 60mJ of spark energy so your engine will rev quicker and pull through the straights like never before.
Specifications:
| Description_ASC |
Eliminates Points Bounce |
| Description_ASC |
Faster Start Up |
| Description_ASC |
Crisper Throttle Response |
| Description_ASC |
6 to 18 Volts, reverse polarity protected, positive or negative ground |
| Description_ASC |
Converts points type distributors to electronic ignition |
| Description_ASC |
Increased timing accuracy |
| Description_ASC |
All new status LED light for easy diagnostics |
| Description_ASC |
Fully potted for protection from dirt, moisture and vibration |
| Description_ASC |
Optical trigger for precise ignition timing |
| Description_ASC |
More powerful signal than points type ignition |
| Description_ASC |
For 1975 and earlier vehicles |
| Description_ASC |
50 state legal CARBE.O., D-47-2 |
| Description_DEF |
Electronic Ignition System |
| Description_DES |
XR-700 Domestic 4,6,8 & VW/Bosch 009 Distributors |
| Description_MKT |
The XR-700 Points Replacement System is designed as an affordable and better performing alternative to many factory points/electronic module systems such as those from Hitachi, Nippondenso, Bosch, Lucas and others. The system starts with the reliable FAST optical trigger that bolts in place of the breaker points in the distributor. From there, it triggers the XR-700 Ignition Module. This compact inductive ignition module is compatible with 12-volt systems and even accepts positive ground systems. It improves the spark output and delivers up to 400 primary volts with about 60mJ of spark energy so your engine will rev quicker and pull through the straights like never before. |
| Description_EXT |
Replaces points in Bosch/VW 009 Distributors along with Domestic 4,6, and 8 cylinder engines. |
| Description_INV |
XR-700 Dom & Bosch |
| Description_SHP |
No |
| Description_SHO |
XR-700 Kit |
| C.A.R.B. Exempt? |
Yes |
| California Proposition 65 |
WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Title |
XR-700 Domestic 4,6,8 & VW/Bosch 009 Distributors |
| C.A.R.B. EO Number |
D-225-67 |
| Length |
9.0000 |
| Width |
6.0000 |
| Height |
2.0000 |
| Weight |
1.0000 |
