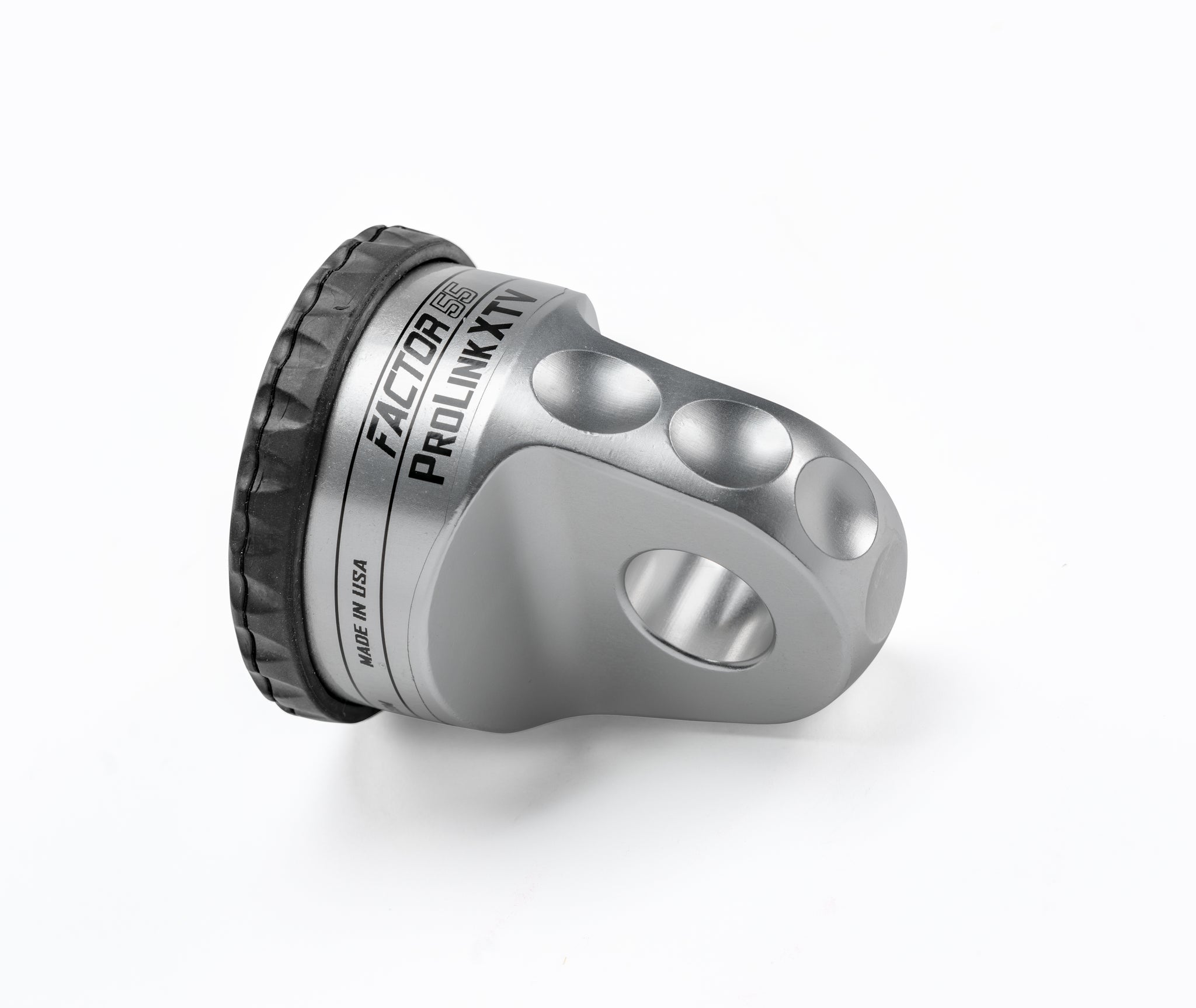

Shackle/D-ring mount for UTV and ATV winch lines. The ProLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery.Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The ProLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches. The cable eye is retained in the ProLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guard protects alloy fairleads and is securely attached to the ProLink XTV with 4 barbed tips.The ProLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard 1/2 - 5/8 inch shackles. Made in the USA, the ProLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The ProLink has a max load rating of 6000 pounds and an ultimate failure of 22,000 pounds.Features:Color: SilverPrecision machined from 6000 series aluminum and 6Al-4V titaniumWeight - 8.3 ouncesMax load rating: 6000 poundsUltimate failure: 22,000 poundsFits steel cables and synthetic winch ropes to 5/16 inch diametersEPDM Rubber Guard protects alloy fairleads and cushions line stowageSimple snap ring removal for shear pinFits common 1/2 and 5/8 shackles/D-RingsStops hook rattle and fairlead damage
Specifications:
Description_DEF |
Winch Shackle |
Description_EXT |
The ProLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring. |
Description_FAB |
The ProLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring.? |
Description_FAB |
The ProLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches.? |
Description_FAB |
The cable eye is retained in the ProLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring and is easily installed in minutes. |
Description_FAB |
The ProLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard ? ? 5/8 inch shackles and the EPDM Rubber Guard protects alloy fairleads and is securely attached to the ProLink XTV with 4 barbed tips. |
Description_FAB |
The ProLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The ProLink has a max load rating of 6000 pounds and an ultimate failure of 22,000 pounds. |
Description_FAB |
Made in the USA |
Description_FAB |
Limited 1 Year Warranty |
Description_SHO |
ProLink XTV Shackle Mount Assembly ATV/UTV Silver Factor 55 |
Description_INV |
PROLINK XTV WNC SHKL MT SLV |
Description_MKT |
Shackle/D-ring mount for UTV and ATV winch lines. The ProLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery.Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The ProLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches. The cable eye is retained in the ProLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guard protects alloy fairleads and is securely attached to the ProLink XTV with 4 barbed tips.The ProLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard 1/2 - 5/8 inch shackles. Made in the USA, the ProLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized/powder coated in 5 different colors. The ProLink has a max load rating of 6000 pounds and an ultimate failure of 22,000 pounds.Features:Color: SilverPrecision machined from 6000 series aluminum and 6Al-4V titaniumWeight - 8.3 ouncesMax load rating: 6000 poundsUltimate failure: 22,000 poundsFits steel cables and synthetic winch ropes to 5/16 inch diametersEPDM Rubber Guard protects alloy fairleads and cushions line stowageSimple snap ring removal for shear pinFits common 1/2 and 5/8 shackles/D-RingsStops hook rattle and fairlead damage |
Finish |
Anodized |
Color |
SILVER |
Material |
6000 Series Aluminum |
series |
ProLink XTV |
Length |
4.2500 |
Width |
4.2500 |
Height |
4.7500 |
Weight |
1.0000 |
