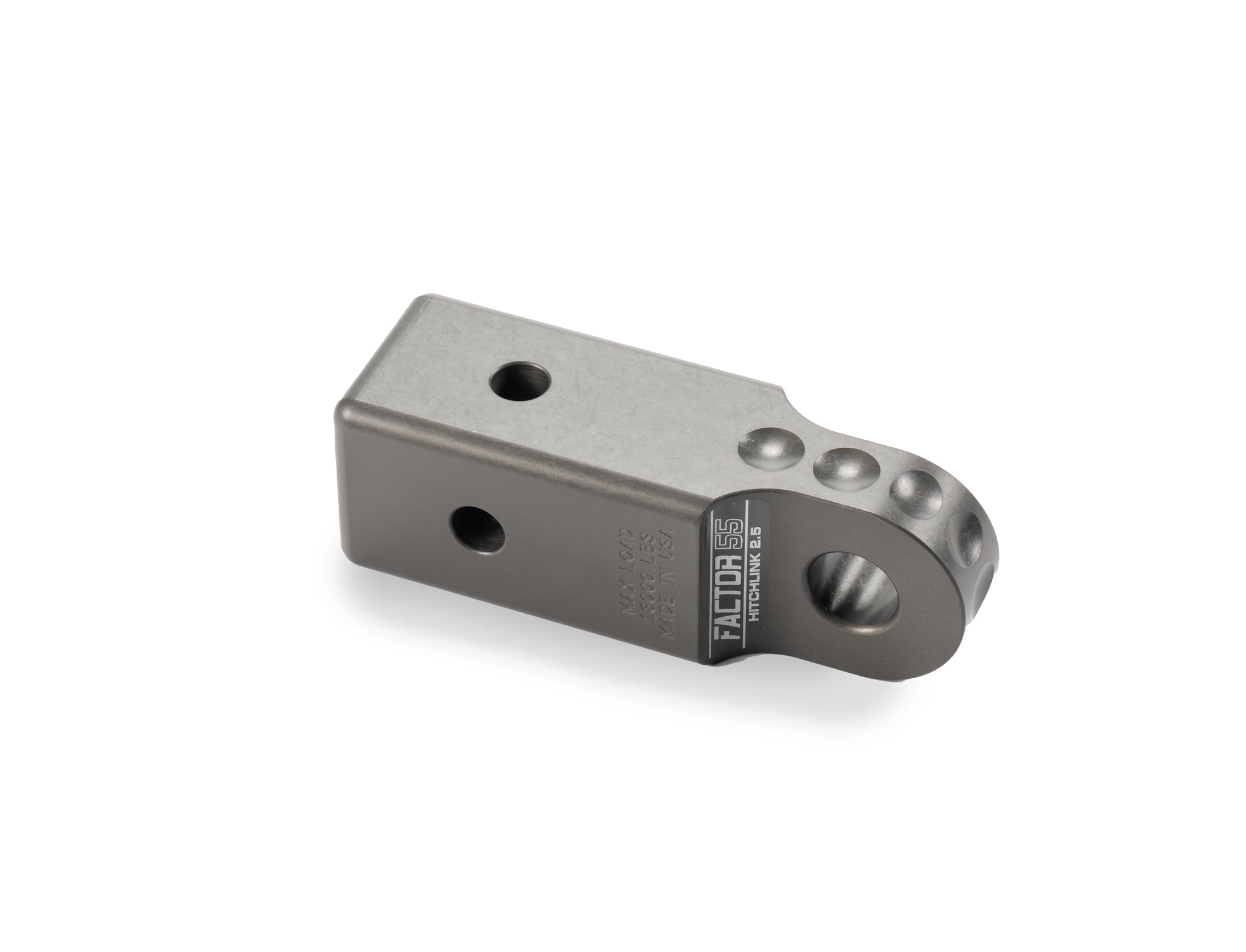

For Class V hitch receivers. Our truck owners asked and we listened. No need to Sleeve Class V hitch receivers to weaker Class III and Class IV. Finally a hitch receiver shackle mount designed for Class V receivers. Only available in Military Specification Anodizing (Mil-A-8625 F Type III) hard anodized gray finish.The HitchLink 2.5 will accept both 3/4 and 7/8 shackles. It can be oriented inside the hitch receiver allowing the shackle tab to be parallel to the bumper or vertical depending on its desired need. It also eliminates the need to use a receiver sleeve to downsize your receiver to a 2 inch adapter. Rated at 18,000 lbs. Ultimate Failure at 69,000 lbs. Use your receiver as a recovery tow point.Features:Color: Hard Anodized GrayLightweight precision CNC machined 6000 series aluminumWeighs only 3.6 lbs poundsRated at 18000 poundsUltimate failure at 69,000 poundsFits standard Class V 2.5 inch receiversFits common 7/8 inch pin) and 7/8 inch (1 inch pin) screw pin shackles/D-ringsAvailable in the Military Specification Anodizing (Mil-A-8625 F Type III) GrayCross drilled hitch pin attachment (vertical or horizontal shackle pin axis)Made in USAWarning:Never exceed factory receiver hitch pull ratingAlways use a quality steel alloy 5/8 inch hitch pinAlways pull in line with the hitch, do not bind or side load the shackle
Specifications:
| Description_DEF |
Trailer Hitch D-Ring Mount |
| Description_MKT |
For Class V hitch receivers. Our truck owners asked and we listened. No need to Sleeve Class V hitch receivers to weaker Class III and Class IV. Finally a hitch receiver shackle mount designed for Class V receivers. Only available in Military Specification Anodizing (Mil-A-8625 F Type III) hard anodized gray finish.The HitchLink 2.5 will accept both 3/4 and 7/8 shackles. It can be oriented inside the hitch receiver allowing the shackle tab to be parallel to the bumper or vertical depending on its desired need. It also eliminates the need to use a receiver sleeve to downsize your receiver to a 2 inch adapter. Rated at 18,000 lbs. Ultimate Failure at 69,000 lbs. Use your receiver as a recovery tow point.Features:Color: Hard Anodized GrayLightweight precision CNC machined 6000 series aluminumWeighs only 3.6 lbs poundsRated at 18000 poundsUltimate failure at 69,000 poundsFits standard Class V 2.5 inch receiversFits common 7/8 inch pin) and 7/8 inch (1 inch pin) screw pin shackles/D-ringsAvailable in the Military Specification Anodizing (Mil-A-8625 F Type III) GrayCross drilled hitch pin attachment (vertical or horizontal shackle pin axis)Made in USAWarning:Never exceed factory receiver hitch pull ratingAlways use a quality steel alloy 5/8 inch hitch pinAlways pull in line with the hitch, do not bind or side load the shackle |
| Description_INV |
HITCHLINK 2.5 GRY (2.5 RECEIVERS) |
| Description_EXT |
The Hitchlink 2.5 fits standard 2.5 inch receivers and fits common ? and 7/8 screw pin shackles/D-Rings. The machined radius on shackle mount hole is for soft shackle compatibility. |
| Description_FAB |
Finally a hitch receiver shackle mount designed for Class V receivers. Available in Military Specification Anodizing (Mil-A-8625 F Type III) hard anodized gray finish. |
| Description_FAB |
The HitchLink 2.5 will accept both ? and 7/8 shackles and features a machined radius on the shackle mount hole for soft shackle compatibility. It can be oriented inside the hitch receiver allowing the shackle tab to be parallel to the bumper or vertical depending on its desired need. |
| Description_FAB |
It also eliminates the need to use a receiver sleeve to downsize your receiver to a 2 adapter. Rated at 18,000 lbs. Ultimate Failure at 69,000 lbs. |
| Description_FAB |
Made in the USA |
| Description_FAB |
Limited 1 Year Warranty |
| Description_SHO |
HitchLink 2.5 Reciever Shackle Mount 2.5 Inch Receivers Anodized Gray Factor 55 |
| Color |
GRAY |
| Material |
6000 Series Aluminum |
| series |
HitchLink |
| Finish |
Anodized |
| Length |
3.2500 |
| Width |
3.2500 |
| Height |
8.7500 |
| Weight |
3.5000 |
