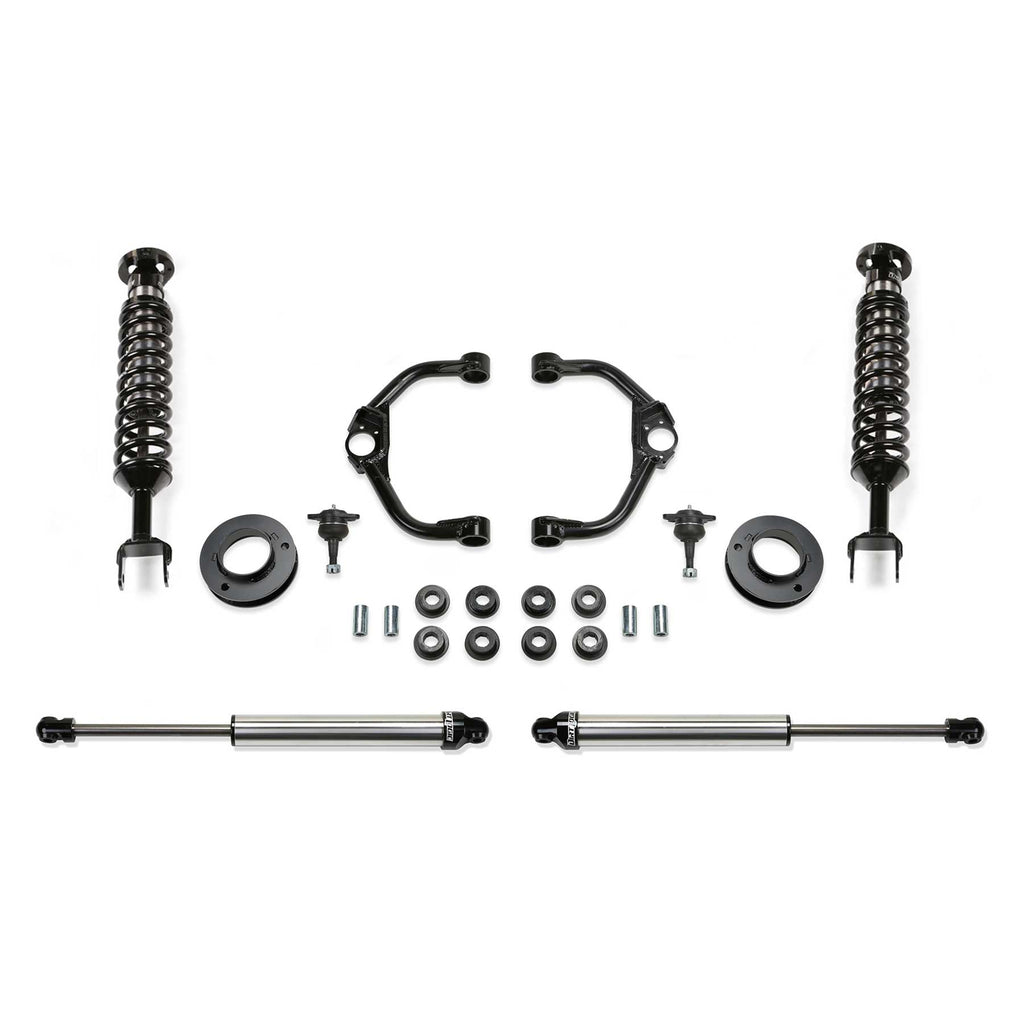

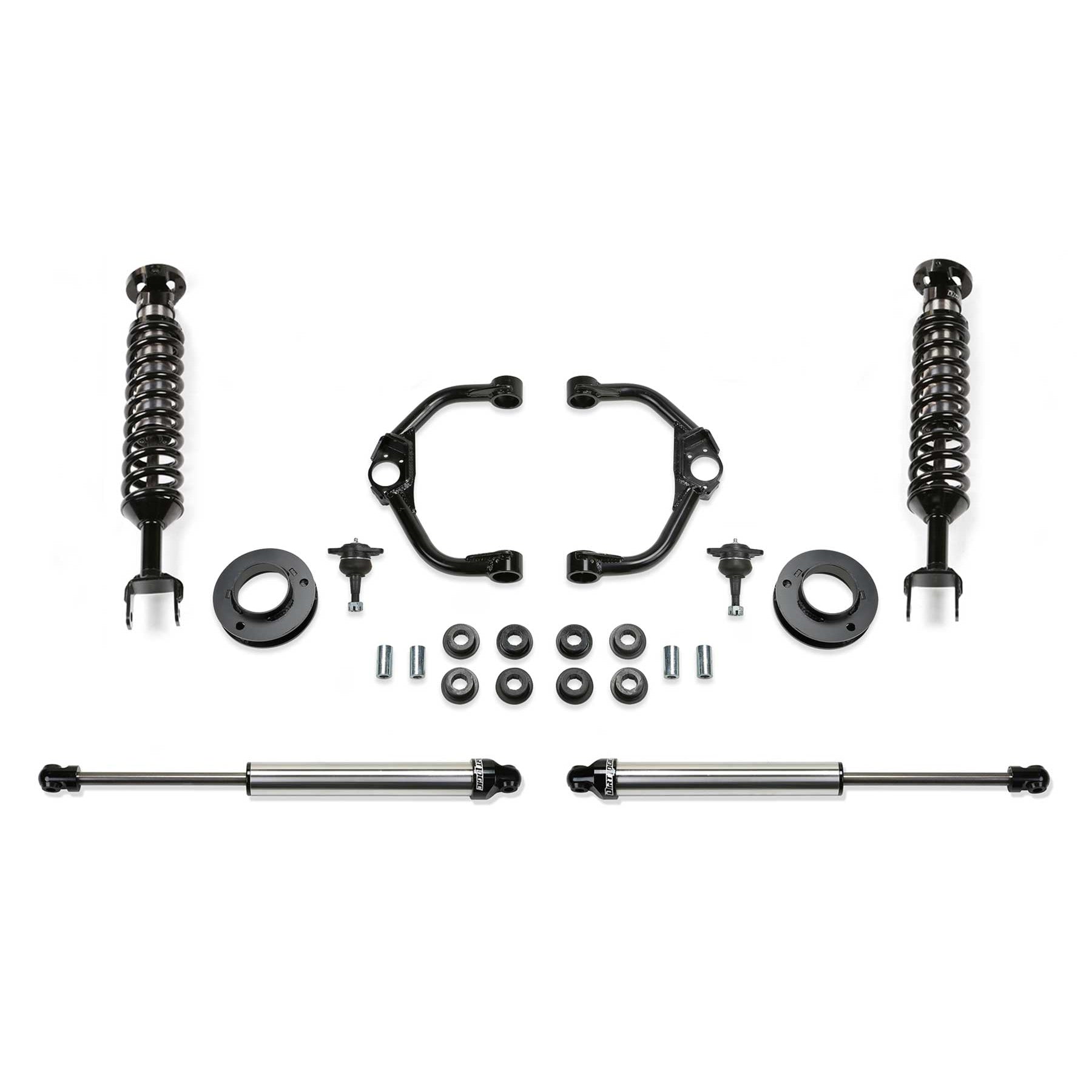

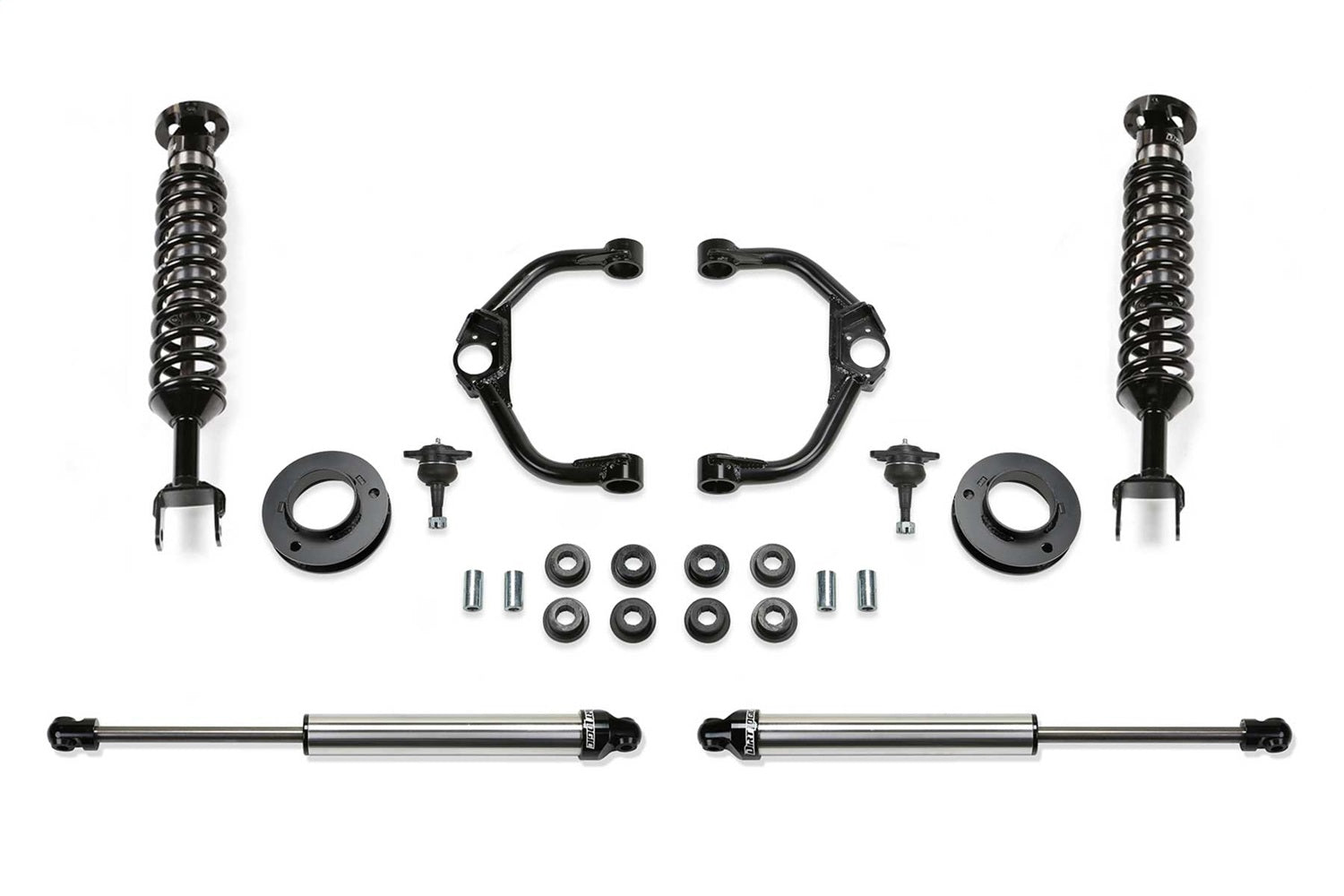

This 3in Ram lift kit has been designed to provide a superior ride quality with clearance to run 35in tires for both on and offroad use. The mild lift height is subtle yet gives the vehicle a commanding stance without over doing it. Fabtech engineers took considerable time to cycle and test the 3in lift with their heavy duty ball joint upper control arms. There is no bind throughout the suspension travel and steering operation. The steering will go full lock to lock without any loss of the turning radius. The factory Ram upper control arm is made of plastic with a light duty ball joint. Fabtech's Upper Control Arms are constructed of tubular steel with large robust ball joints that provide strength to the suspension. These Fabtech upper control arms are a substantial upgrade for aggressive offroad use. Dirt Logic 2.50 Coilover shocks replace the factory shocks for 3in of lift with outstanding damping capacity for offroad use. They are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance and durability. The rear suspension receives a coil spring spacer to lift the vehicle. This helps keep the vehicle's factory stance without effecting the ride quality. This Ram lift kit comes with Dirt Logic 2.25 rear shocks. They will provide a superior ride quality both on and offroad with excellent damping for offroad use. This high quality 3in Ram lift kit is easy to install and will provide years of service while adding strength and reliability to the vehicle.
Specifications:
| Description_ASC |
TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; 130. WILL NOT FIT FACTORY AIR SUSPENSION.; 171. WILL NOT FIT DIESEL MODELS; 20DOES NOT FIT 2019 RAM 1500 CLASSIC MODELS |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
3" BJ UCA SYS W/DL 2.5&2.25 19-21 RAM 1500 2WD/4WD |
| Description_EXT |
3" BJ UCA SYS W/DL 2.5&2.25 19-21 RAM 1500 2WD/4WD. |
| Description_MKT |
This 3in Ram lift kit has been designed to provide a superior ride quality with clearance to run 35in tires for both on and offroad use. The mild lift height is subtle yet gives the vehicle a commanding stance without over doing it. Fabtech engineers took considerable time to cycle and test the 3in lift with their heavy duty ball joint upper control arms. There is no bind throughout the suspension travel and steering operation. The steering will go full lock to lock without any loss of the turning radius. The factory Ram upper control arm is made of plastic with a light duty ball joint. Fabtech's Upper Control Arms are constructed of tubular steel with large robust ball joints that provide strength to the suspension. These Fabtech upper control arms are a substantial upgrade for aggressive offroad use. Dirt Logic 2.50 Coilover shocks replace the factory shocks for 3in of lift with outstanding damping capacity for offroad use. They are constructed with a stainless steel body and a NitroSteel piston rod for maximum corrosion resistance and durability. The rear suspension receives a coil spring spacer to lift the vehicle. This helps keep the vehicle's factory stance without effecting the ride quality. This Ram lift kit comes with Dirt Logic 2.25 rear shocks. They will provide a superior ride quality both on and offroad with excellent damping for offroad use. This high quality 3in Ram lift kit is easy to install and will provide years of service while adding strength and reliability to the vehicle. |
| Description_INV |
Fabtech-3" BJ UCA SYS W/DL 2 |
| Description_SHO |
3" BJ UCA SYS W/DL 2 |
| Title |
Fabtech 3" BJ UCA SYS W/DL 2.5&2.25 19-21 RAM 1500 2WD/4WD |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm and image |
| Length |
16.0000 |
| Width |
25.0000 |
| Height |
43.0000 |
| Weight |
93.0000 |
