Fabtech K3094DL 6" PERF SYS W/DLSS 2.5 C/O & RR DLSS 2019-21 RAM 1500 2WD

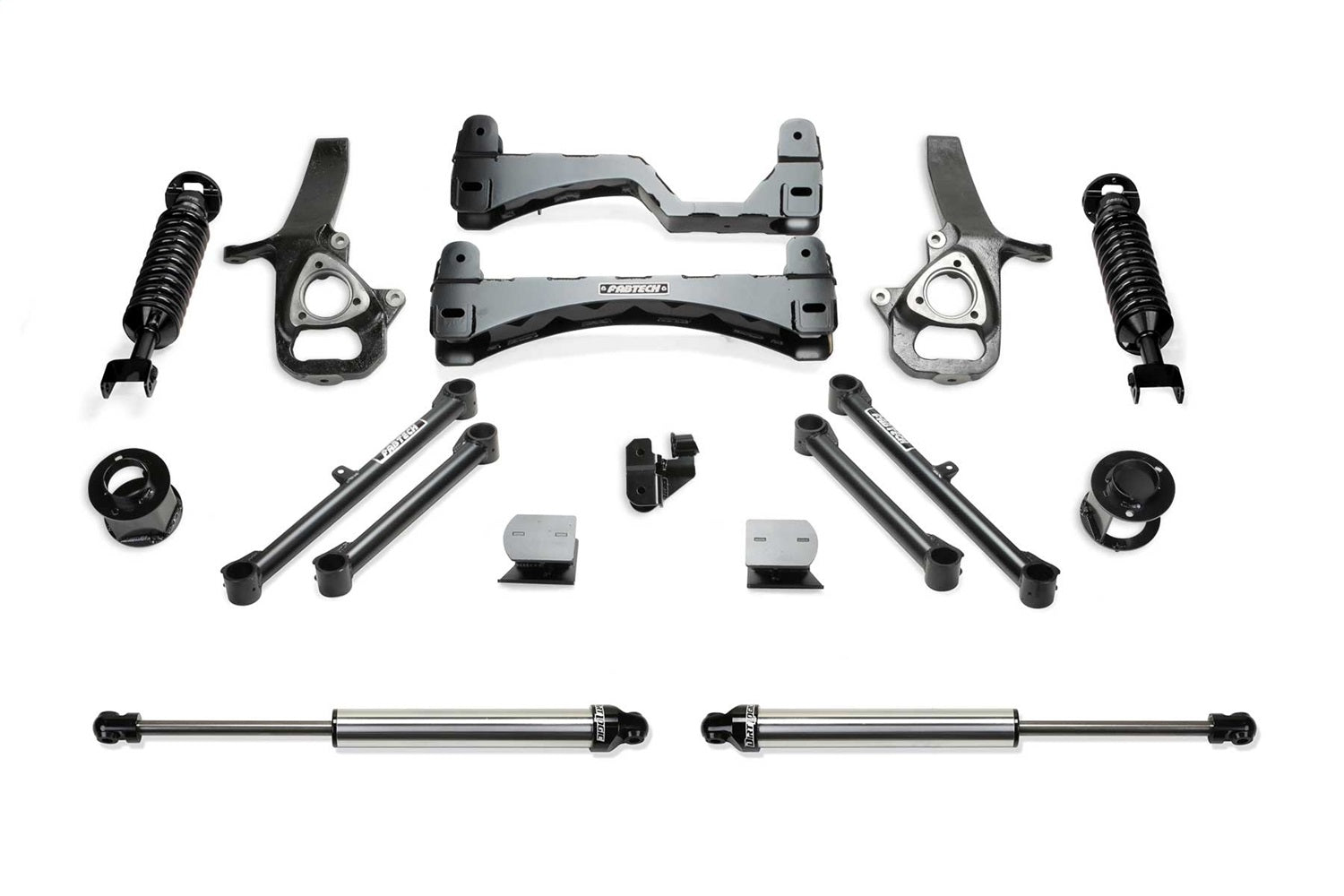

This system offers increased ride height utilizing the factory suspension components with heavy duty bracketry. High quality Dirt Logic shocks are included to enhance the damping capacity of the vehicle for offroad use while providing a superior on road ride quality. The system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for proper load capacity and a great highway ride. The Performance lift kit includes Fabtech's legendary stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25 shocks for outstanding damping capacity with a superior highway ride. CROSSMEMBERS: 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension. STEERING KNUCKLES: Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds. FRONT DIRT LOGIC 2.5 COILOVERS: Constructed of a stainless steel body and NitroSteel piston rod these 6in lift Coilovers are the finest quality on the market. Extensive ride work was performed to ensure a superior ride on and offroad. Outstanding damping for offroad. SWAY BAR BRACKETS: Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop. REAR COIL SPRING SPACERS: Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort. REAR TRACK

Specifications:
