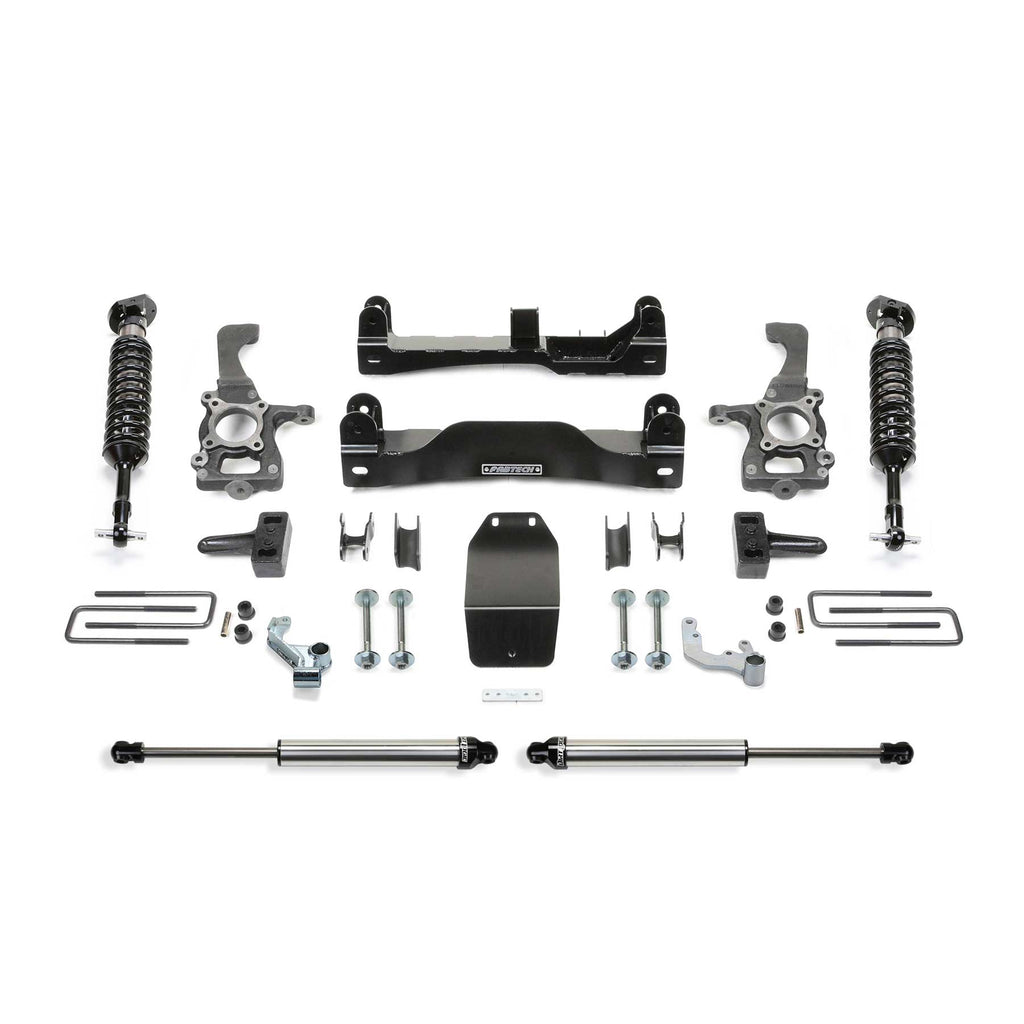

Fabtech's 4'' F150 system utilizes their proven heavy duty construction and design features found in their 6'' systems but with less lift and at a much lower price. This 4'' Systems allows use of 35'' tall tires and features high arched lower control arm crossmembers constructed of 1/4'' thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt. The Performance System features Dirt Logic 2.5 Stainless Steel Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride. The 4'' System allows use of 33'' or 35'' tires and is ESC (Electronic Stability Control) and Traction Control compliant. Estimated installation time - 3-4 hrs. 1 hole to drill for installation. No Welding Required. No Driveshaft Modification required.
Specifications:
| Description_ASC |
TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/60R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 12WILL NOT FIT RAPTOR MODELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35 IN. TIRES |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
4" PERF SYS W/ DLSS SHKS 2014 FORD F150 4WD |
| Description_EXT |
4" PERF SYS W/ DLSS SHKS 2014 FORD F150 4WD. |
| Description_INV |
Fabtech-4" PERF SYS W/ DLSS |
| Description_MKT |
Fabtech's 4'' F150 system utilizes their proven heavy duty construction and design features found in their 6'' systems but with less lift and at a much lower price. This 4'' Systems allows use of 35'' tall tires and features high arched lower control arm crossmembers constructed of 1/4'' thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt. The Performance System features Dirt Logic 2.5 Stainless Steel Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride. The 4'' System allows use of 33'' or 35'' tires and is ESC (Electronic Stability Control) and Traction Control compliant. Estimated installation time - 3-4 hrs. 1 hole to drill for installation. No Welding Required. No Driveshaft Modification required. |
| Description_SHO |
4" PERF SYS W/ DLSS |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm and image |
| Title |
Fabtech 4" PERF SYS W/ DLSS SHKS 2014 FORD F150 4WD |
| Length |
18.0000 |
| Width |
41.0000 |
| Height |
39.0000 |
| Weight |
279.0000 |
