Fabtech K2181DL 4" BUDGET SYS W/DLSS SHKS 2005-07 FORD F250/350 4WD

2 sold in last 8 days
Fabtech
ds_BKBN_K2181DL
Suspension Lift Kit
$2,837.02
customers are viewing this product
Fabtech K2181DL 4" BUDGET SYS W/DLSS SHKS 2005-07 FORD F250/350 4WD
Details

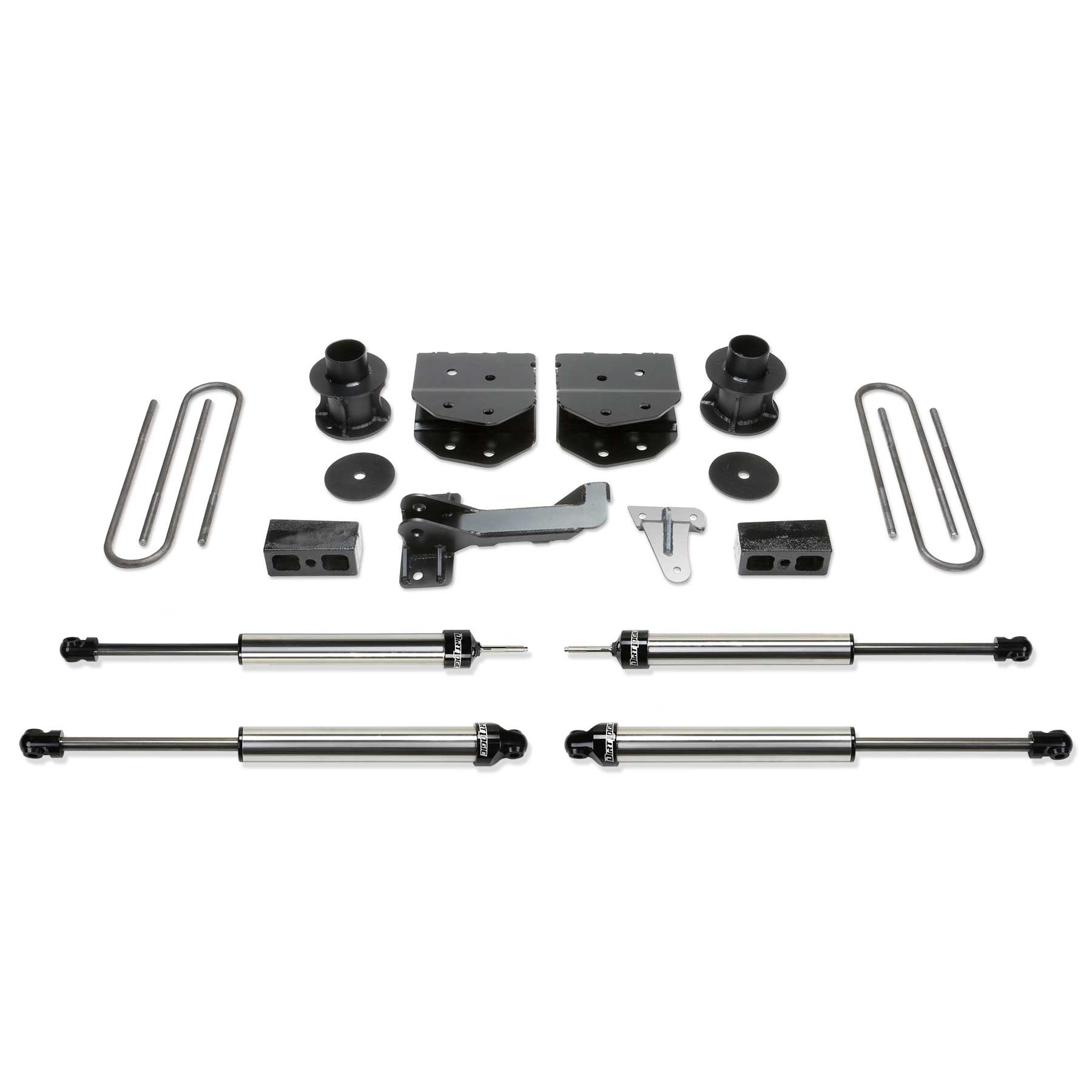

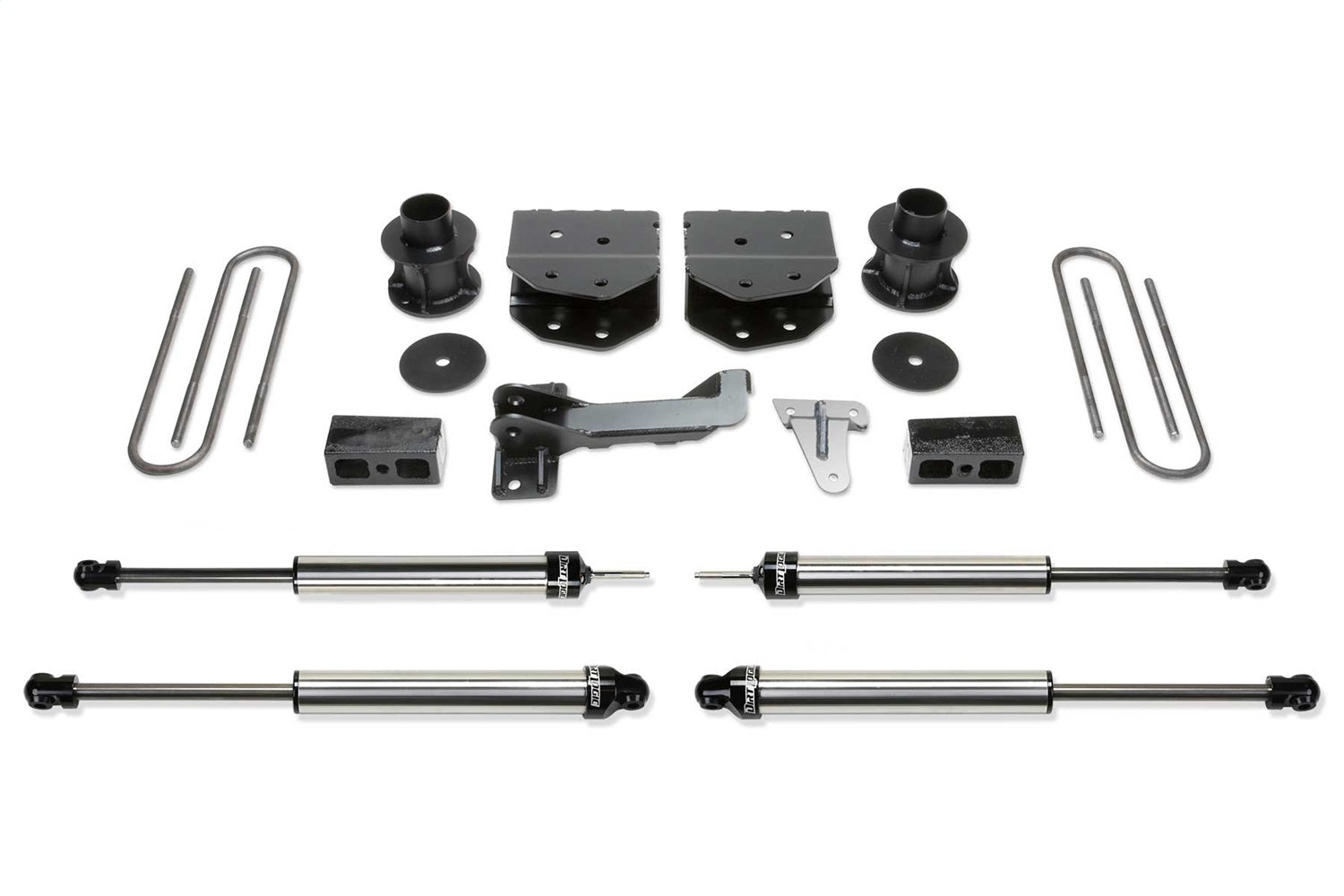

The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.

Specifications:

Description_ASC TIRE SIZE - 35/12.50R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING
Description_DEF Suspension Lift Kit
Description_DES 4" BUDGET SYS W/DLSS SHKS 2005-07 FORD F250/350 4WD
Description_INV Fabtech-4" BUDGET SYS W/DLSS
Description_EXT 4" BUDGET SYS W/DLSS SHKS 2005-07 FORD F250/350 4WD.
Description_SHO 4" BUDGET SYS W/DLSS
Description_MKT The 4'' Budget System utilizes the factory front coil springs with a steel upper spacer providing 4'' of lift. Radius Arm drop brackets retain the factory arms with correct caster setting for the increase ride height. System includes a Trac Bar relocation bracket that has been designed to center the axle under the vehicle and still works properly with the factory Pitman Arm. This eliminates the need to replace the Pitman Arm resulting in a lower cost and faster installation time. Rear lift is accomplished with lift blocks and extended length u-bolts. System allows installation of 35'' tall tires with required inner fenderwell trimming for adequate tire clearance for street driving and light offroad use. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks.
Title Fabtech 4" BUDGET SYS W/DLSS SHKS 2005-07 FORD F250/350 4WD
California Proposition 65 WARNING: Cancer & Reproductive Harm and image
Length 16.0000
Width 30.0000
Height 39.0000
Weight 149.0000
