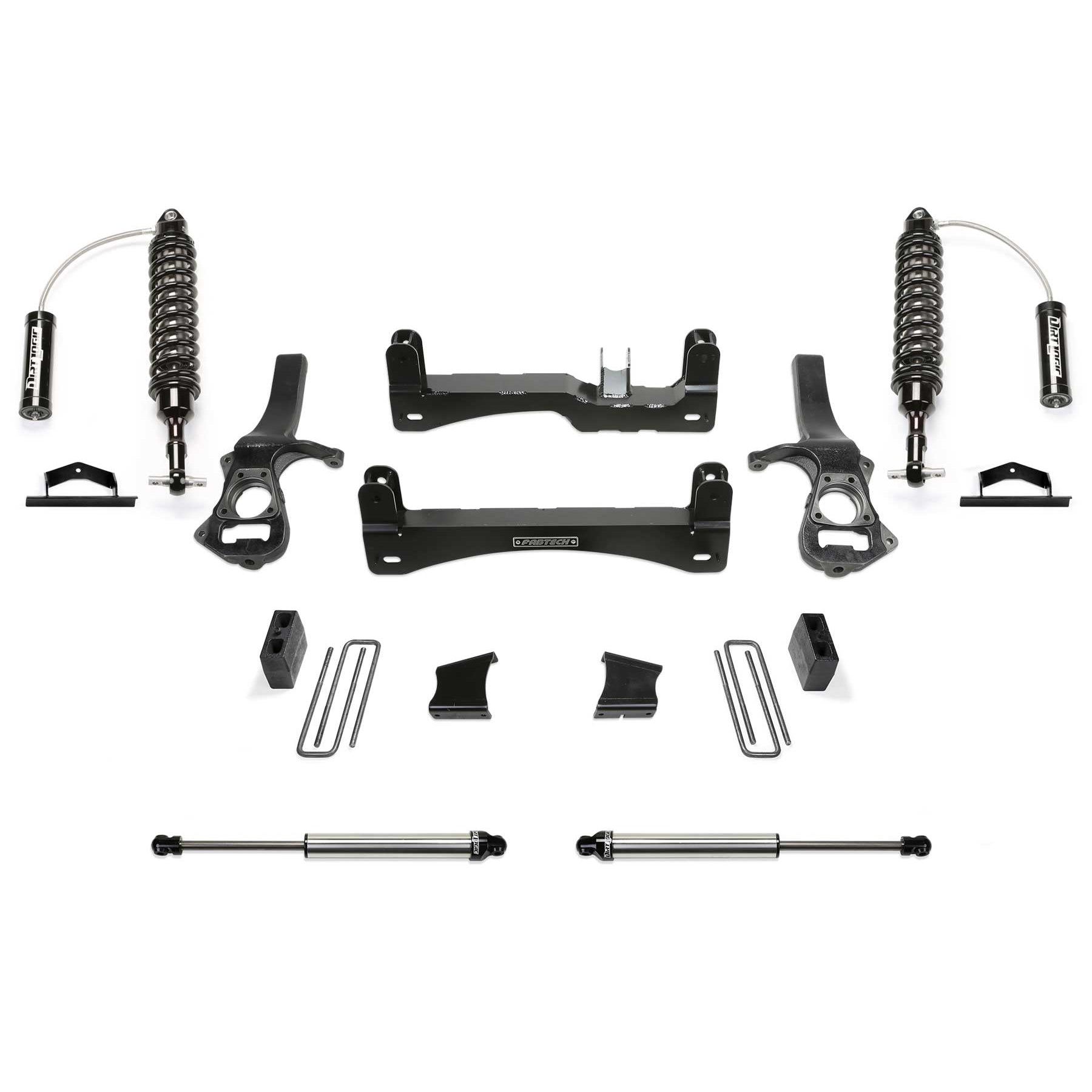

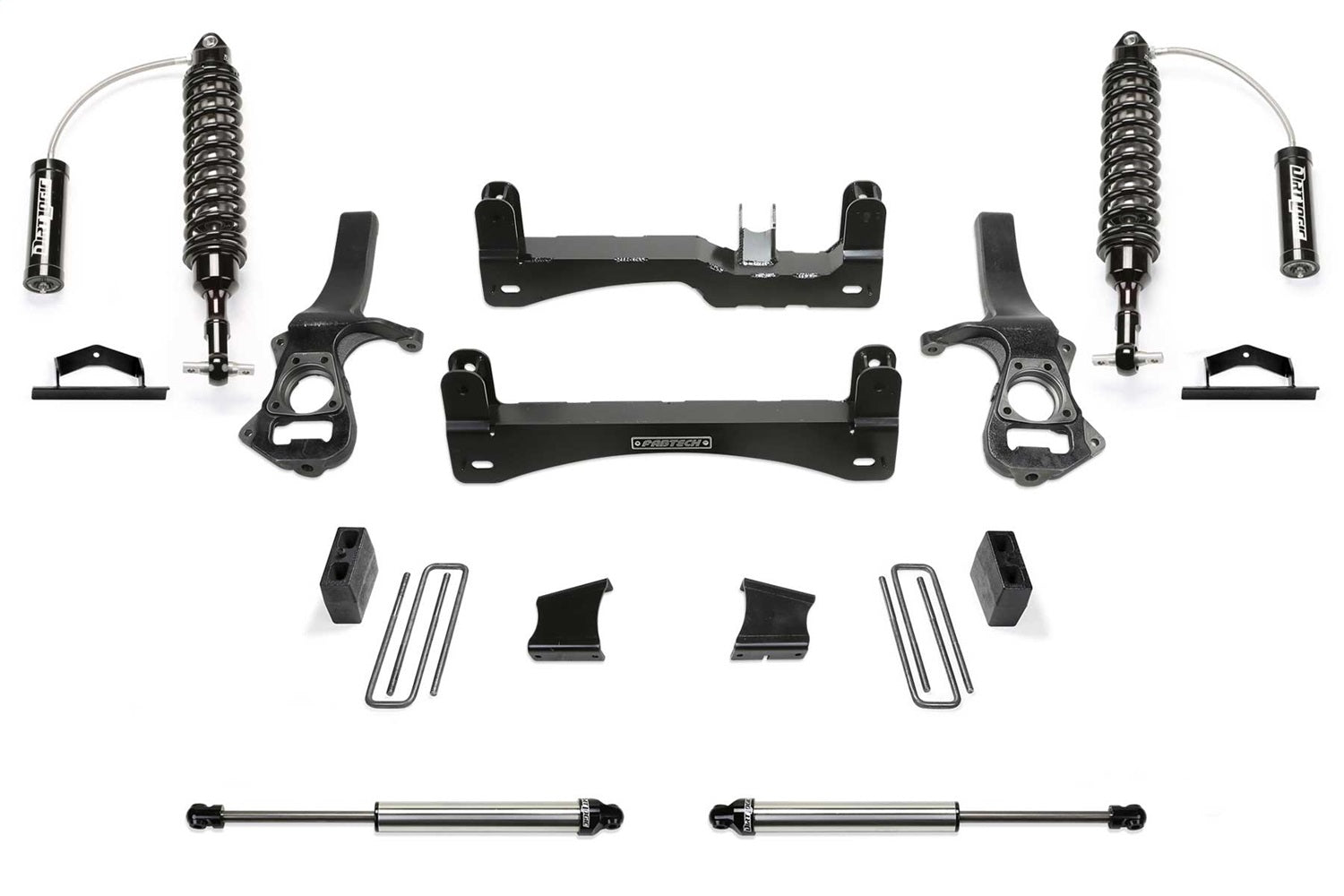

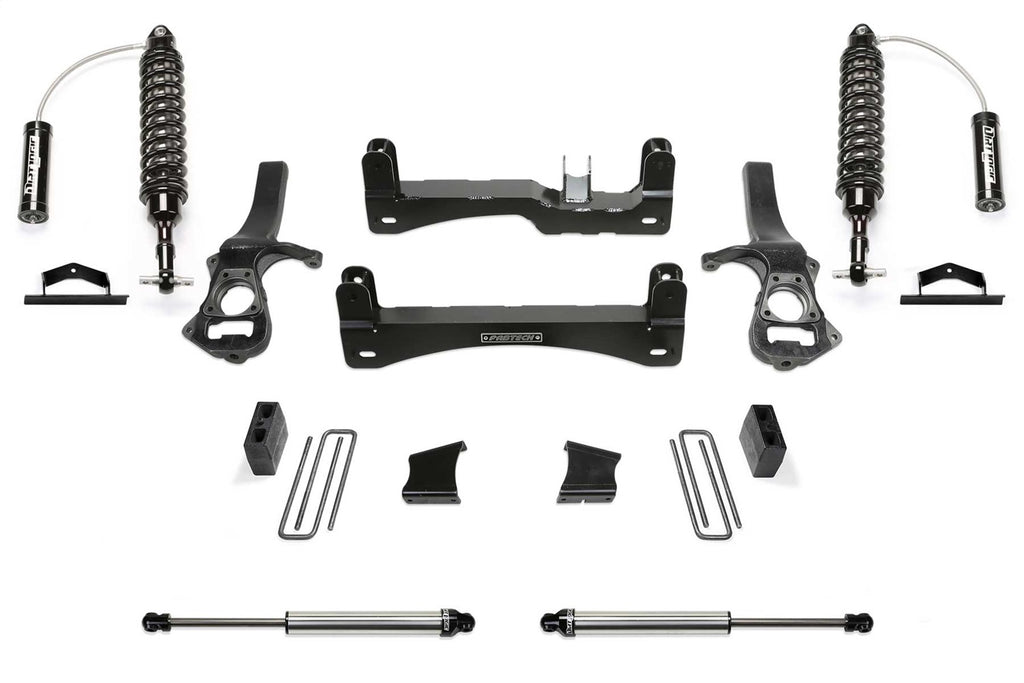

The Chevy Trail Boss and GMC AT4 both have a factory 2" lift compared to other GM 1500 trucks of the same year model. Fabtech s suspension system for these two trucks provide a 4" lift height on top of the factory 2" lift for clearance of 35" tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4" system, the truck will sit at the same height as a 1500 with a 6" suspension and 35" tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished by removing the factory 2" block and replacing it with a 5" block and u-bolt system. Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.
Specifications:
| Description_ASC |
TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/65R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 197. WILL NOT FIT MODELS EQUIPPED WITH ADAPTIVE RIDE CONTROL; 246. FITS 4 CYL MODELS ONLY |
| Description_DEF |
Suspension Lift Kit |
| Description_DES |
4" PERF SYS W/ DL 2.5 RESI & 2.25 2022 GM C/K1500 P/U 4CYL W/ TRAIL BOSS/AT4 PKG |
| Description_INV |
Fabtech-4" PERF SYS W/ DL 2. |
| Description_EXT |
4" PERF SYS W/ DL 2.5 RESI & 2.25 2022 GM C/K1500 P/U 4CYL W/ TRAIL BOSS/AT4 PKG. |
| Description_MKT |
The Chevy Trail Boss and GMC AT4 both have a factory 2" lift compared to other GM 1500 trucks of the same year model. Fabtech?s suspension system for these two trucks provide a 4" lift height on top of the factory 2" lift for clearance of 35" tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4" system, the truck will sit at the same height as a 1500 with a 6" suspension and 35" tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech?s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished by removing the factory 2" block and replacing it with a 5" block and u-bolt system. Fabtech has addressed all aspects of the Trail Boss suspension for full suspension travel with lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty. |
| Description_SHO |
4" PERF SYS W/ DL 2. |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm and image |
| Title |
Fabtech 4" PERF SYS W/ DL 2.5 RESI & 2.25 2022 GM C/K1500 P/U 4CYL W/ TRAIL BOSS/AT4 PKG |
| Length |
15.0000 |
| Width |
44.0000 |
| Height |
46.0000 |
| Weight |
309.0000 |
