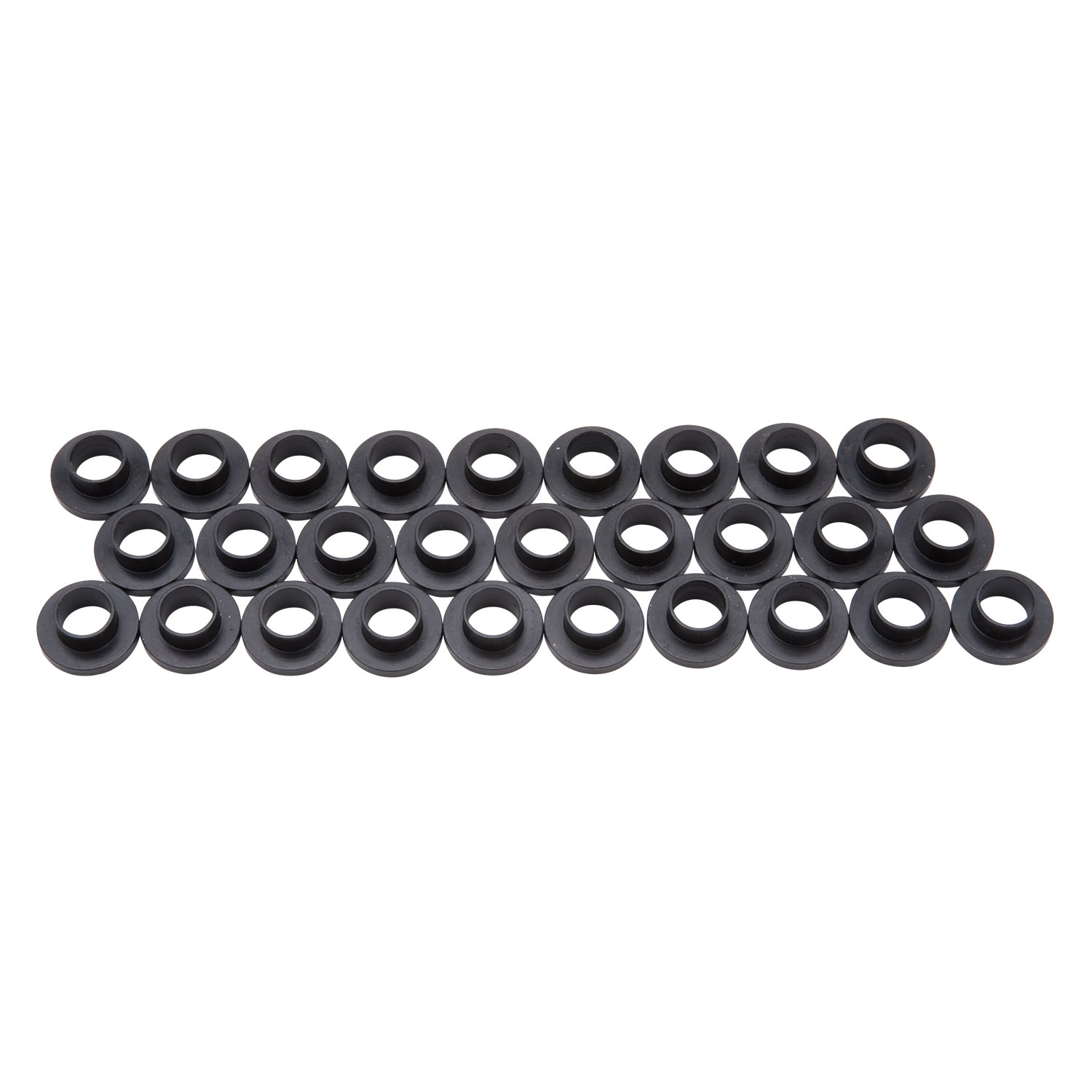

The Edelbrock #9693 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining
Specifications:
| Description_ABR |
AMCHeadBolt |
| Description_ASM |
AMC:-:290 (4.8L)-401 (6.6L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_EXT |
Edelbrock #9693 7/16" to 1/2" Bushing Washer Kit allows the use of Stock or Edelbrock 7/16" Head Bolts with 1/2" Bolt Holes on pre-1970 AMC engines. Use with Edelbrock #60129/60139 Performer AMC and #60109/60119 RPM AMC Cylinder Heads. |
| Description_LAB |
AMC Head Bolt Bushings |
| Description_INV |
AMC Head Bolt Bushings |
| Description_MKT |
The Edelbrock #9693 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining |
| Description_TRA |
The Edelbrock #9693 is made specifically for AMC engines |
| Description_TRA |
Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA |
Use alcohol or lacquer thinner on a lint-free rag to clean. |
| Description_TRA |
#60109 and #60119 heads will have to apply a thin bead of silicone around the oil drain back provisions. This will prevent any leaks that may occur. CAUTION: The silicon bead on OEM type head gaskets will overlap these provisions. The addition of the silicone bead will help provide a better seal. |
| Description_TRA |
Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA |
Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| Description_TRA |
or 30, 60, 90, 100-110). |
| Maximum Inside Diameter |
0.4375 |
| Minimum Outside Diameter |
0.500 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Maximum Outside Diameter |
0.8750 |
| Finish |
Black Oxide |
| Material |
Chromoly |
| Thickness |
0.1250 |
| Quantity |
Set of 28 |
| Length |
2.0000 |
| Width |
3.0000 |
| Height |
6.0000 |
| Weight |
1.0000 |
