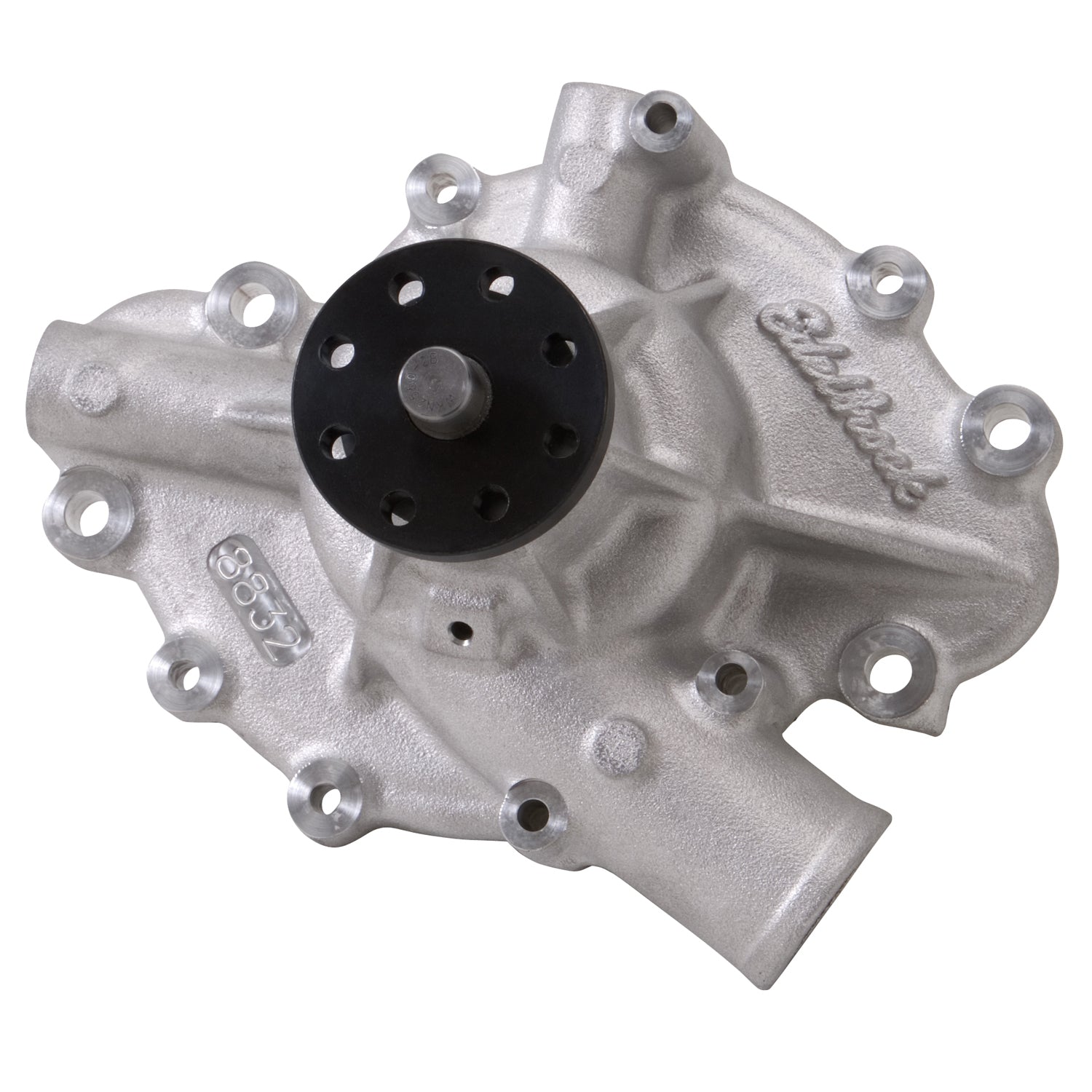

Edelbrock #8832 Water Pump AMC long style 1973-later ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications:
| Description_ABR |
Water Pump |
| Description_ASM |
AMC:-:304 (5.0L)/360 (5.9L)/401 (6.6L) |
| Description_DEF |
Engine Water Pump |
| Description_EXT |
Edelbrock #8832 Water Pump AMC Long Style 1973-Later Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_MKT |
Edelbrock #8832 Water Pump AMC long style 1973-later ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_INV |
Water Pump AMC Long Style 1973-Later |
| Description_TRA |
The Edelbrock aluminum water pump is a heavy duty water pump for both street and racing applications |
| Description_TRA |
The pump is externally the same as original equipment pumps to provide compatibility with all accessories and pulleys |
| Description_TRA |
It offers weight savings along with increased durability and cooling potential |
| Description_TRA |
- #8831 is a standard rotation water pump for 1968-72 AMC 290, 304, 343, 360, 390 and 401 V8 |
| Description_TRA |
engines and 1971-72 Jeep 304 and 360 V8 engines with 4.438" hub height |
| Description_TRA |
Early AMC engines (1967-68) used a 5.68" hub height |
| Description_TRA |
We do not have an application for this and as such customers will need to convert to later brackets if they wish to use this pump |
| Description_TRA |
- #8832 is a standard rotation water pump for 1973 and later AMC 304, 360, and 401 V8 engines |
| Description_TRA |
as well as 1973 and later Jeep 304, 360, and 401 V8 engines with 4.813" hub height. |
| Description_TRA |
Installation is the same as for original equipment water pumps. Consult service manual for specific procedures, if necessary. |
| Description_LAB |
Water Pump AMC Long Style 1973-Later |
| Casting Number |
8832 |
| Pulley Included |
No |
| Water Pump Drive Type |
V-Belt |
| Housing Material |
Aluminum |
| Related Cooling Fan Components |
No |
| Outlet Quantity |
1 |
| Installation Warnings |
Yes |
| Hub Hole Quantity |
6 |
| Impeller Vane Quantity |
6 |
| Fan Clutch Included |
No |
| Hub Height |
4.813 |
| Mounting Hole Quantity |
12 |
| Impeller Rotation |
Standard |
| Includes Back Housing |
No |
| Mounting Hardware Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thermostat And Housing Included |
No |
| Impeller Material |
Powdered Metal |
| Length |
9.0000 |
| Width |
9.0000 |
| Height |
14.0000 |
| Weight |
9.0000 |
