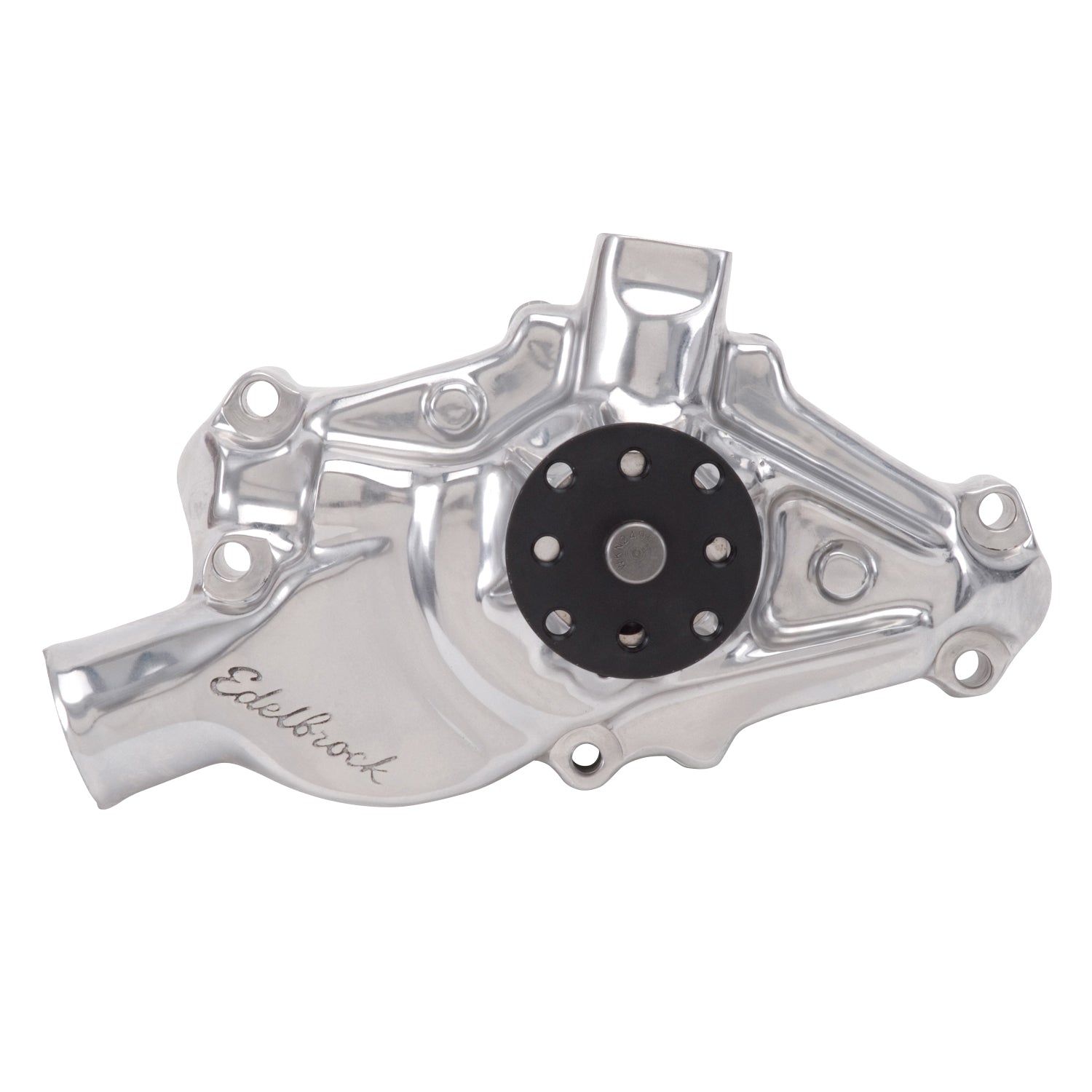

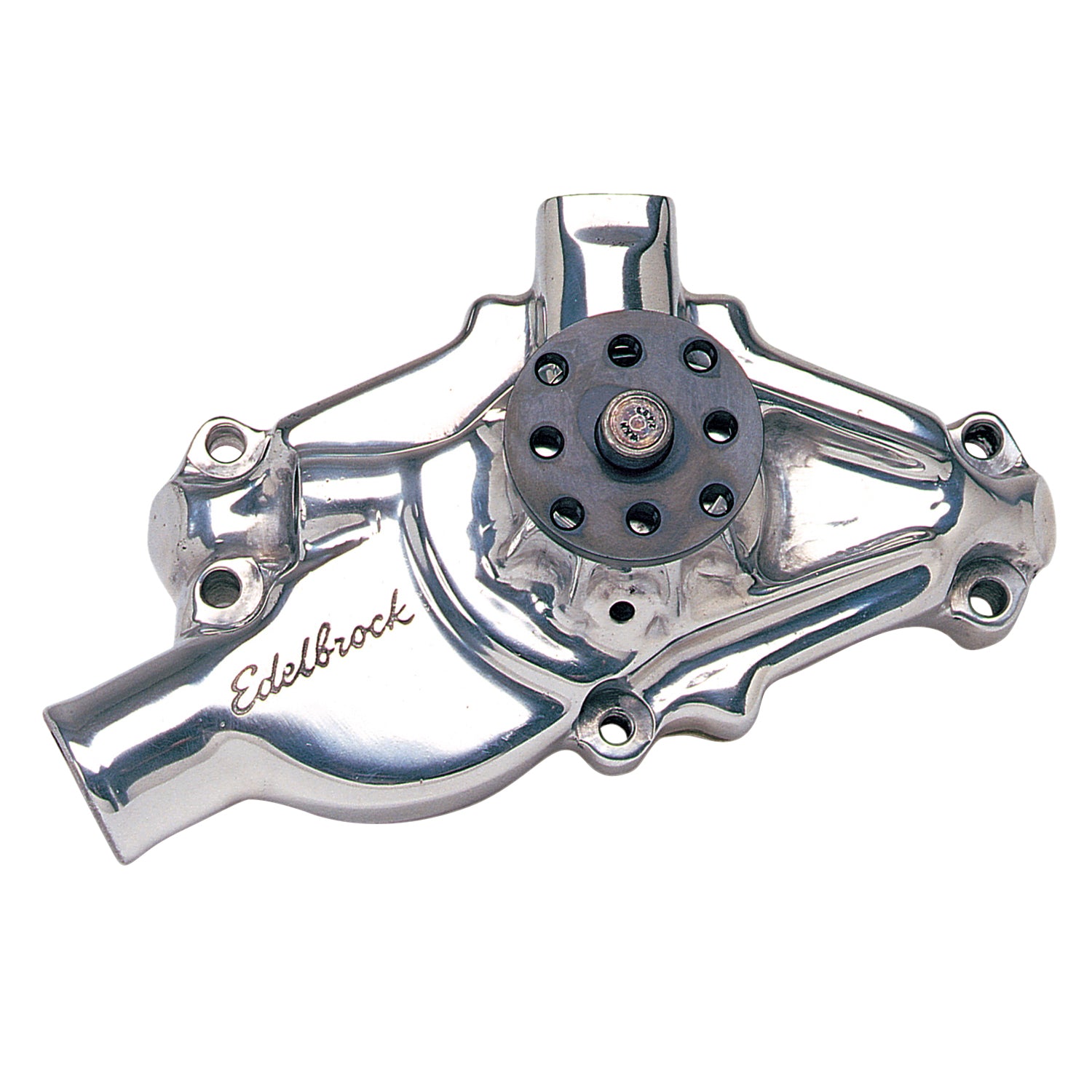

Edelbrock #8820 Water Pump short style 1955-68 SBC engine polished ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" water pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications:
| Description_ABR |
Water Pump |
| Description_ASM |
Chevrolet:Corvette:350 (5.7L) |
| Description_ASM |
Chevrolet:Small-Block:262 (4.3L)-400 (6.6L) |
| Description_ASM |
Chevrolet:Small-Block Light Duty Trucks:262 (4.3L)-400 (6.6L) |
| Description_DEF |
Engine Water Pump |
| Description_EXT |
Edelbrock #8820 Water Pump Short Style 1955-68 SBC Engine Polished Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_MKT |
Edelbrock #8820 Water Pump short style 1955-68 SBC engine polished ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" water pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_LAB |
Water Pump for Small-Block Chevy in Polished Finish (Short) |
| Description_INV |
Water Pump Short Style 1955-68 SBC P |
| Description_TRA |
1969-'76 vehicles (original pump casting #3853692) require the included spacer to be placed between the pump and the alternator bracket |
| Description_TRA |
Some applications (original pump casting #364790) require power steering bracket spacer (included) |
| Description_TRA |
Some vehicles (original pump casting #6263701) require a through hole instead of the threaded hole for the power steering. If this is the case, drill out the threads with a 3/8" drill bit |
| Description_TRA |
Check closely for any interference with drive belts |
| Description_TRA |
some filing for clearance may be necessary with some applications |
| Description_TRA |
Installation is the same as for original equipment water pumps. Consult service manual for specific procedures, if necessary |
| Description_TRA |
CAUTION: Be sure that fan bolts don't protrude through the hub so far that they hit the water pump housing |
| Description_TRA |
NOTE: Removal of backing plate is not recommended, as there are no user serviceable parts in the water pump. If backing plate is removed, use no sealer on O-ring equipped models, and use conventional gasket sealer (not RTV silicone) on gasketed models. |
| Includes Back Housing |
Yes |
| Related Cooling Fan Components |
No |
| Hub Height |
5.625 |
| Casting Number |
8820 |
| Water Pump Drive Type |
V-Belt |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Pulley Included |
No |
| Impeller Rotation |
Standard |
| Housing Material |
Aluminum |
| Fan Clutch Included |
No |
| Impeller Vane Quantity |
6 |
| Thermostat And Housing Included |
No |
| Mounting Hole Quantity |
4 |
| Outlet Quantity |
1 |
| Installation Warnings |
Yes |
| Impeller Material |
Powdered Metal |
| Mounting Hardware Included |
No |
| Hub Hole Quantity |
6 |
| Length |
9.0000 |
| Width |
9.0000 |
| Height |
14.0000 |
| Weight |
9.0000 |
