Edelbrock #88143 Water Pump big block Chrysler 361-440 1958-79 black ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications:
| Description_ABR |
Water Pump |
| Description_ASM |
Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_ASM |
Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_ASM |
Chrysler:Gen II HEMI:426 (7.0L) |
| Description_DEF |
Engine Water Pump |
| Description_EXT |
Edelbrock #88143 Water Pump Big Block Chrysler 361-440 1958-79 Black |
| Description_EXT |
Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_MKT |
Edelbrock #88143 Water Pump big block Chrysler 361-440 1958-79 black ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_LAB |
Water Pump #88143 For 1958-79 BB Chrysler 361-440, Standard Rotation, Black |
| Description_INV |
Water Pump B/B Chrysler 361-440 B |
| Description_TRA |
Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing. The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft. |
| Description_TRA |
Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit. So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty. |
| Description_TRA |
The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump. |
| Includes Back Housing |
Yes |
| Related Cooling Fan Components |
No |
| Mounting Hardware Included |
No |
| Hub Height |
3.070 |

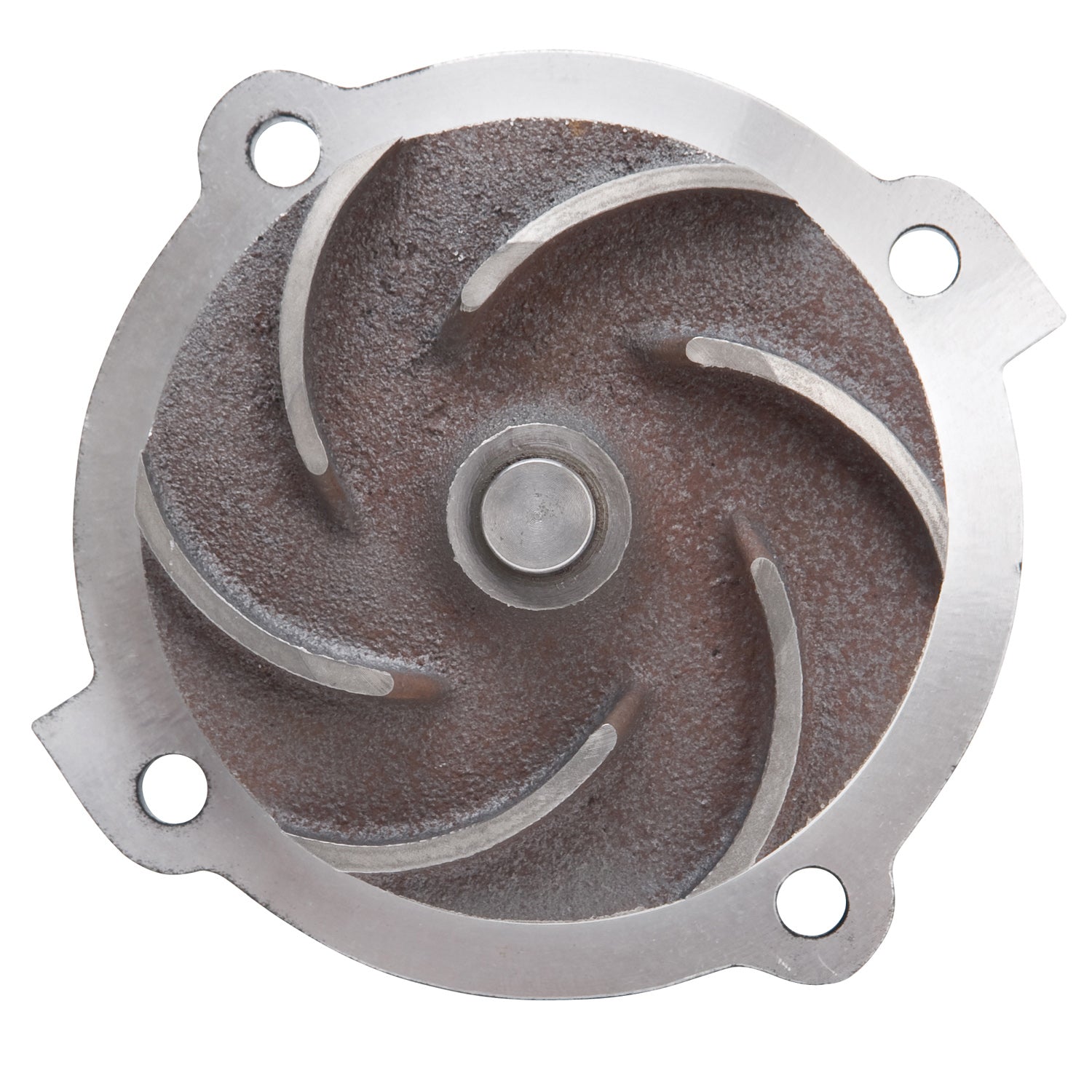

| Impeller Material |
Powdered Metal |
| Housing Material |
Aluminum |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |

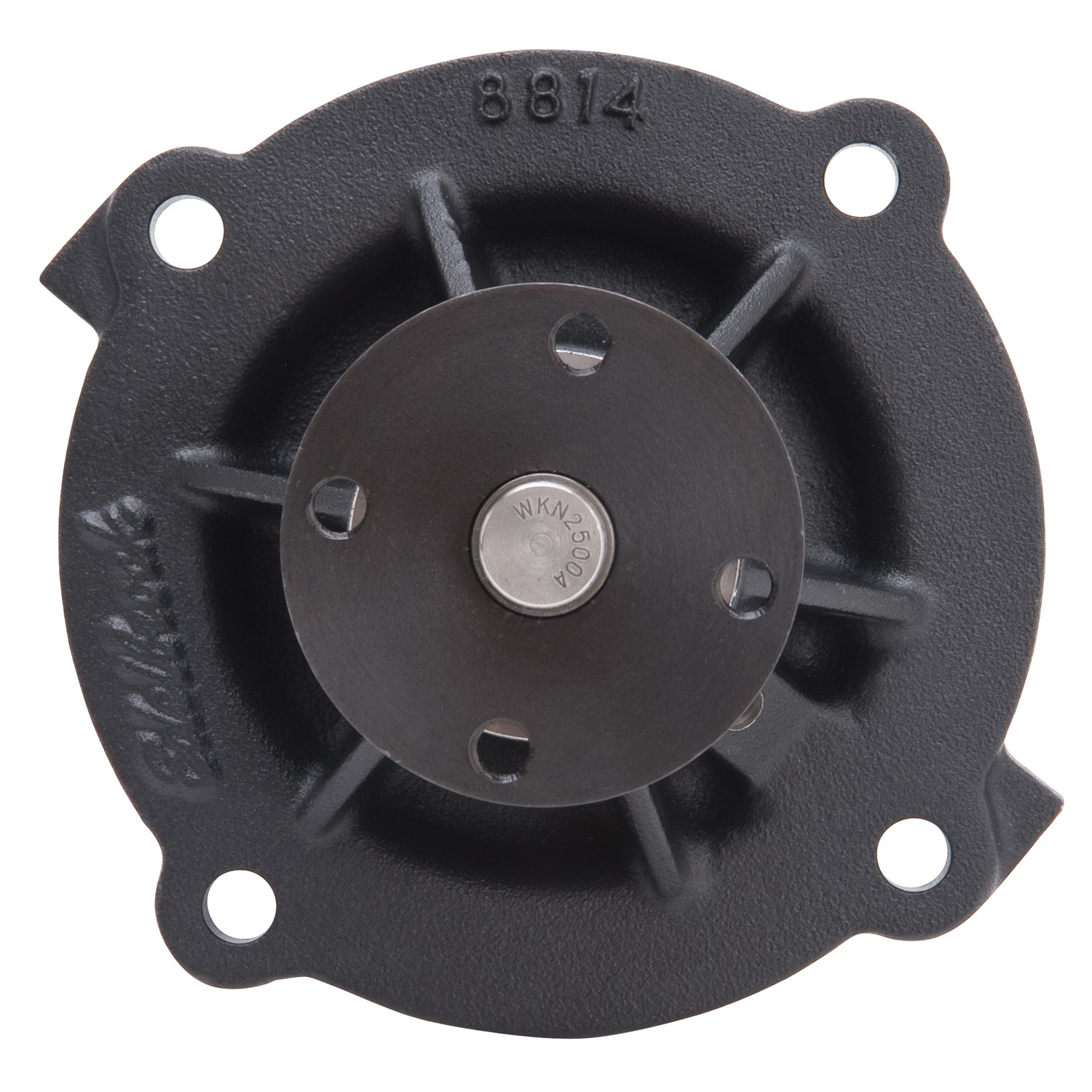

| Casting Number |
8814 |
| Pulley Included |
No |
| Impeller Rotation |
Standard |
| Fan Clutch Included |
No |
| Impeller Vane Quantity |
6 |
| Water Pump Drive Type |
V-Belt |
| Mounting Hole Quantity |
4 |
| Thermostat And Housing Included |
No |
| Outlet Quantity |
1 |
| Installation Warnings |
Yes |
| Hub Hole Quantity |
6 |
| Length |
9.0000 |
| Width |
9.0000 |
| Height |
14.0000 |
| Weight |
5.0000 |
