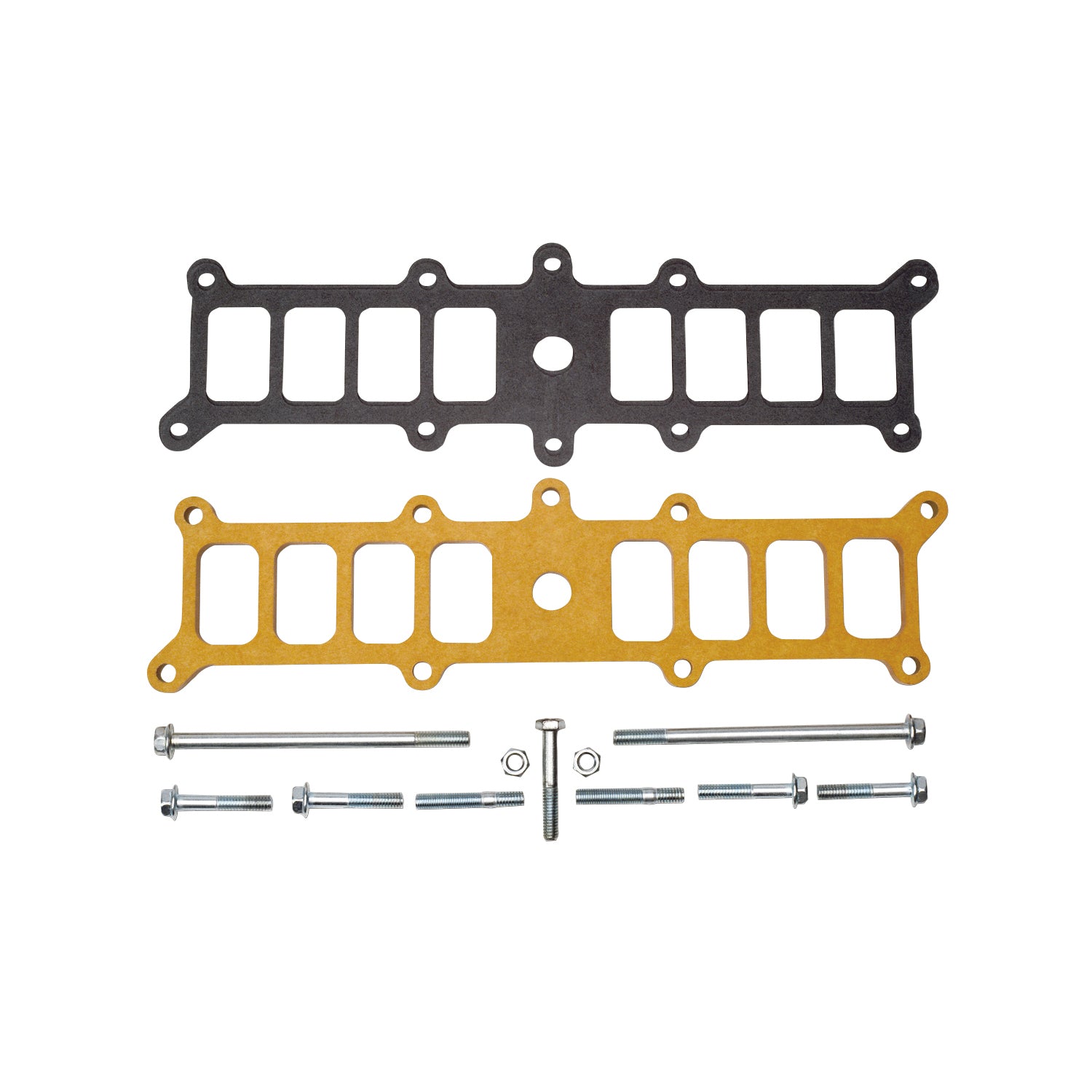

Edelbrock part #8727 spacer kit includes a 7/16" thick spacer and two .045" thick gaskets for a total thickness of 1/2". The kit also has new base to upper fasteners to accommodate the spacer. There are several benefits to the kit. First it raises the upper manifold 1/2" for increase valve cover to upper plenum clearance. This is needed to run a taller cover such as when roller rockers are used. It also provides heat insulation between the lower and upper manifolds. As a third benefit the 1/2" extra runner length helps to produce more torque. Fits all Performer 5.0 PN 3821 and PN7126 based manifolds.
Specifications:
| Description_ABR |
3821MAN SPCR |
| Description_ASM |
Ford:Mustang V8:302 (5.0L) |
| Description_DEF |
Engine Intake Manifold Spacer |
| Description_EXT |
Edelbrock Wood Fiber Laminate 1/2" Base to Upper Spacer Plate kit for Performer and Performer RPM 5.0 Manifolds PN's 3821 and PN 7126. Includes spacer plate, gaskets, and bolts. Used to increase valve cover to upper plenum clearance. |
| Description_INV |
1/2" Base to Upper Spacer for 3821/7126 |
| Description_MKT |
Edelbrock part #8727 spacer kit includes a 7/16" thick spacer and two .045" thick gaskets for a total thickness of 1/2". The kit also has new base to upper fasteners to accommodate the spacer. There are several benefits to the kit. First it raises the upper manifold 1/2" for increase valve cover to upper plenum clearance. This is needed to run a taller cover such as when roller rockers are used. It also provides heat insulation between the lower and upper manifolds. As a third benefit the 1/2" extra runner length helps to produce more torque. Fits all Performer 5.0 PN 3821 and PN7126 based manifolds. |
| Description_LAB |
Engine Intake Manifold Spacer #8727 For Edelbrock Manifold Part #3821, 7126 |
| Description_TRA |
We recommend the use of Edelbrock Gasgacinch (Part #9300) on the intake manifold mounting surfaces of the cylinder head and on the bottom side of the intake manifold gaskets (side without silicon beads). The Gasgacinch will secure the gaskets in place, ensuring a proper seal. |
| Description_TRA |
Do not overtighten the manifold to base fasteners. Use a short box or open end wrench only. |
| Description_TRA |
Do not disconnect fuel lines unless absolutely necessary. Special tools and procedures are required to re-install fuel lines. |
| Description_TRA |
You must check your hood clearance before installation. Due to the 1/2" additional height of the spacer, this spacer will not fit under the stock hood on some vehicles. |
| Recommended Use |
For Edelbrock Part # 3821, 7126 |
| Mounting Hardware Included |
Yes |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Quantity |
Kit |
| Thickness |
.500 |
| Material |
Wood Fiber Laminate |
| Length |
1.0000 |
| Width |
9.0000 |
| Height |
12.0000 |
| Weight |
1.0000 |
