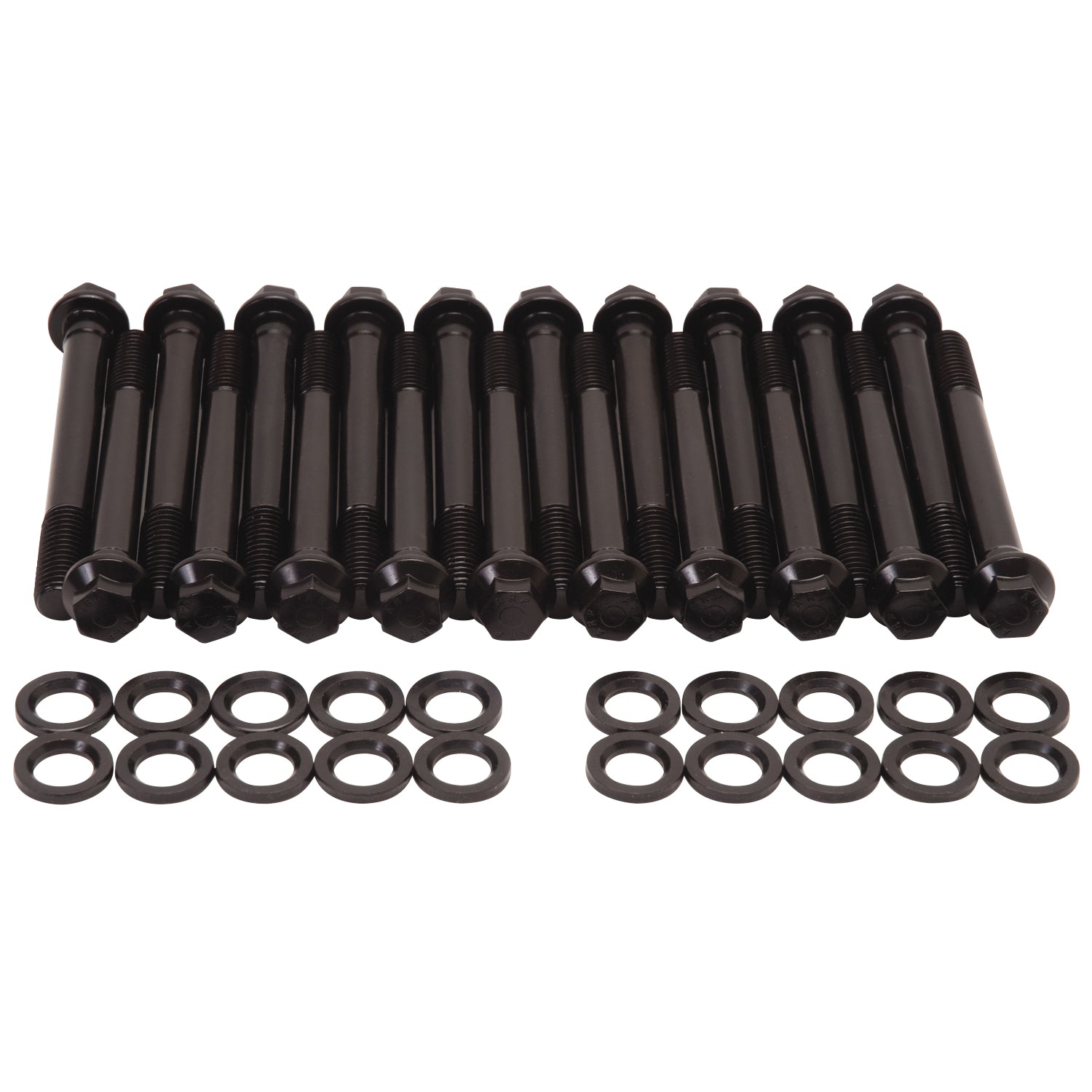

The Edelbrock #8560 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications:
| Description_ABR |
HeadBlotKit |
| Description_ASM |
Ford:Cleveland:351C (5.8L) |
| Description_DEF |
Engine Cylinder Head Bolt Set |
| Description_EXT |
Edelbrock #8560 is a Head Bolt Kit for 1970-74 S/B Ford 351 Cleveland Engines with Edelbrock #61629, 61625, and 61609 Performer RPM Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. |
| Description_MKT |
The Edelbrock #8560 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_LAB |
351C Ford Head bolt Kit |
| Description_INV |
351C Ford Head bolt Kit |
| Description_TRA |
The Edelbrock #8560 is made specifically for Ford Cleveland V8 |
| Description_TRA |
Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA |
Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA |
Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA |
Torque 1/2" bolts to 100-110 ft./lbs (1/2" bolts) in four steps (30, 60, 90, 100-110) following the factory tightening sequence. |
| Thread Type |
Coarse |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Washers Included |
Yes |
| Thread Diameter |
0.50 |
| Material |
Chromoly |
| Head Drive Type |
Hex |
| Length |
(20) 4.50 |
| Quantity |
Kit |
| Finish |
Black Oxide |
| Grade Type |
Performance |
| Minimum Length |
4.50 |
| Length |
2.0000 |
| Width |
4.0000 |
| Height |
9.0000 |
| Weight |
5.0000 |
