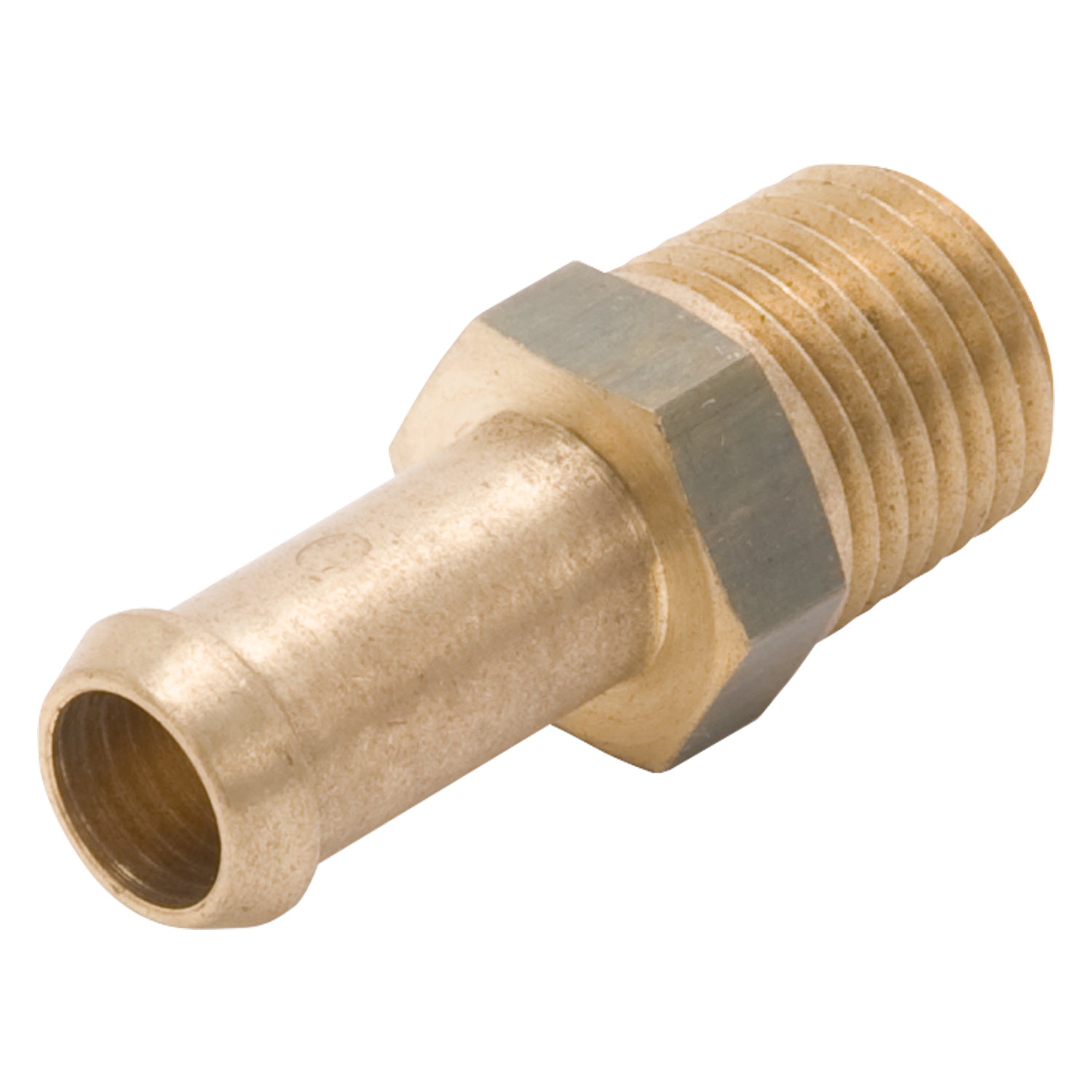

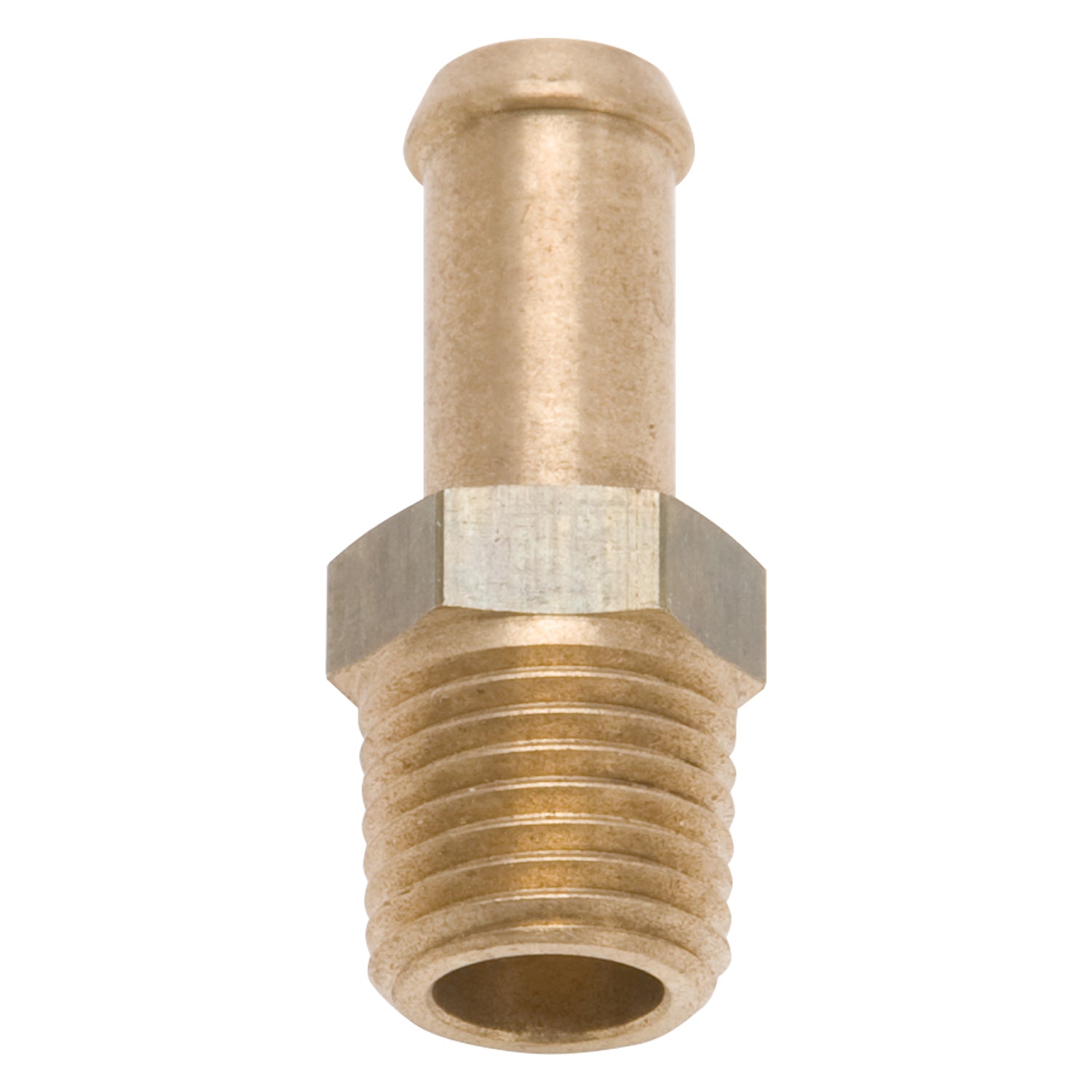

Edelbrock part #8080 Brass Hose Fitting is a 1/4-18" NPT fitting with a 3/8" barb. This Fitting will fit the rear vacuum port of all Edelbrock four-barrel carbs.
Specifications:
Description_ABR |
Fuel Fitting |
Description_ASM |
Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
Description_DEF |
Carburetor Fuel Inlet Fitting |
Description_EXT |
Edelbrock part #8080 Brass Hose Fitting is a 1/4-18" NPT fitting with a 3/8" barb. This Fitting will fit the rear vacuum port of all Edelbrock four-barrel carbs. |
Description_INV |
3/8" Barbed Rochester 2 bbl carb fitting |
Description_MKT |
Edelbrock part #8080 Brass Hose Fitting is a 1/4-18" NPT fitting with a 3/8" barb. This Fitting will fit the rear vacuum port of all Edelbrock four-barrel carbs. |
Description_LAB |
Carb Hose Fitting #8080, 1/4-18 NPT W/ 3/8-in. Barb Fits Rear Of Edelbrock Carbs |
Description_TRA |
Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage. |
End 2 Attachment Type |
Smooth Hose |
End 2 Size |
3/8 |
RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
End 1 Attachment Type |
Threaded |
End 1 Gender |
Male |
End 2 Gender |
Male |
Quantity |
Sold Individually |
Fitting Angle |
Straight |
Recommended Use |
Fits The Rear Port Of All Edelbrock 4-Barrel Carburetors (EPS, AVS, Q-Jet, Carter, and OE Carter) |
Material |
Brass |
End 1 Diameter |
1/4-18 |
Length |
1.0000 |
Width |
2.0000 |
Height |
3.0000 |
