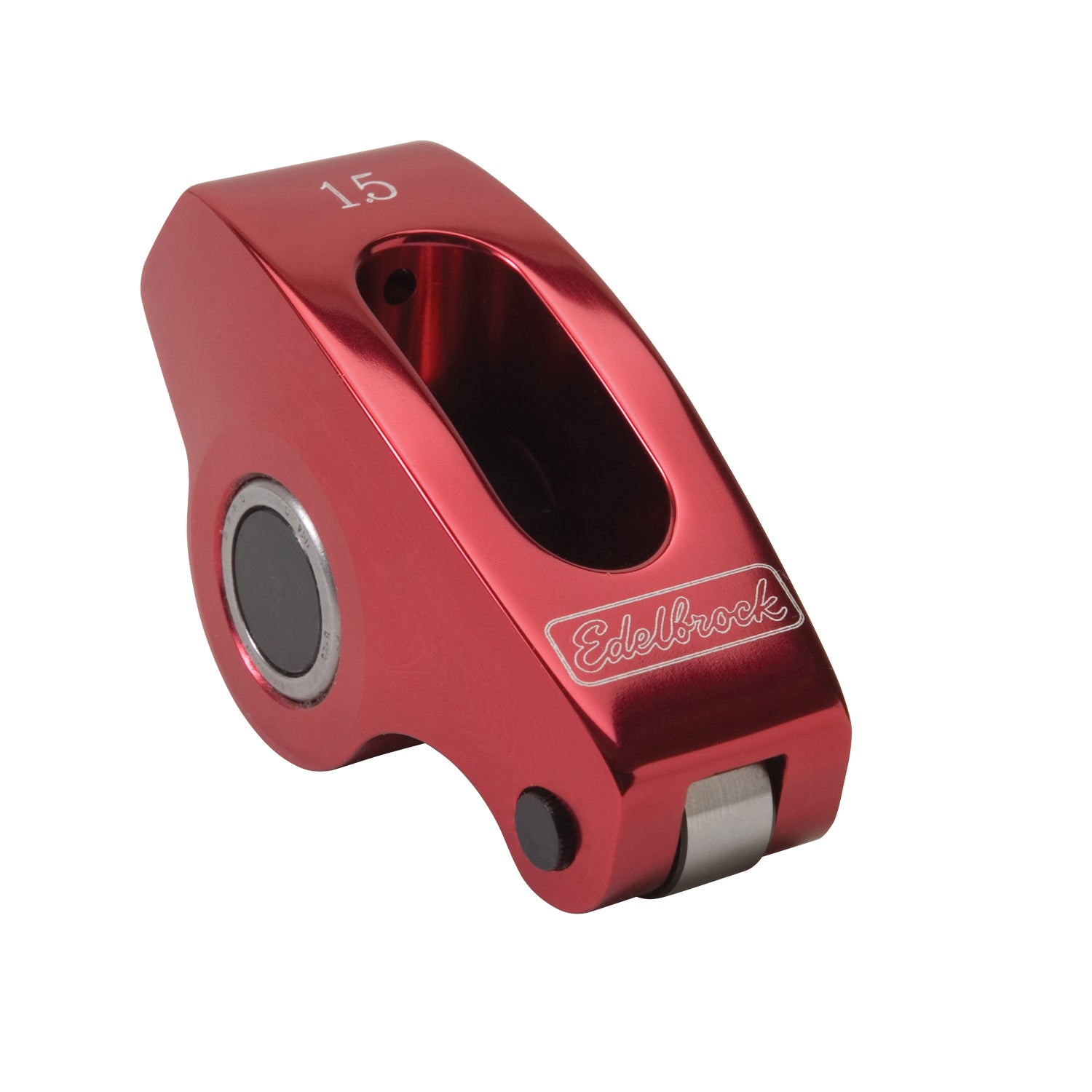

Edelbrock part #77771 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, single replacement rocker is manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included.
Specifications:
| Description_ABR |
SBC Rocker |
| Description_ASM |
Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L) |
| Description_DEF |
Engine Rocker Arm |
| Description_EXT |
Edelbrock part #77771 Red Roller Rocker arms are designed for small block Chevy's using 3/8 studs. This 1.5:1 Ratio, single replacement rocker is manufactured in the USA from lightweight 7129 grade aluminum. |
| Description_INV |
Edelbrock red roller rocker #77771 SBC |
| Description_MKT |
Edelbrock part #77771 Red Roller Rocker arms are designed for small block Chevy's using 3/8" studs. This 1.5:1 Ratio, single replacement rocker is manufactured in the USA from lightweight 7129 grade aluminum. The body is CNC machined then micro polished and anodized for durability. The trunnion race, roller pin and roller tip are centerless ground for superior quality. A high quality Torrington needle bearing fulcrum combined with a roller tip ensure smooth operation and performance. The full body design will accommodate up to 1.65" diameter springs. Thick-walled adjusting nuts and 4140 steel poly locks are included. |
| Description_LAB |
Red Roller Rockers for Small-Block Chevy 3/8 stud 1.5:1 (Qty 1) |
| Description_TRA |
Rocker geometry should be checked, making sure that the contact point of the roller remains properly on the valve tip and does not roll off the edge. Visual inspection of the rockers, valve springs, retainers, and pushrods should be made to ensure that none of these components come into improper contact with each other. If problems with valve train geometry occur, changes such as pushrod length may have to be made. |
| Quantity |
Sold Individually |
| Material |
Aluminum |
| Rocker Arm Material |
Aluminum |
| Maximum Spring Outside Diameter |
1.65 |
| Grade Type |
Performance |
| Self Aligning |
No |
| Stud Thread Diameter |
0.375 |
| Rocker Arm Ratio |
1.5:1 |
| RGL |
WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Shims Included |
No |
| Rocker Arm Type |
Full Roller |
| Mounting Type |
Stud |
| Rocker Arm Nut Type |
Poly Lock |
| Rocker Arm Finish |
Red anodized |
| Length |
2.0000 |
| Width |
3.0000 |
| Height |
6.0000 |
