Edelbrock 77739 Valley Cover BV3 4.84" Bore space Thick

2 sold in last 8 days
Edelbrock
ds_BDVJ_77739
Engine Intake Manifold
$666.86
customers are viewing this product
Edelbrock 77739 Valley Cover BV3 4.84" Bore space Thick
Details

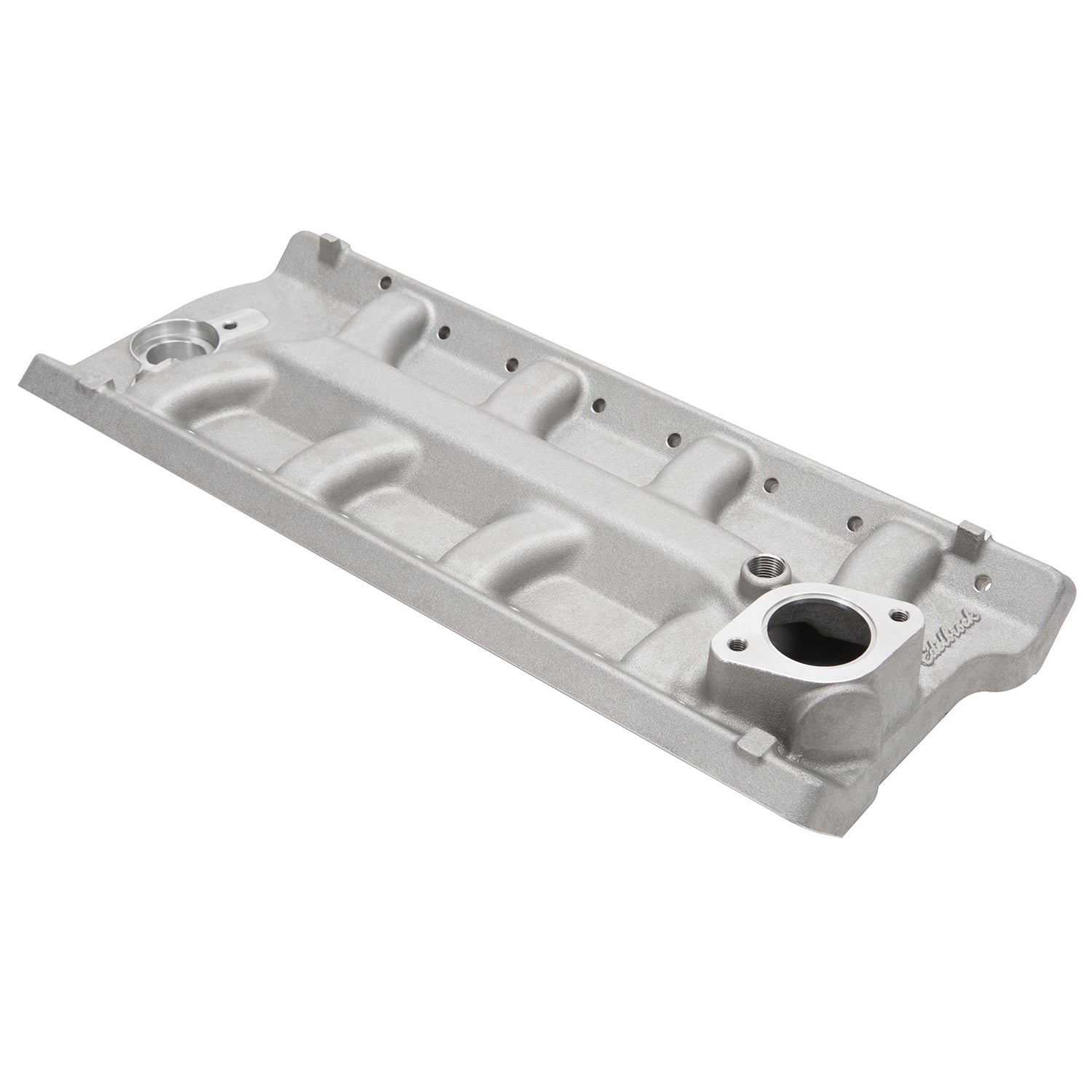

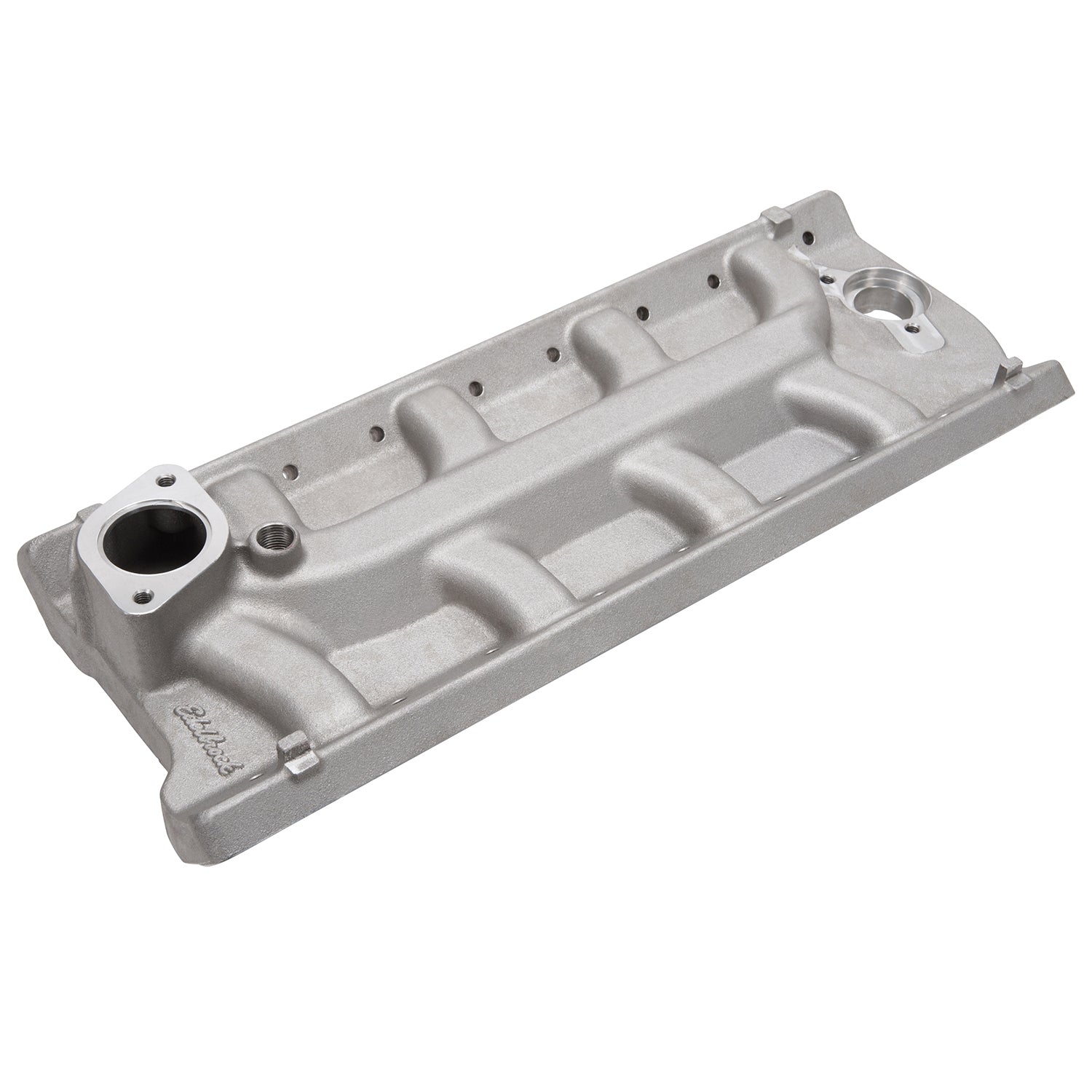

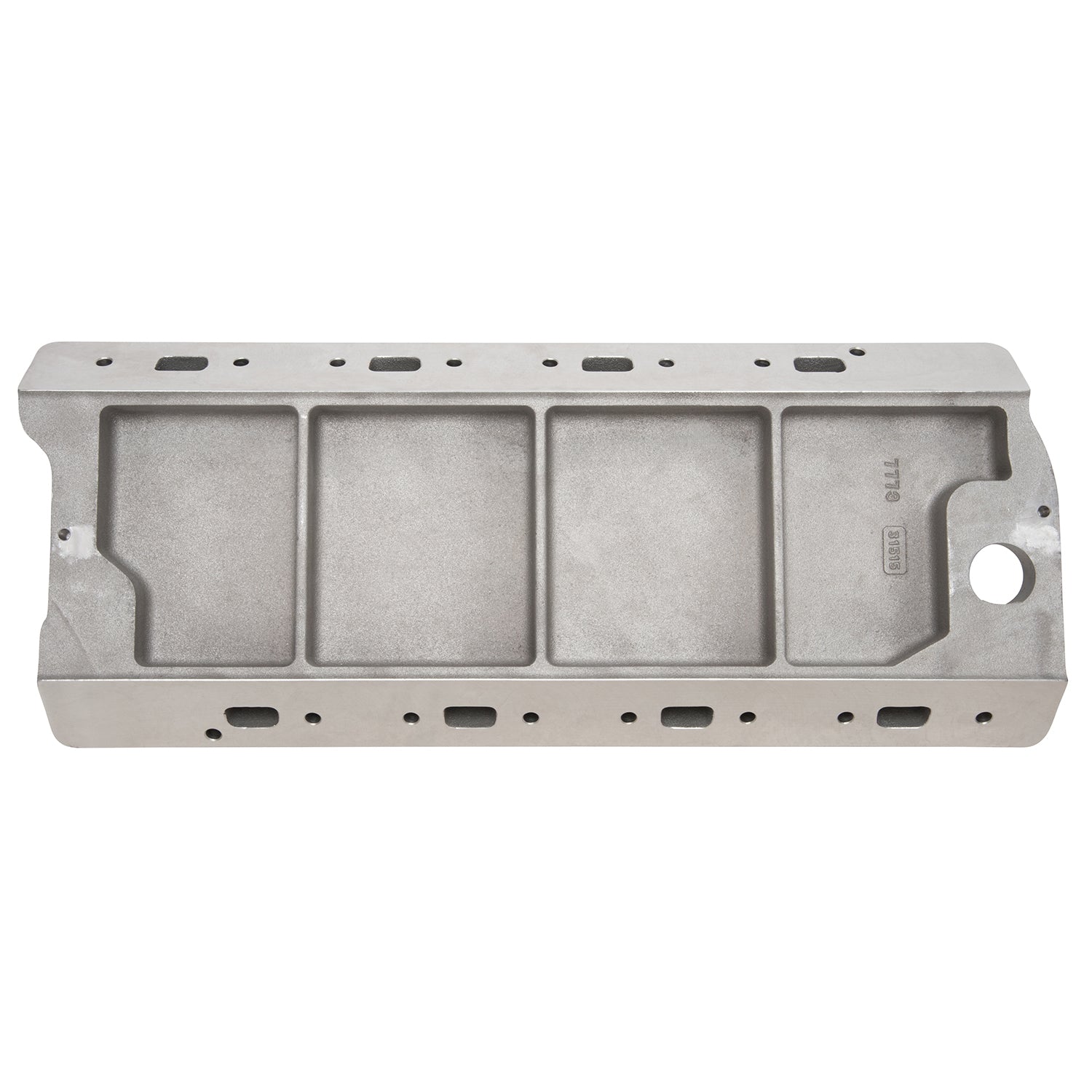

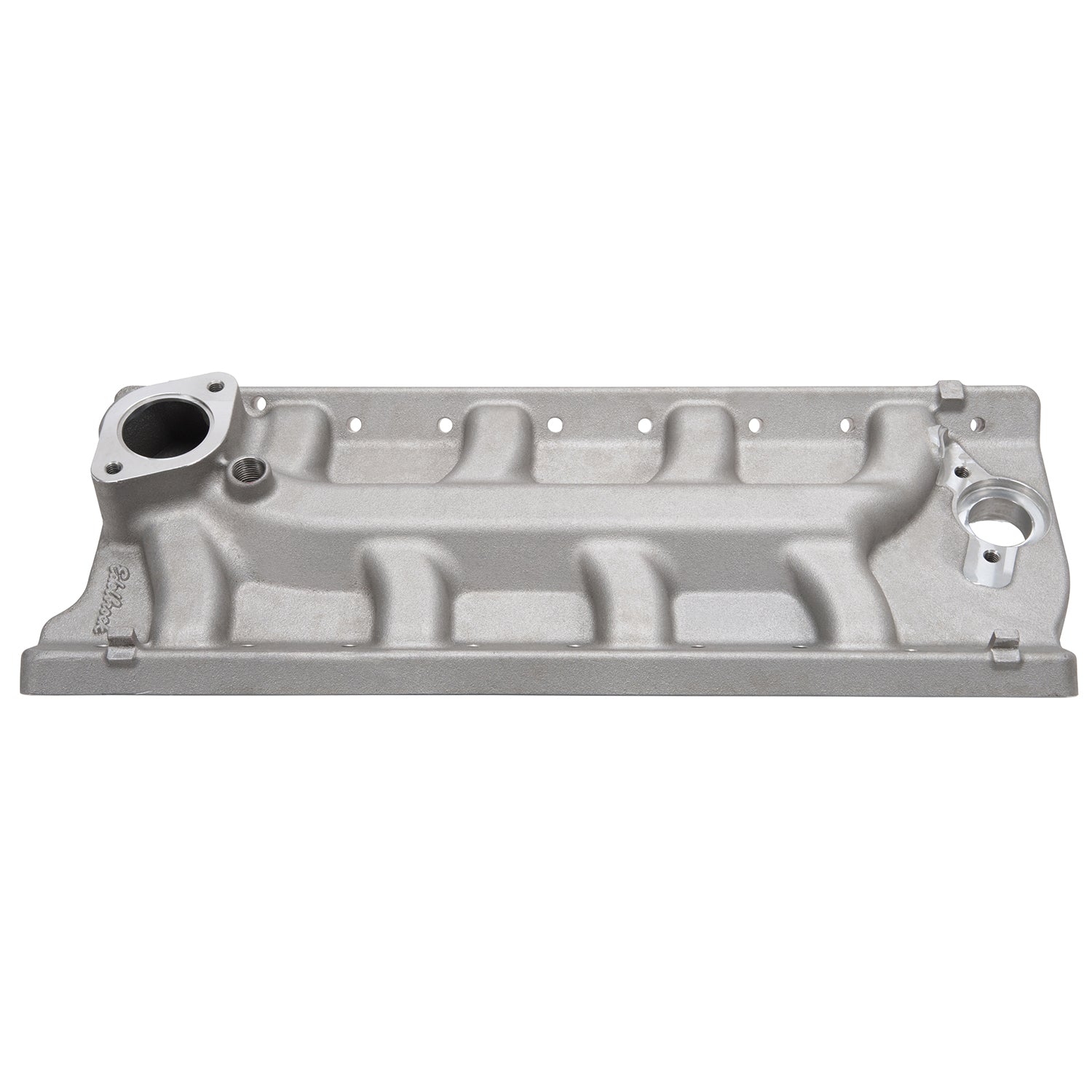

Edelbrock part #77739 Valley Cover is designed for use with Edelbrock BV3 cylinder heads and intake manifolds with 4.84" bore spacing. In addition to covering the lifter valley, it also completes the cross flow coolant recovery system unique to the BV3 cylinder heads. This valley cover draws water from individual cylinders and combines them together at the thermostat housing for more uniform cooling of the cylinders. This design also delivers more consistent cylinder to cylinder cooling. A thermostat housing may be used for radiator return or, if a fill neck is used, a boss on the front can be drilled for a pipe thread fitting.

Specifications:

Description_ABR Intake Mnfld
Description_ASM Chevrolet:Big-Block:496 (8.1L)/509 (8.3L)/540 (8.8L)/555 (9.0L)/565 (9.2L)/572 (9.3L)/582 (9.5L)/598 (9.7L)/632 (10.3L)/705 (11.5L)
Description_DEF Engine Intake Manifold
Description_EXT Edelbrock Part Valley Cover is designed for use with Edelbrock BV3 cylinder heads and intake manifolds with 4.84" bore spacing.
Description_INV Valley Cover BV3 4.84" Bore space Thick
Description_LAB Valley Plate Unported Thick Flange Big Victor 3 Big Block Chevy
Description_MKT Edelbrock part #77739 Valley Cover is designed for use with Edelbrock BV3 cylinder heads and intake manifolds with 4.84" bore spacing. In addition to covering the lifter valley, it also completes the cross flow coolant recovery system unique to the BV3 cylinder heads. This valley cover draws water from individual cylinders and combines them together at the thermostat housing for more uniform cooling of the cylinders. This design also delivers more consistent cylinder to cylinder cooling. A thermostat housing may be used for radiator return or, if a fill neck is used, a boss on the front can be drilled for a pipe thread fitting.
Description_TRA Installation of this valley plates requires eight (8) 5/16" bolts per side for a total of 16. Bolts are not included.
Description_TRA Apply a continuous, 1/8" bead of automotive RTV silicone sealer to the end sealing surfaces on block and along bottom of the intake flange on the cylinder heads where they will meet the valley cover.
RGL WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Length 9.0000
Width 12.0000
Height 24.0000
Weight 20.0000
