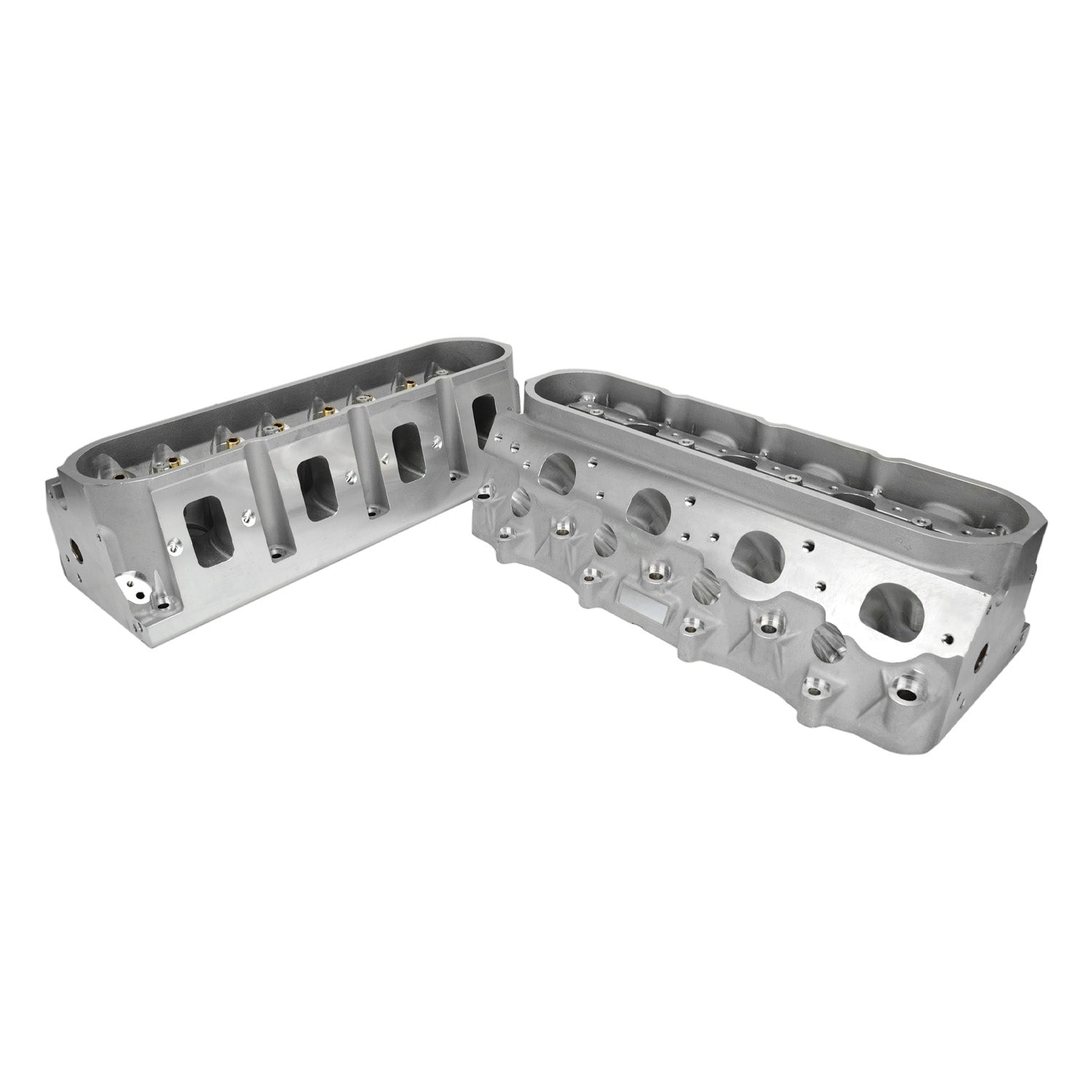

The Edelbrock Victor CNC 11 degrees 6-Bolt Cylinder Heads for GM LS3 68cc Individual #77670 is specifically designed for high horsepower, naturally aspirated and boosted applications. Edelbrock Victor CNC 11 degrees 6-Bolt Cylinder Heads for GM LS3 engines utilize the popular LS 6-bolt design, making them compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and greatly improves head gasket sealing, making them ideal for high compression naturally aspirated engines and high boost applications. These heads are manufactured with premium materials and machined to the industry's tightest tolerances. Features include an 11 degrees valve angle, copper infiltrated powder metal valve seats and fully CNC-machined ports for maximum airflow. The CNC-machined runners and chambers, as well as the rolled 11 degrees valve angle, increase overall flow capability, while the revised water jacket design enhances thermal conductivity and tunability. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700" thick deck and reinforced rocker rails make these cylinder heads ideal for high horsepower applications. Edelbrock #77670 is a bare head.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASC |
Does not include valves or a valve spring kit. Includes just the valve seats and guides. |
| Description_ASM |
GM:LS3:Small-Block:376 (6.2L) |
| Description_DEF |
Engine Cylinder Head |
| Description_DES |
Victor CNC LS3 263CC 2.165/ 1.600 - Bare |
| Description_INV |
Victor CNC LS3 Bare Head |
| Description_EXT |
The Edelbrock Victor CNC 11 degrees 6-Bolt Cylinder Heads for GM LS3 68cc Individual #77670 is specifically designed for high horsepower, naturally aspirated and boosted applications. |
| Description_LAB |
Victor CNC LS3 263CC 2.165/ 1.600 - Bare |
| Description_SHP |
None |
| Description_MKT |
The Edelbrock Victor CNC 11 degrees 6-Bolt Cylinder Heads for GM LS3 68cc Individual #77670 is specifically designed for high horsepower, naturally aspirated and boosted applications. Edelbrock Victor CNC 11 degrees 6-Bolt Cylinder Heads for GM LS3 engines utilize the popular LS 6-bolt design, making them compatible with the GM LSX block and all aftermarket iron or aluminum 6-bolt per cylinder LS race blocks. The 6-bolt design offers increased clamping capacity over the standard factory 4-bolt configuration and greatly improves head gasket sealing, making them ideal for high compression naturally aspirated engines and high boost applications. These heads are manufactured with premium materials and machined to the industry's tightest tolerances. Features include an 11 degrees valve angle, copper infiltrated powder metal valve seats and fully CNC-machined ports for maximum airflow. The CNC-machined runners and chambers, as well as the rolled 11 degrees valve angle, increase overall flow capability, while the revised water jacket design enhances thermal conductivity and tunability. The premium manganese bronze valve guides withstand long wear with emphasis placed on holding precision tolerances on valve seat concentricity, allowing the valves to seal securely, which eliminates leak down and increases cylinder pressure during engine operation. Finally, the .700" thick deck and reinforced rocker rails make these cylinder heads ideal for high horsepower applications. Edelbrock #77670 is a bare head. |
| Guide Material |
Manganese Bronze |
| Exhaust Runner Volume |
103_x000D_ |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included |
No |
| Series |
Victor CNC |
| Grade Type |
Performance |
| Quantity |
Sold Individually |
| Family |
Victor CNC |
| Combustion Chamber Volume |
68 |
| Intake Runner Volume |
263 |
| Construction Type |
Bare |
| Valve Included |
No |
| Length |
7.0000 |
| Width |
9.0000 |
| Height |
23.0000 |
| Weight |
23.0000 |
