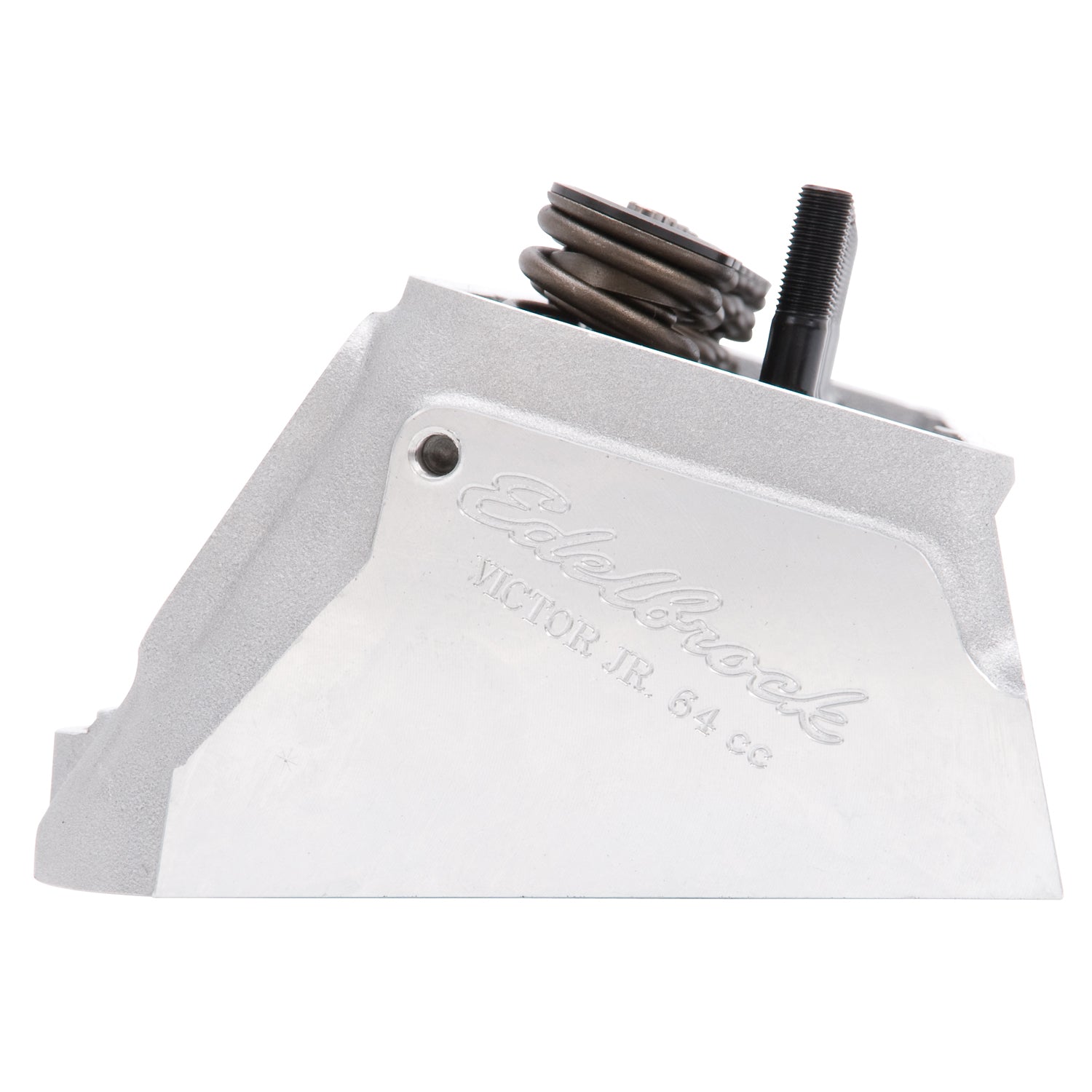

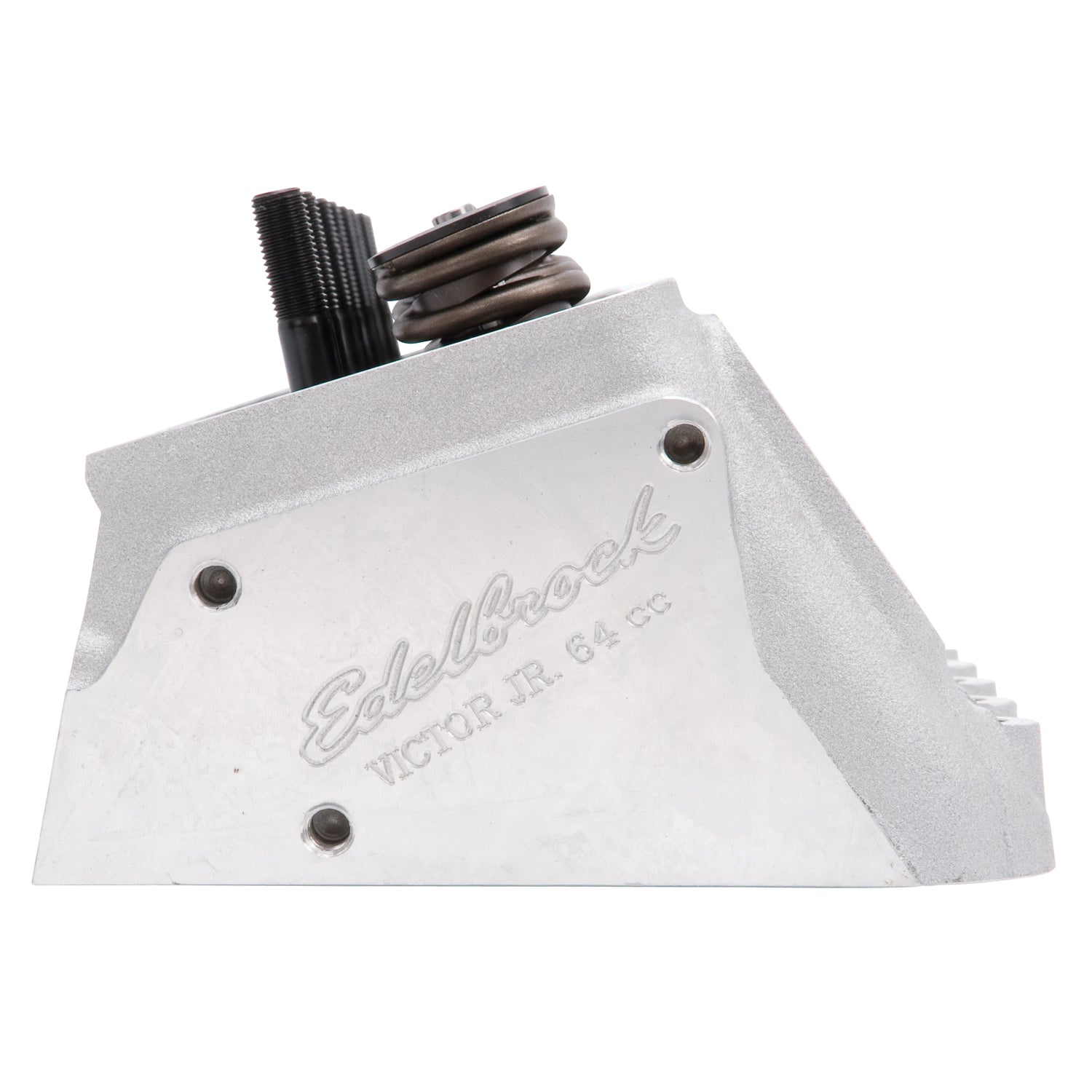

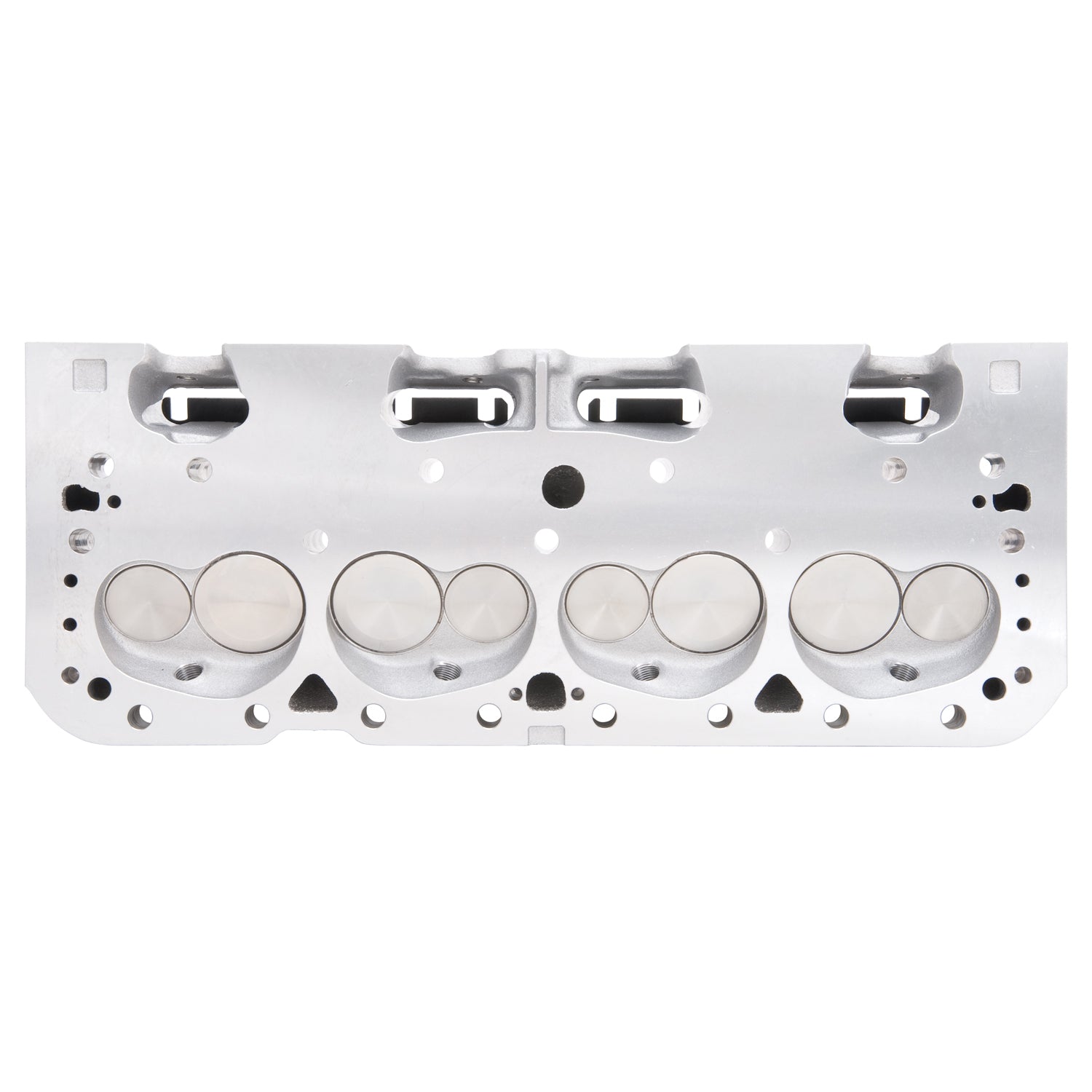

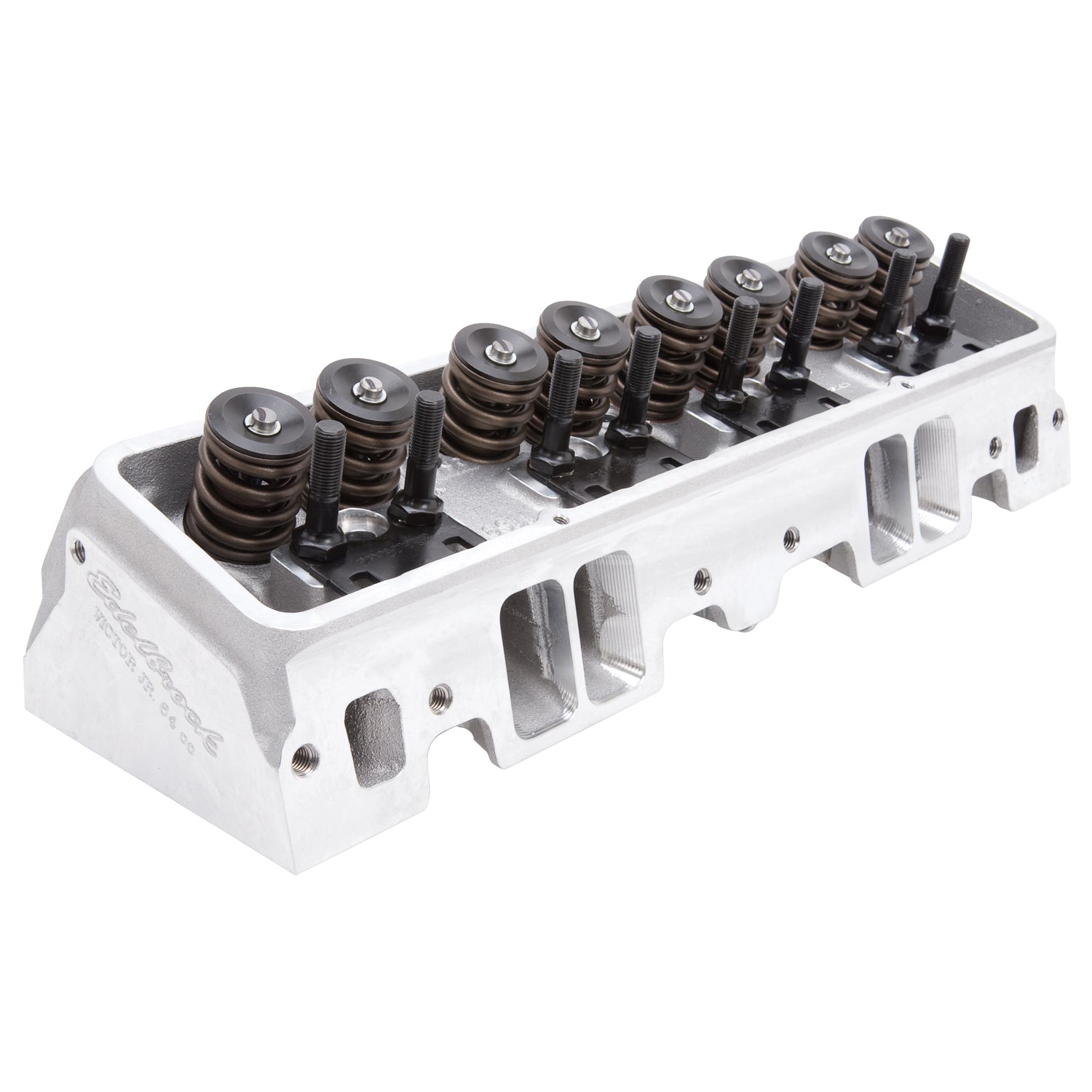

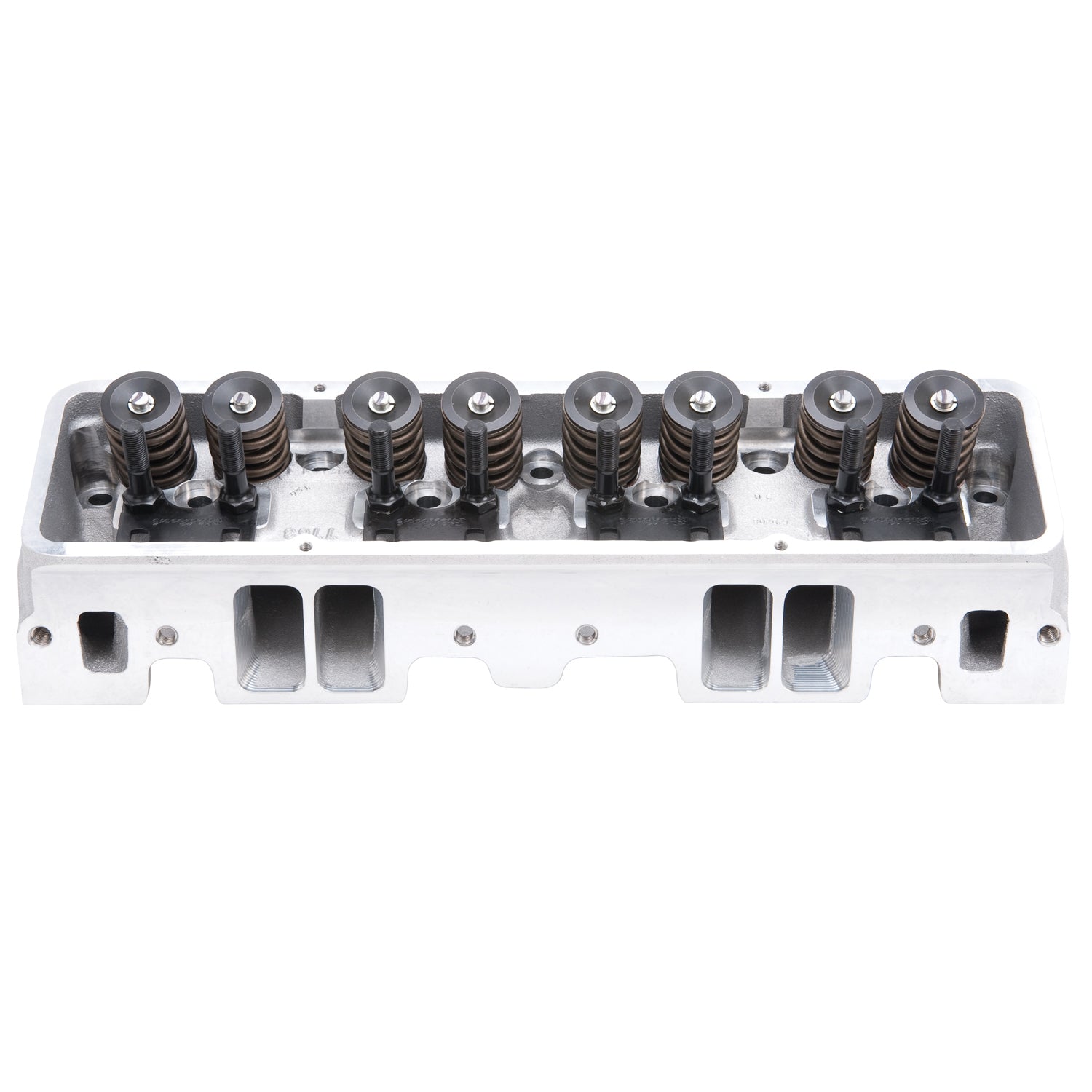

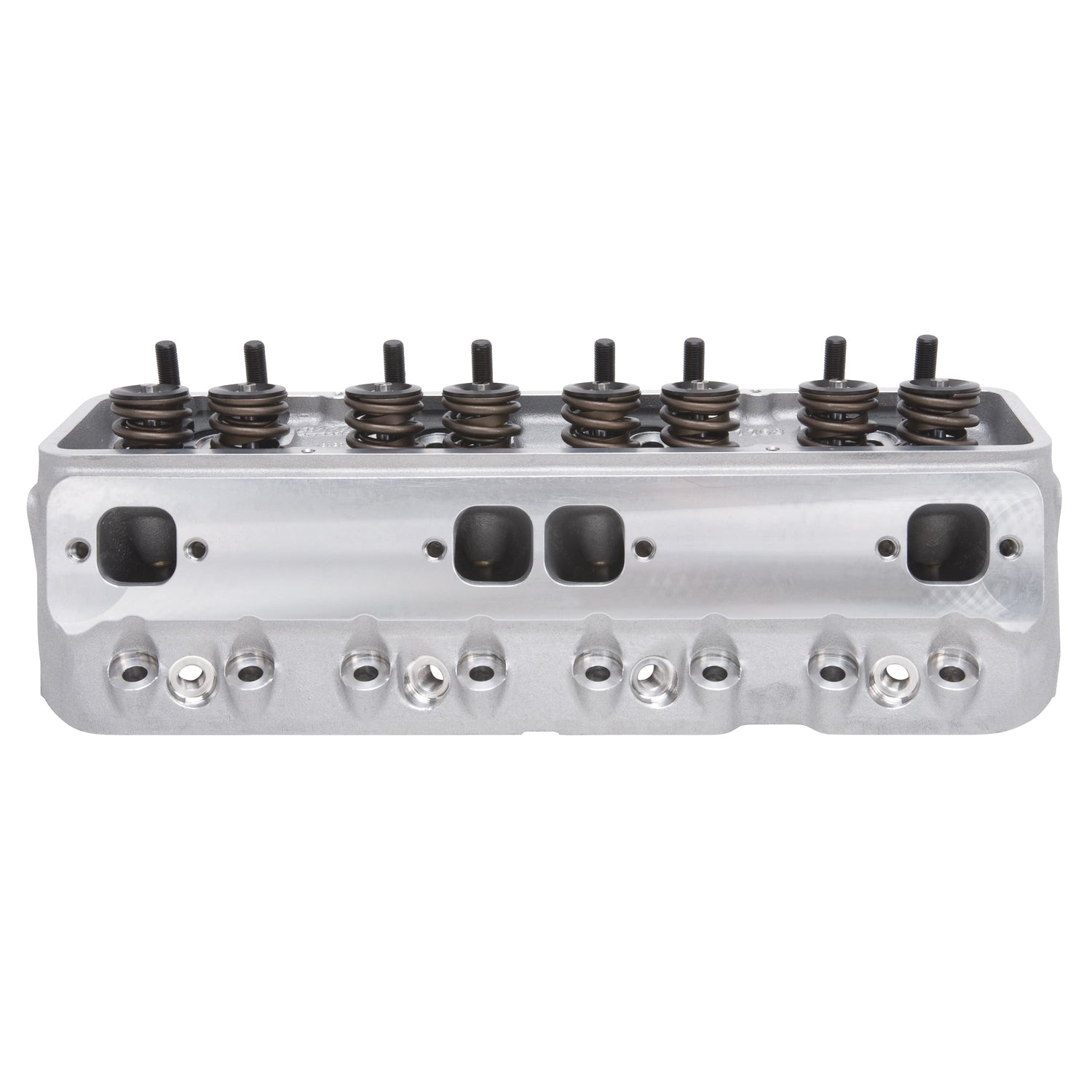

The Edelbrock part #77599 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77599 cylinder head has a 64cc combustion chamber and come with springs for mechanical roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock part #77599 Victor Jr. 23 Degree is a complete cylinder head for Small Block Chevy 262-400 V8 engines using a mechanical roller cam. This cylinder head offers max power for competition and high-performance's street applications. |
| Description_MKT |
The Edelbrock part #77599 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77599 cylinder head has a 64cc combustion chamber and come with springs for mechanical roller camshafts. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8. |
| Description_LAB |
Victor Jr #77599 Small-Block Chevy 64cc Mechanical Roller Camshaft |
| Description_INV |
Edelbrock SBC Cylinder Head |
| Description_TRA |
Check cam manufacturer's specs for compatibility with valve springs for spring rates. Match with Edelbrock head gasket sets. Use Head Bolt Kits for easy installation. These heads require the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 9/16", rocker stud diameter: 3/8", pushrod diameter: 7/16" (width of slot in guide plate). |
| Valve Stem Diameter |
0.3438 |
| Camshaft Type |
Mechanical Roller |
| Exhaust Runner Volume |
85 |
| CNC Ported |
No |
| Quantity |
Sold Individually |
| Guide Plate Material |
Hardened Steel |
| Deck Thickness |
0.5625 |
| Valve Spring Diameter |
1.55 |
| Horsepower |
450-550 |
| Rotor Center Bore Inside Diameter |
angled |
| Exhaust Valve Diameter |
1.60 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Retainer Included |
Yes |
| Guide Material |
Manganese Bronze |
| Valve Spring Maximum Lift |
0.670 |
| Construction Type |
Complete |
| EGR Port |
No |
| Family |
Victor Jr. |
| Intake Valve Diameter |
2.08 |
| Push Rod Diameter |
(Suggested) 0.3125 |
| Rocker Arm Stud Diameter |
0.4375 |
| Seat Material |
Ductile Iron |
| Grade Type |
Performance |
| Material |
Aluminum |
| Combustion Chamber Volume |
64 |
| Valve Included |
Yes |
| Head Casting Number |
N/A |
| Series |
Victor Jr. |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Guide Plates Included |
Yes |
| Intake Runner Volume |
215 |
| Valve Springs Included |
Yes |
| Exhaust Port Location |
+.125 |
| Valve Angle |
23 |
| Length |
7.0000 |
| Width |
10.0000 |
| Height |
22.0000 |
| Weight |
33.0000 |
