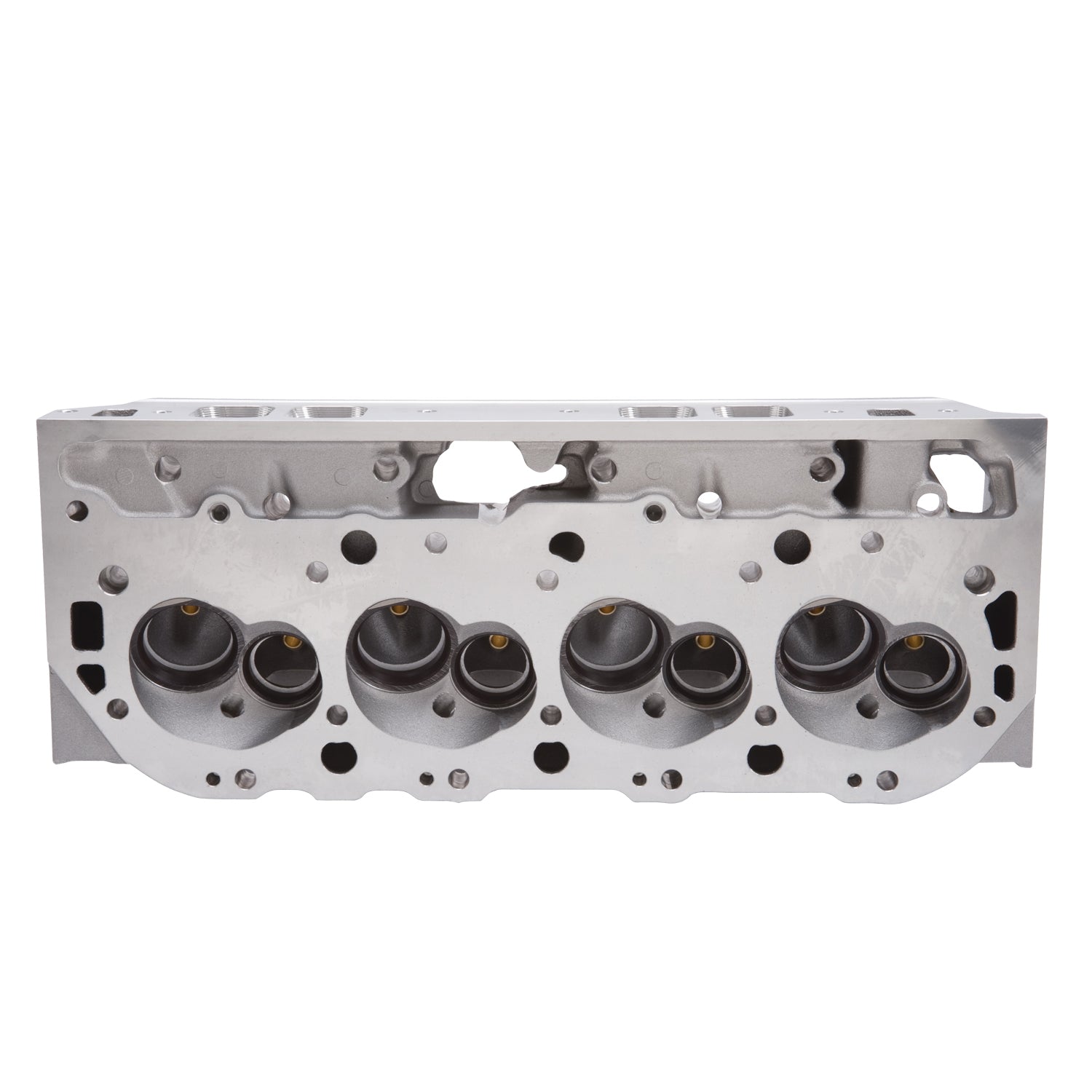

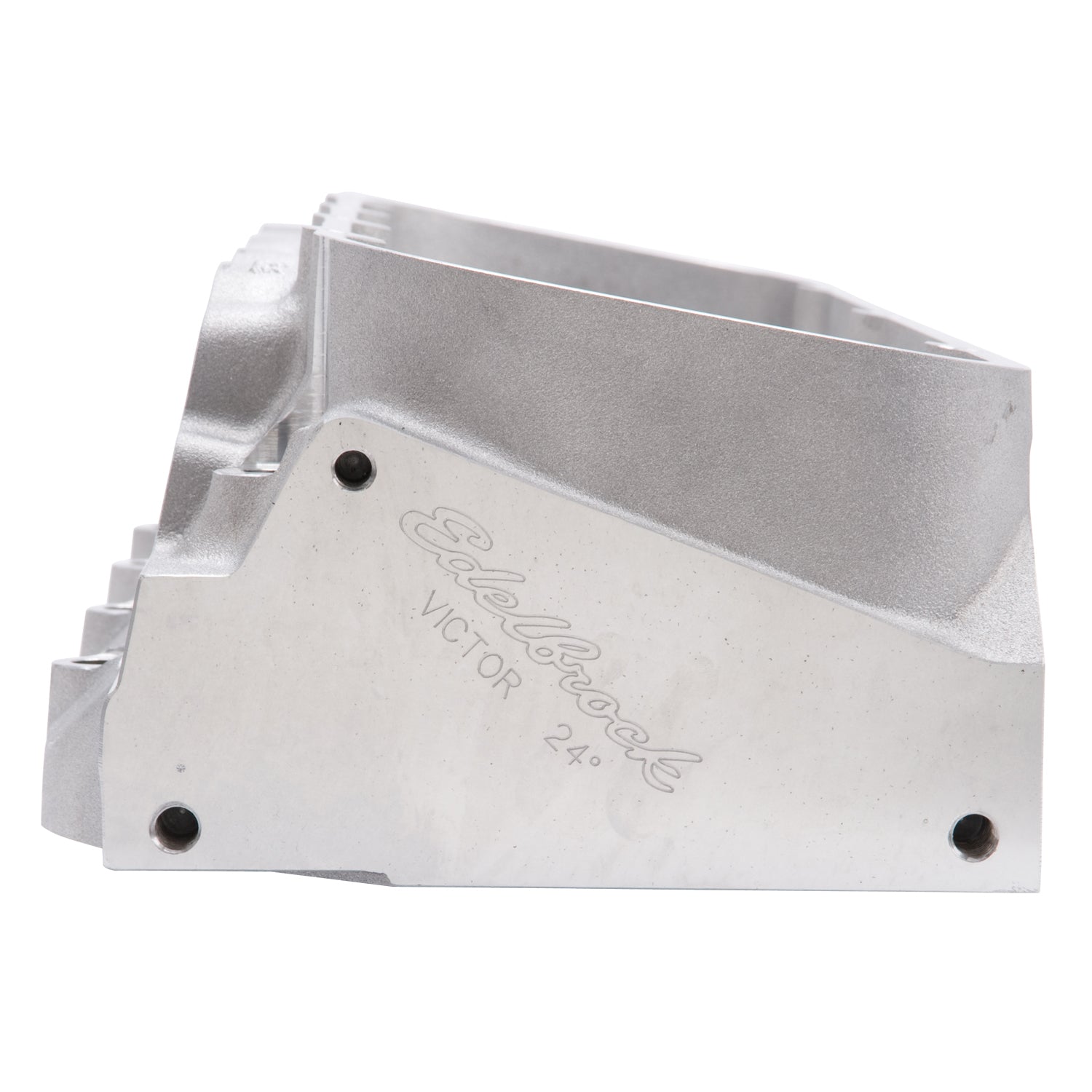

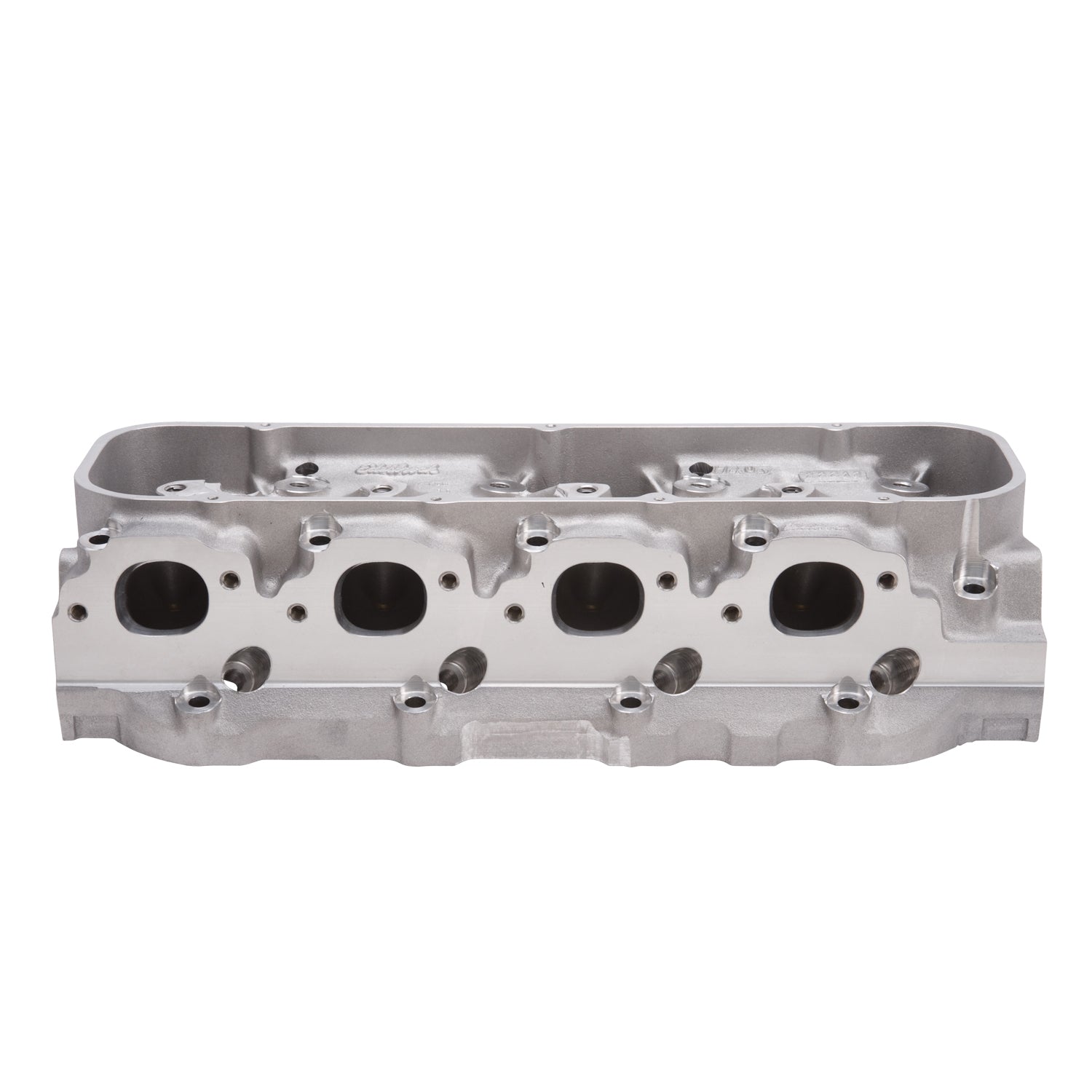

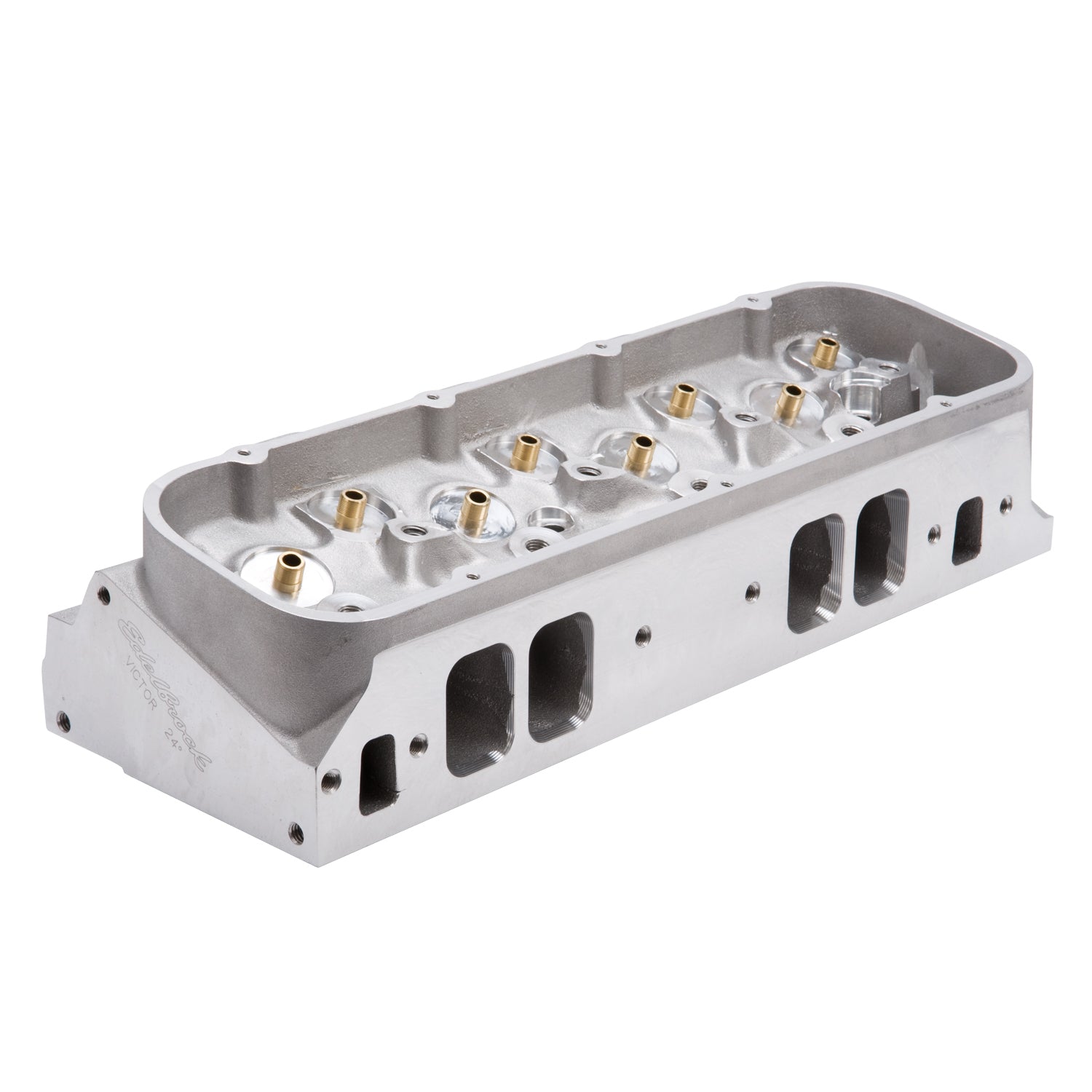

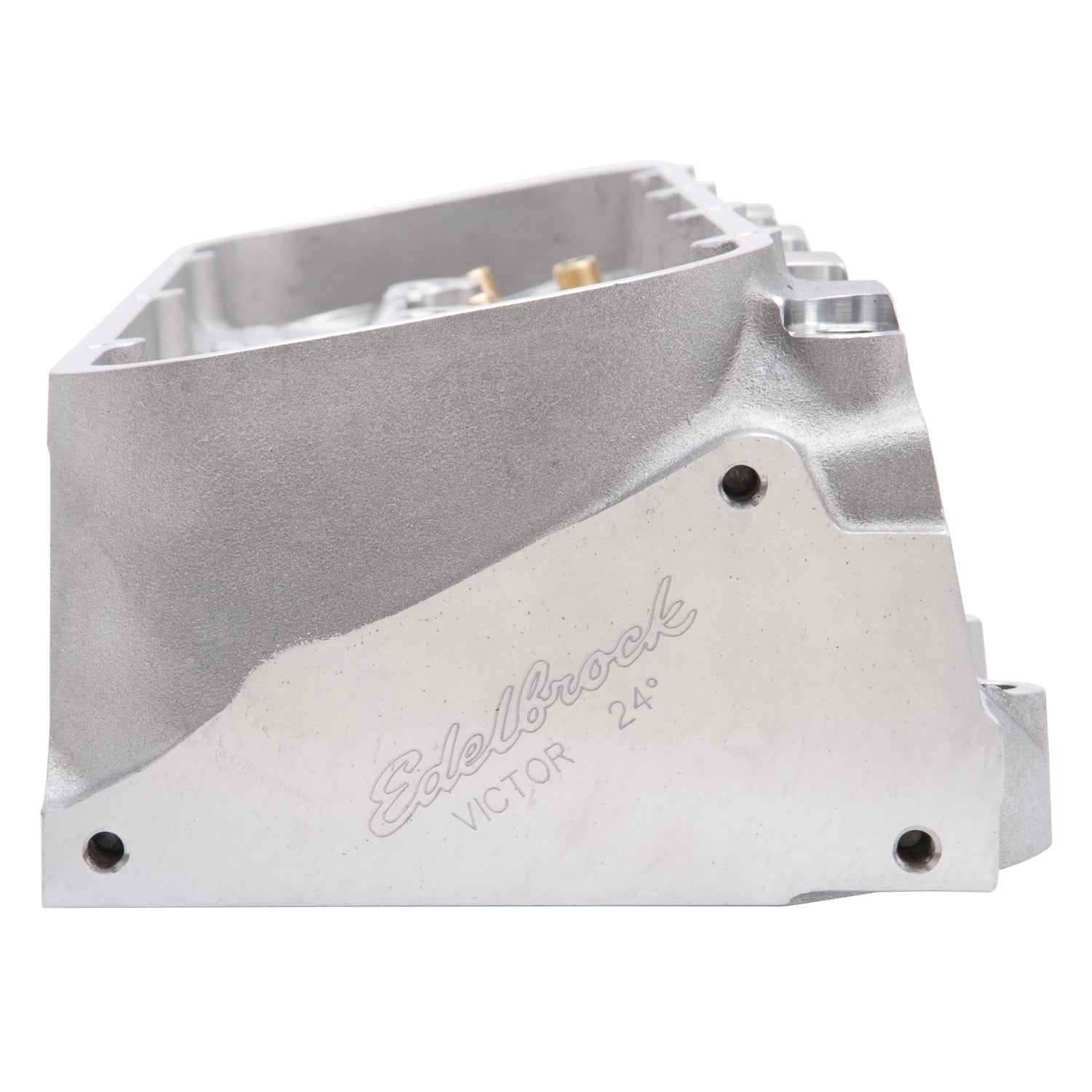

The Edelbrock part #77419 Victor 24 Deg 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534".
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock #77419 Victor 24 Degree is a bare cylinder head designed for Big Block Chevy 396-502 V8 engines. The Victor 24 Deg features a rolled over deck, altered valve locations and partially CNC'd chambers for cost effective performance. |
| Description_INV |
Edelbrock BBC Cylinder Head |
| Description_MKT |
The Edelbrock part #77419 Victor 24 Deg 340cc cylinder head features a rolled over deck, altered valve locations and partially CNC'd 199cc chambers for cost effective performance. The Edelbrock 77419 cylinder head comes bare and will need a final valve job and guide sizing before use. The 340cc rectangle ports produce impressive flow and great power on competition big-blocks with 4.470" or larger bore. Exhaust port exits are raised .534". |
| Description_LAB |
Victor Big-Block Chevy Cylinder Head Bare |
| Description_TRA |

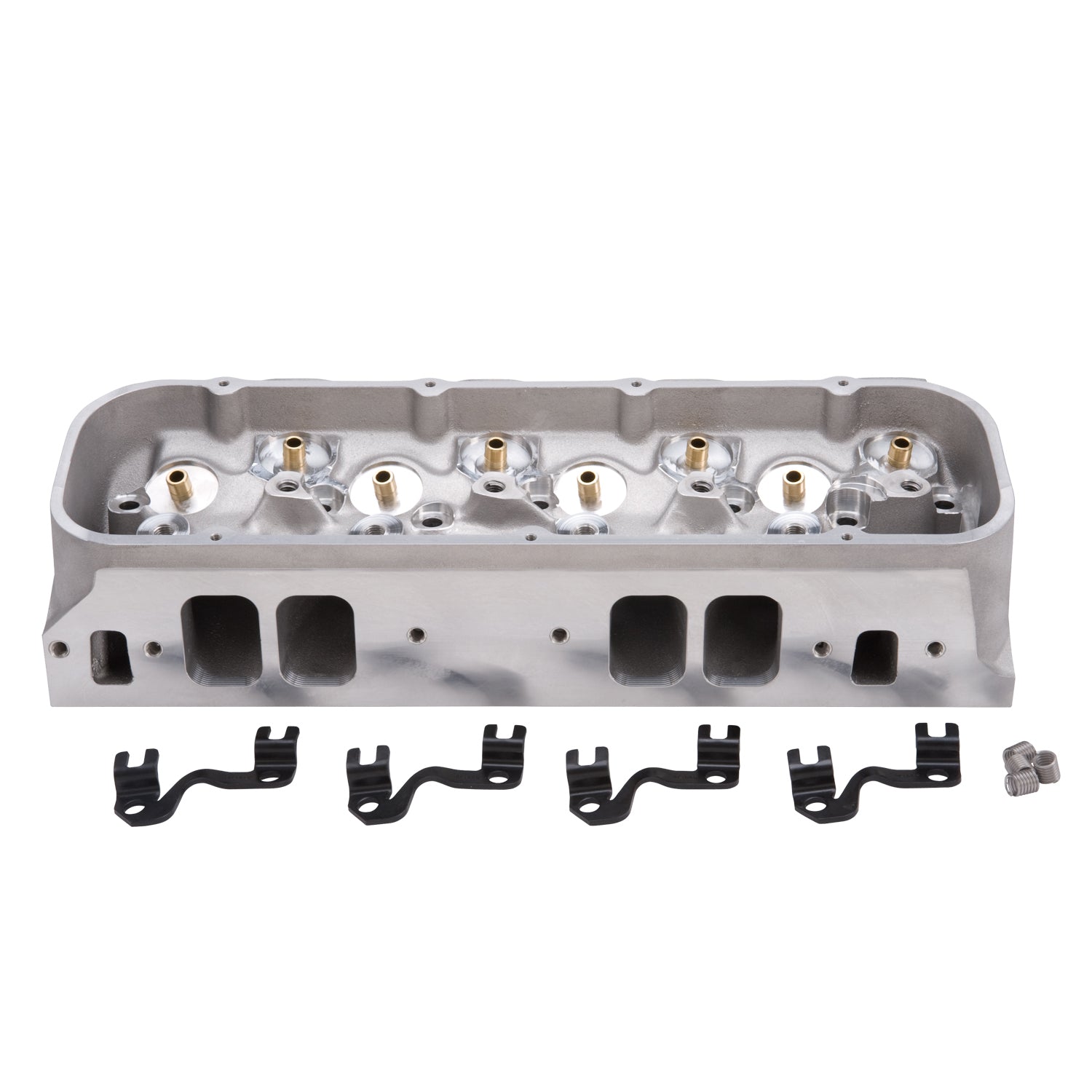

Matching stud girdle #7796 must be used with stud mounted rocker arms. Deck thickness: 9/16", rocker stud diameter: 7/16", pushrod diameter: 3/8" (width of slot in guide plate). |
| Retainer Included |
No |
| Valve Springs Included |
No |
| CNC Ported |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Horsepower |
650-800 |
| Exhaust Port Location |
+.500 |
| Construction Type |
Bare |
| Combustion Chamber Volume |
119 |
| Guide Plates Included |
No |
| Seat Material |
Ductile Iron |
| Flange Type |
Rectangle Intake |
| Quantity |
Sold Individually |
| Head Casting Number |
N/A |
| Family |
Victor |
| Valve Included |
No |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| EGR Port |
No |
| Valve Angle |
24 |
| Grade Type |
Performance |
| Exhaust Runner Volume |
128 |
| Material |
Aluminum |
| Series |
Victor |
| Guide Material |
Manganese Bronze |
| Intake Runner Volume |
340 |
| Deck Thickness |
0.5625 |
| Length |
9.0000 |
| Width |
11.0000 |
| Height |
26.0000 |
| Weight |
39.0000 |
