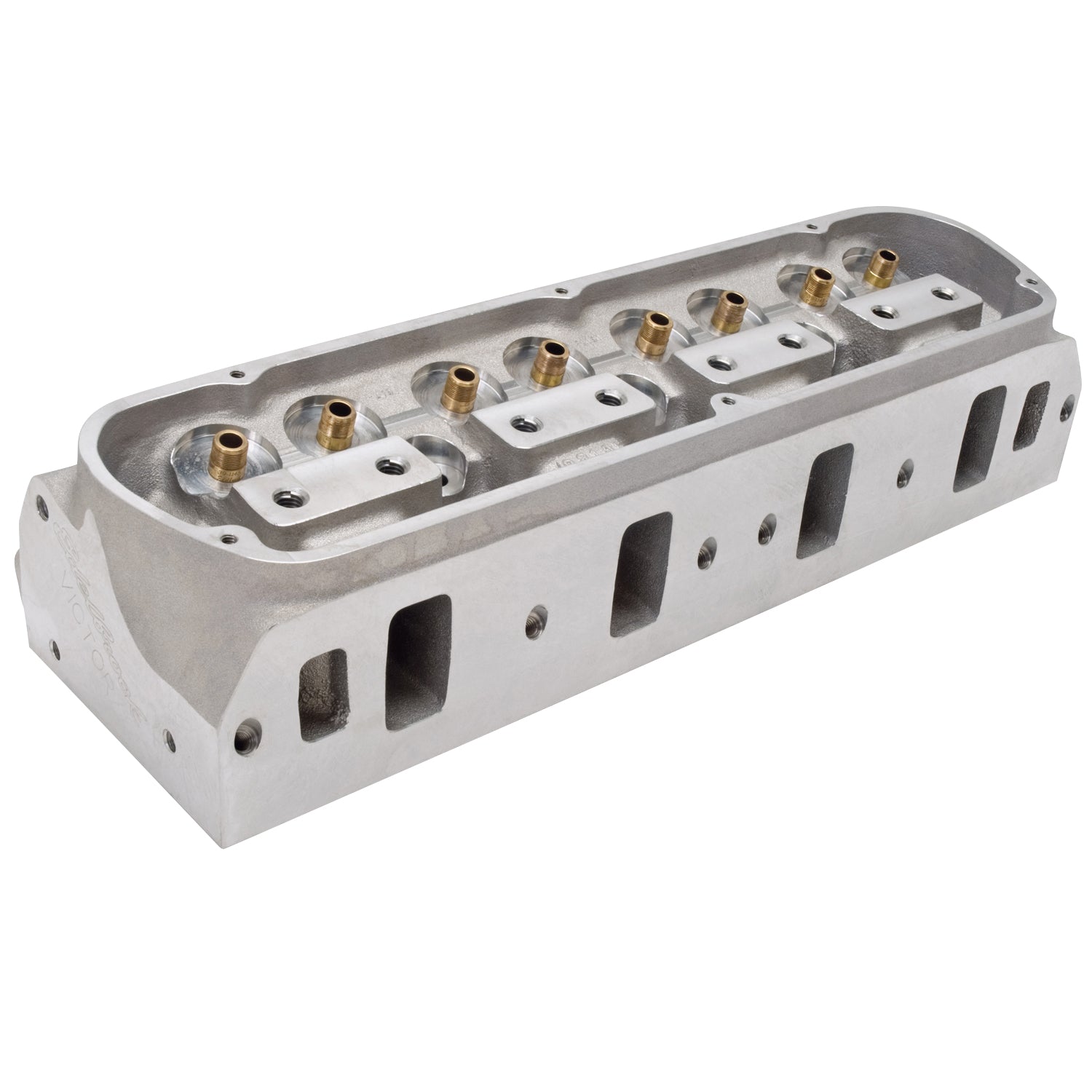

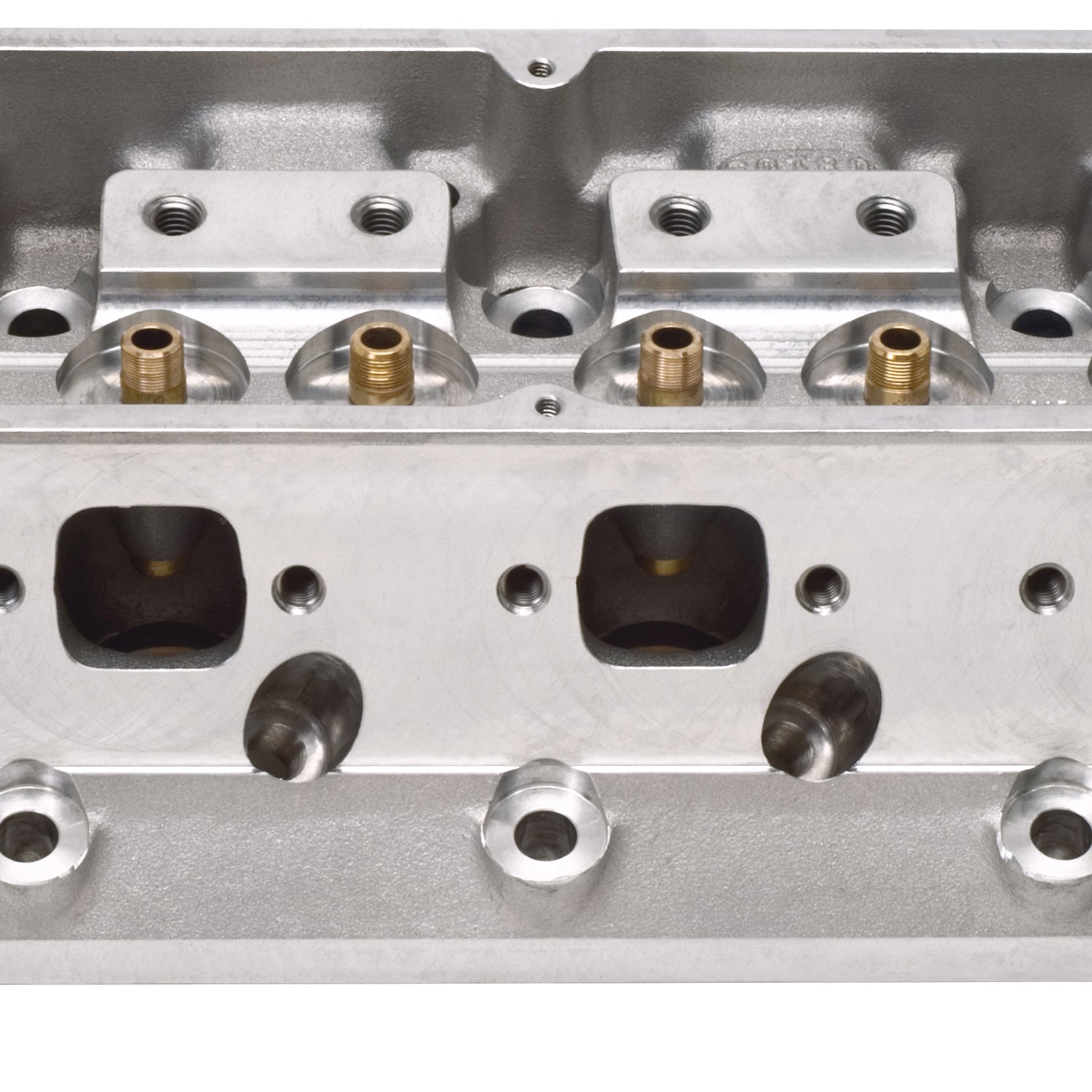

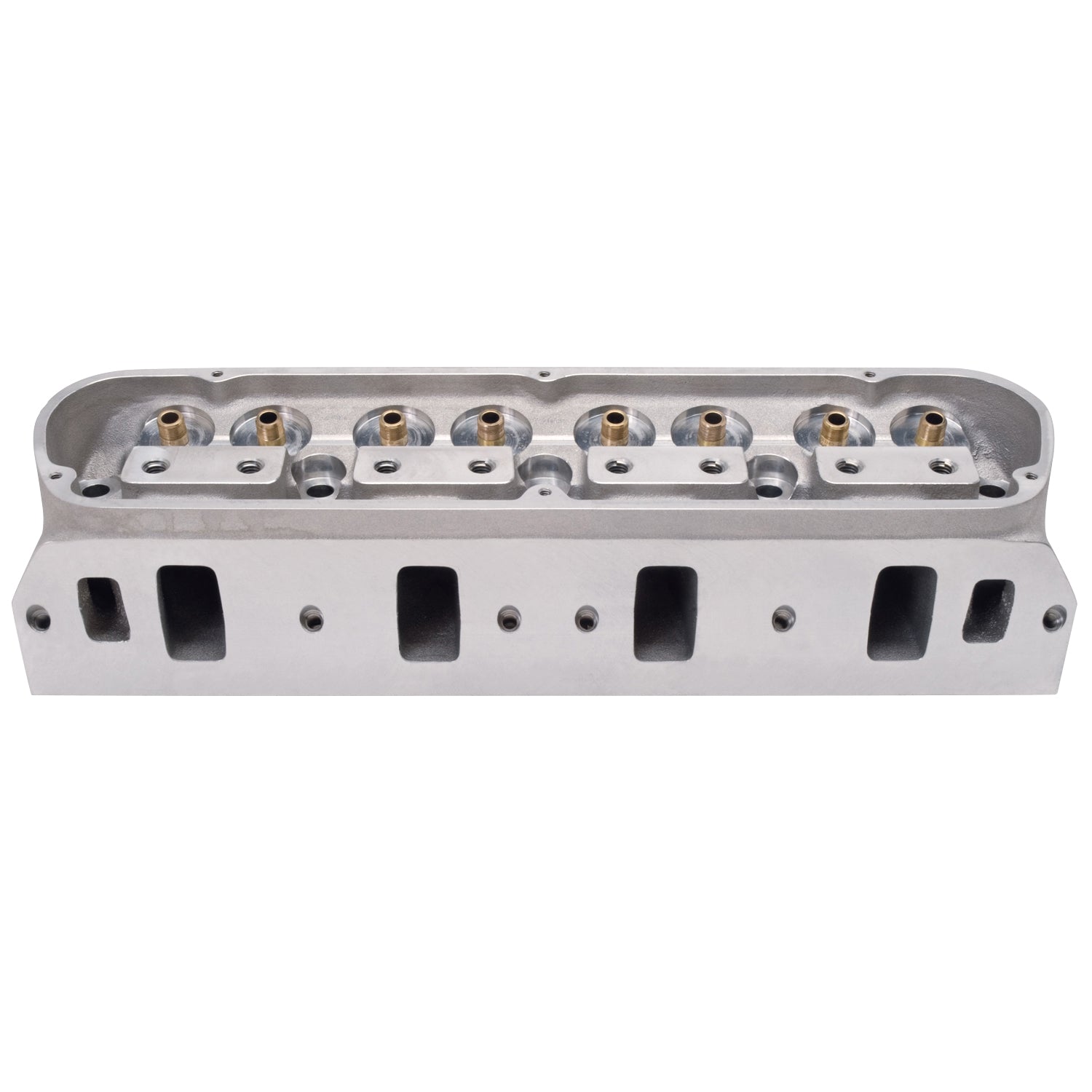

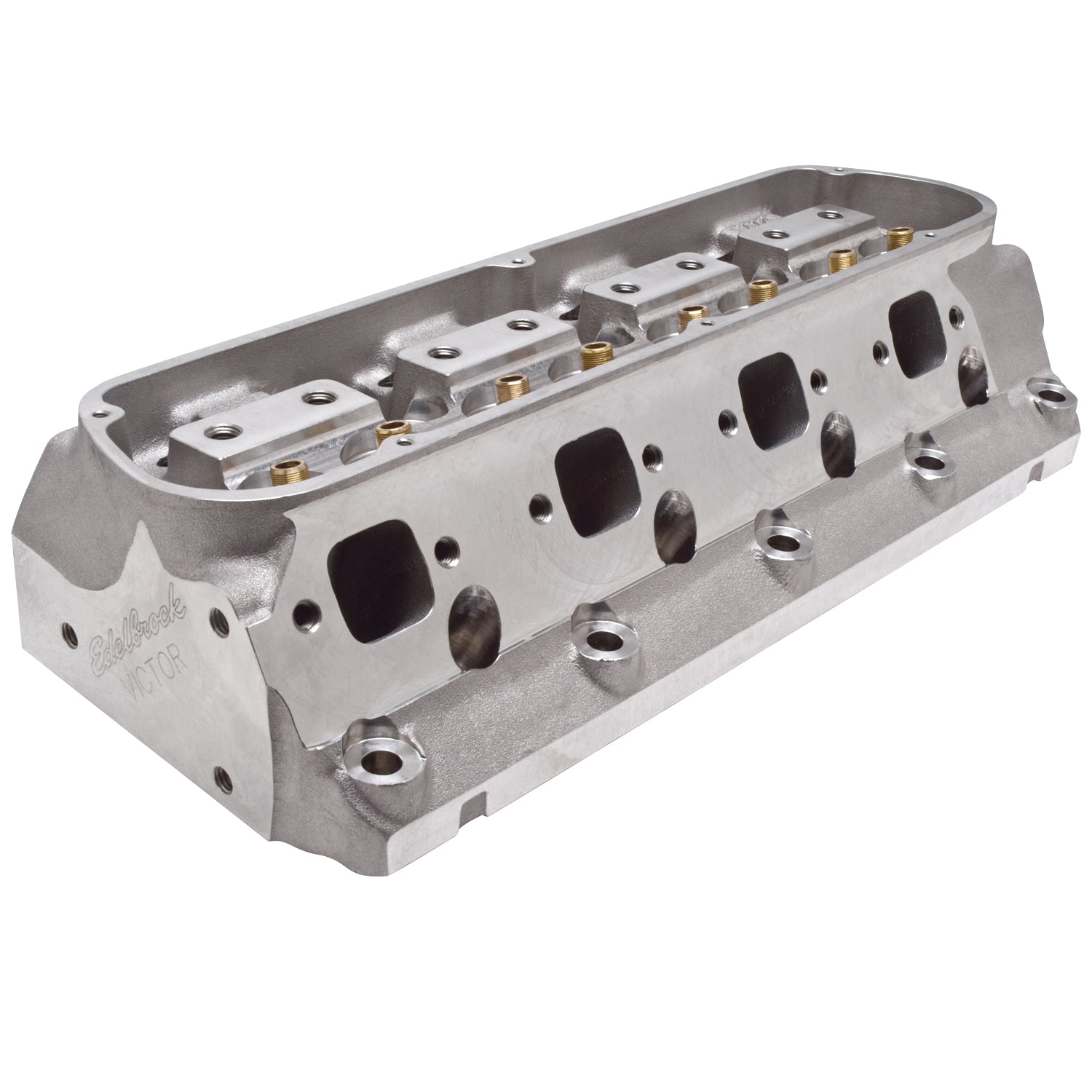

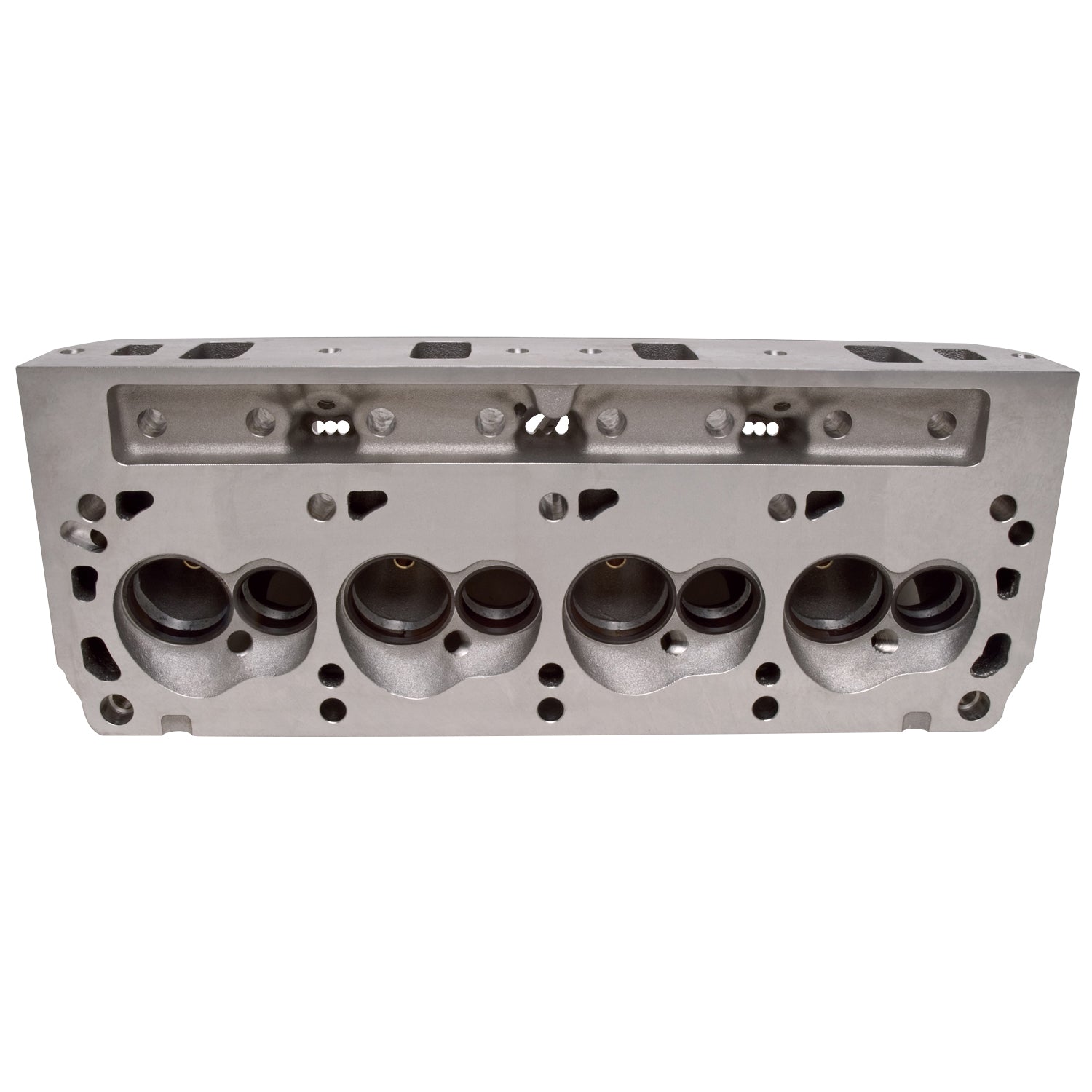

The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380"
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Ford:Small-Block:289 (4.7L)-351W (5.8L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock part #77219 Victor Semi-Finished 15 Degree is a bare cylinder head designed for S/B Ford 289-351W engines. The inline valve configuration features a 15 degree valve angle and a modern combustion chamber. |
| Description_LAB |
Victor Jr Small-Block Ford Cylinder Head Bare |
| Description_MKT |
The Edelbrock part #77219 Victor 15 Deg Small Block Ford 240cc cylinder head is designed for maximum effort competition racing on 289 - 351+ cubic inch based engines. The inline valve configuration features a 15 Deg valve angle and a modern combustion chamber design allows for high compression without large piston domes. The intake ports are raised .380" |
| Description_MKT |
however the intake flange has been extended to maintain proper port alignment with standard intake manifolds. The exhaust ports are patterned with a 2.50" spacing and raised .520" for high flow potential. This head requires shaft mounted rockers |
| Description_MKT |
please contact Jesel or T&D for details. Features include 47cc combustion chambers, ductile iron interlocking valve seats, manganese-bronze valve guides and requires professional preparation. Edelbrock recommends 2.125" intake valves and 1.625" exhaust valves with 5.45" overall length. |
| Description_INV |
Edelbrock SBF Cylinder Head |
| Description_TRA |
This head requires the use of a 14mm x 3/4" reach, flat gasket spark plug with a heat range appropriate to your application. Deck thickness: 5/8". |
| CNC Ported |
No |
| Valve Included |
No |
| Series |
Victor |
| Family |
Victor |
| Quantity |
Sold Individually |
| Deck Thickness |
0.625 |
| Construction Type |
Bare |
| Intake Runner Volume |
240 |
| Grade Type |
Performance |
| Material |
Aluminum |
| Guide Plates Included |
No |
| Seat Material |
Ductile Iron |
| Exhaust Runner Volume |
80 |
| Guide Material |
Manganese Bronze |
| Valve Springs Included |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Horsepower |
400-1000 |
| Exhaust Port Location |
+.550 |
| Head Casting Number |
N/A |
| Retainer Included |
No |
| Combustion Chamber Volume |
47 |
| Length |
7.0000 |
| Width |
10.0000 |
| Height |
22.0000 |
| Weight |
30.0000 |
