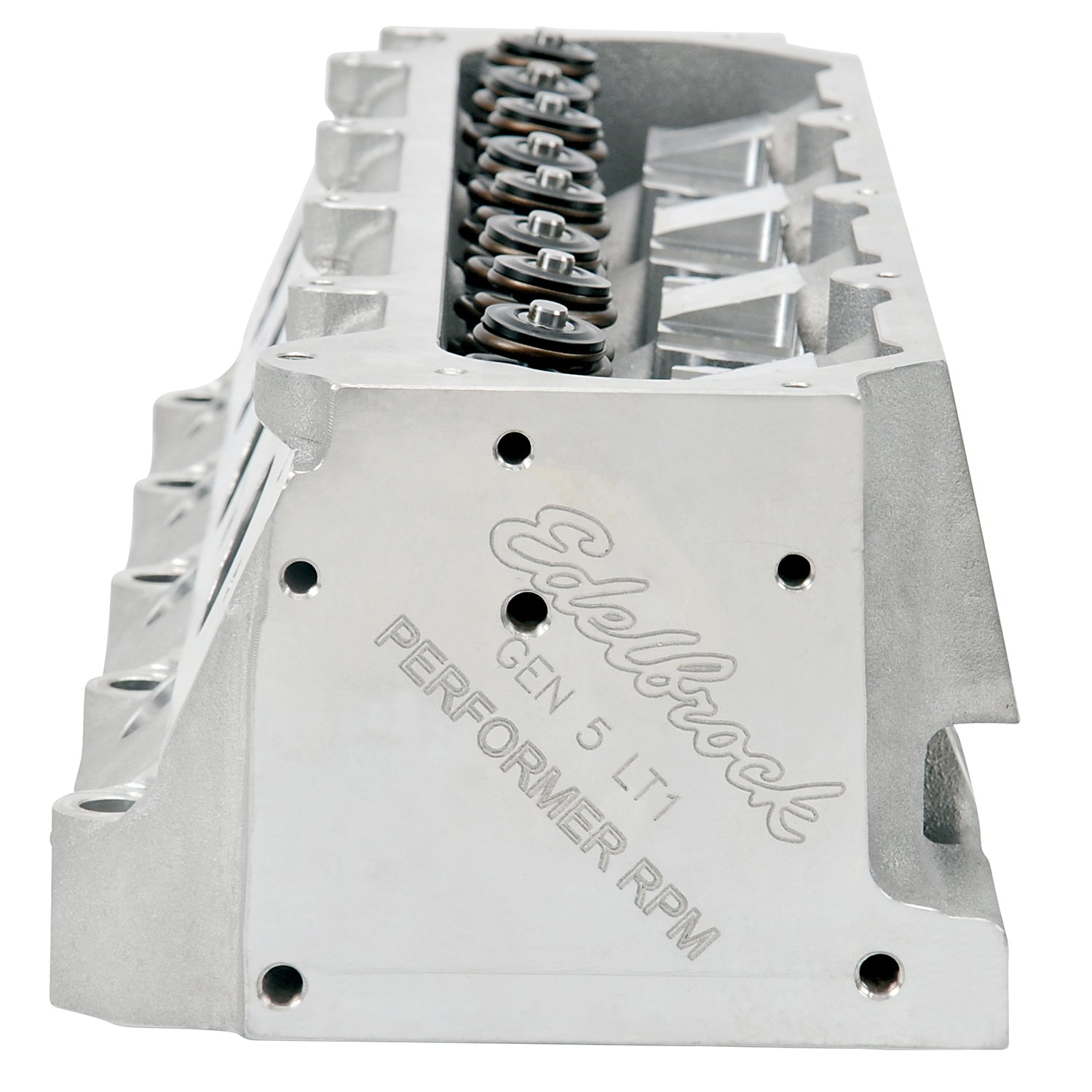

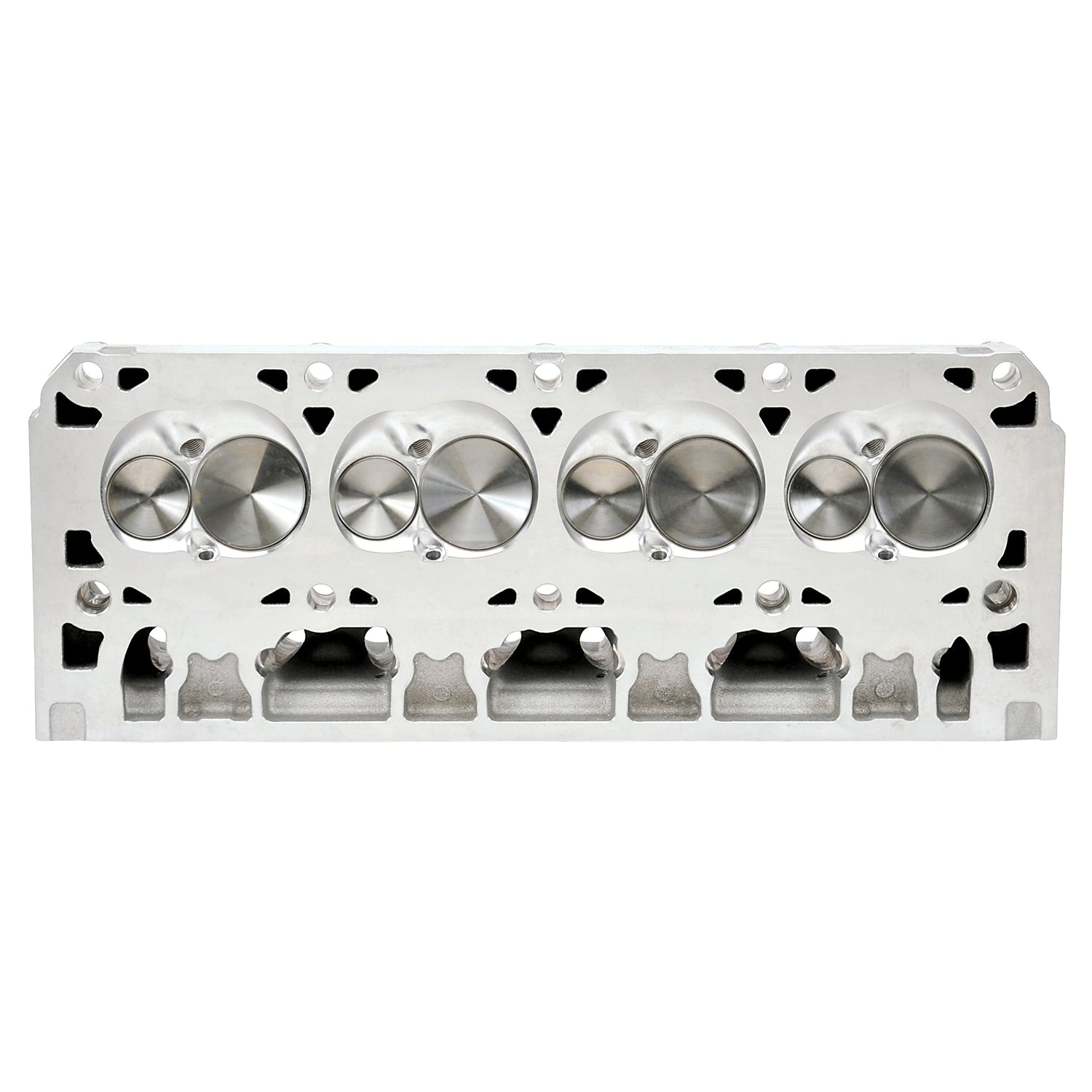

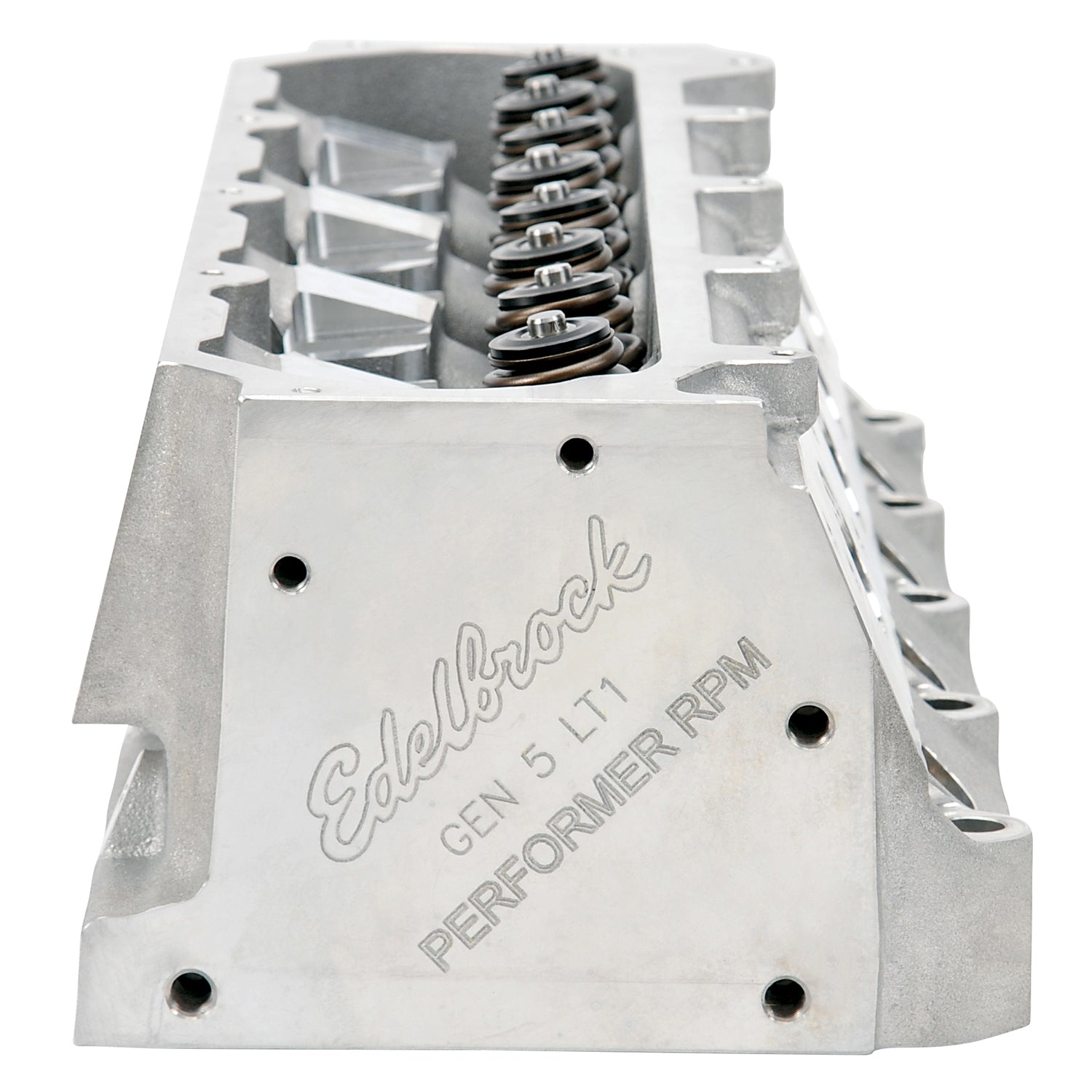

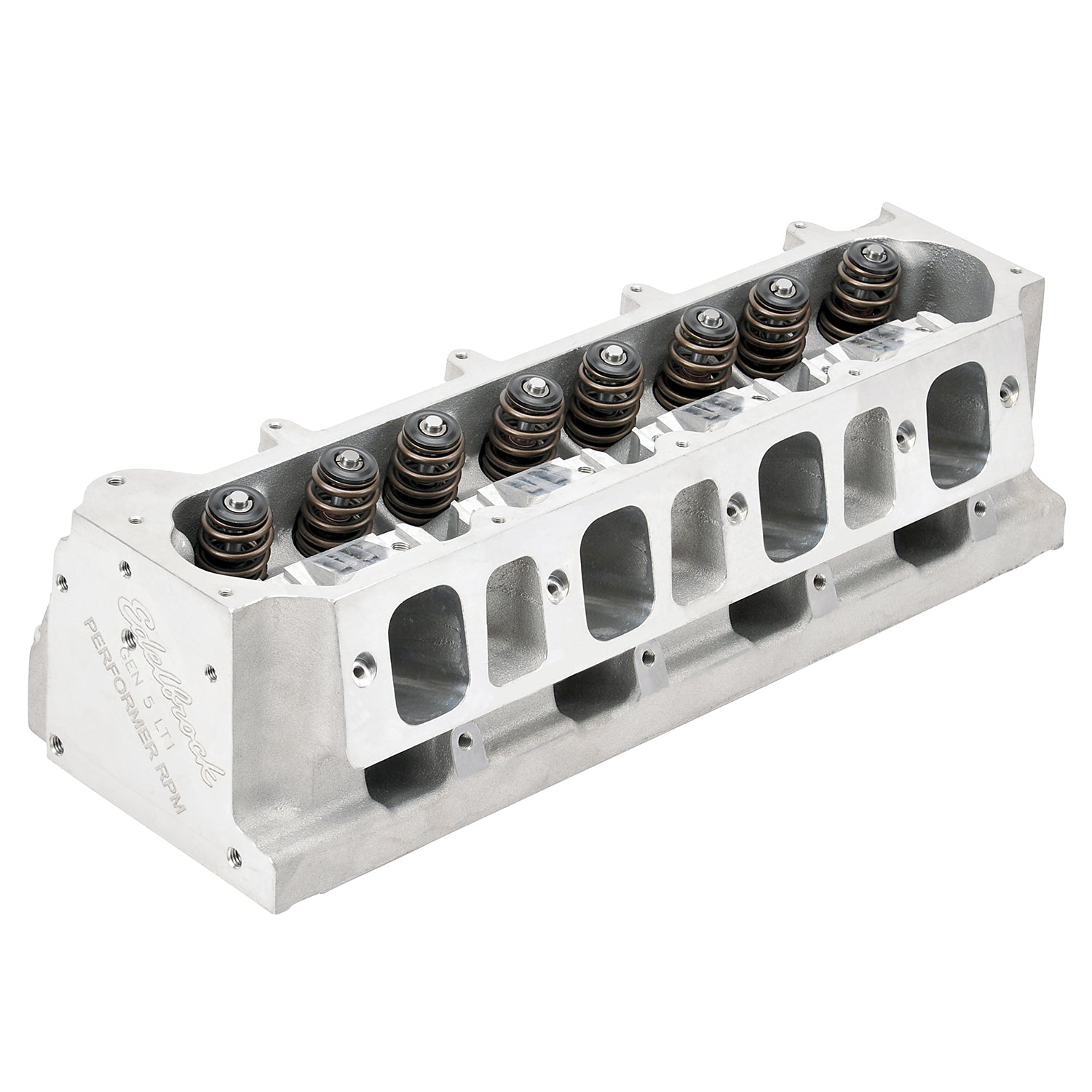

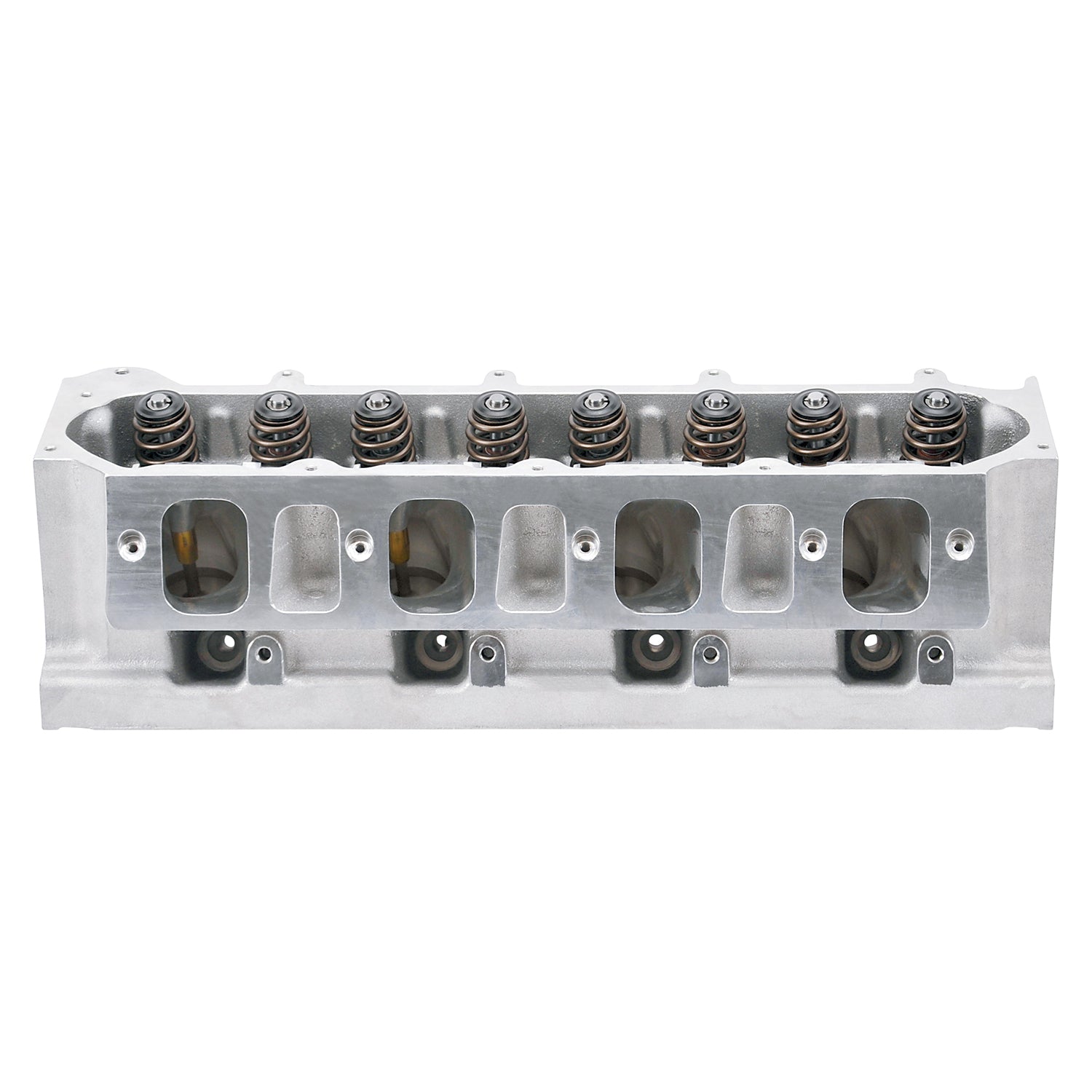

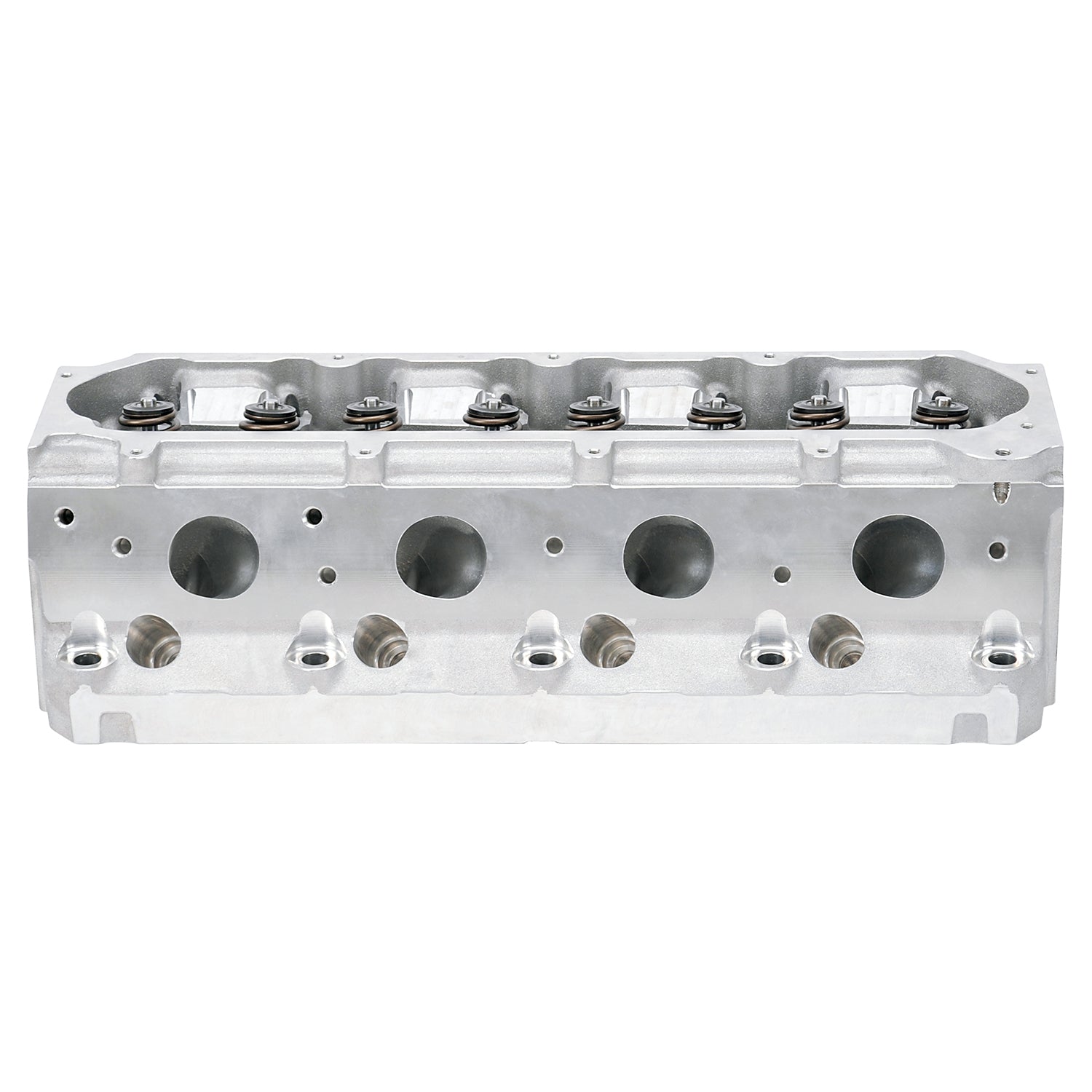

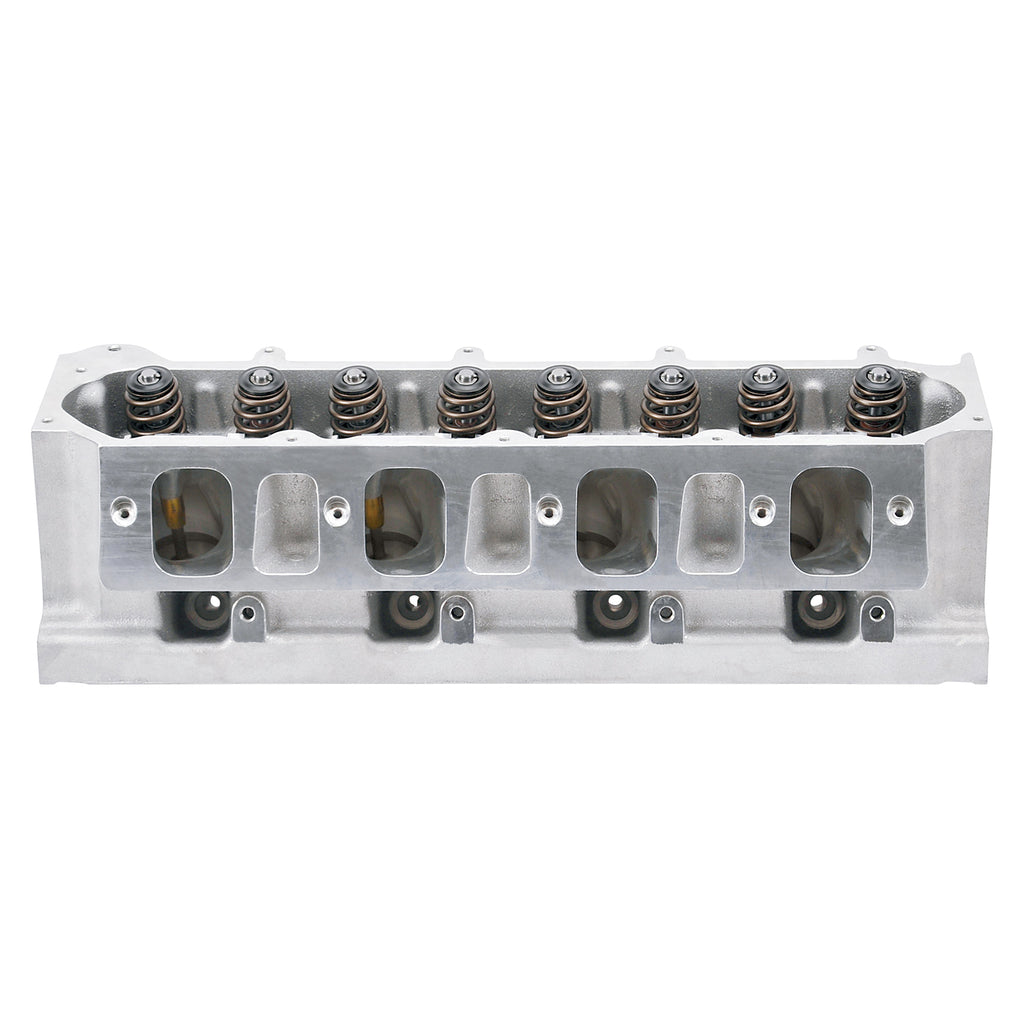

The Edelbrock part #77119 LT1 (Gen V) Performance RPM cylinder head is ideal for street engines and are engineered to be a great high-performance upgrade for stock GM Gen V LT1 engines. It has been designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength and durability. This cylinder head features CNC machined chambers as well as CNC blended valve seats, intake and exhaust ports for consistency. They have been designed with high flow intake, exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. The Performer RPM retains the stock rocker arm, intake/exhaust ports and spark plug location for use with factory components. Like all the other cylinder head, this has been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust. - Combustion chamber volume: 58cc - Intake runner volume: 305cc - Exhaust runner volume: 115cc - Intake valve diameter: 2.165" - Exhaust valve diameter: 1.600"
Specifications:
| Description_ABR |
Cyl. Head |
| Description_ASM |
Chevrolet:Small-Block Gen V LT1:376 (6.2L) |
| Description_DEF |
Engine Cylinder Head |
| Description_EXT |
Edelbrock part #77119 Complete Performer RPM cylinder heads are ideal for street engines and are engineered to be a great high-performance upgrade for stock GM Gen V LT1 engines. |
| Description_MKT |
The Edelbrock part #77119 LT1 (Gen V) Performance RPM cylinder head is ideal for street engines and are engineered to be a great high-performance upgrade for stock GM Gen V LT1 engines. It has been designed with a thicker deck and more material in the intake, exhaust and port walls for improved strength and durability. This cylinder head features CNC machined chambers as well as CNC blended valve seats, intake and exhaust ports for consistency. They have been designed with high flow intake, exhaust ports and back cut intake valves for improved air flow. The valve position has also been revised to accommodate interlocking valve seat rings and larger valves. The Performer RPM retains the stock rocker arm, intake/exhaust ports and spark plug location for use with factory components. Like all the other cylinder head, this has been designed, tested and cast from 356 aluminum and heat treated to T-6 specs in our facilities in Southern California to guarantee you get the best from a name you can trust. - Combustion chamber volume: 58cc - Intake runner volume: 305cc - Exhaust runner volume: 115cc - Intake valve diameter: 2.165" - Exhaust valve diameter: 1.600" |
| Description_LAB |
RPM Gen V LT1 Chevy Cylinder Head Hydraulic Roller Camshaft |
| Description_INV |
Edelbrock SBC LT1 Cylinder Head |
| Description_TRA |
Match with Edelbrock head gasket sets. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat. |
| Exhaust Port Location |
Standard |
| Guide Material |
Manganese Bronze |
| Head Casting Number |
N/A |
| Exhaust Runner Volume |
115 |
| Retainer Included |
Yes |
| Exhaust Valve Diameter |
1.60 |
| Camshaft Type |
Hydraulic Roller |
| Valve Spring Maximum Lift |
0.650 |
| Valve Springs Included |
Yes |
| EGR Port |
No |
| Seat Material |
Ductile Iron |
| Valve Stem Diameter |
0.314961 |
| Intake Runner Volume |
305 |
| Intake Valve Diameter |
2.165 |
| Valve Included |
Yes |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| CNC Ported |
Yes |
| Seat Angle |
Exhaust 45 deg/Intake 45 |
| Horsepower |
600+ |
| Series |
Performer RPM |
| Combustion Chamber Volume |
61 |
| Valve Spring Diameter |
1.32 |
| Material |
Aluminum |
| Guide Plates Included |
No |
| Quantity |
Sold Individually |
| Construction Type |
Complete |
| Grade Type |
Performance |
| Deck Thickness |
0.7500 |
| Valve Angle |
Exhaust 11.8 X 1 deg/Intake 12 x 4 |
| Family |
Performer RPM |
| Length |
7.0000 |
| Width |
10.0000 |
| Height |
22.0000 |
| Weight |
25.0000 |
