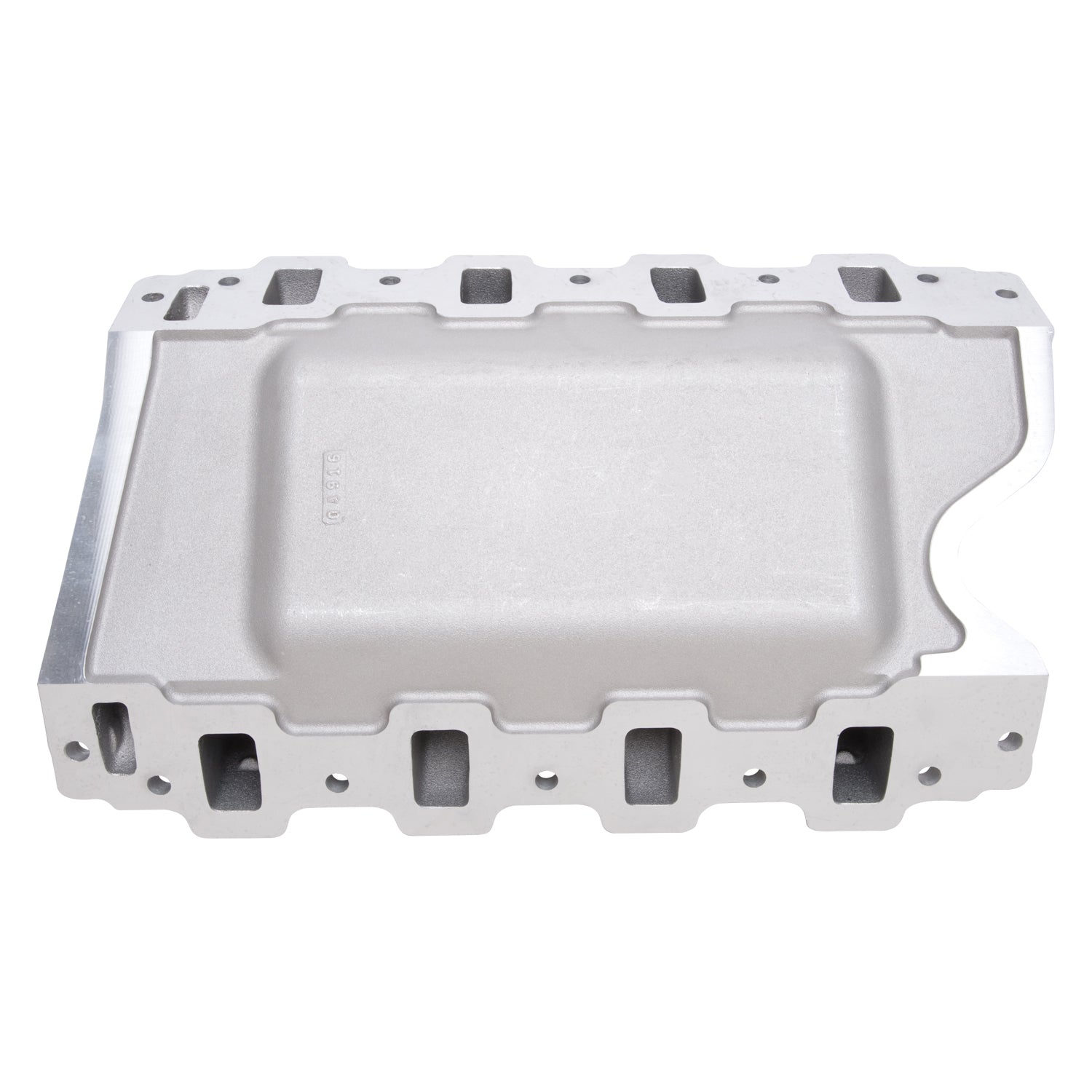

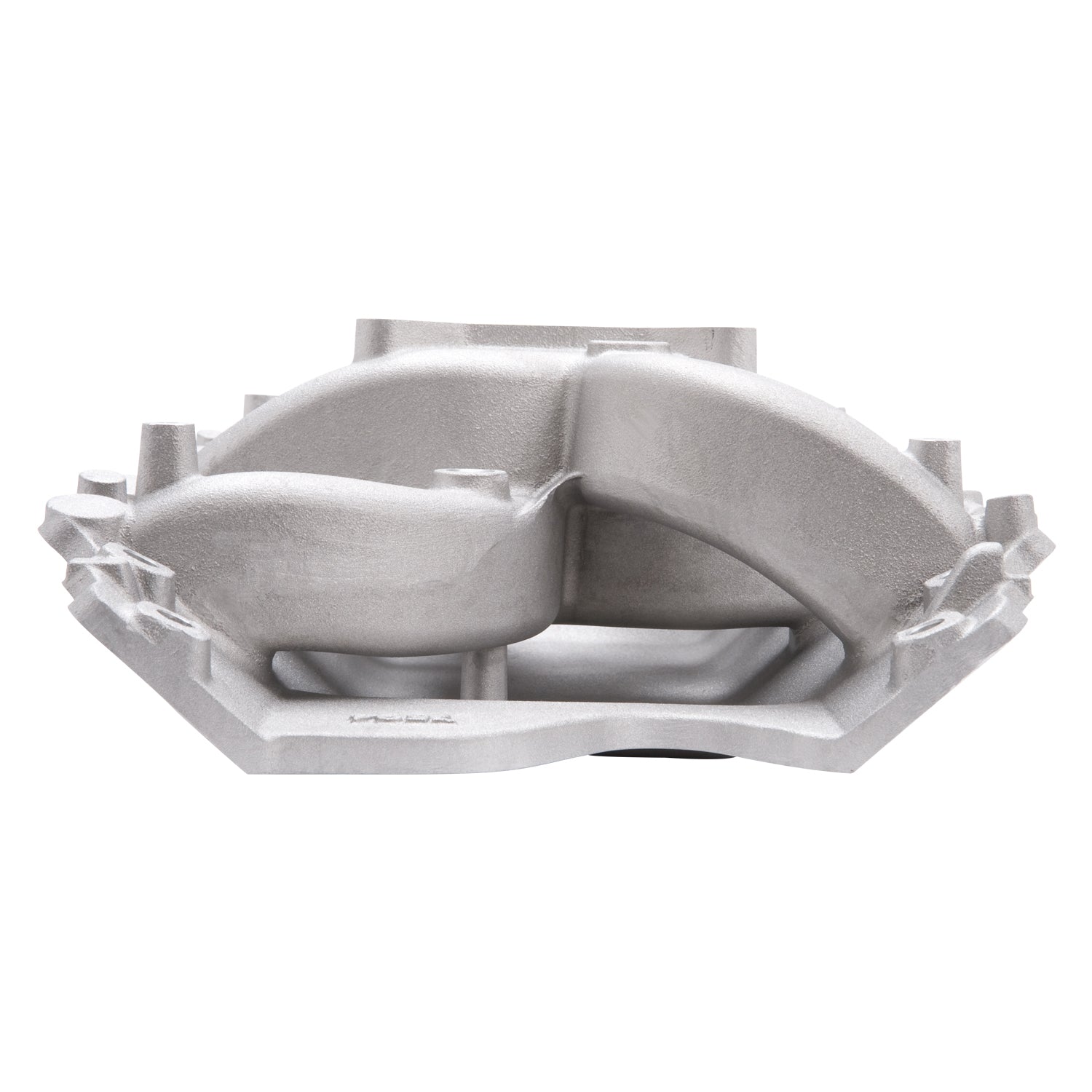

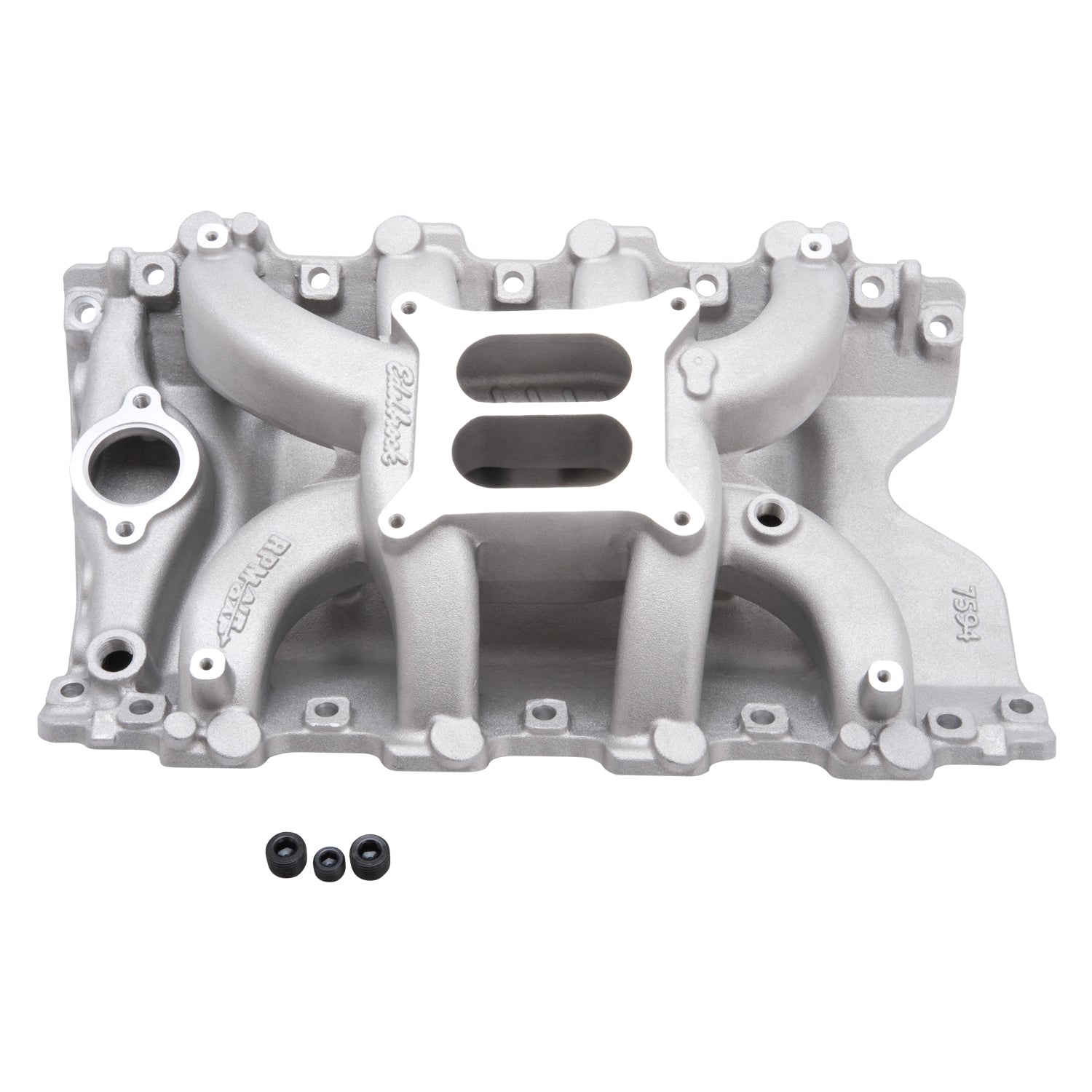

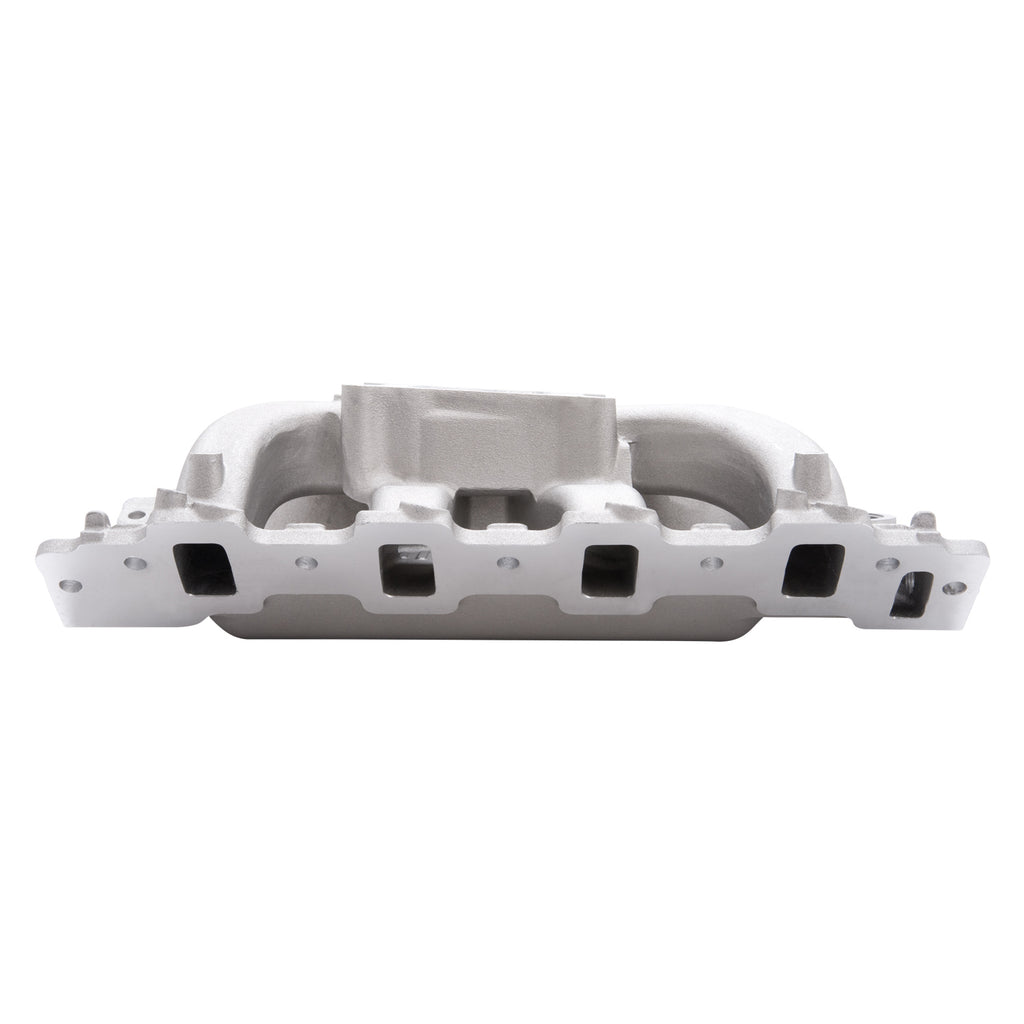

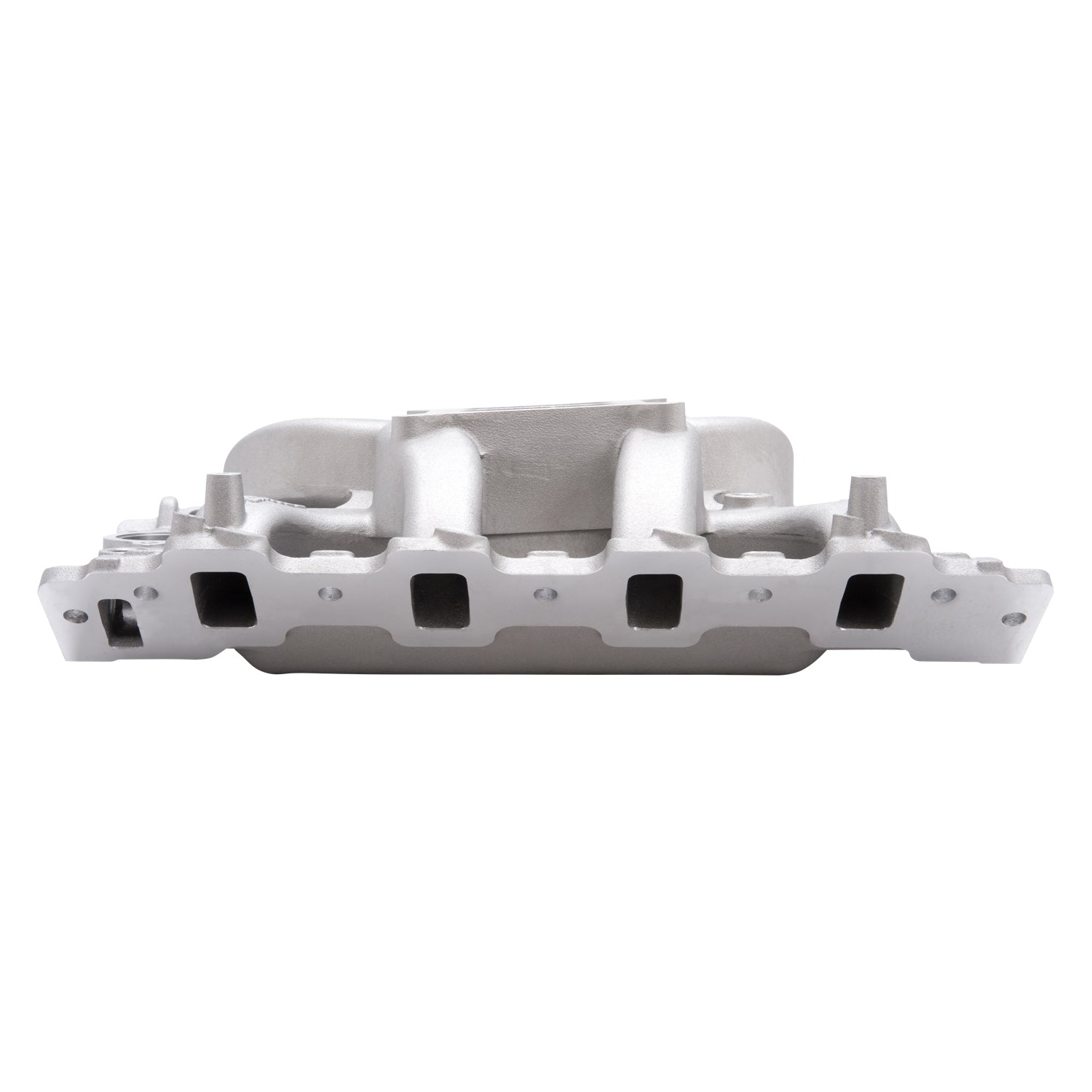

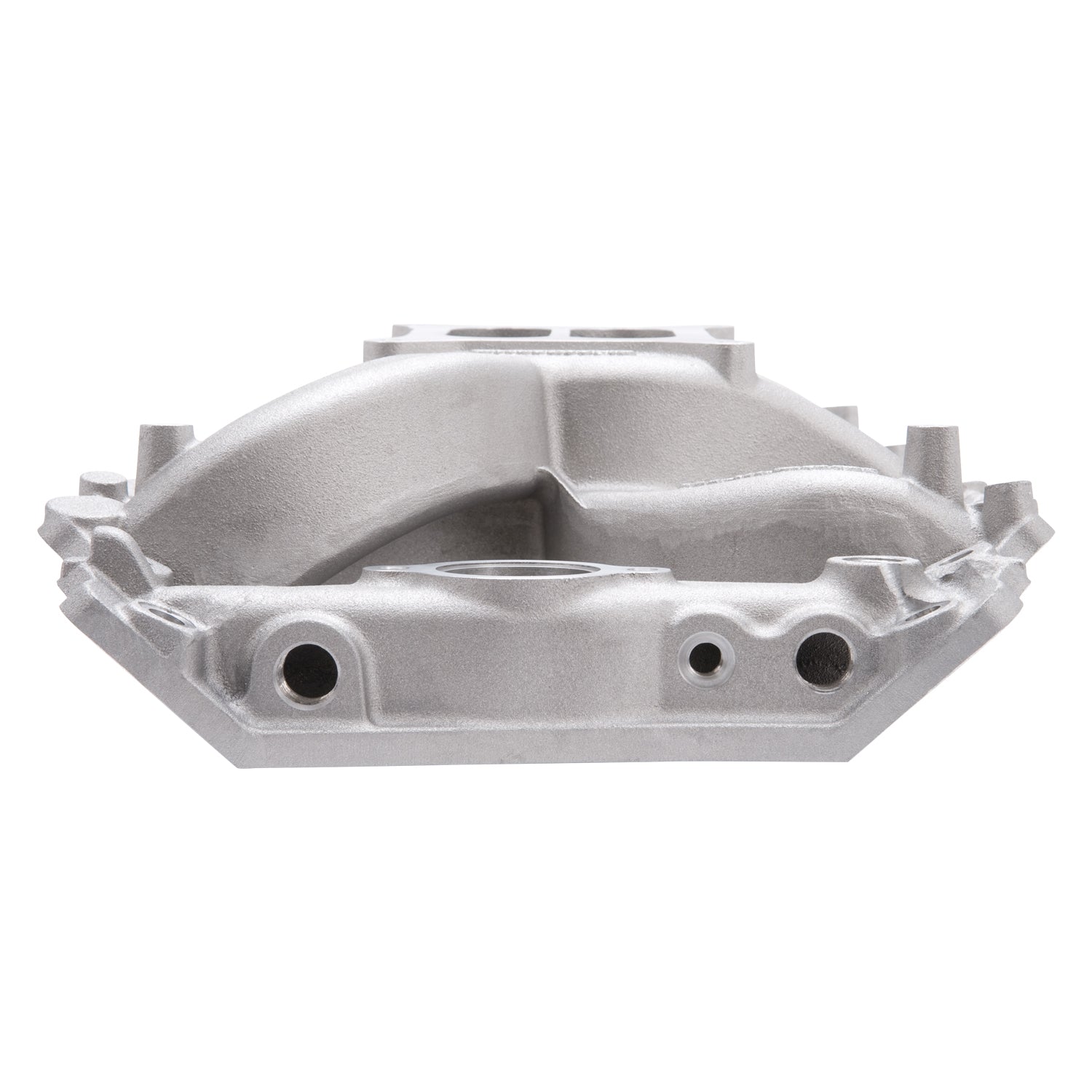

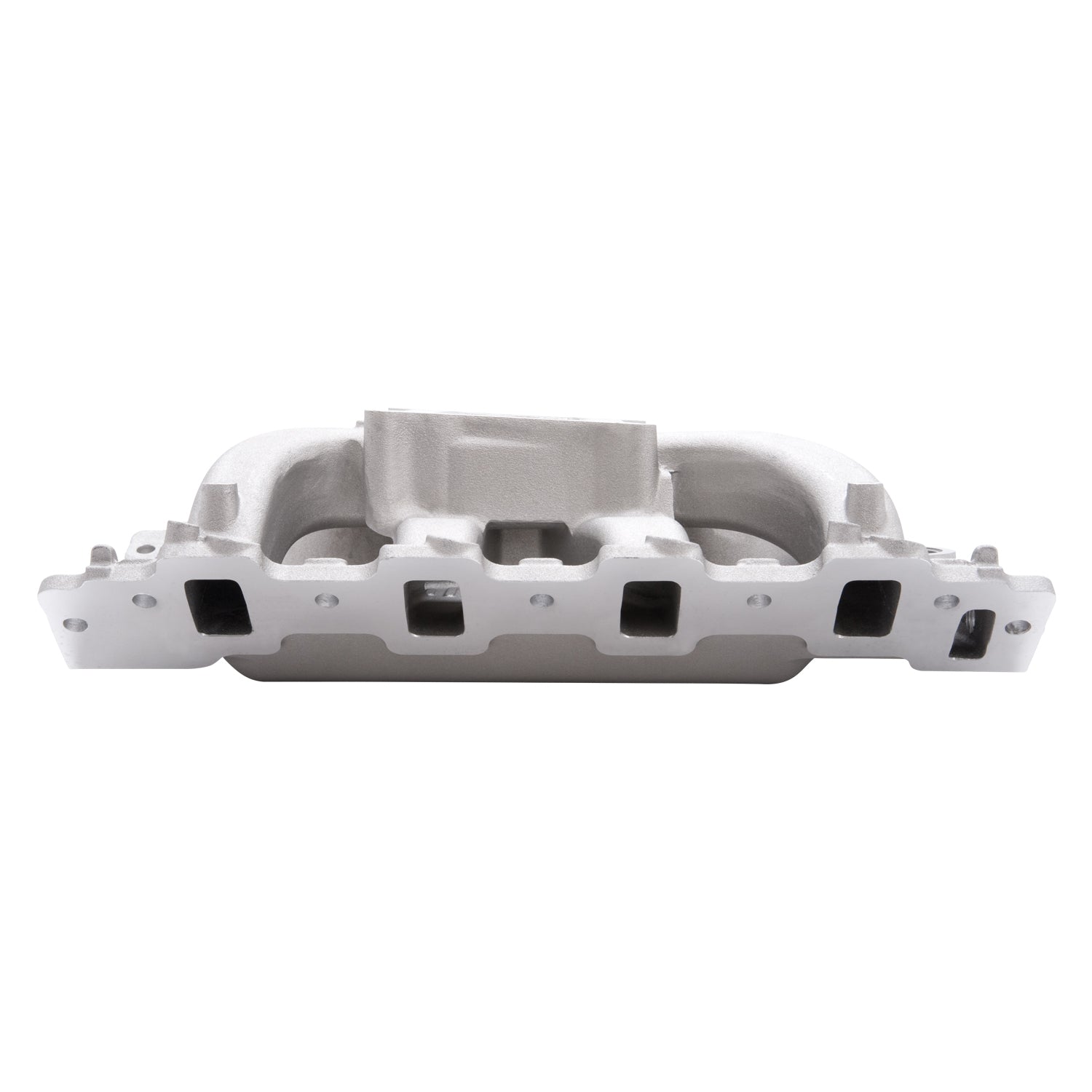

Edelbrock 7594 RPM Air-Gap Holden 1988-98 Intake

2 sold in last 8 days

Brand: Edelbrock

SKU: ds_BDVJ_7594

Stock:

Product Code: Engine Intake Manifold

$826.96

Quantity

Quantity must be 1 or more

I agree to the Terms & Conditions, including Refund and Shipping Policies.

0 customers are viewing this product

Edelbrock 7594 RPM Air-Gap Holden 1988-98 Intake

Details
Reviews

Details

Edelbrock part #7594 RPM Air-Gap intake manifold is designed for street and high performance 308-383 c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm. This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.

Specifications:

Description_ABR	Intake Mnfld
Description_ASM	Holden:-:308 (5.0L)-383 (6.3L)
Description_DEF	Engine Intake Manifold
Description_EXT	Edelbrock RPM Air-Gap Holden 1988-98 Intake Manifold
Description_INV	RPM Air-Gap Holden 1988-98 Intake
Description_MKT	Edelbrock part #7594 RPM Air-Gap intake manifold is designed for street and high performance 308-383 c.i.d. Holden V8 engines that utilize the 1988-98 Holden VN cylinder heads. This RPM Air-Gap manifold is a dual-plane design that is tuned for both excellent throttle response and greater horsepower from 1500 to 6500 rpm. This manifold has been designed to fit both stock 1988-1998 EFI style heads and the Edelbrock Holden VN RPM cylinder heads.
Description_LAB	RPM Air-Gap Holden 253-304-308 1988-98 Intake Manifold
Description_TRA	Recommended intake gasket HA424
Description_TRA	Do not use high performance or competition type intake gaskets for street application. Due to material deterioration under street driving conditions, internal leakage of both vacuum and oil may occur.
Description_TRA	Manifold height: A-4.80", B-5.82"
Description_TRA	Carb pad height: 5.31"
Description_TRA	Carb recommendations: Edelbrock AVS2 or Performer Series 600-750 cfm.
Description_TRA	Port exit dimensions: 1.16" x 2.00"
Description_TRA	Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.
Description_TRA	Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
Flange Type	4150
CNC Ported	No
Grade Type	Performance
Single Or Dual Plane Type	Dual
Finish	Satin
EGR Port	No
Rear Maximum Height	5.820
Series	RPM Air-Gap
Center Maximum Height	5.310
Material	Aluminum
Gasket Or Seal Included	No
Vehicle Model	Holden
Front Maximum Height	4.800
RGL	WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
Basic Operating RPM Range	1500-6500
Length	8.0000
Width	15.0000
Height	24.0000
Weight	24.0000
