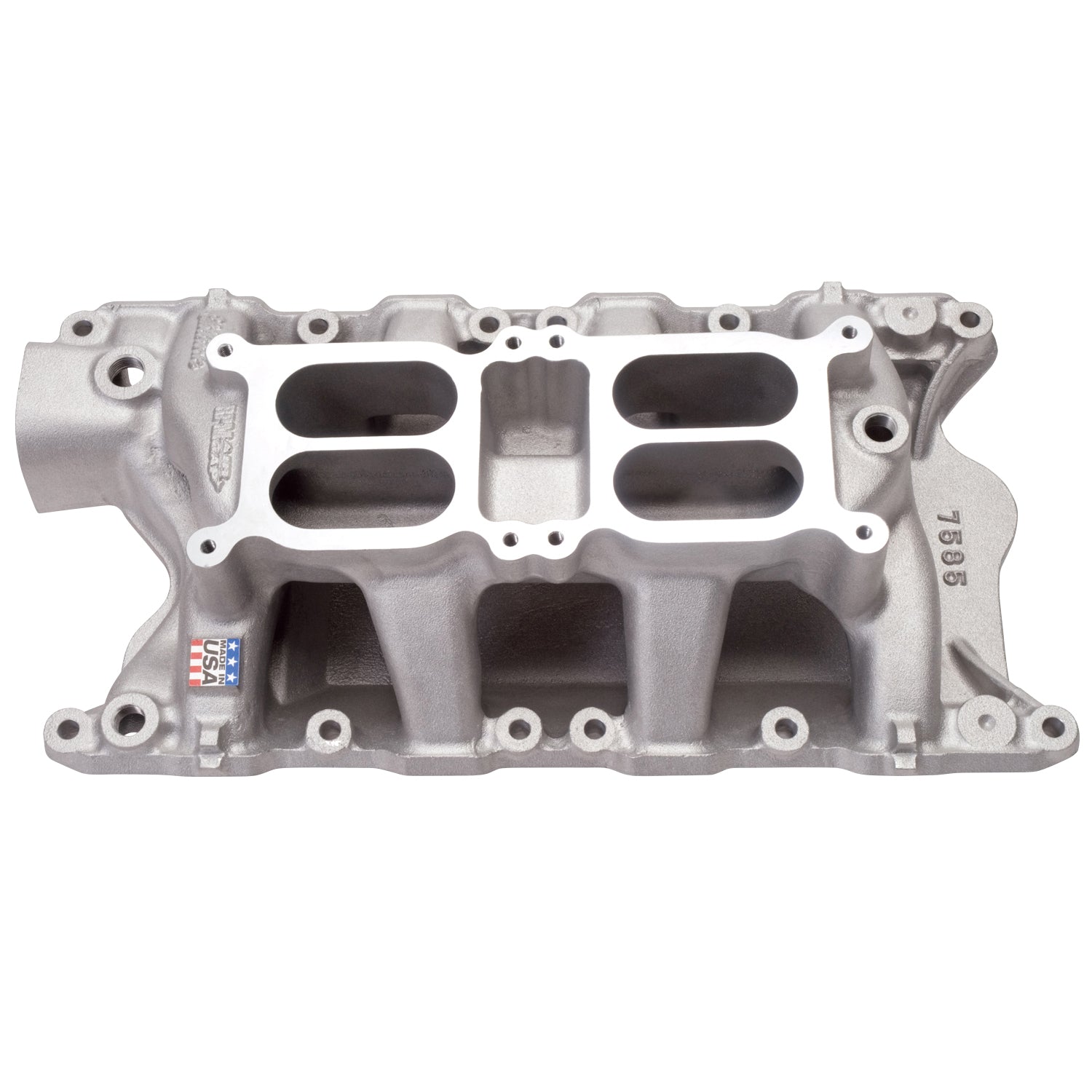

Edelbrock part #7585 RPM Air-Gap Dual-Quad 351W intake manifold is designed for 351W small-block Fords. This intake offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Includes bosses for rear water crossover. Carb center to carb center is 6-7/16".
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block Windsor:351W (5.8L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Performer RPM Air-Gap Dual-Quad Intake Manifold for 351W Ford Small Block Windsor engines |
| Description_MKT |
Edelbrock part #7585 RPM Air-Gap Dual-Quad 351W intake manifold is designed for 351W small-block Fords. This intake offers performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge and more horsepower. Includes bosses for rear water crossover. Carb center to carb center is 6-7/16". |
| Description_LAB |
RPM Air-Gap Dual-Quad Small Block Ford 351W Intake Manifold |
| Description_INV |
RPM Dual Quad Air-Gap 9.5 Deck Intake |
| Description_TRA |
Use 12-bolt intake gasket set Edelbrock #7220 recommended. For van installations use OEM Ford "van" intake gasket set |
| Description_TRA |
Manifold height: A-4.93", B-5.56" |
| Description_TRA |
Carb pad height: 4.32" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 Series #1903 and #1904, 500 cfm. |
| Description_TRA |
Port exit dimensions: 1.05" x 1.89" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Gasket Or Seal Included |
No |
| Center Maximum Height |
5.370 |
| Front Maximum Height |
4.930 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Ford |
| Series |
RPM Air-Gap |
| Flange Type |
4150 Dual-Quad (4-Barrel Square Bore) |
| Rear Maximum Height |
5.560 |
| Material |
Aluminum |
| EGR Port |
No |
| CNC Ported |
No |
| Single Or Dual Plane Type |
Dual |
| Basic Operating RPM Range |
1500-6500 |
| Grade Type |
Performance |
| Finish |
Satin |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
22.0000 |
