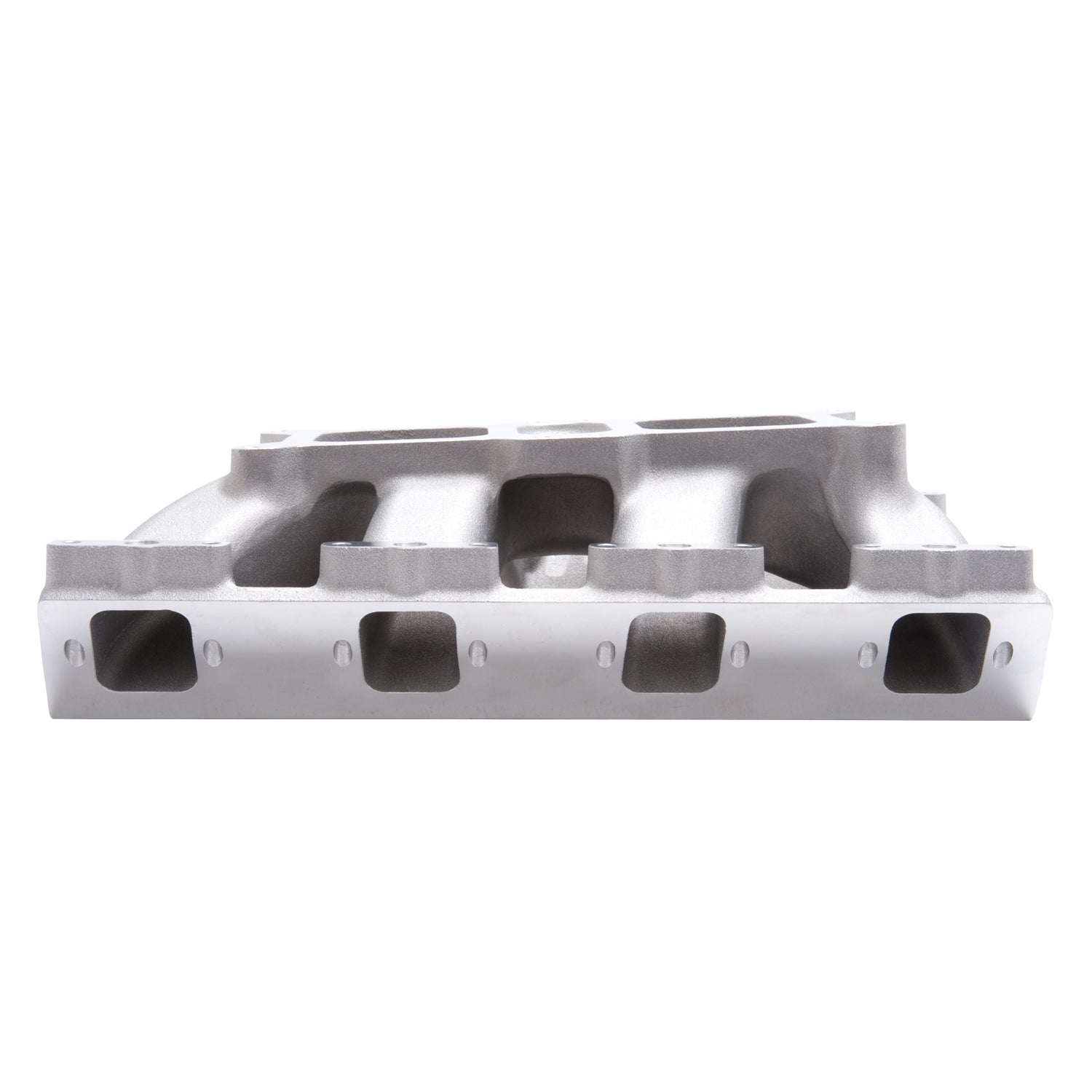

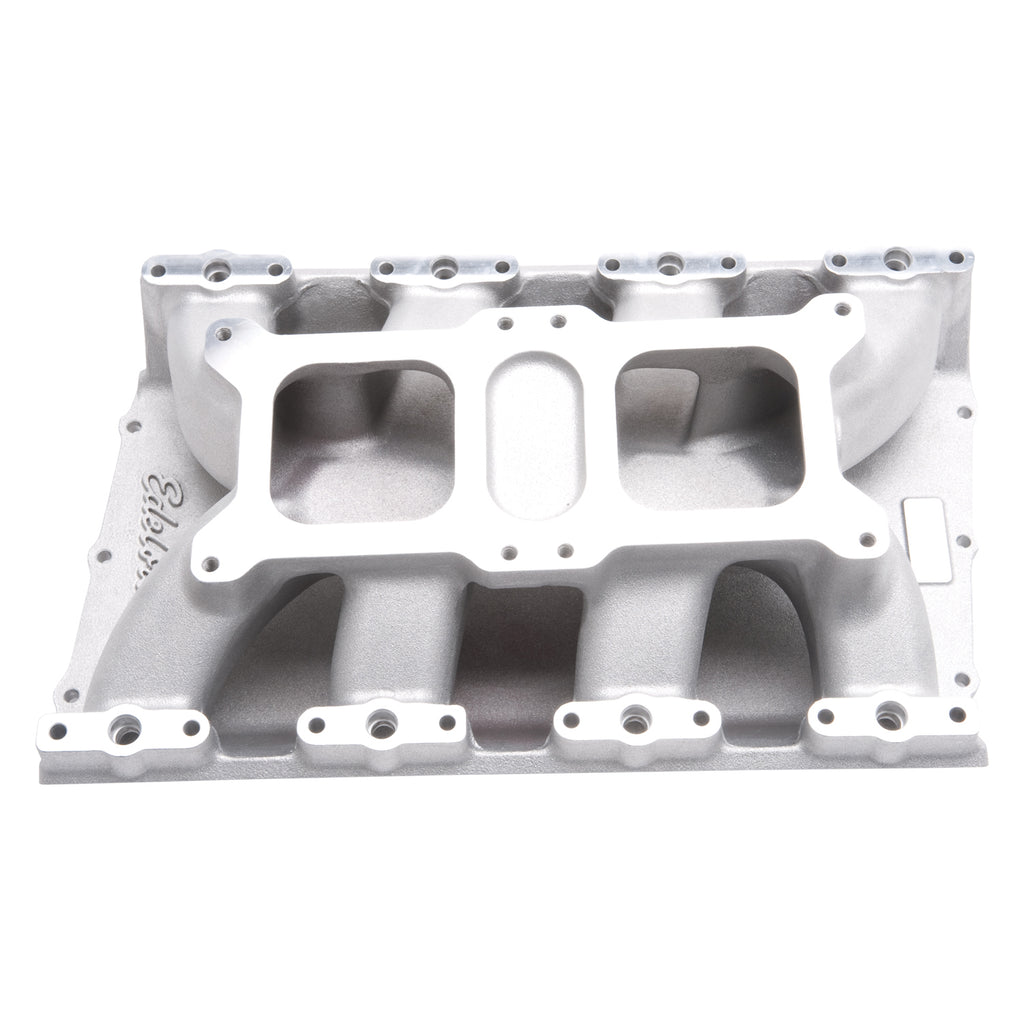

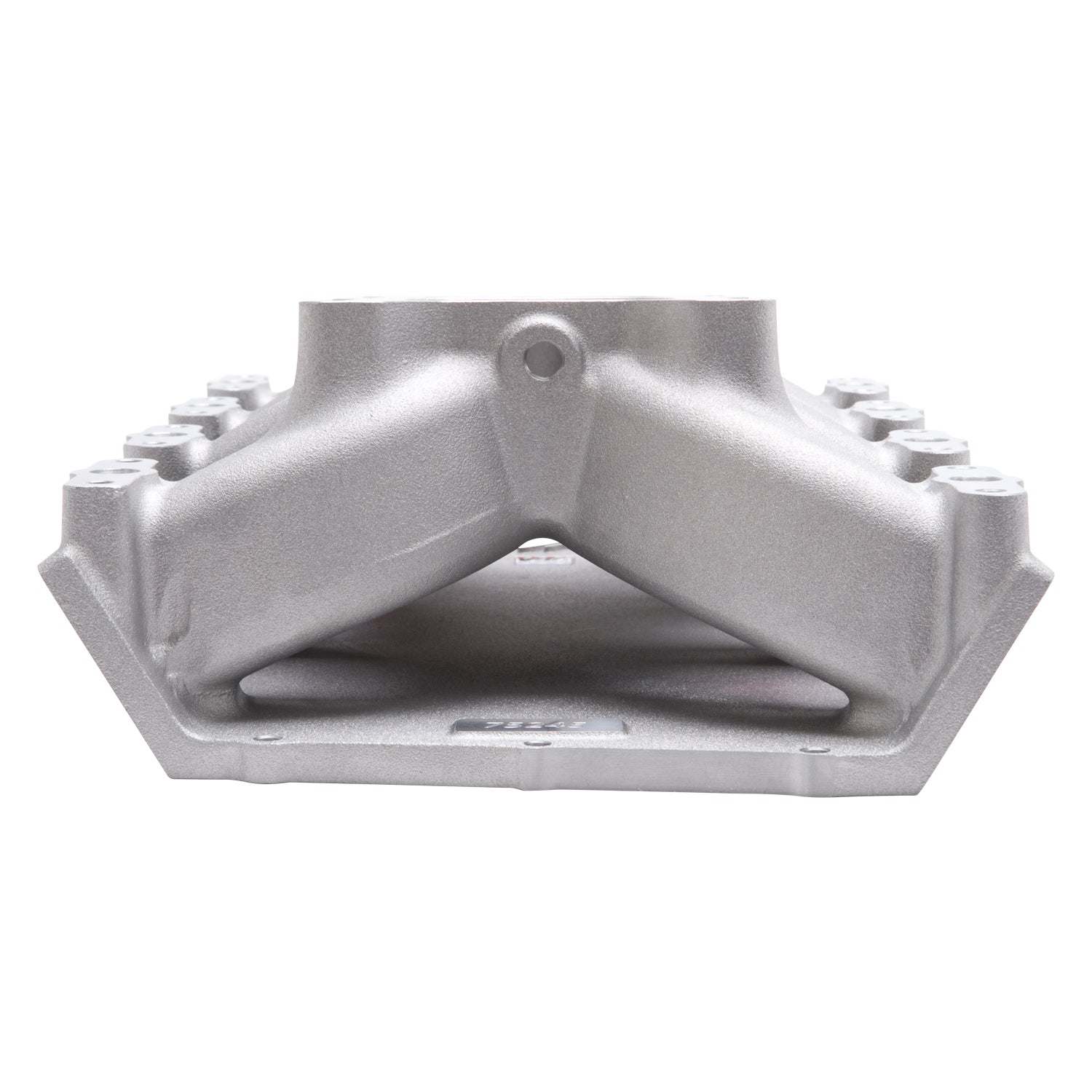

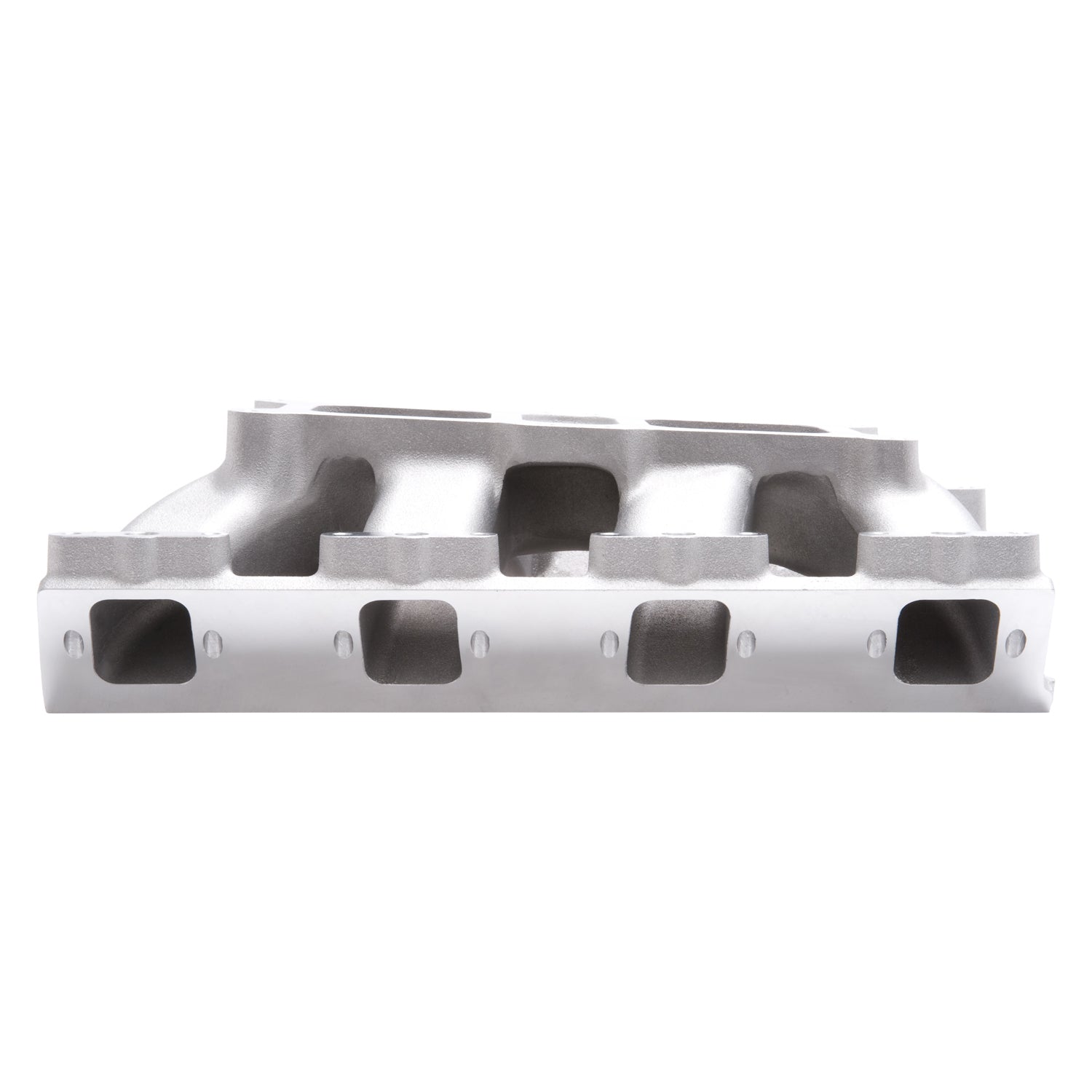

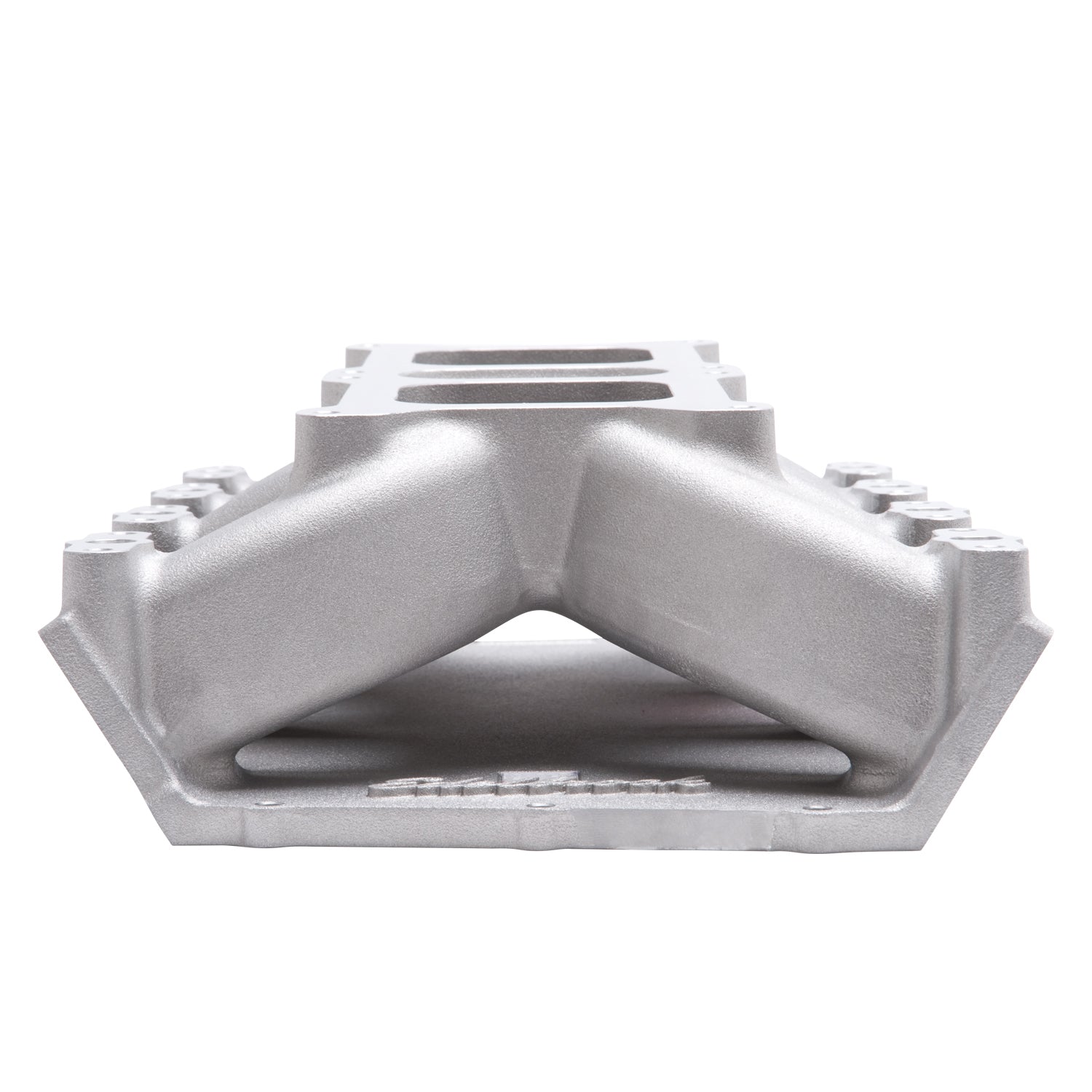

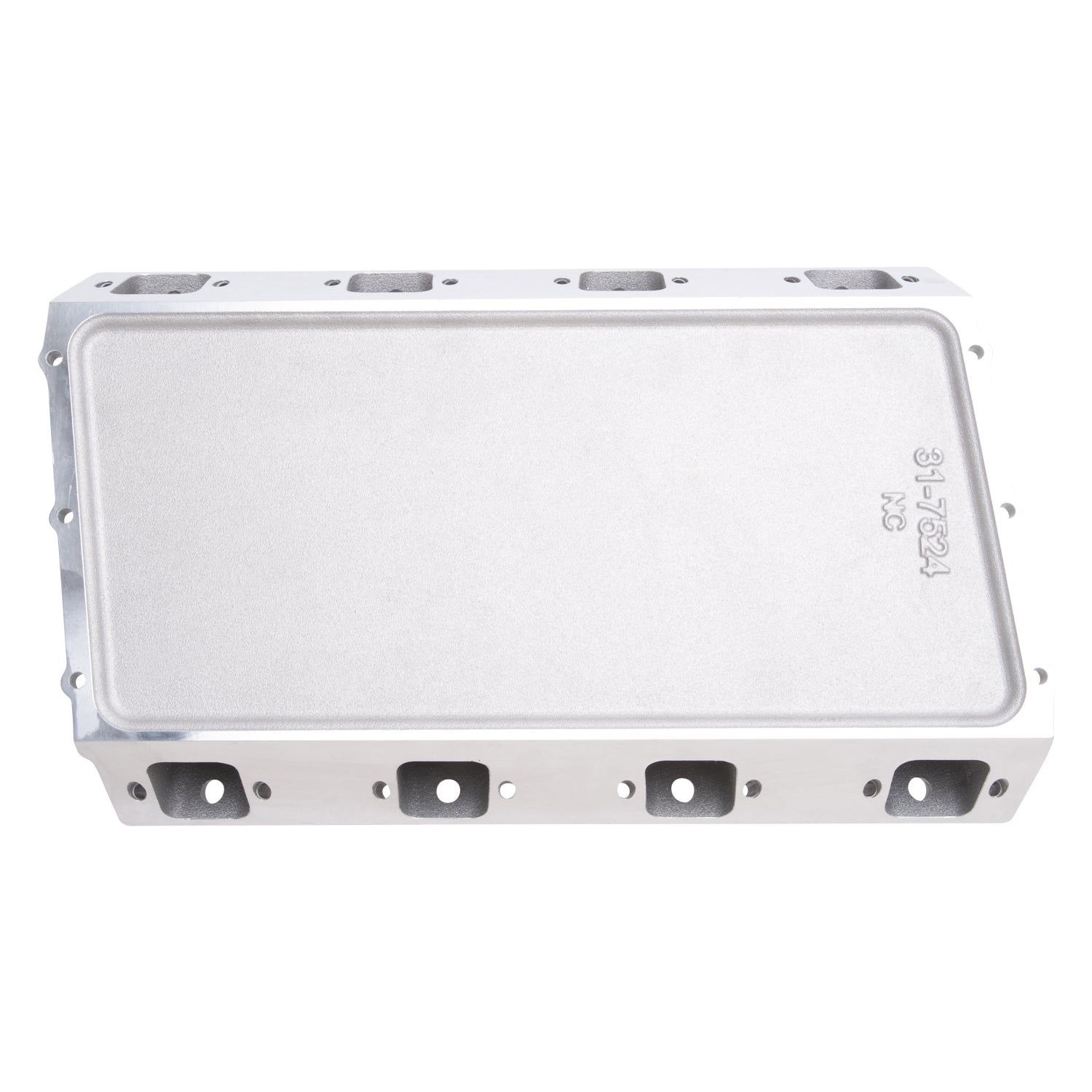

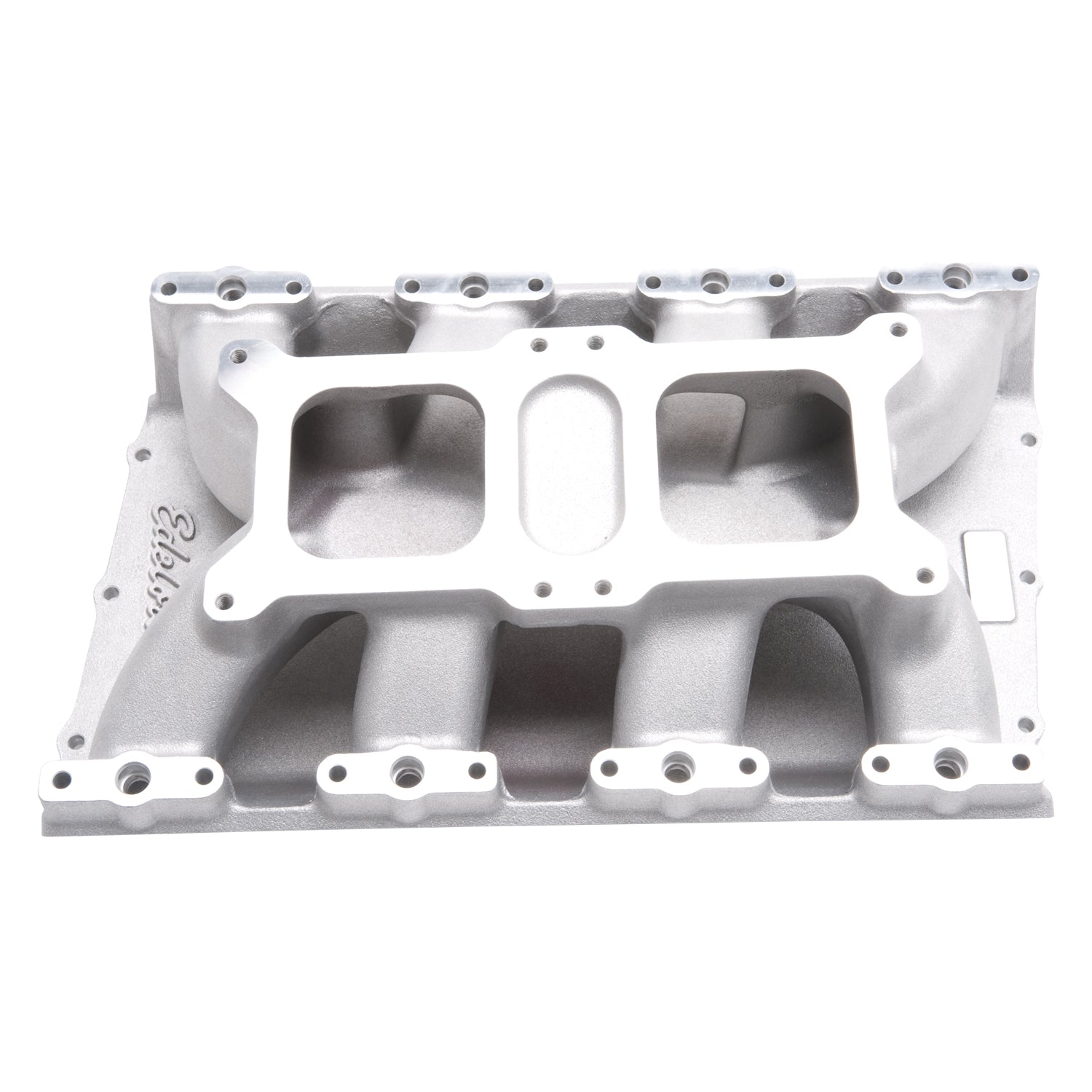

Edelbrock part #75245 Dual-Quad HEMI EFI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style throttle body pad. Throttle body spacing and height are the same as Mopar Performance dual-quad #P5153737, making it a direct bolt-on to all vehicles with a shaker hood. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket #8079 for use with OE style coils.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Chrysler:Gen II HEMI:426 (7.0L)/572 (9.4L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock Dual-Quad Chrysler Gen II 426-572 HEMI EFI Intake Manifold |
| Description_LAB |
Dual-Quad Hemi Gen II EFI Intake Manifold |
| Description_MKT |
Edelbrock part #75245 Dual-Quad HEMI EFI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style throttle body pad. Throttle body spacing and height are the same as Mopar Performance dual-quad #P5153737, making it a direct bolt-on to all vehicles with a shaker hood. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket #8079 for use with OE style coils. |
| Description_INV |
Eshine RPM Dual Quad Gen 3 Hemi Intake |
| Description_TRA |
Recommended intake gasket: Edelbrock #7278 |
| Description_TRA |
Manifold height: A-4.68", B-5.51" |
| Description_TRA |
Carb pad height: 5.10" |
| Description_TRA |
Port exit dimensions: 1.80" x 1.98" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Finish |
Satin |
| CNC Ported |
No |
| EGR Port |
No |
| Series |
Dual-Quad/Multi Carb |
| Flange Type |
4150 Dual-Quad |
| Grade Type |
Performance |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Single |
| Rear Maximum Height |
5.510 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
4.680 |
| Gasket Or Seal Included |
No |
| Vehicle Model |
Chrysler |
| Center Maximum Height |
5.100 |
| Basic Operating RPM Range |
2500-6500 |
| Length |
7.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
27.0000 |
