| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:Small-Block:289 (4.7L)-302 (5.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |

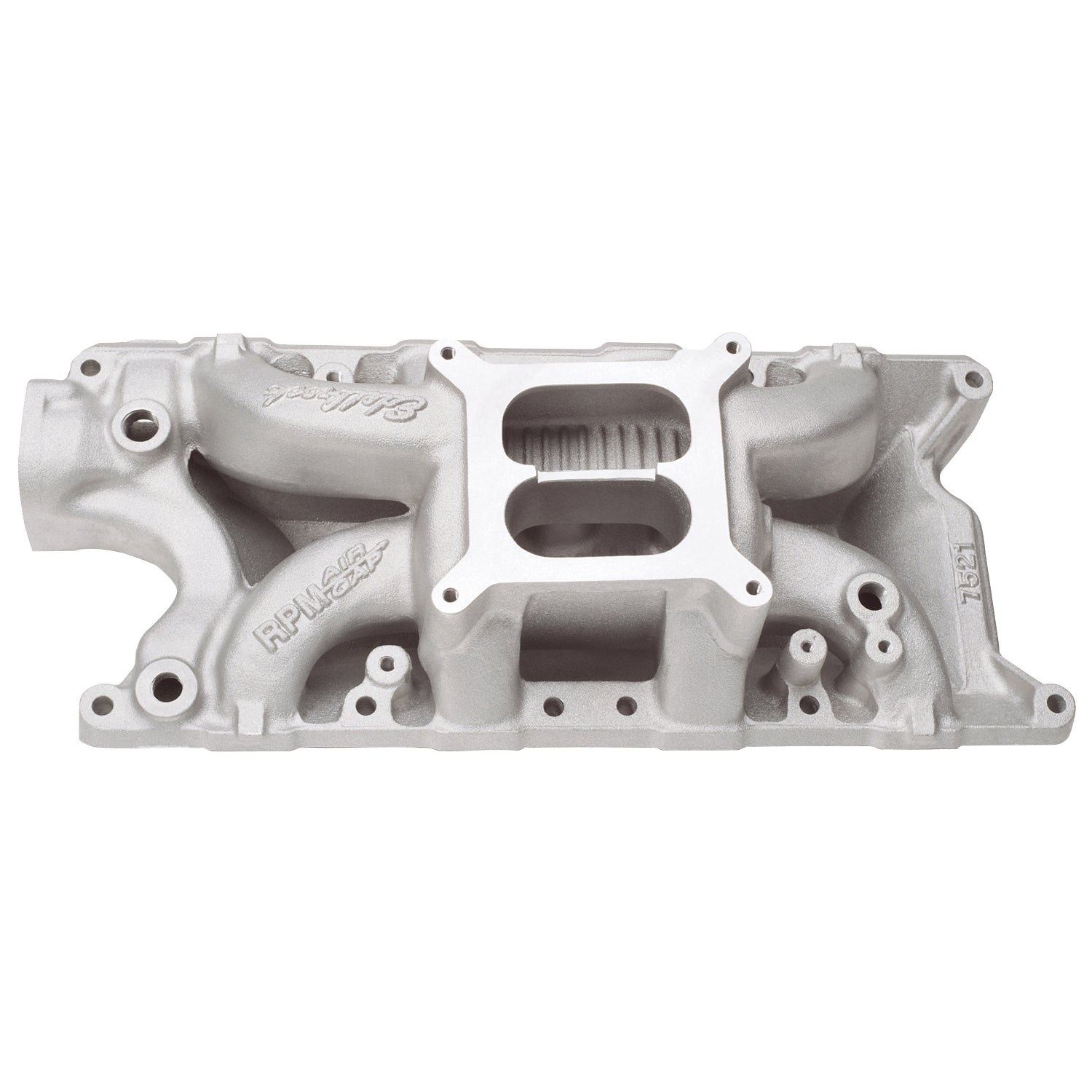

Edelbrock Part # 7521 RPM Air-Gap intake manifold is designed for small-block 302/331/347 Ford V8. Perfect for hot rodders, street machiners, bracket racers or any builder looking for optimum performance in the 1,500-6,500 RPM range. |
| Description_DES |
RPM Air-Gap #7521 Intake Manifold for Small-Block Ford 302-331-347 V8 |
| Description_MKT |
Edelbrock Part #7521 RPM Air-Gap intake manifold is designed for the small-block 302 CID Ford V8 or 331-347 stroker applications. The RPM Air-Gap incorporates the same race-winning technology that?s been used on our Victor Series competition intakes and is the perfect manifold for hot rodders, street machine enthusiasts, bracket racers or any builder looking for optimum performance in the 1,500-6,500 RPM range with a serious look of horsepower under the hood. The Air-Gap design features an open air space under the plenum that separates the runners from the hot engine resulting in a cooler, denser charge for more power. The 7521 RPM Air-Gap features larger runners (7% at the plenum entries) than the standard 7121 Performer RPM design that is beneficial to larger CID stroker engines. The 7521 includes nitrous bosses but no provision for exhaust heated chokes and no exhaust crossover. Edelbrock carbs will work with Ford automatic overdrive trans (AOD) when used with Lokar bracket SRK-4000. For more info go to www.lokar.com. |
| Description_LAB |
Edelbrock RPM Air-Gap #7521 Intake Manifold for Small-Block Ford 302-331-347 V8 |
| Description_FAB |
RPM Air-Gap for 302-331-347 Small-Block Ford V8 |
| Description_FAB |

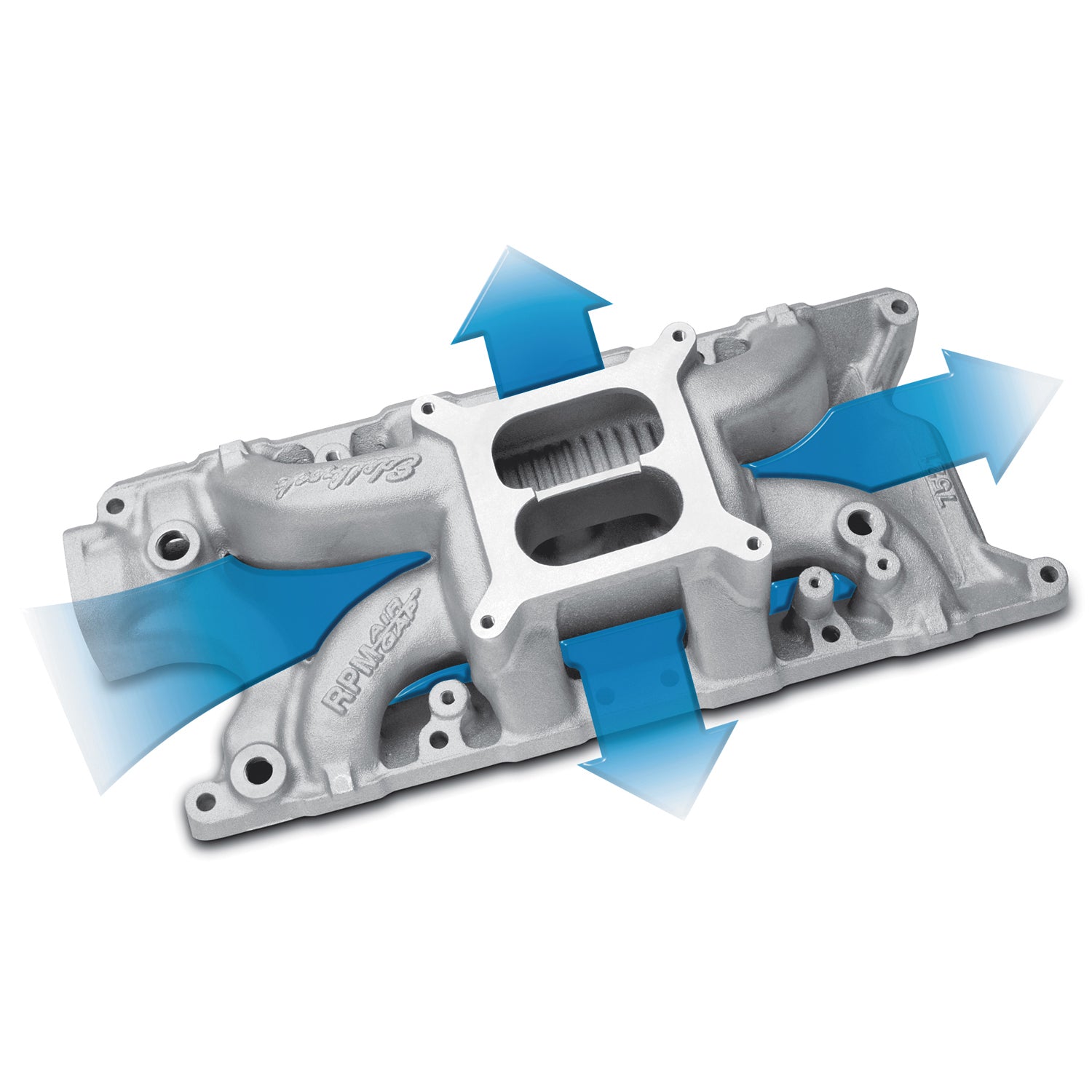

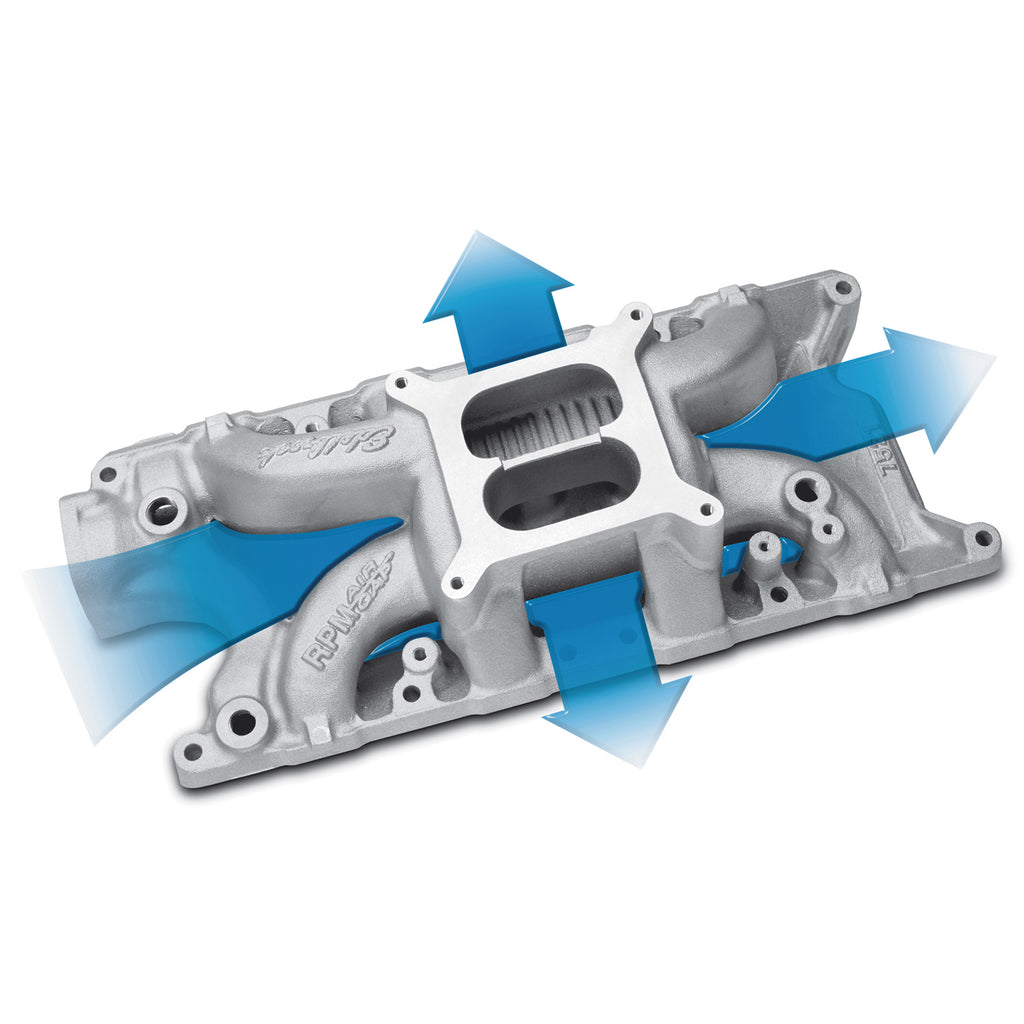

Air-Gap design features an open air space under the plenum |
| Description_FAB |
Separates fuel and air from engine heat |
| Description_FAB |
Larger runners over standard 7121 manifold |
| Description_FAB |
Includes nitrous bosses |
| Description_INV |
RPM Air-Gap Intake Manifold for SBF |
| Description_TRA |
Will not fit 255 c.i.d. V8 |
| Description_TRA |
Not recommended for 289 |
| Description_TRA |
Recommended intake gasket: Edelbrock #7220 |
| Description_TRA |
Manifold Height: A-4.30", B-5.50" |
| Description_TRA |
Carb pad height: 4.90" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 or Performer Series 600-800 cfm. For automatic transmissions use #1483 and #1490 or #1844. |
| Description_TRA |
Port exit dimensions: 1.04" x 1.85" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| CNC Ported |
No |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Front Maximum Height |
4.300 |
| Vehicle Model |
Ford |
| Basic Operating RPM Range |
1500-6500 |
| Finish |
Satin |
| EGR Port |
No |
| Flange Type |
4150 |
| Center Maximum Height |
4.900 |
| Grade Type |
Performance |
| Gasket Or Seal Included |
No |
| Series |
RPM Air-Gap |
| Material |
Aluminum |
| Single Or Dual Plane Type |
Dual |
| Rear Maximum Height |
5.500 |
| Length |
8.0000 |
| Width |
15.0000 |
| Height |
24.0000 |
| Weight |
20.0000 |
