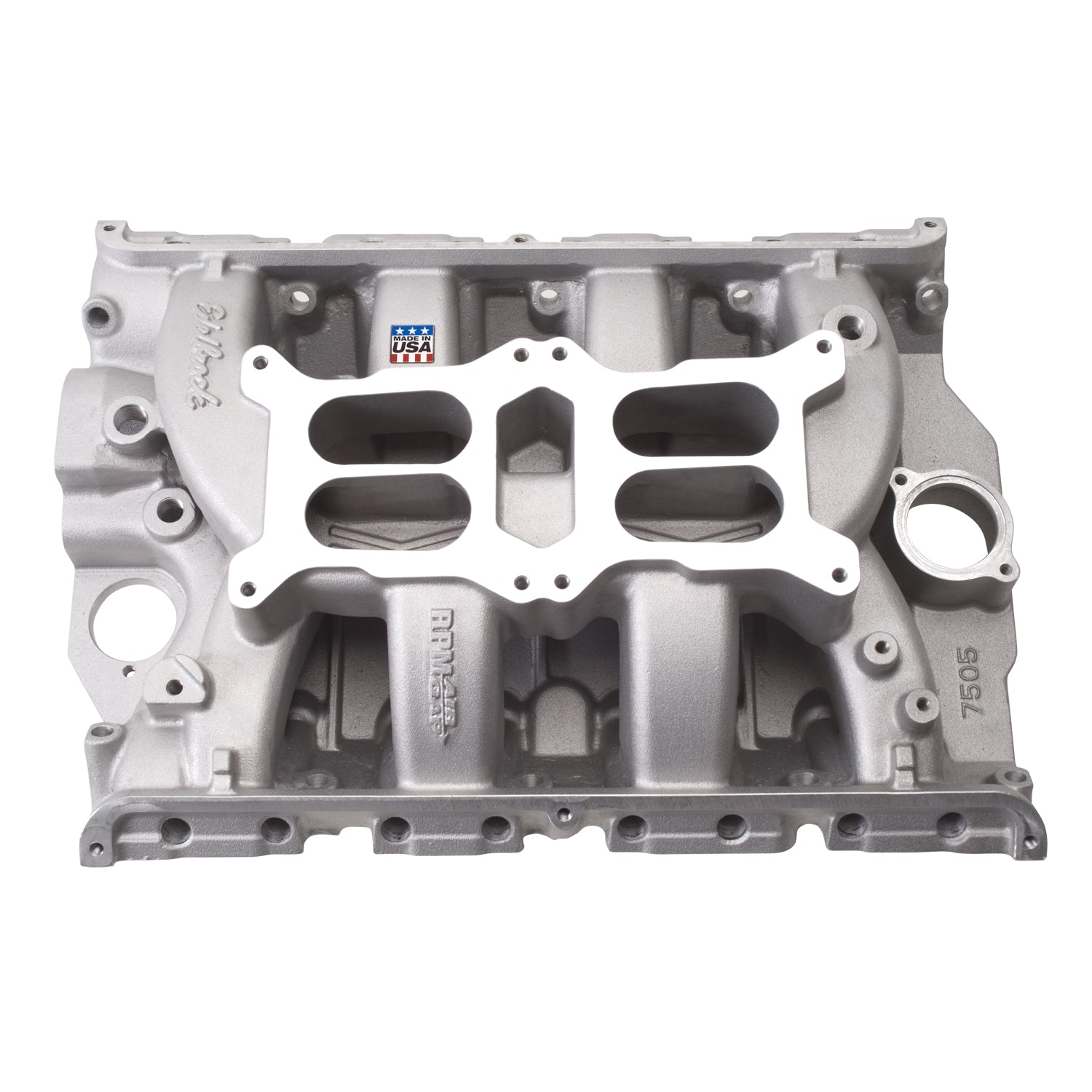

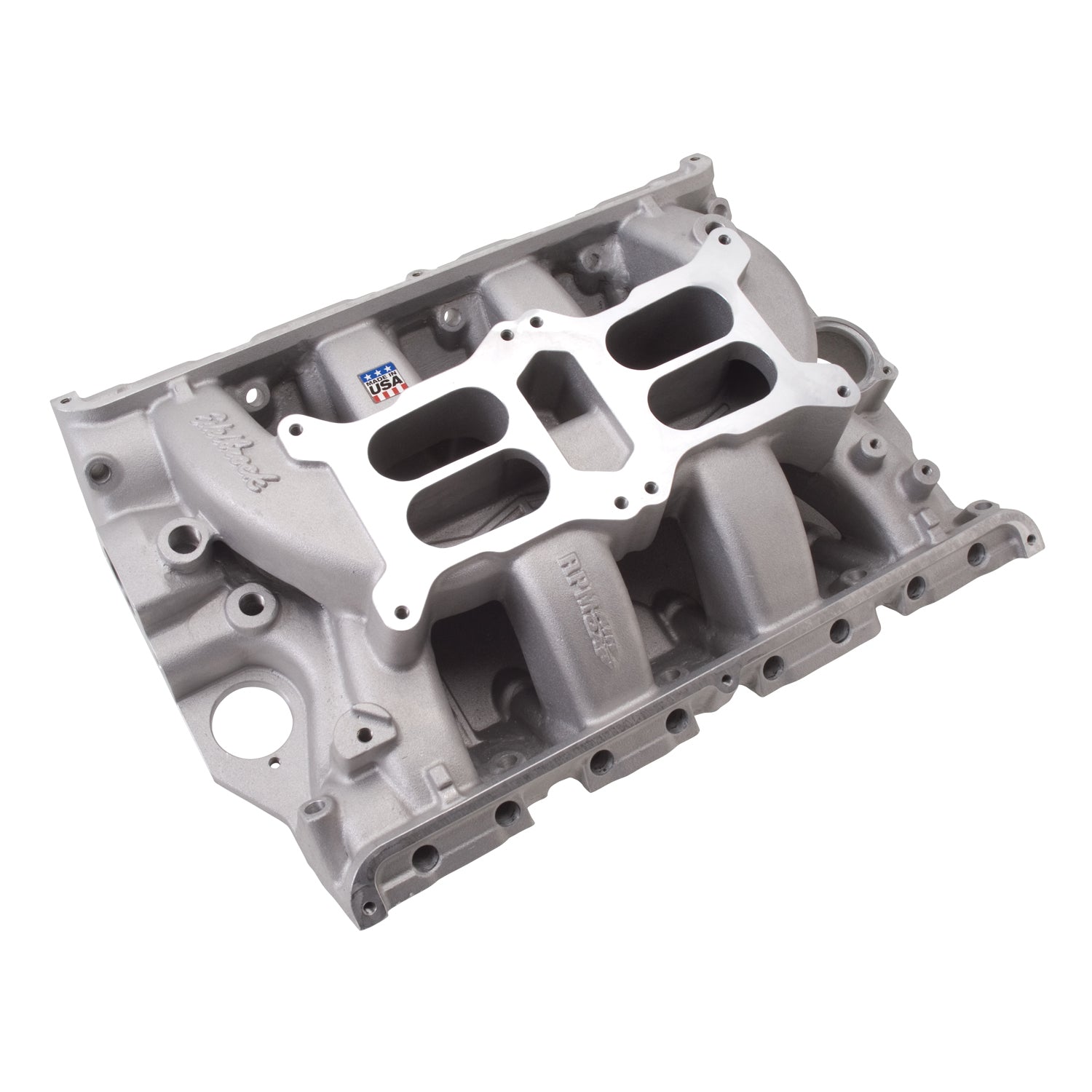

Edelbrock part #7505 RPM Air-Gap Dual-Quad FE #7505 intake manifold is designed for 1960-later high-performance's street 390-406-410-427-428 c.i.d. Ford FE engines with low/medium rise or Edelbrock Performer RPM FE heads #60059 or #60069. The manifold carb pad is setup to fit Edelbrock carburetors only, will not work with other square flange carburetors. In Dyno tests on a 390 with Performer RPM heads #60069, Performer RPM camshaft #7106 Thunder Series AVS #1803 and #1804 carburetors, it made 452 hp and 428 ft-lbs. torque. Will not fit 427 Ford Hi-Riser and Tunnel Port engines. Has machined boss for a breather flange at rear.
Specifications:
| Description_ABR |
Intake Mnfld |
| Description_ASM |
Ford:FE:390 (6.4L)-428 (7.0L) |
| Description_DEF |
Engine Intake Manifold |
| Description_EXT |
Edelbrock RPM Air-Gap Dual-Quad FE Intake Manifold for 1958-1976 Ford 332-428 FE Big-Block V-8 |
| Description_INV |
RPM Ford FE Dual Quad Intake Manifold |
| Description_MKT |
Edelbrock part #7505 RPM Air-Gap Dual-Quad FE #7505 intake manifold is designed for 1960-later high-performance's street 390-406-410-427-428 c.i.d. Ford FE engines with low/medium rise or Edelbrock Performer RPM FE heads #60059 or #60069. The manifold carb pad is setup to fit Edelbrock carburetors only, will not work with other square flange carburetors. In Dyno tests on a 390 with Performer RPM heads #60069, Performer RPM camshaft #7106 Thunder Series AVS #1803 and #1804 carburetors, it made 452 hp and 428 ft-lbs. torque. Will not fit 427 Ford Hi-Riser and Tunnel Port engines. Has machined boss for a breather flange at rear. |
| Description_LAB |
RPM Air-Gap Dual-Quad Ford FE 390 Intake Manifold |
| Description_TRA |
Recommended intake gasket: Edelbrock #7224. |
| Description_TRA |
Manifold height: A-4.85", B-5.70" |
| Description_TRA |
Carb pad height: 5.28" |
| Description_TRA |
Carb recommendations: Edelbrock AVS2 #1903 and #1904, 500 cfm. |
| Description_TRA |
Port exit dimensions: 1.05" x 1.90" |
| Description_TRA |
Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS. |
| Description_TRA |
Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum. |
| Grade Type |
Performance |
| CNC Ported |
No |
| Flange Type |
4150 Dual-Quad (4-Barrel Square Bore) |
| Rear Maximum Height |
5.700 |
| Single Or Dual Plane Type |
Dual |
| Material |
Aluminum |
| Finish |
Satin |
| EGR Port |
No |
| Series |
Dual-Quad/Multi Carb |
| Basic Operating RPM Range |
1500-6500 |
| Center Maximum Height |
5.280 |
| Gasket Or Seal Included |
No |
| Front Maximum Height |
4.850 |
| RGL |
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Vehicle Model |
Ford |
| Length |
9.0000 |
| Width |
16.0000 |
| Height |
24.0000 |
| Weight |
37.0000 |
